Overhead Console

REMOVAL
1. Disconnect the battery ground cable.

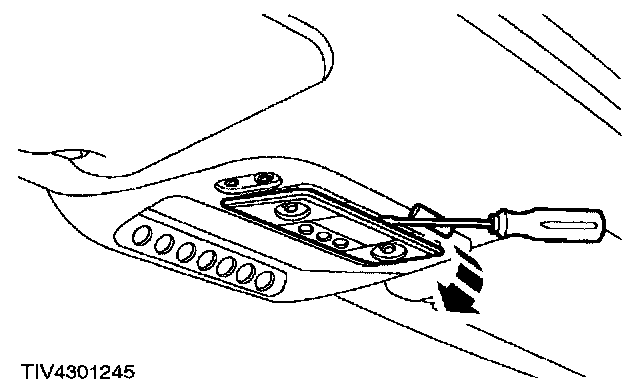

2. Ease out the interior lamp.
- Disconnect the electrical connectors.

NOTE: Remove the interior lamp as a unit.







3. Remove the overhead console screws.







4. Remove the overhead console.

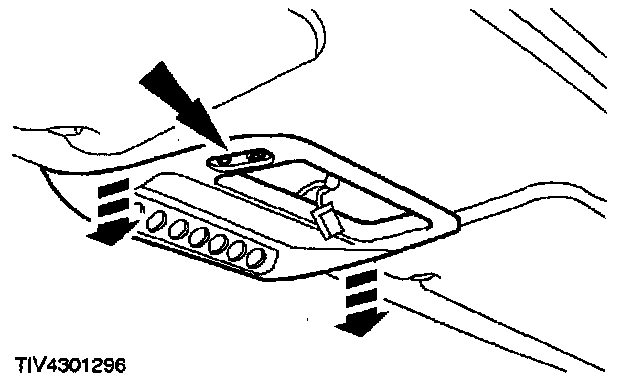

- Apply an even downwards force to both sides of the console.
- Disconnect the roof opening panel switch electrical connector (if equipped).
- Disconnect the information and message center electrical connector (if equipped).

INSTALLATION
1. To install, reverse the removal procedure.
