Floor Console - Vehicles With Manual Transaxle

REMOVAL







1. Remove the gearshift knob.







2. Remove the spring and damping sleeve.

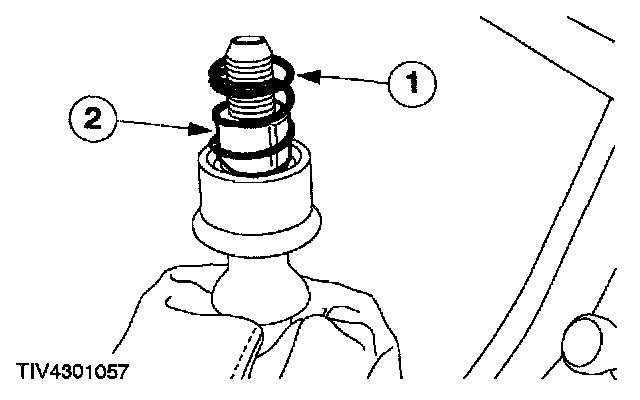

1 Remove the spring.
2 Remove the damping sleeve.

3. Remove the gearshift lever boot.

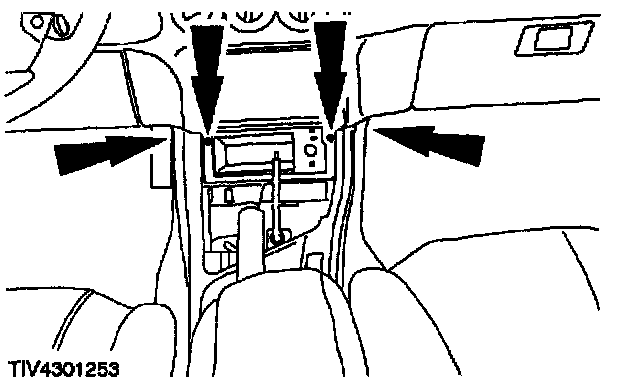

4. Remove the floor console rear screws.
- Raise the armrest to gain access (if equipped).
- Remove the rear cup holder to gain access (console without armrest).

NOTE: Floor console without armrest shown, floor console with armrest similar.

5. Remove ashtray and cigar lighter bezel (if equipped).







6. Remove the stowage tray (if equipped).

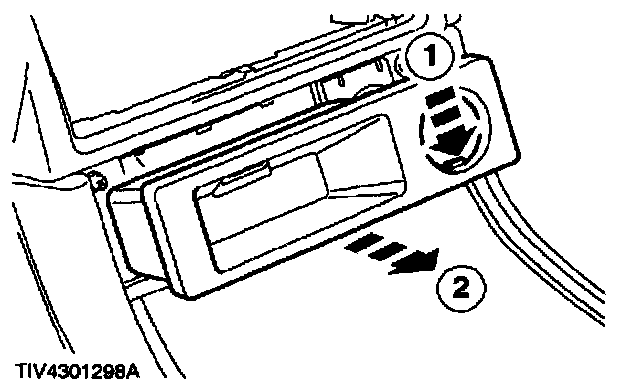

1 Push down on the power socket aperture.
2 Pull out the stowage tray.

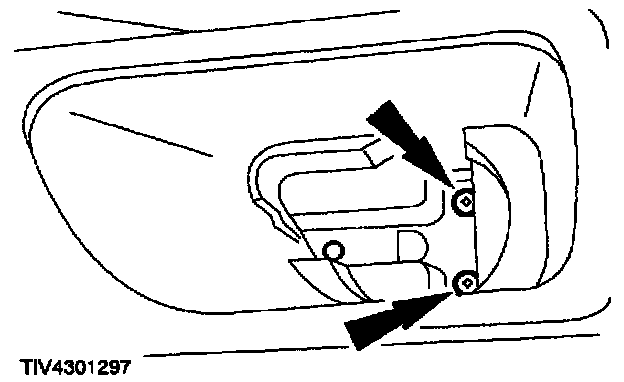

7. Remove the floor console front screws.







8. Remove the floor console.

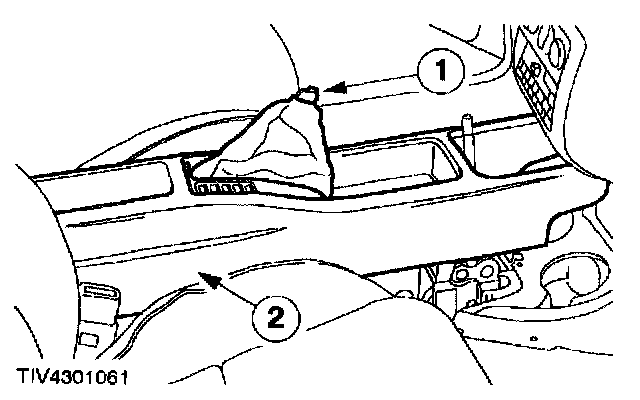

1 Fully raise the parking brake control lever.
2 Remove the console.
- Disconnect the cigar lighter/power socket electrical connector (if equipped).

INSTALLATION
1. To install, reverse the removal procedure.
