Front Fender Liner: Service and Repair

FENDER SPLASH SHIELD

Removal
1. Raise and support the vehicle.
2. Remove the wheel.

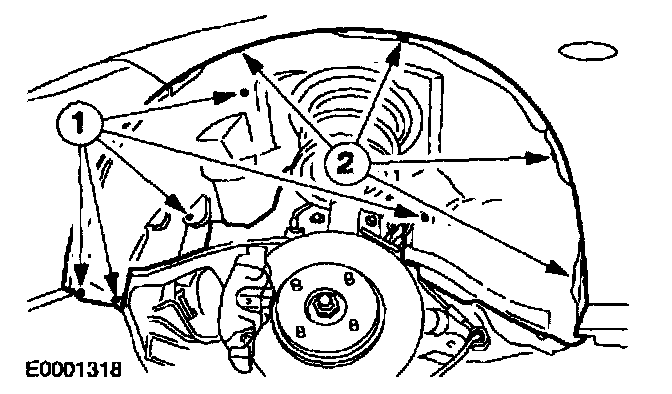

3. Remove the fender splash shield.
1 Remove the screws.
2 Remove the clips.

Installation
1. To install, reverse the removal procedure.
