Front Door Window Glass: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

NOTE: Make sure the window is fully closed.


2. Remove the door trim panel.

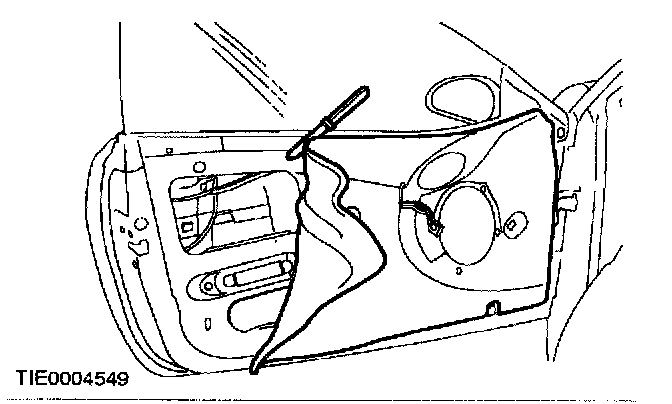

3. Detach the watershield.
^ Using a plastic knife (disposable cutlery), cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired.

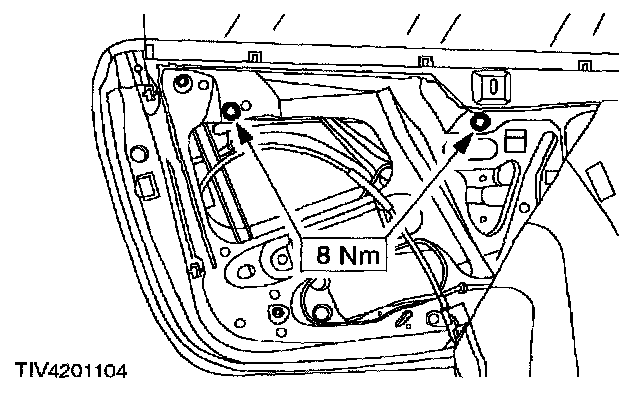

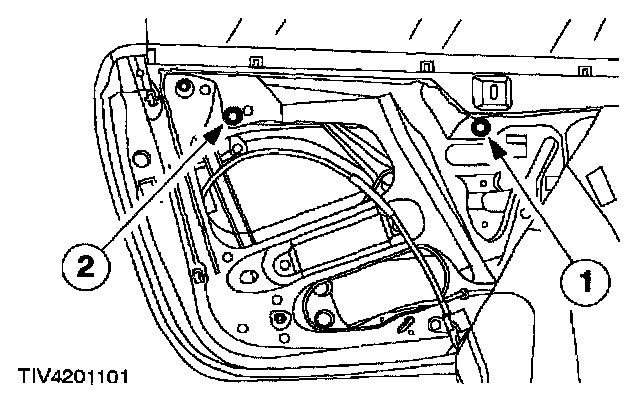

4. Detach the window glass.
1 Loosen the front clamp bolt.
2 Remove the rear clamp bolt.

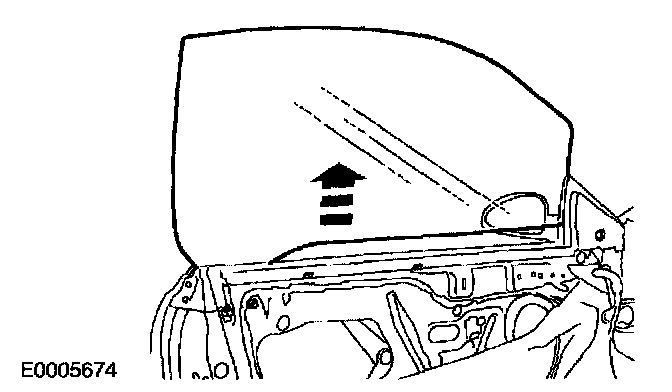

5. Remove the window glass.

INSTALLATION







1. To install, reverse the removal procedure.
