Front Door Panel: Service and Repair

REMOVAL

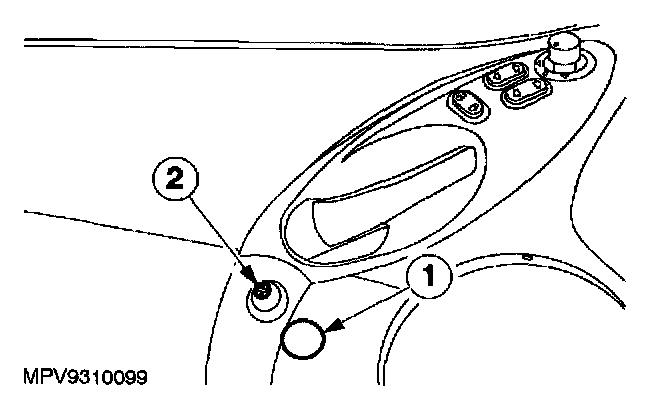

1. Remove the door pull handle screw.
1 Remove the screw cover.
2 Remove the screw.

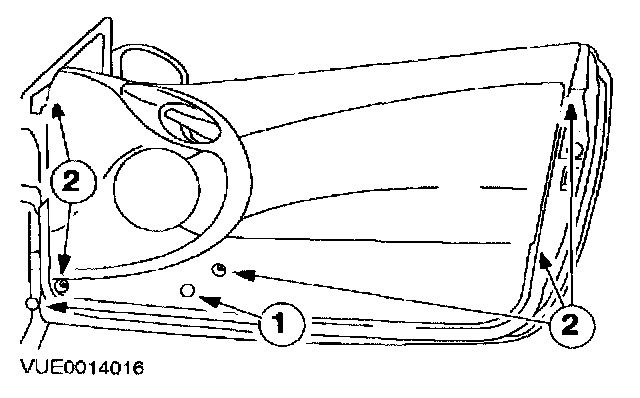

2. Detach the door trim panel.
1 Remove the screw covers.
2 Remove the screws and detach the door trim panel.

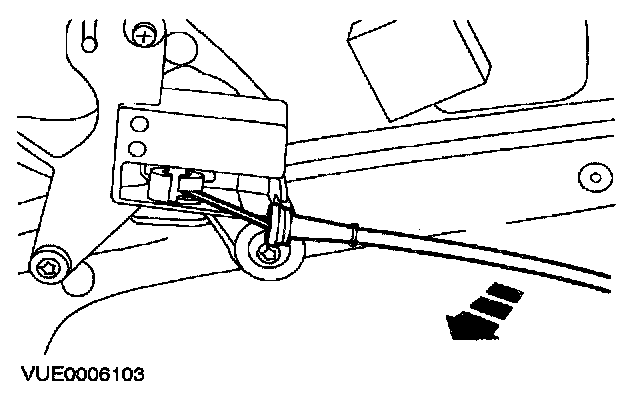

3. Detach the remote door release cable.

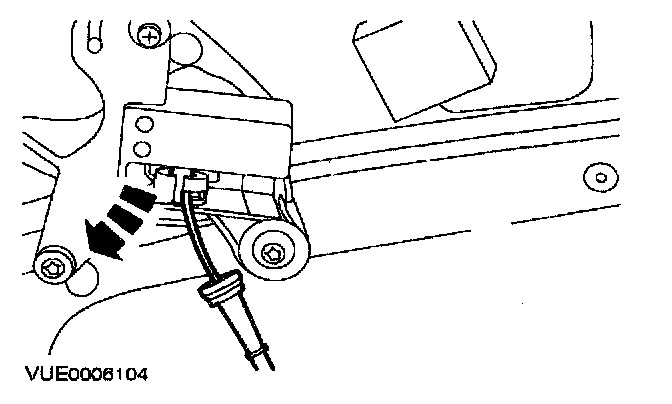

4. Disconnect the remote door release cable.

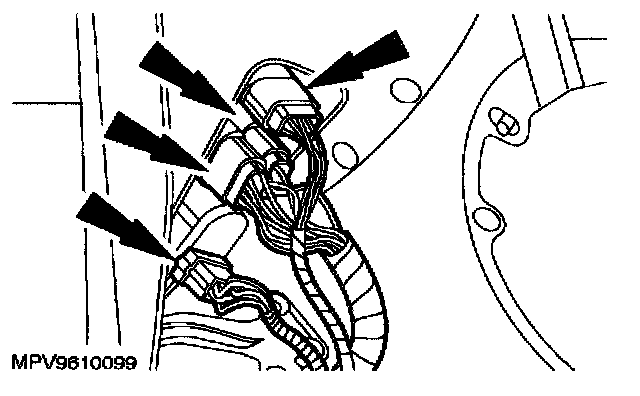

5. Disconnect the electrical connectors and remove the door trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
