Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test F: Rear Window Wiper Is Inoperative

Test F: Rear Window Wiper Is Inoperative

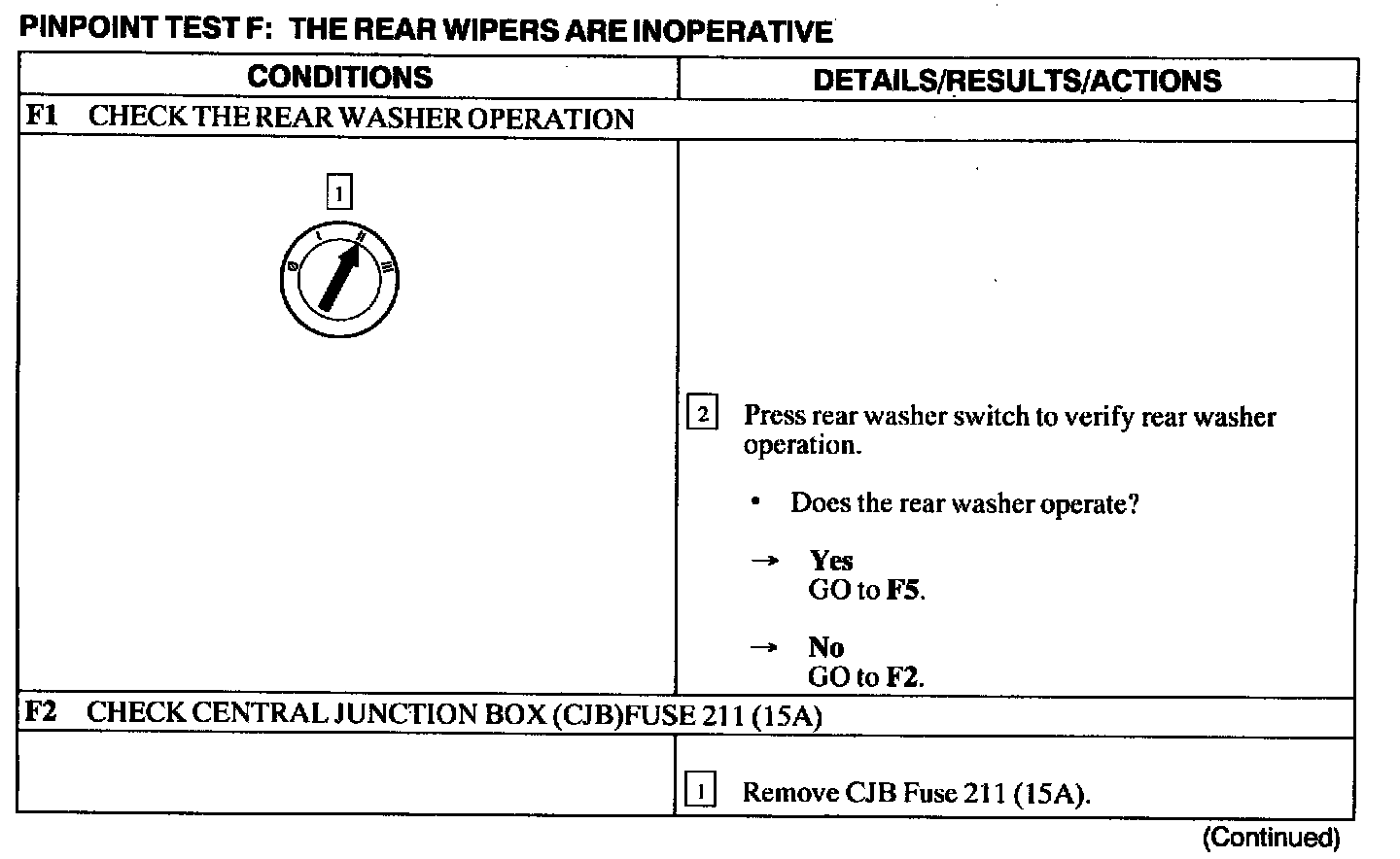

F1 - F2:

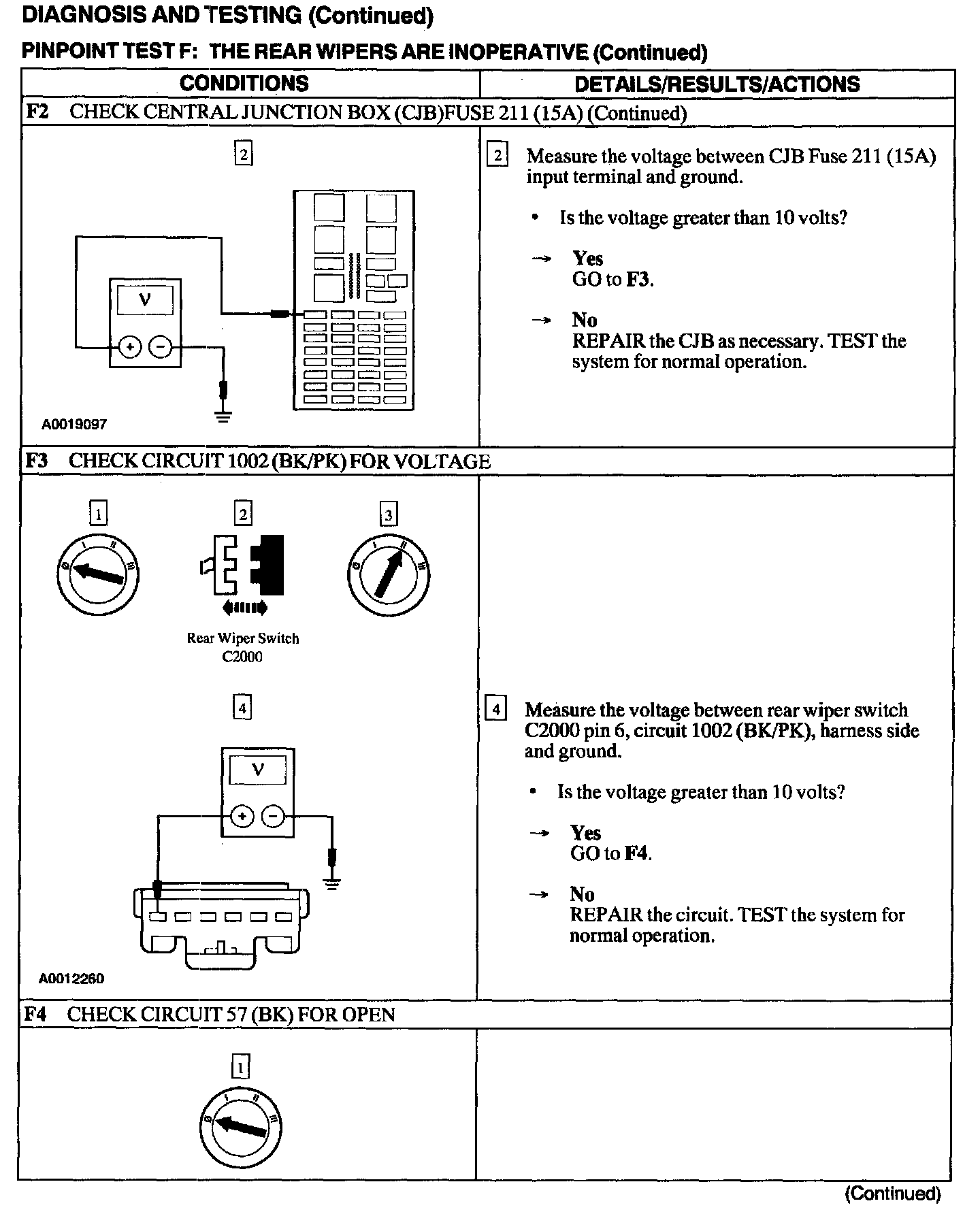

F2 - F4:

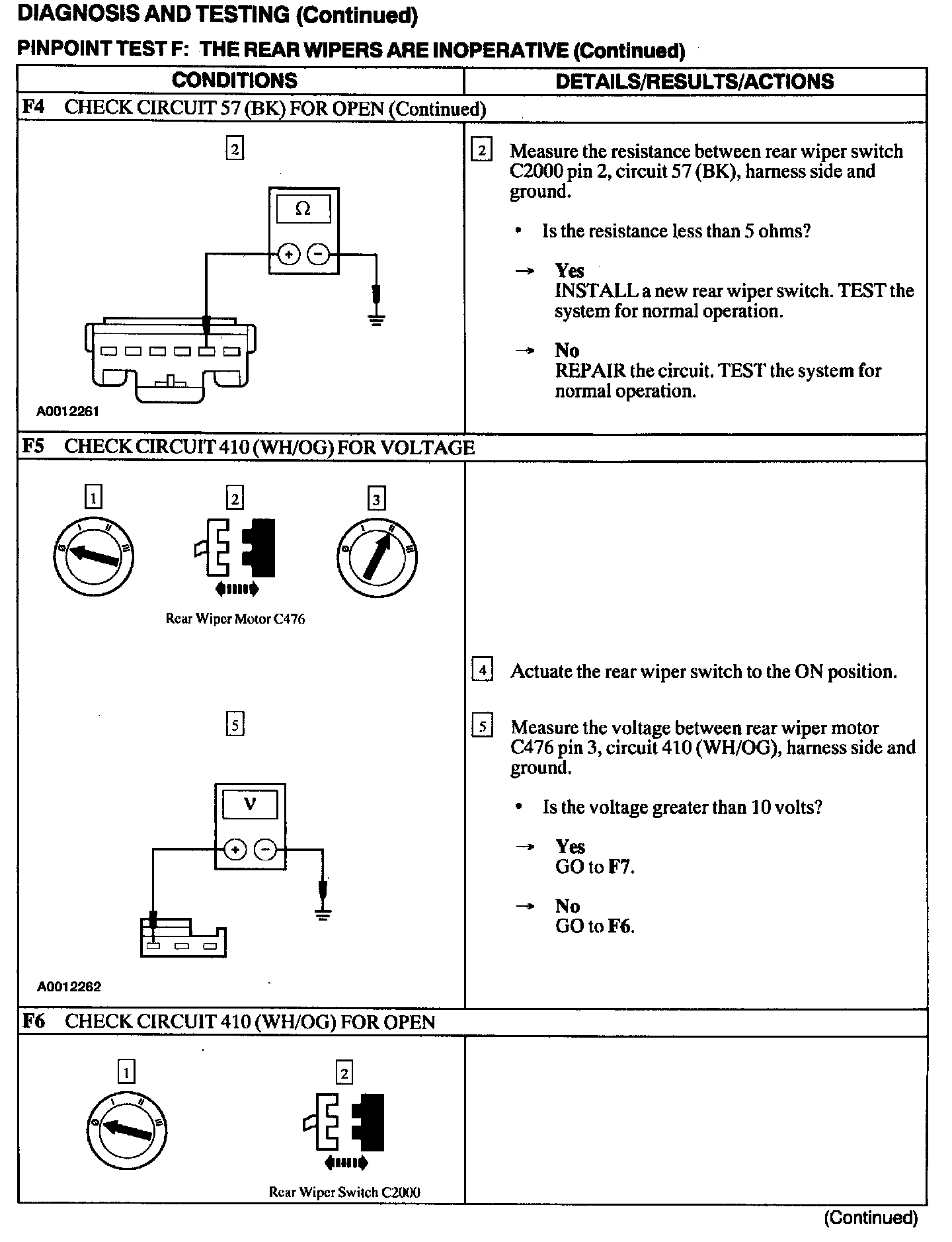

F4 - F6:

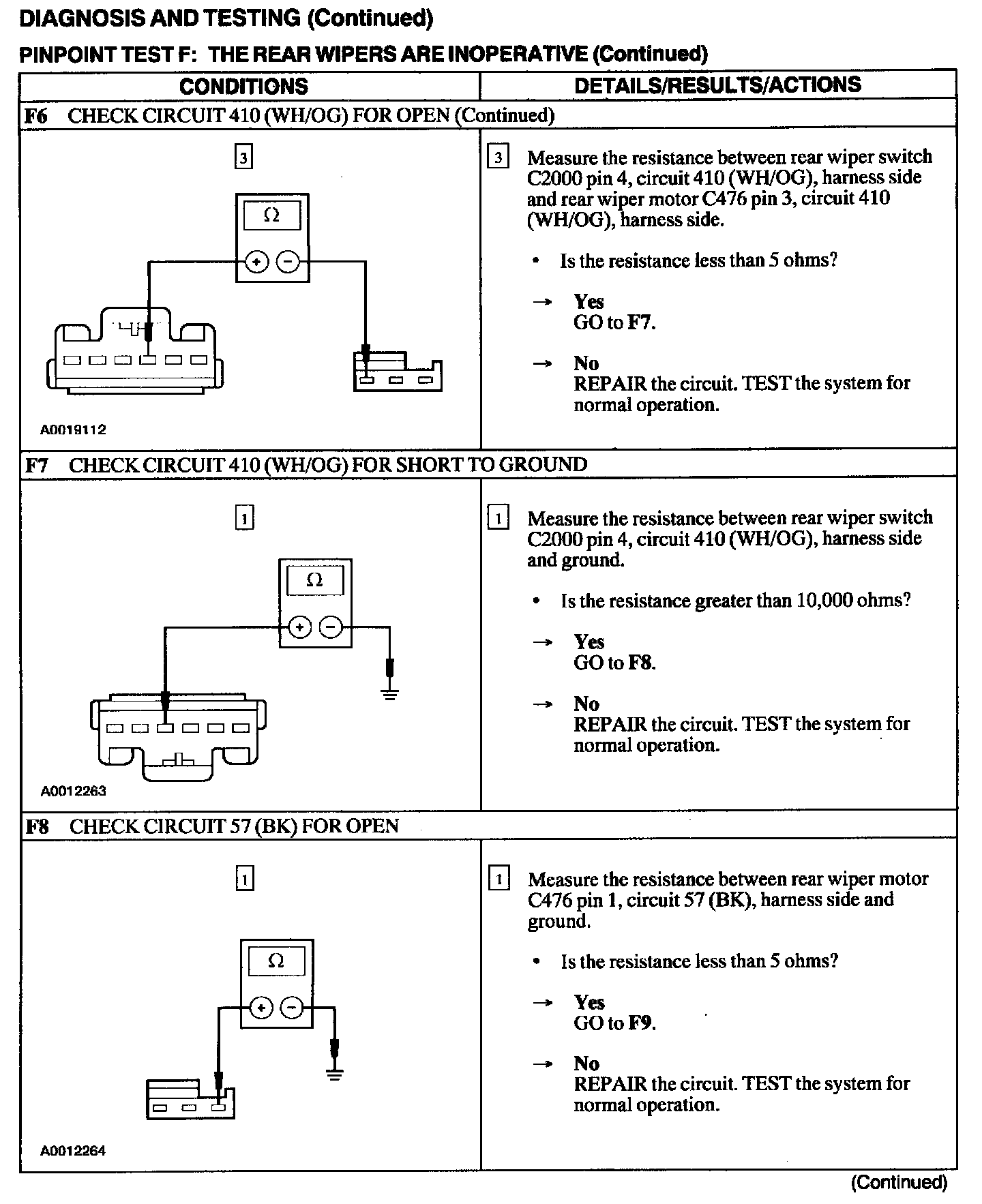

F6 - F8:






F9:
