Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 4F50N (AX4N) Automatic Transaxle >> Torque Converter Operation Concerns >> 242/342: Cycling/Shudder/Chatter

242/342: Cycling/Shudder/Chatter

TORQUE CONVERTER OPERATION CONCERN: CYCLING/SHUDDER/CHATTER

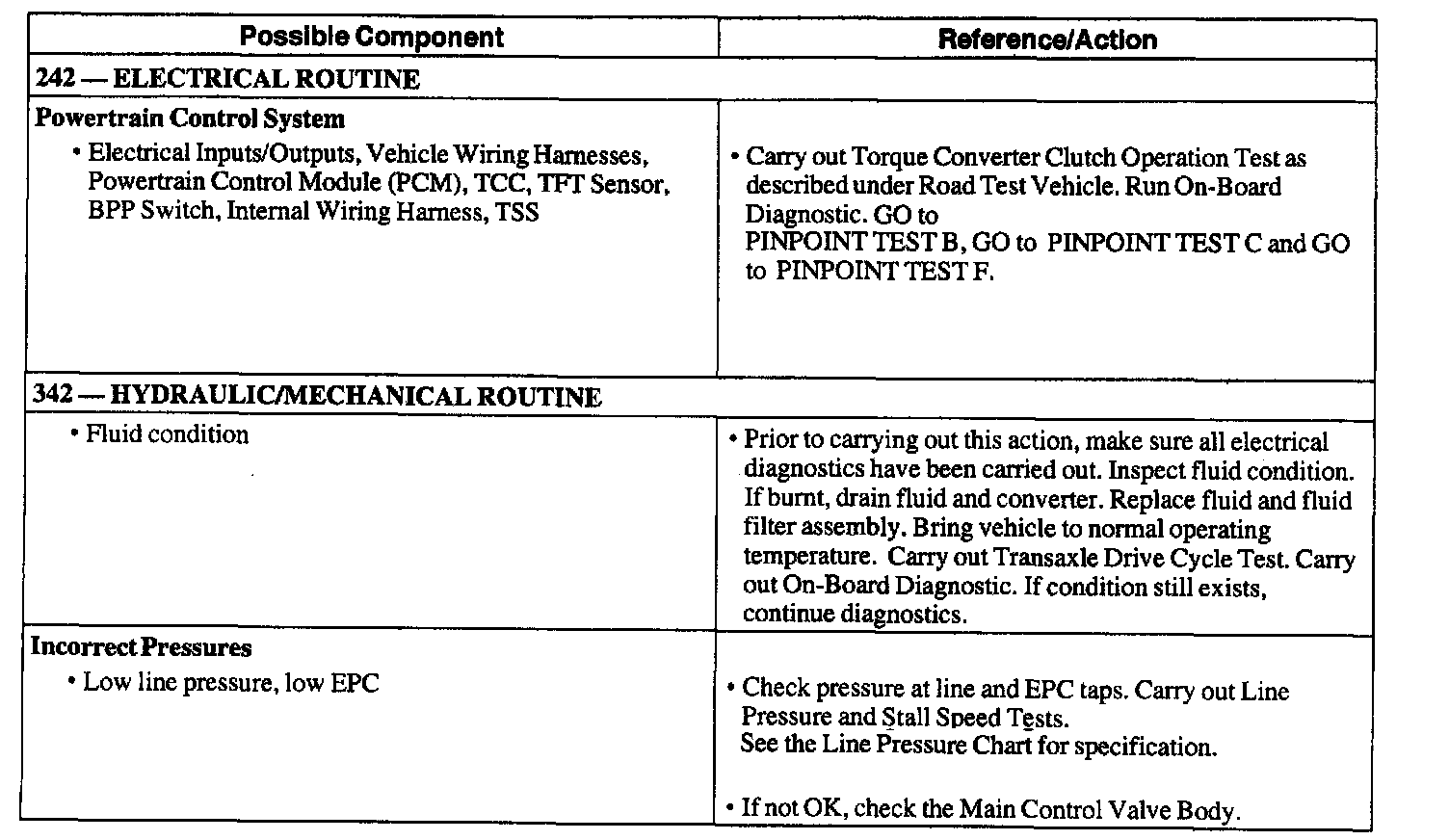

Part 1 of 2

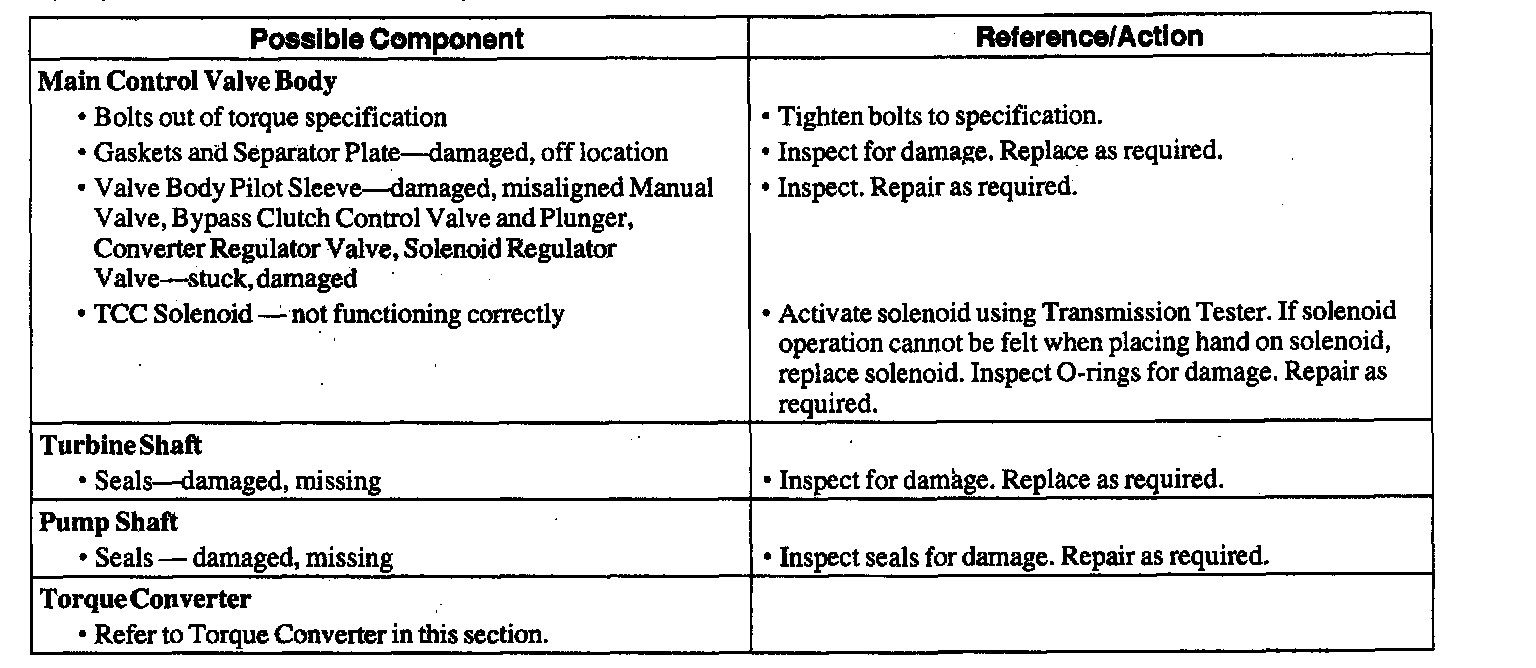

Part 2 of 2
