Symptom Index

Diagnosis by Symptom Index

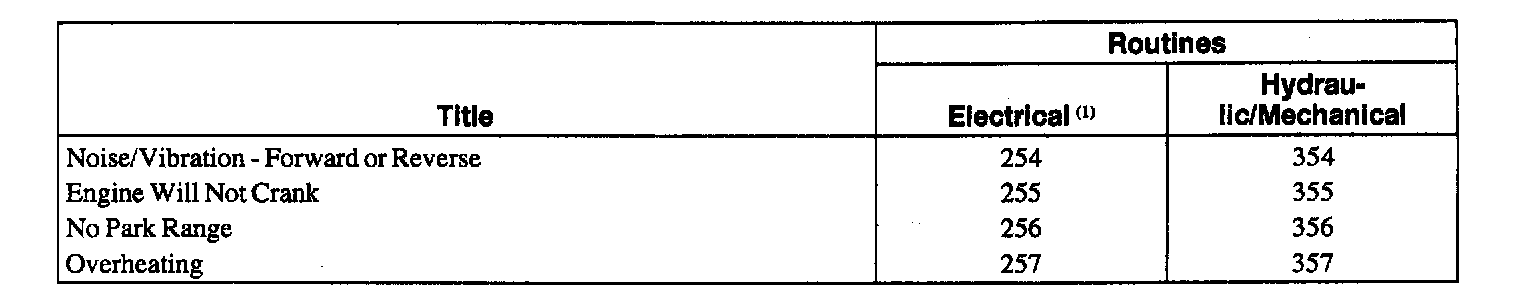

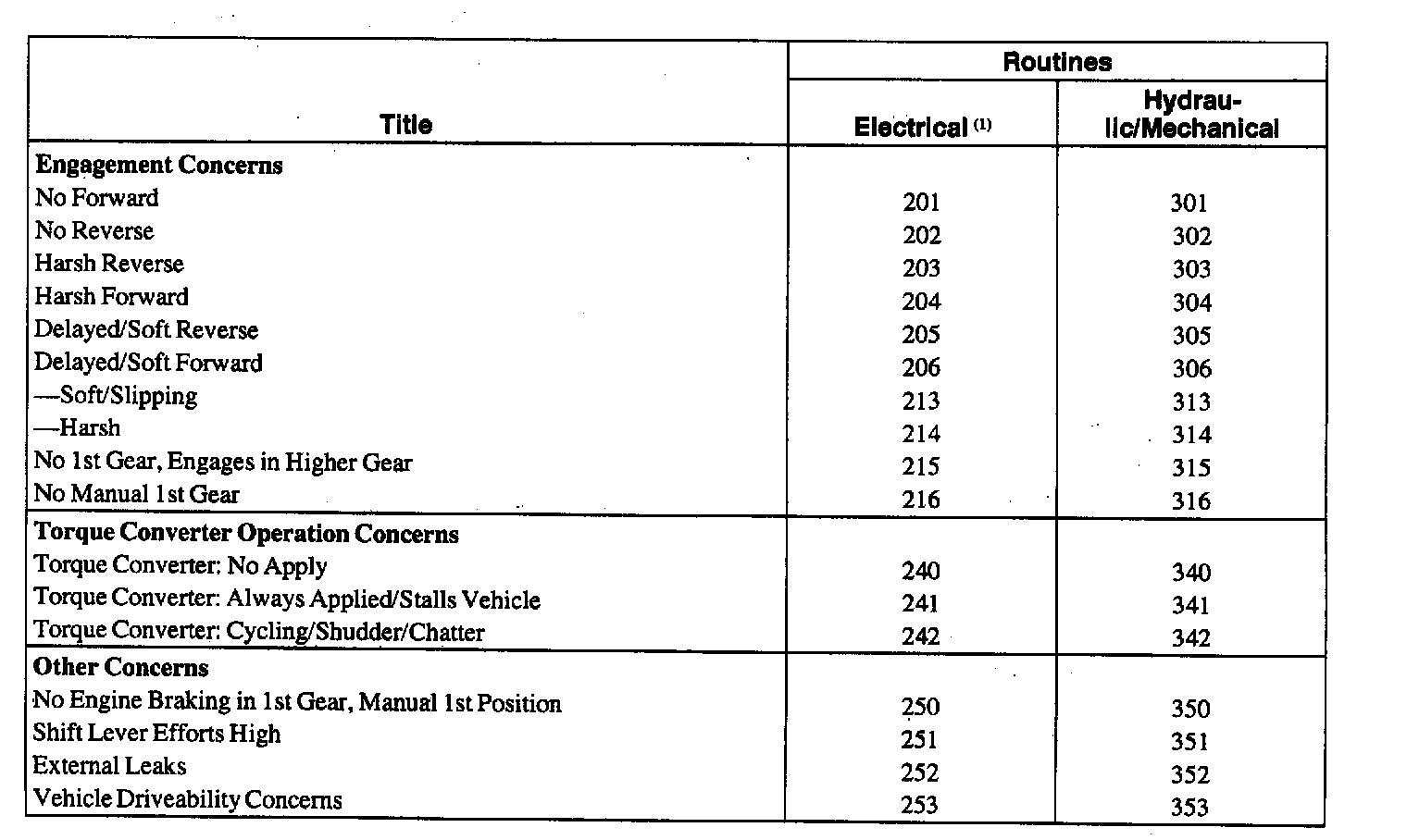

Part 1 of 2





Part 2 of 2

(1) Carry out electrical routine first.
