Test A: Shift Interlock System Does Not Release/Lock Correctly

PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

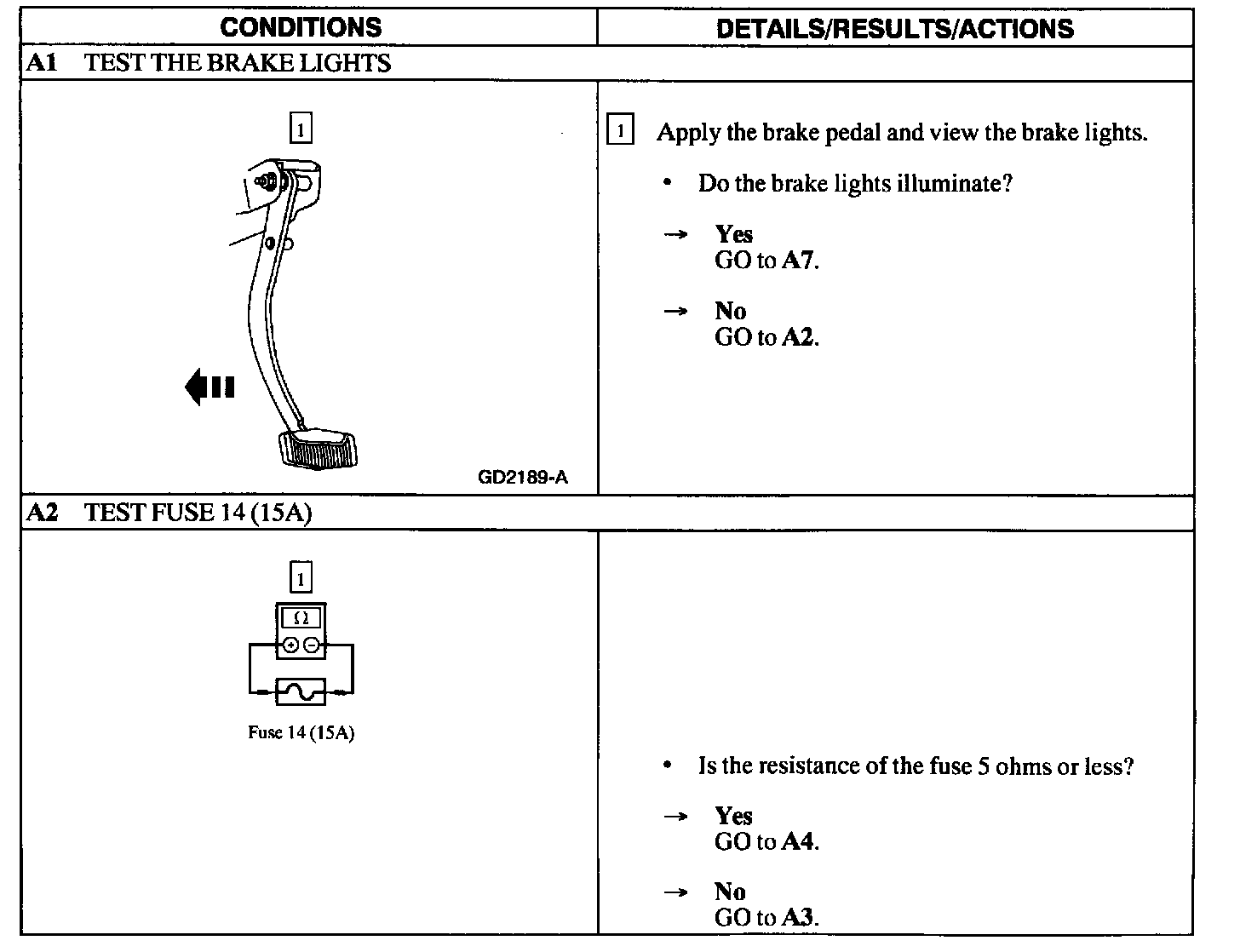

Test A1-A2

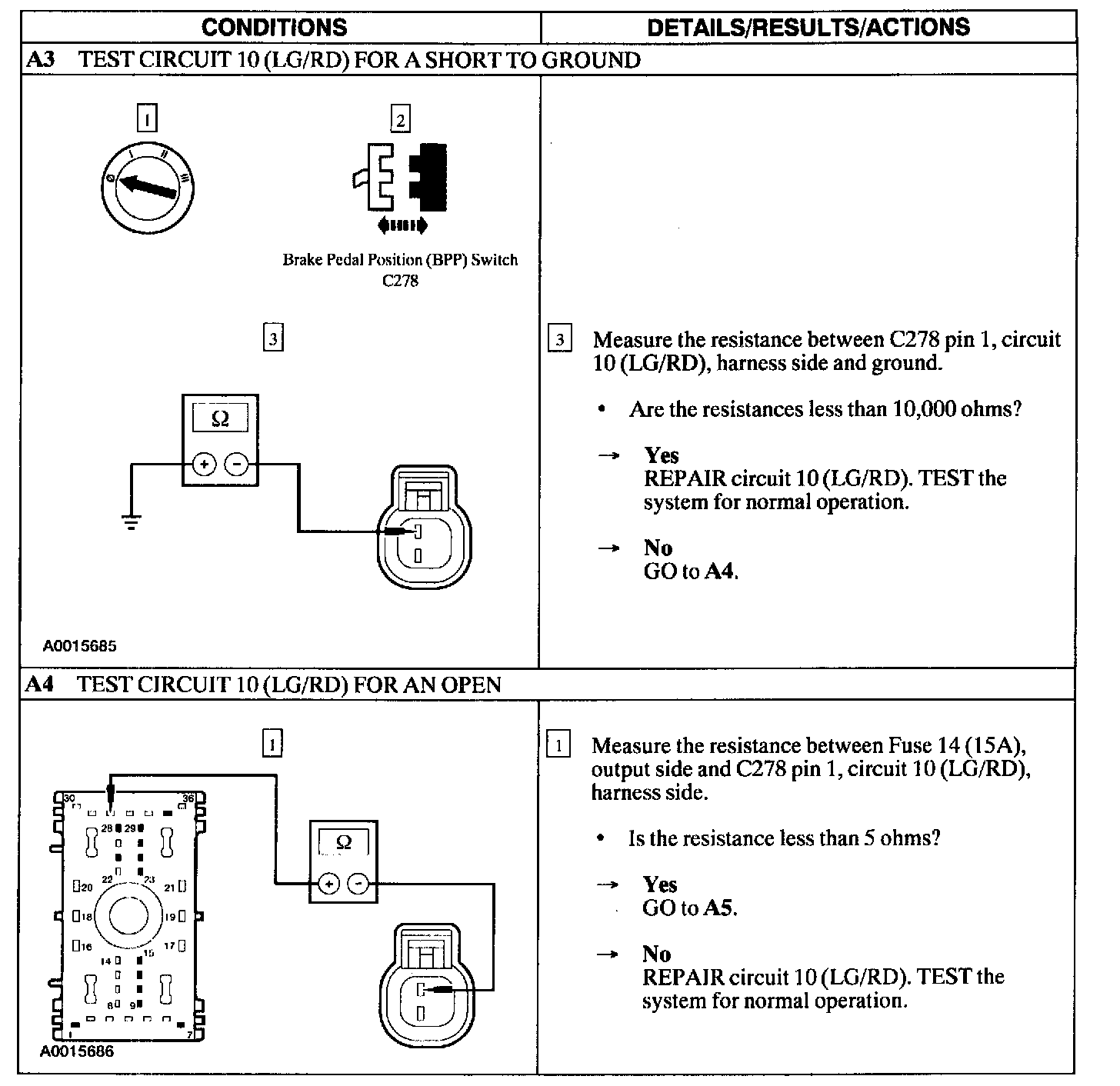

Test A3-A4

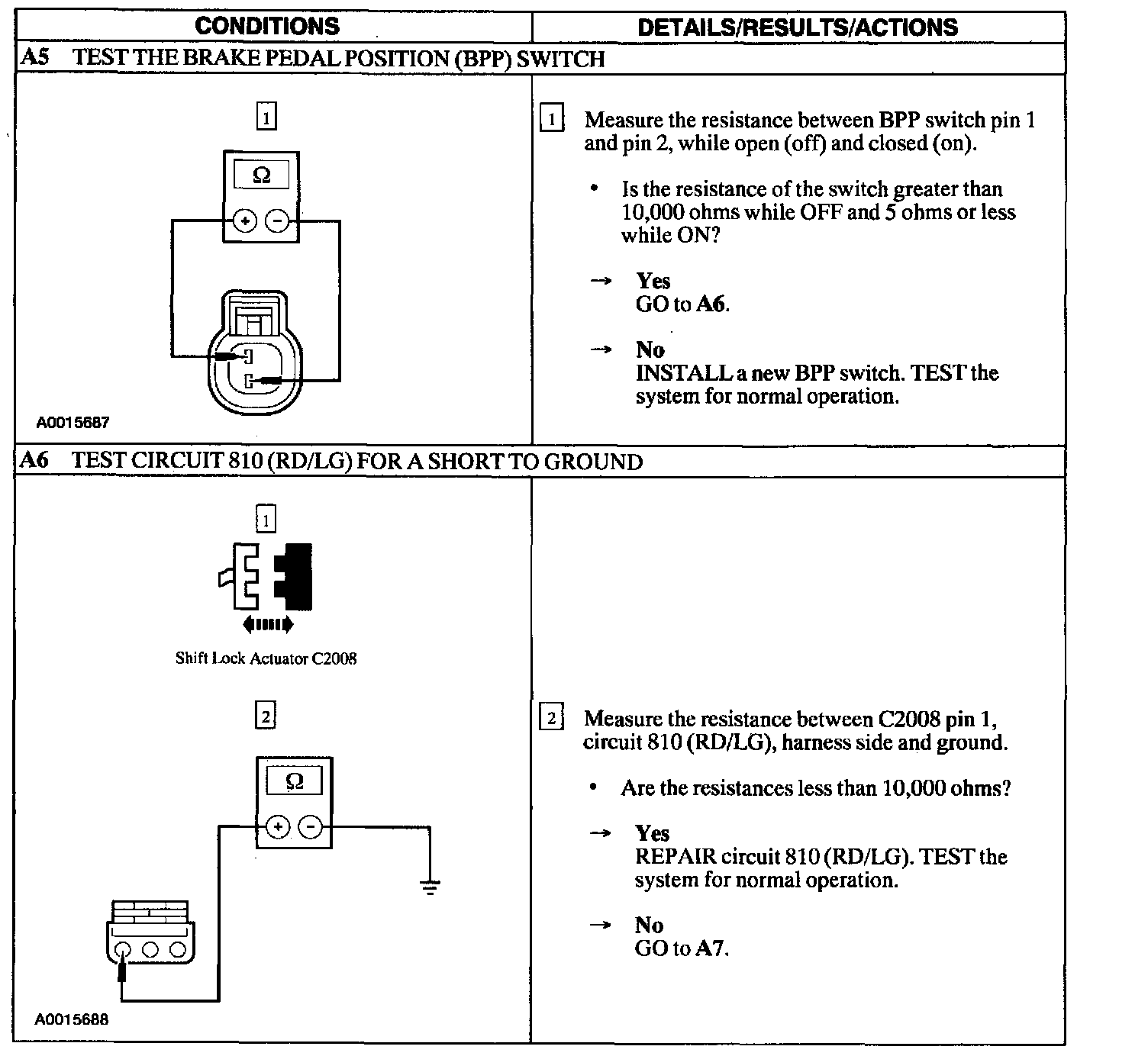

Test A5-A6

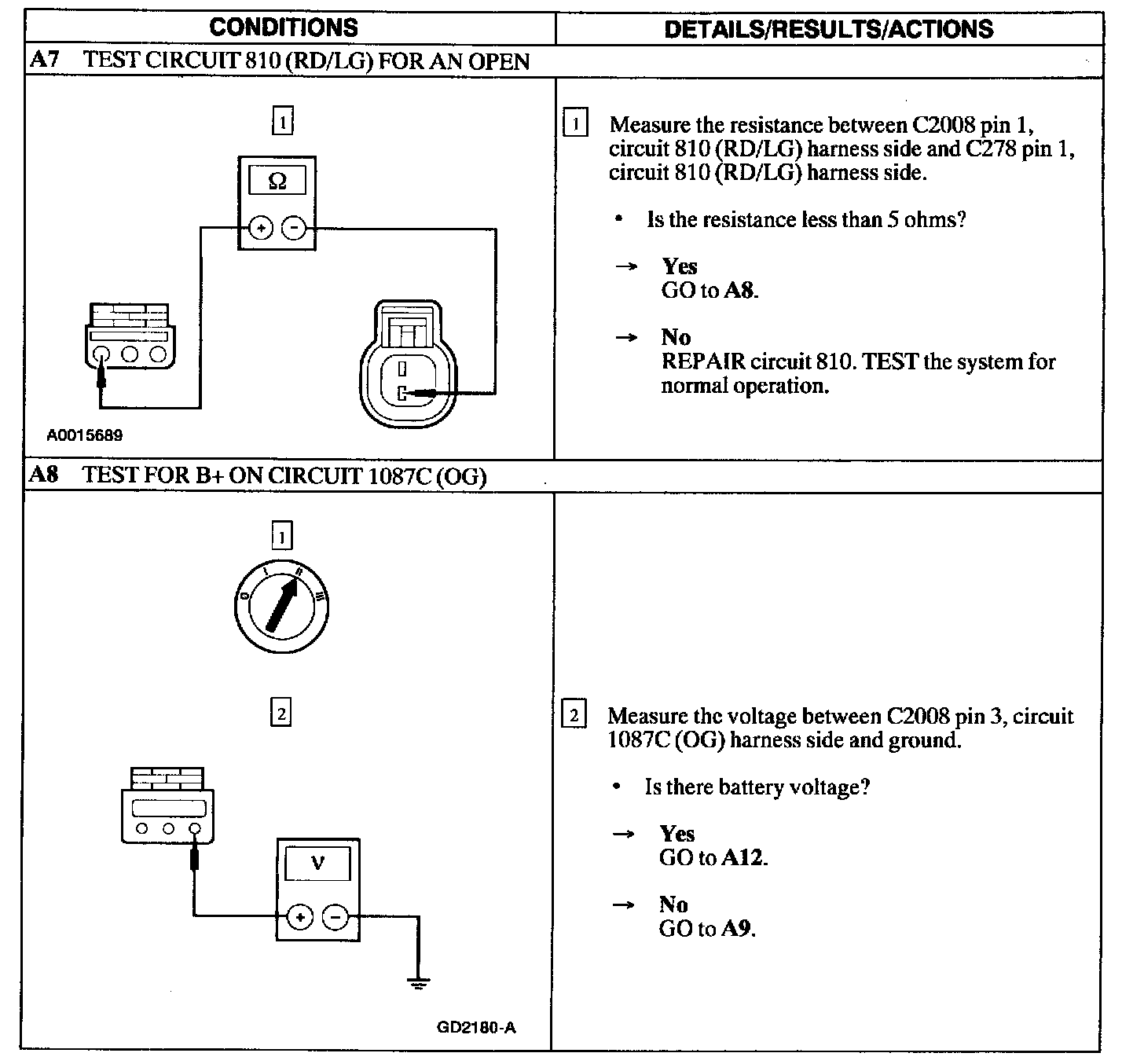

Test A7-A8

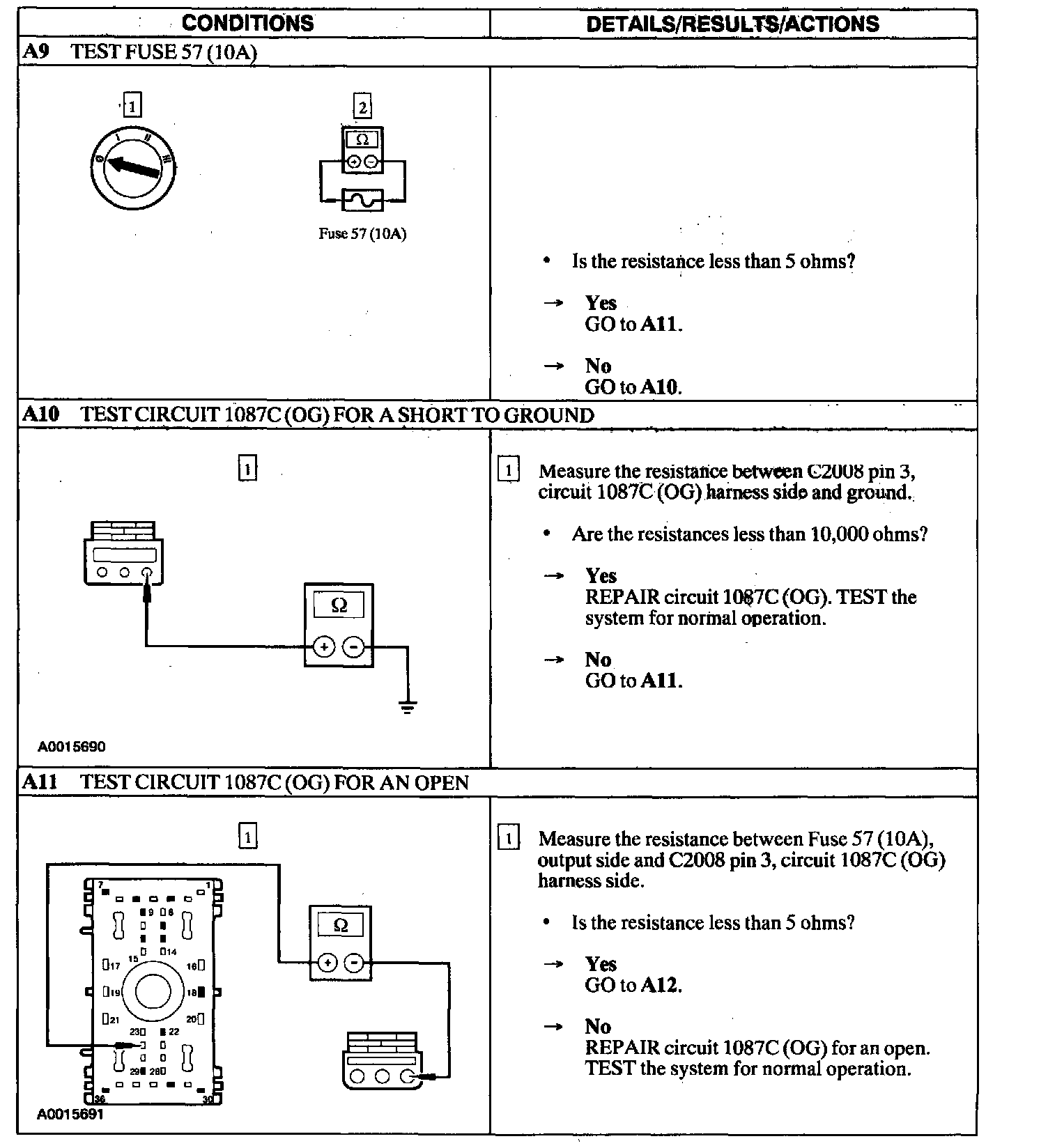

Test A9-A11

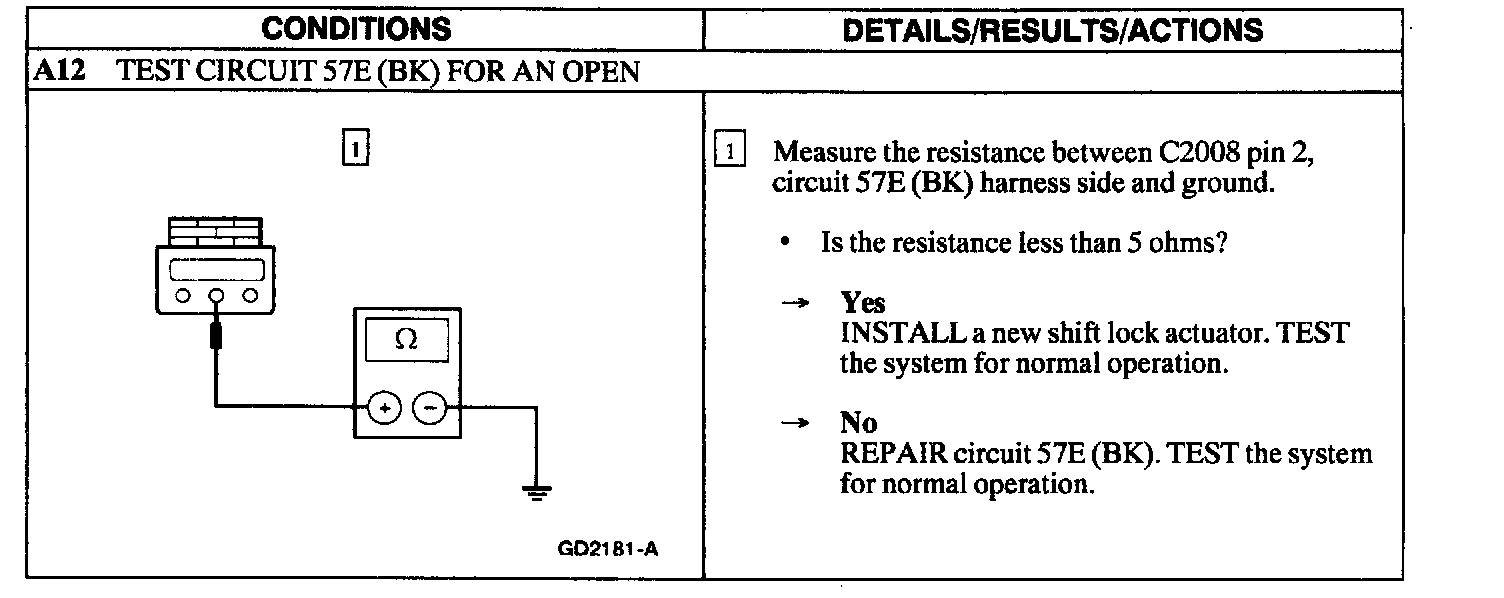

Test A12
