Test B: Transmission Fluid Temperature (TFT) Sensor

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR

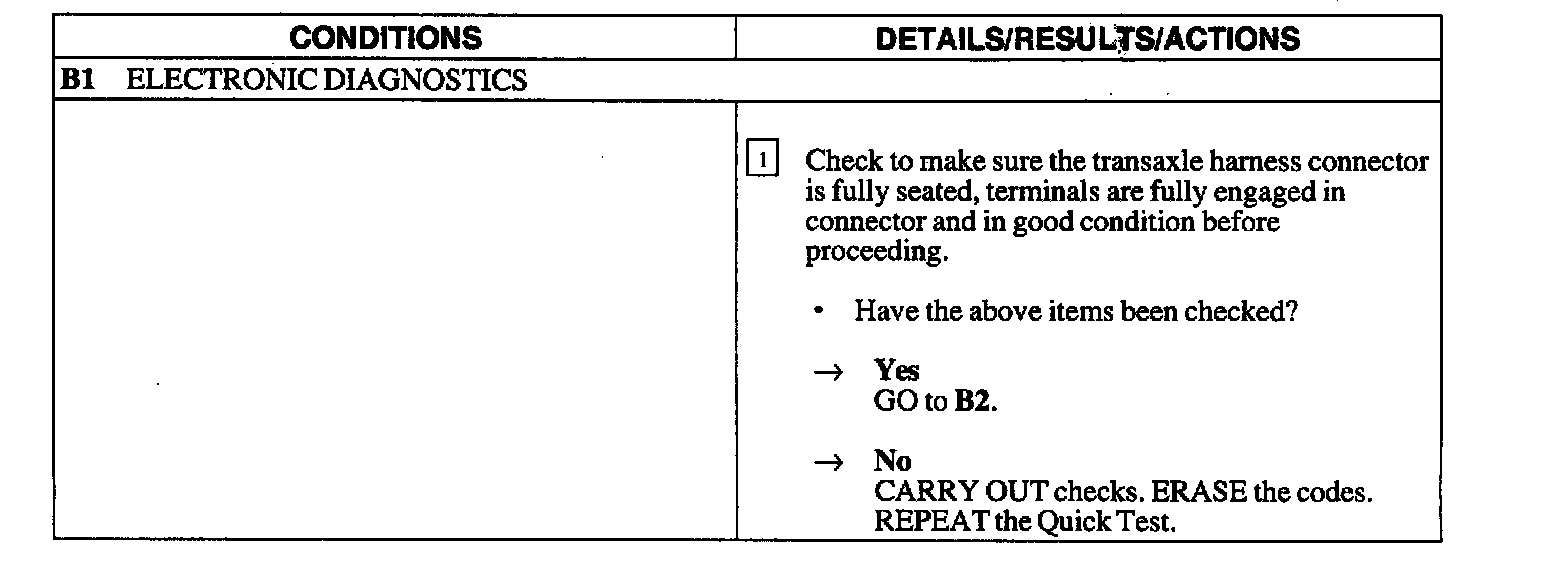

Test B1

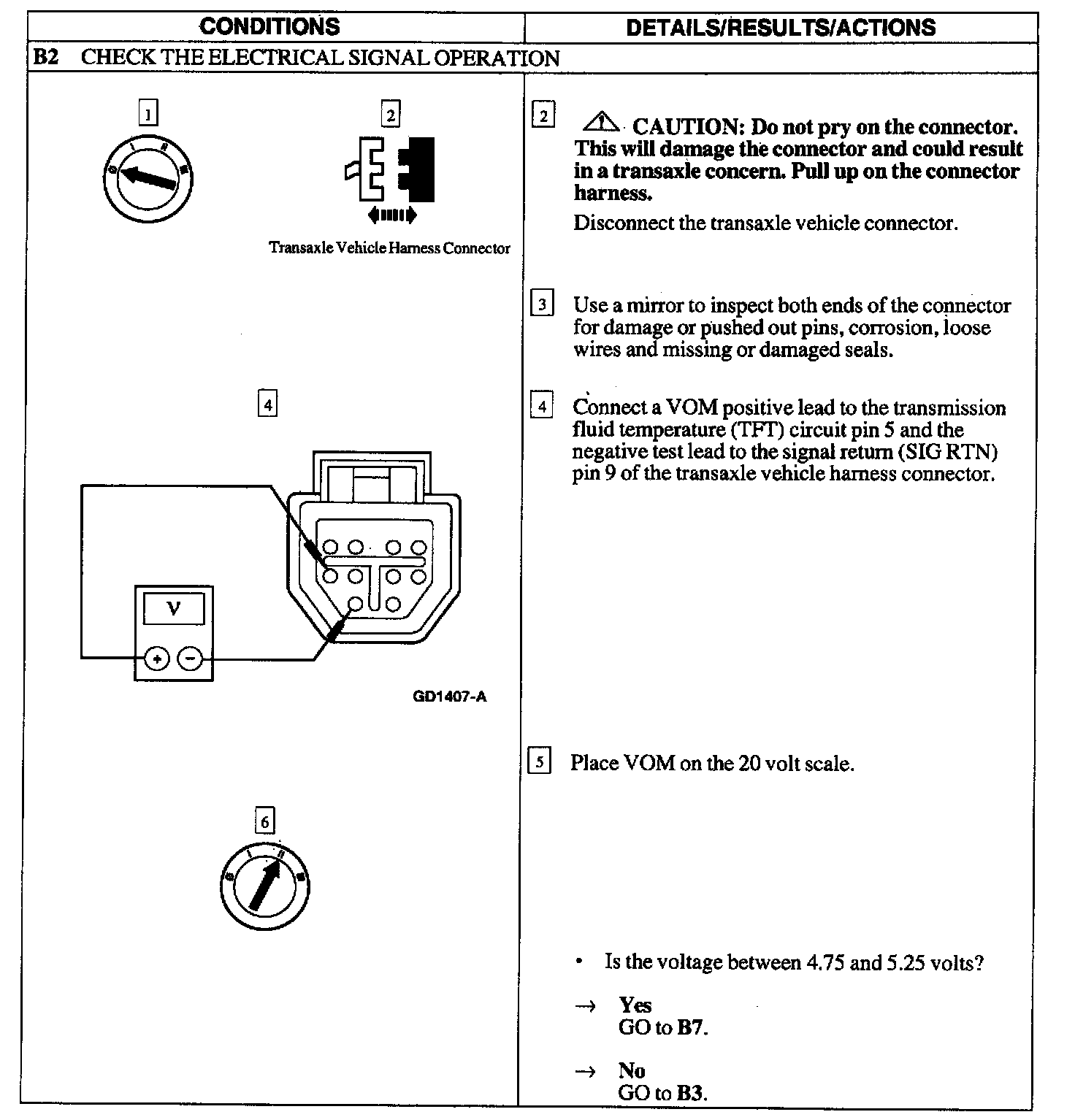

Test B2

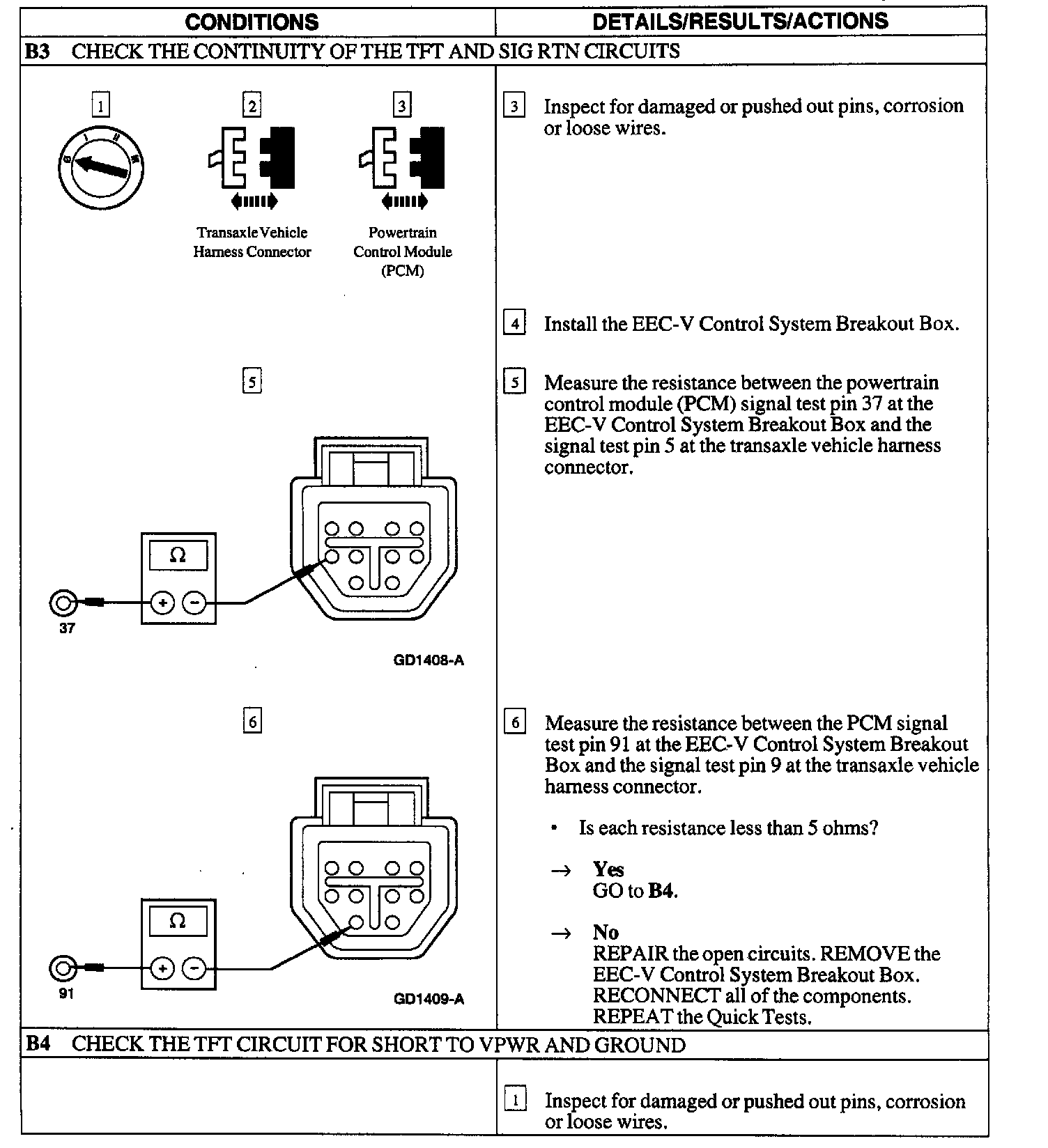

Test B3-B4

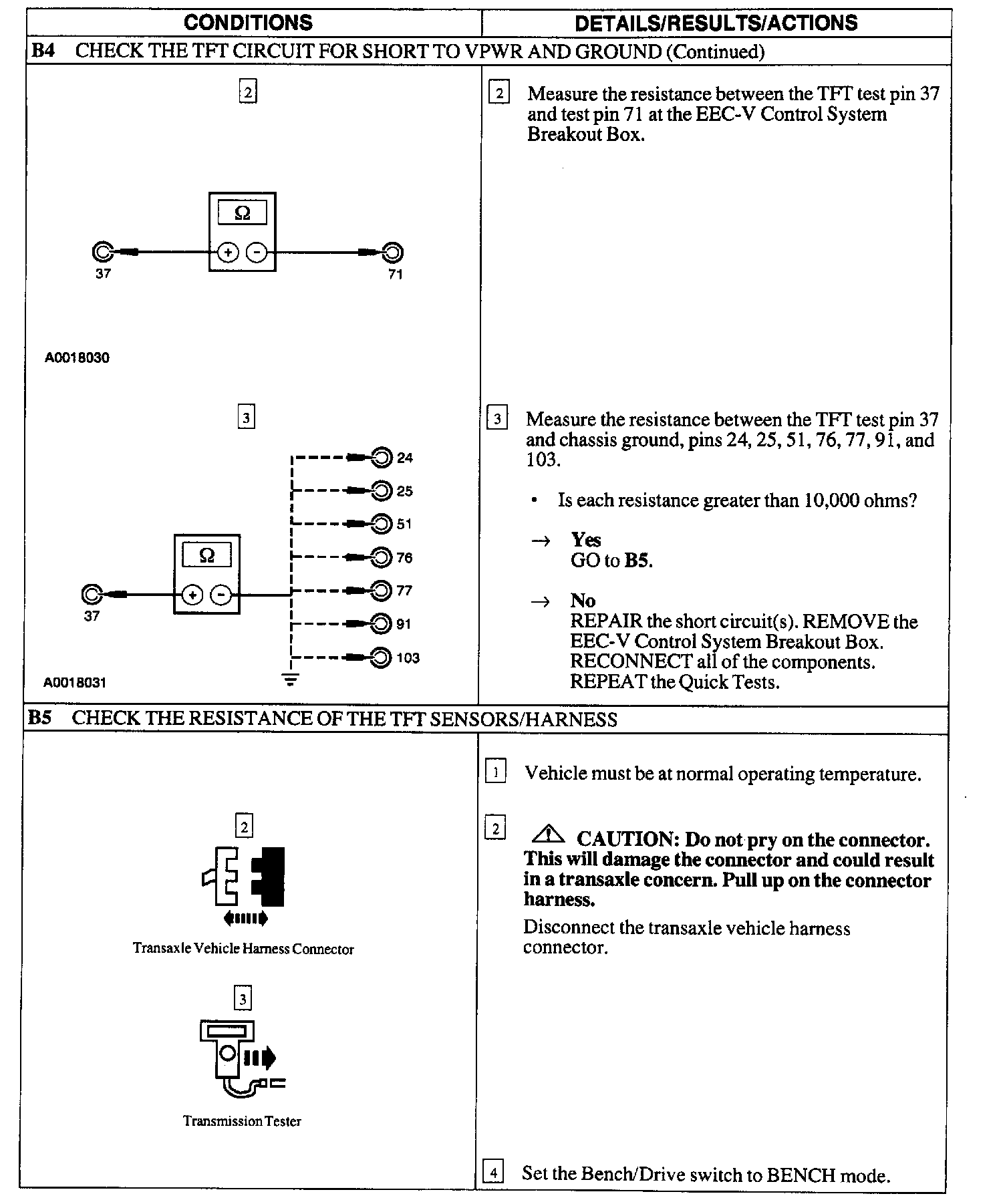

Test B4-B5

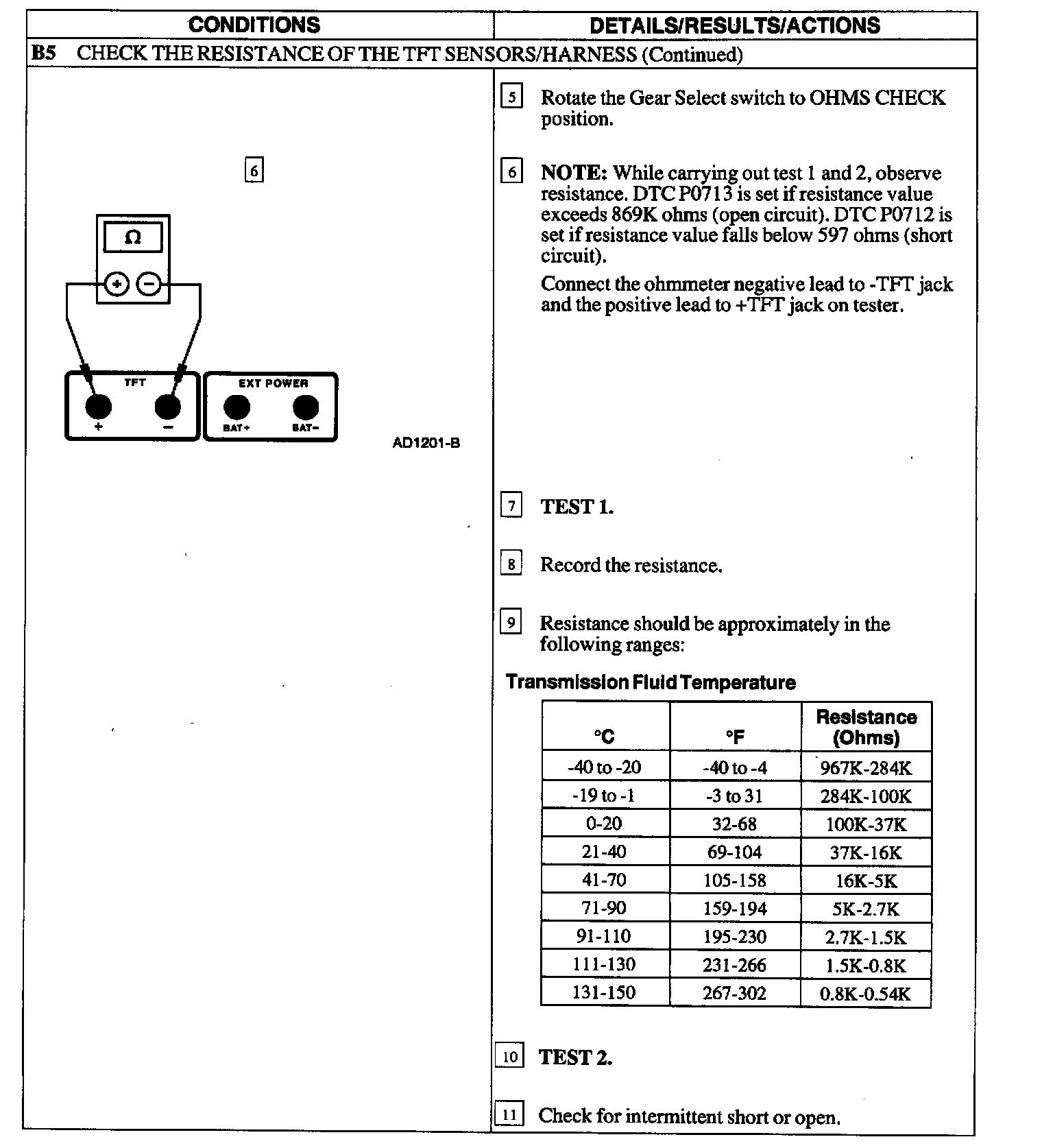

Test B5

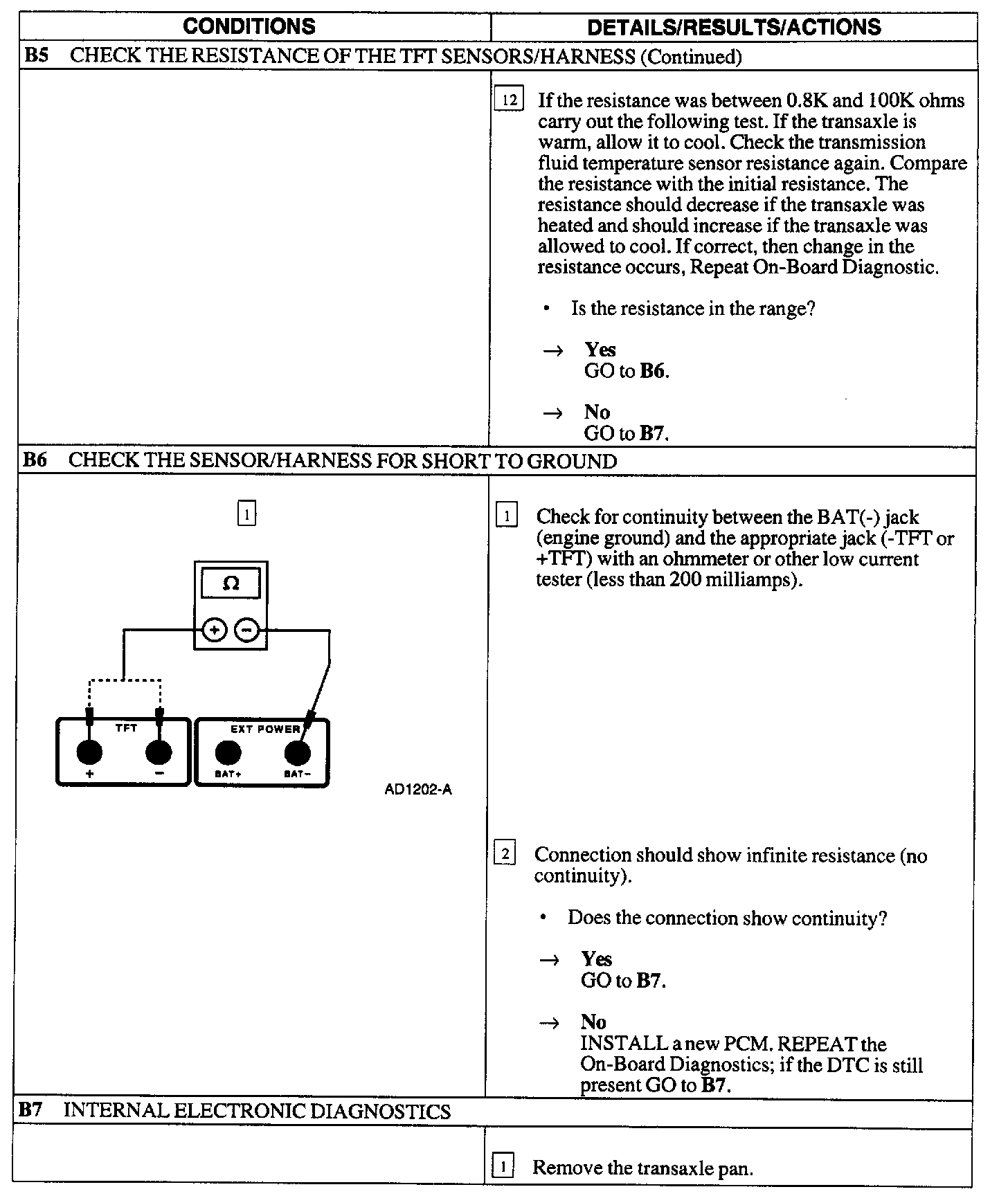

Test B5-B7

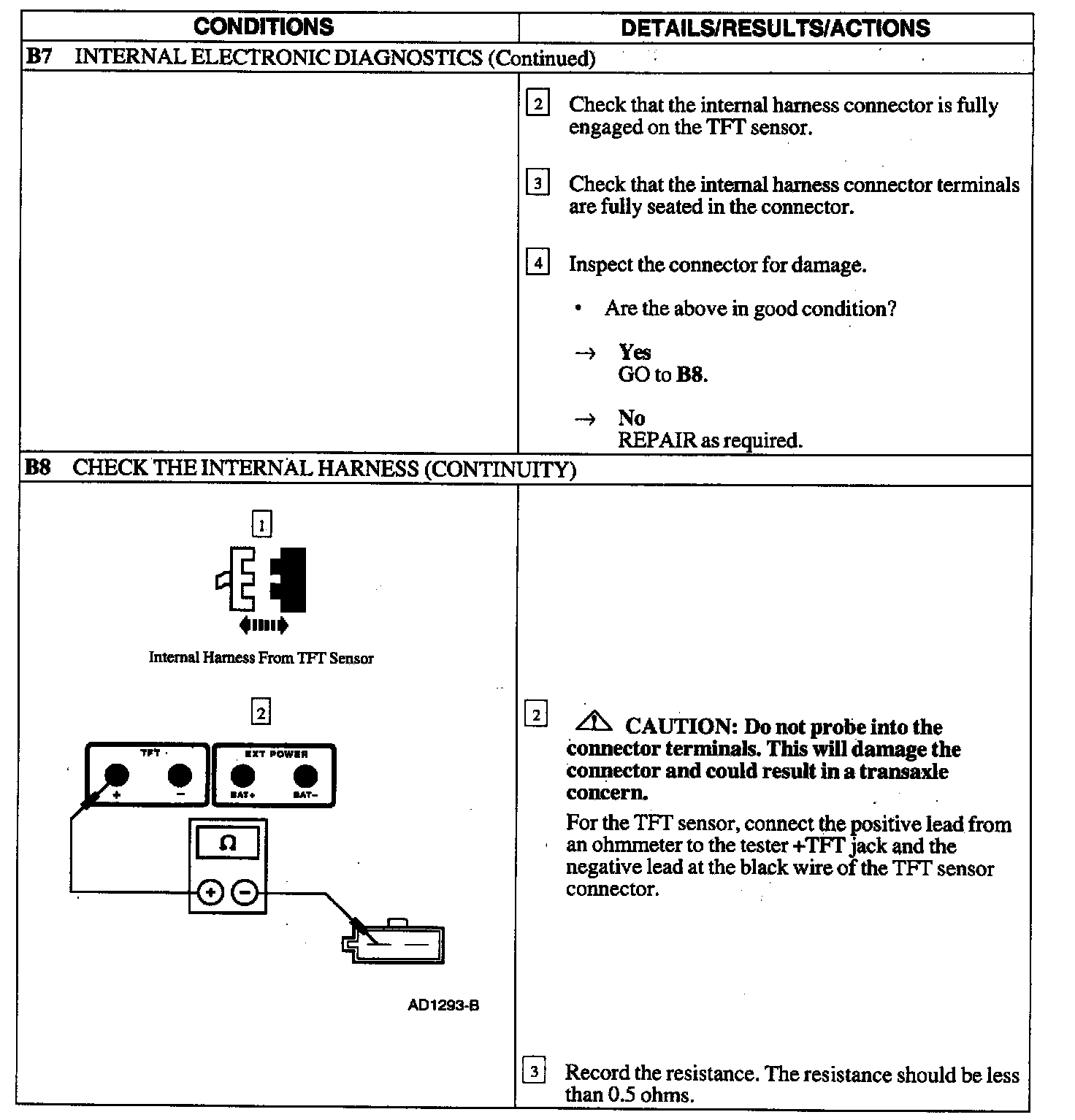

Test B7-B8

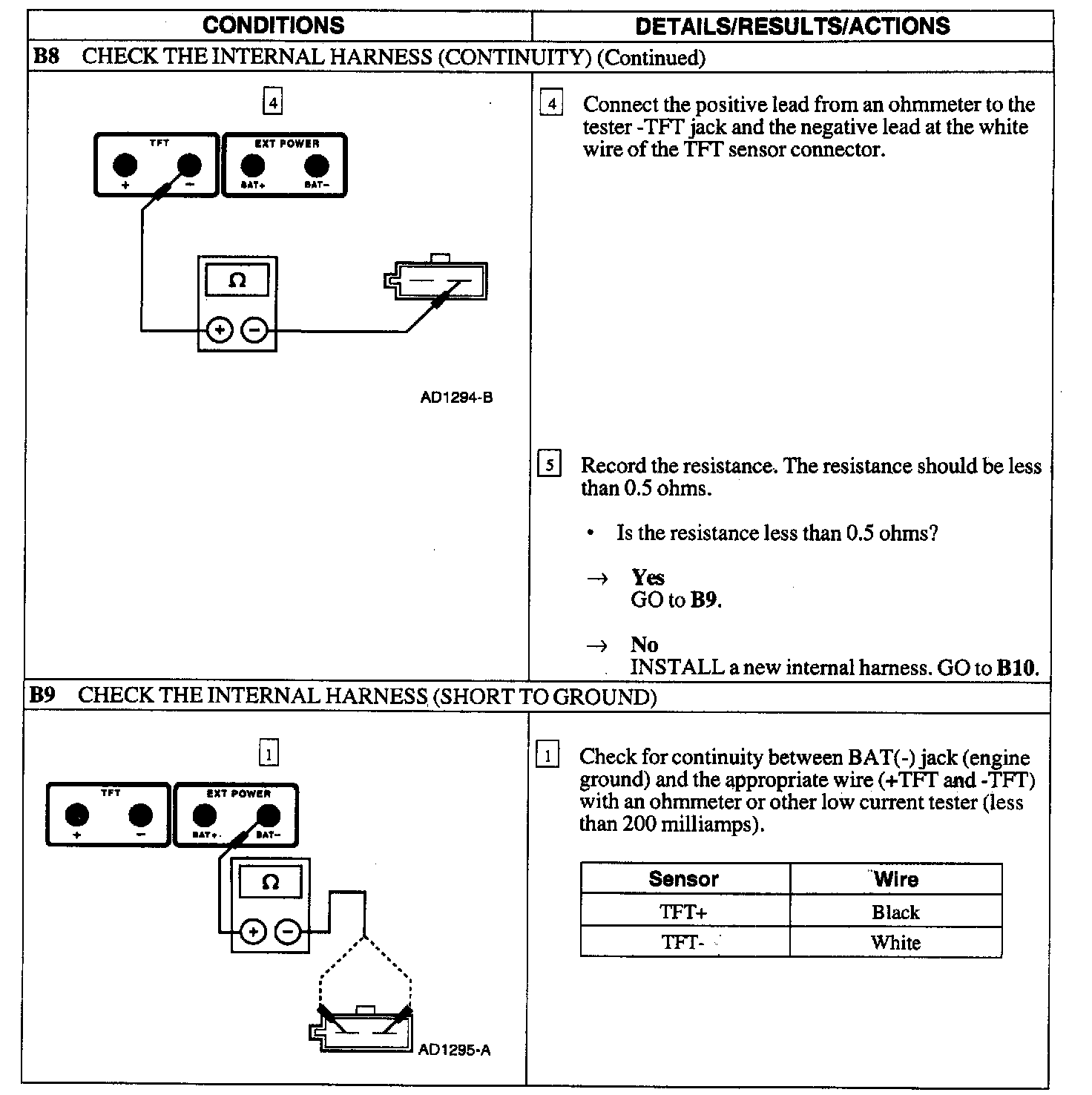

Test B8-B9

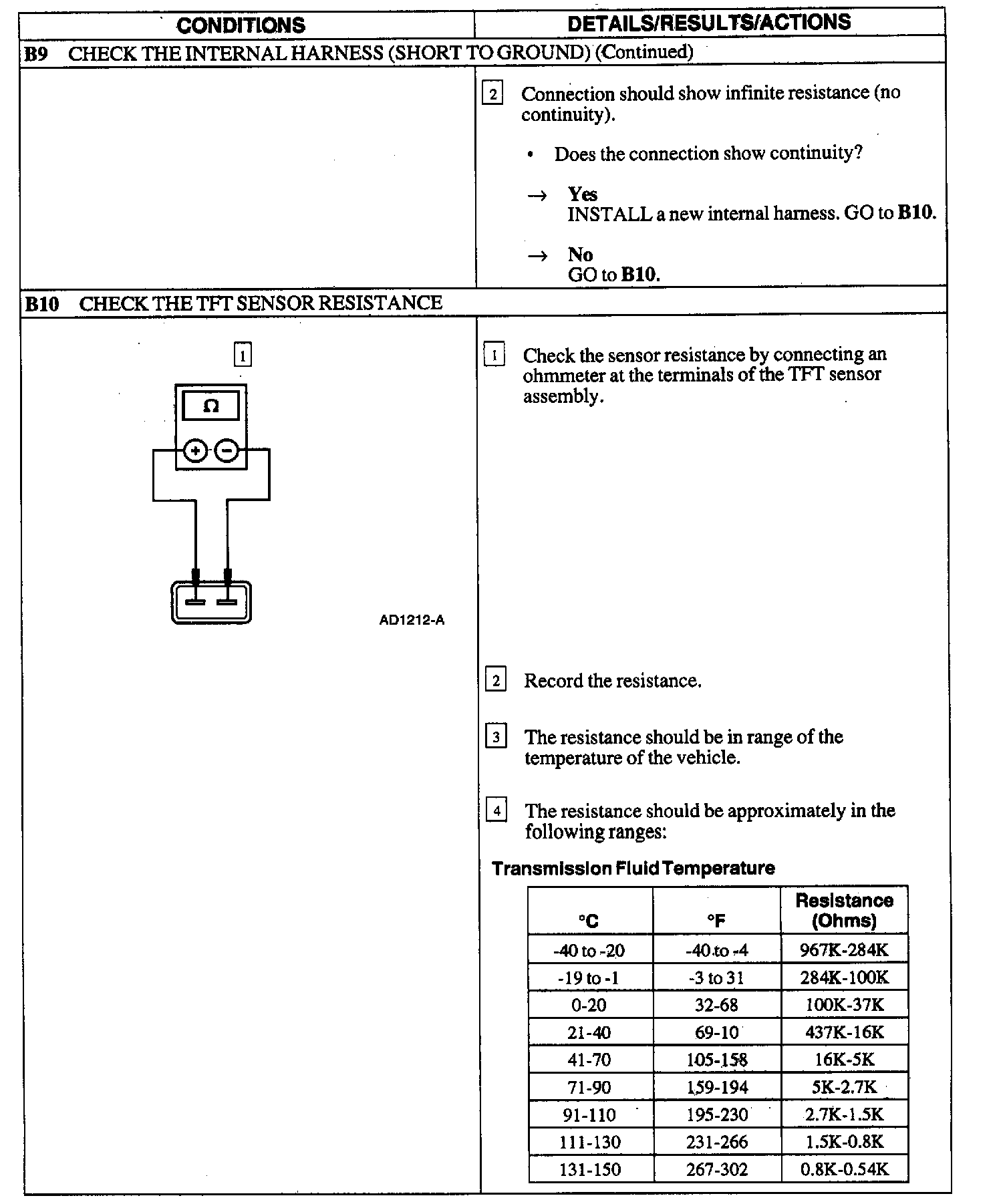

Test B9-B10

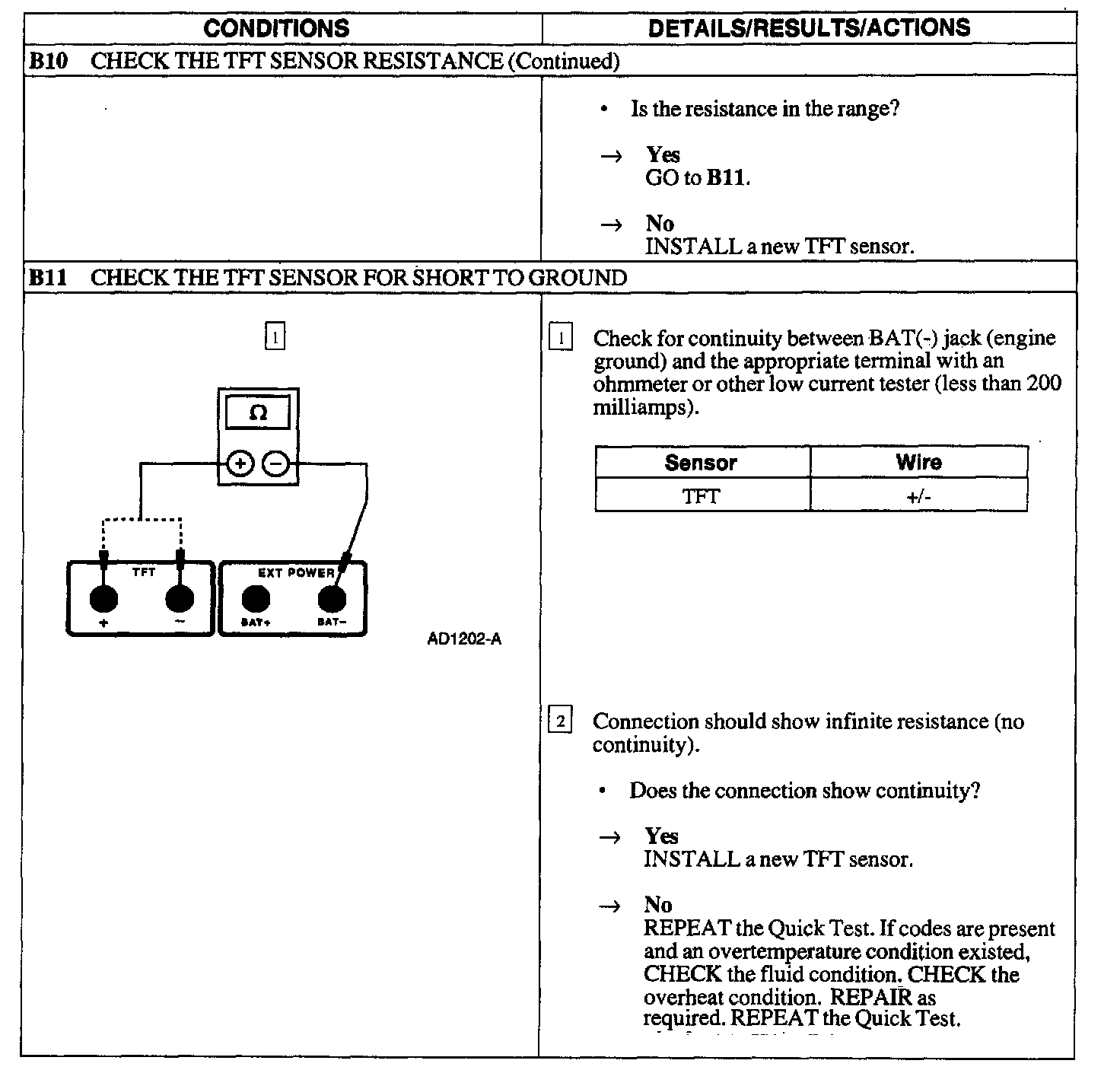

Test B10-B11

NOTE: Refer to the Transaxle Vehicle Harness Connector illustration.

NOTE: Refer to the Transaxle Internal Harness Diagram illustration.
