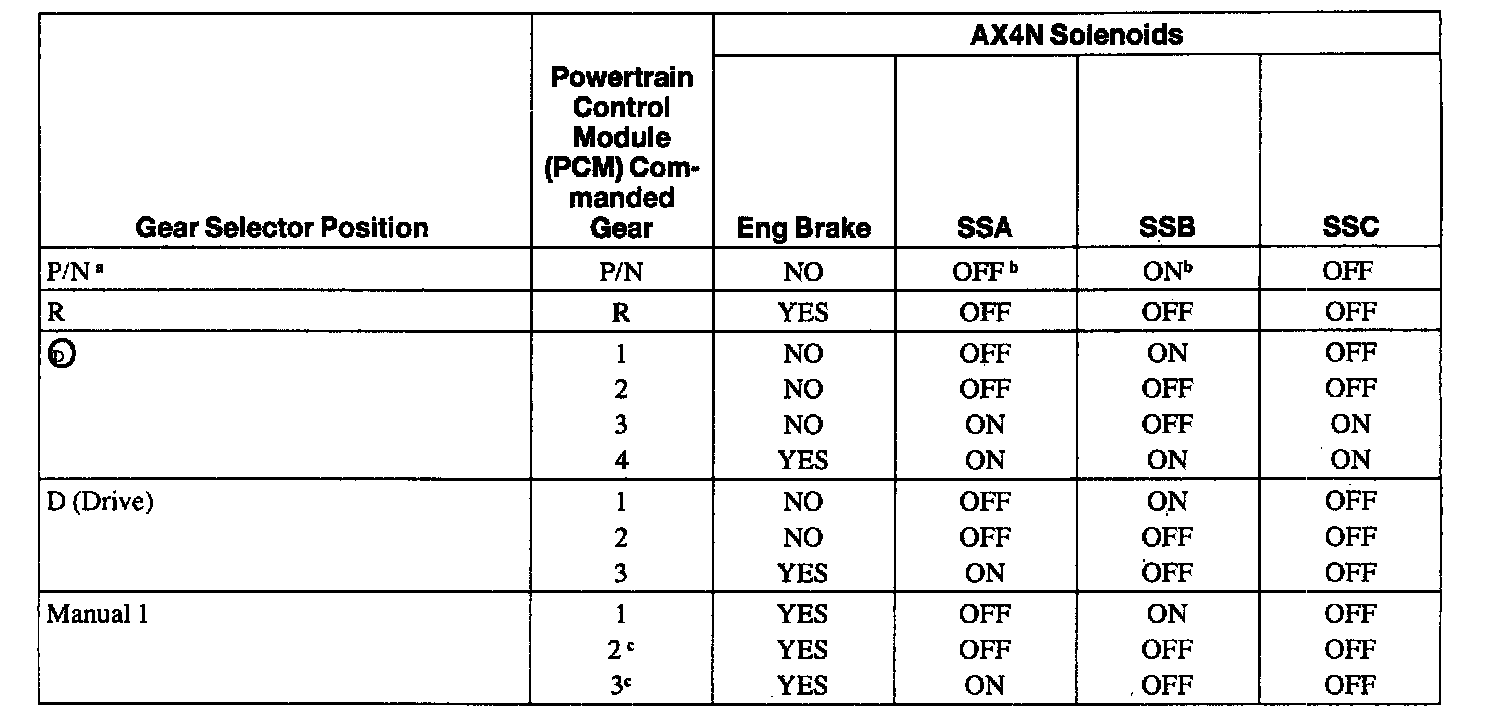

Solenoid Operation Chart

Solenoid Operational Chart





a When transmission fluid temperature is below 38°C (100°F), then SSA=OFF,SSB=ON,SSC=ON to prevent cold creep.
b Not contributing to power flow.
c When a manual pull-in occurs above a calibrated speed, the transaxle will downshift from the higher gear until the vehicle speed drops below the calibrated speed.
