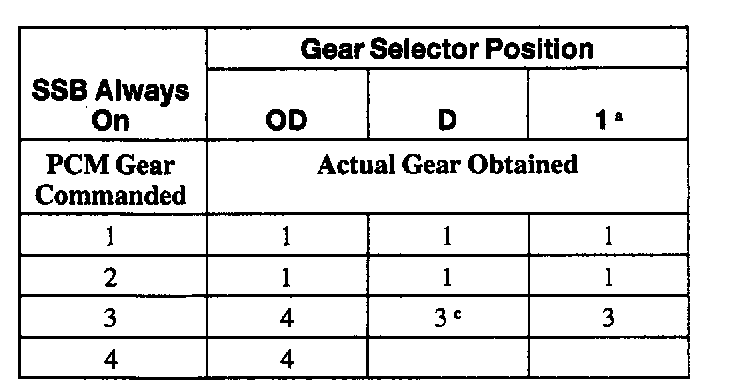

Shift Solenoid Failure Mode Chart "Always On"

Shift Solenoid Failure Mode Chart "Always On"

Failed ON due to powertrain control module and/or vehicle wiring concerns; solenoid electrically or mechanically stuck on.





a When a manual pull-in occurs above a calibrated speed,the transaxle will downshift from the higher gear until the vehicle speed drops below the calibrated speed.
c SSC override forward clutch.





a When a manual pull-in occurs above a calibrated speed,the transaxle will downshift from the higher gear until the vehicle speed drops below the calibrated speed.
c SSC override forward clutch.





b No Engine braking
