4F50N (AX4N) Automatic Transaxle

Diagnostic Trouble Code Charts





Part 1 of 9





Part 2 of 9





Part 3 of 9





Part 4 of 9





Part 5 of 9





Part 6 of 9





Part 7 of 9





Part 8 of 9





Part 9 of 9

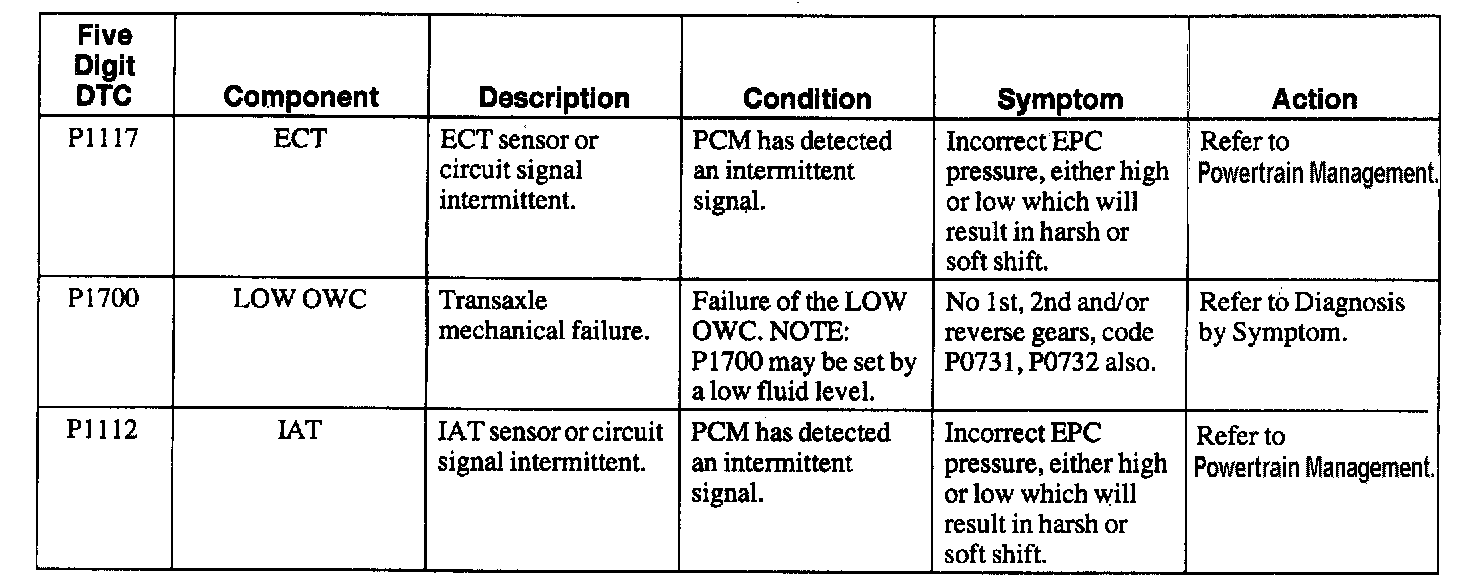

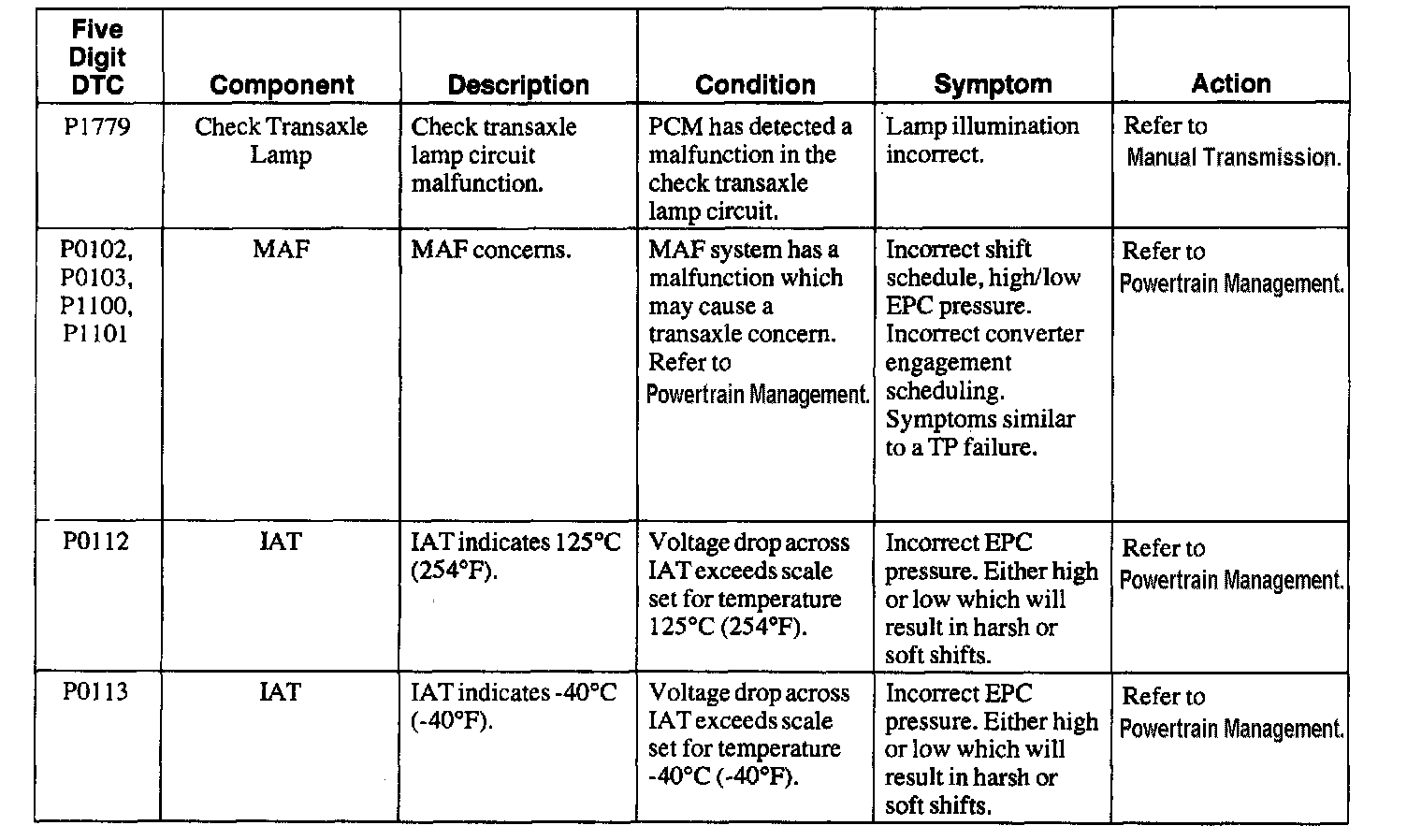

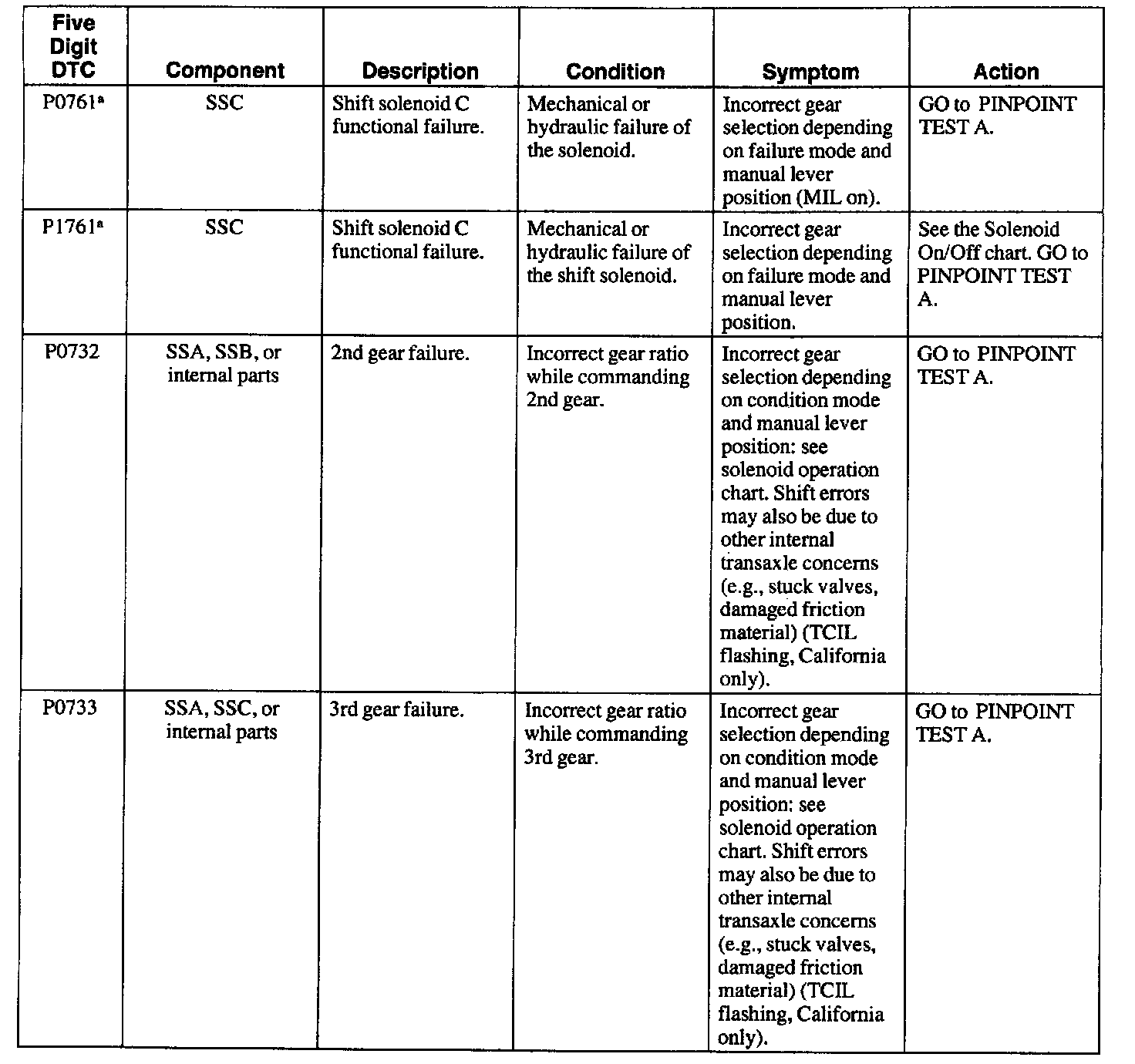

Diagnostic Trouble Code Chart
a May also be generated by some other non-electric transaxle hardware system.
b Output circuit check, generated only by electrical symptoms.
