Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> AX4S >> Bearing and Thrust Washer Locator

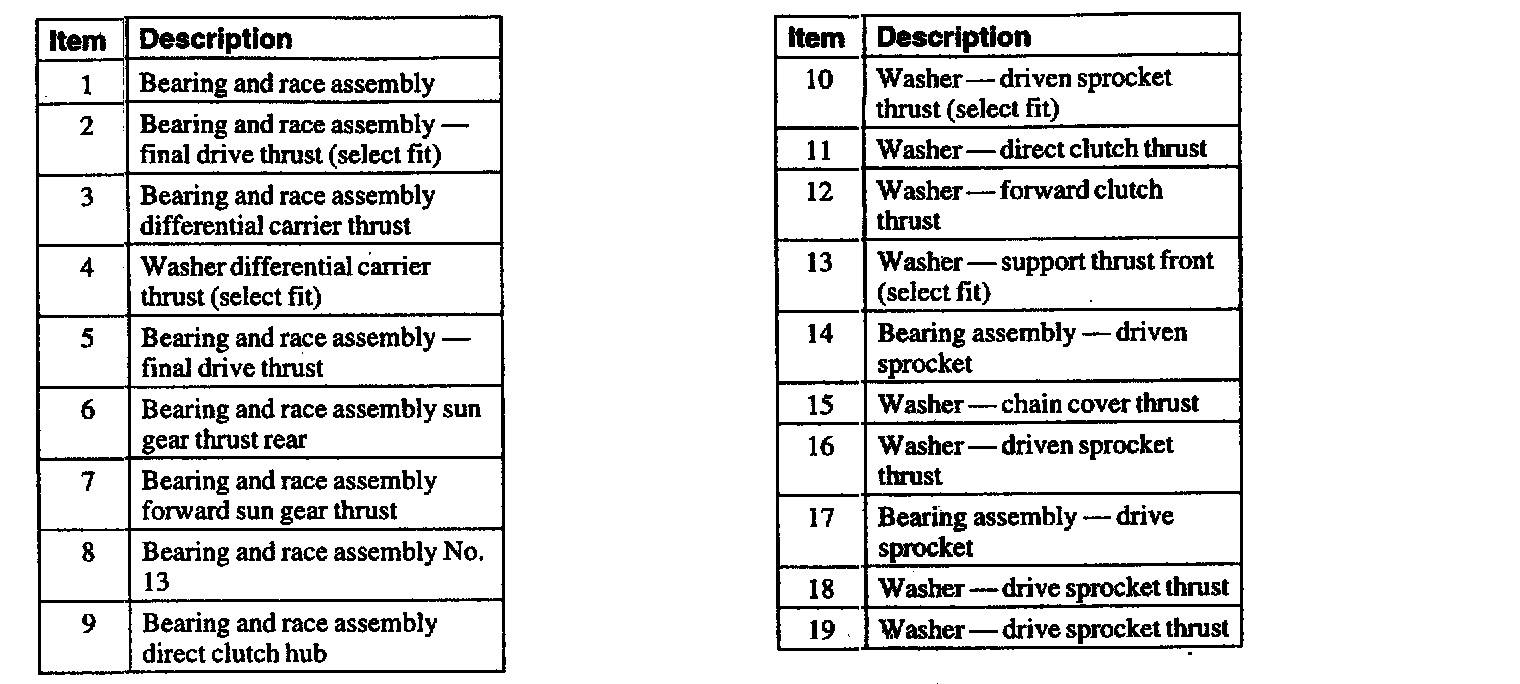

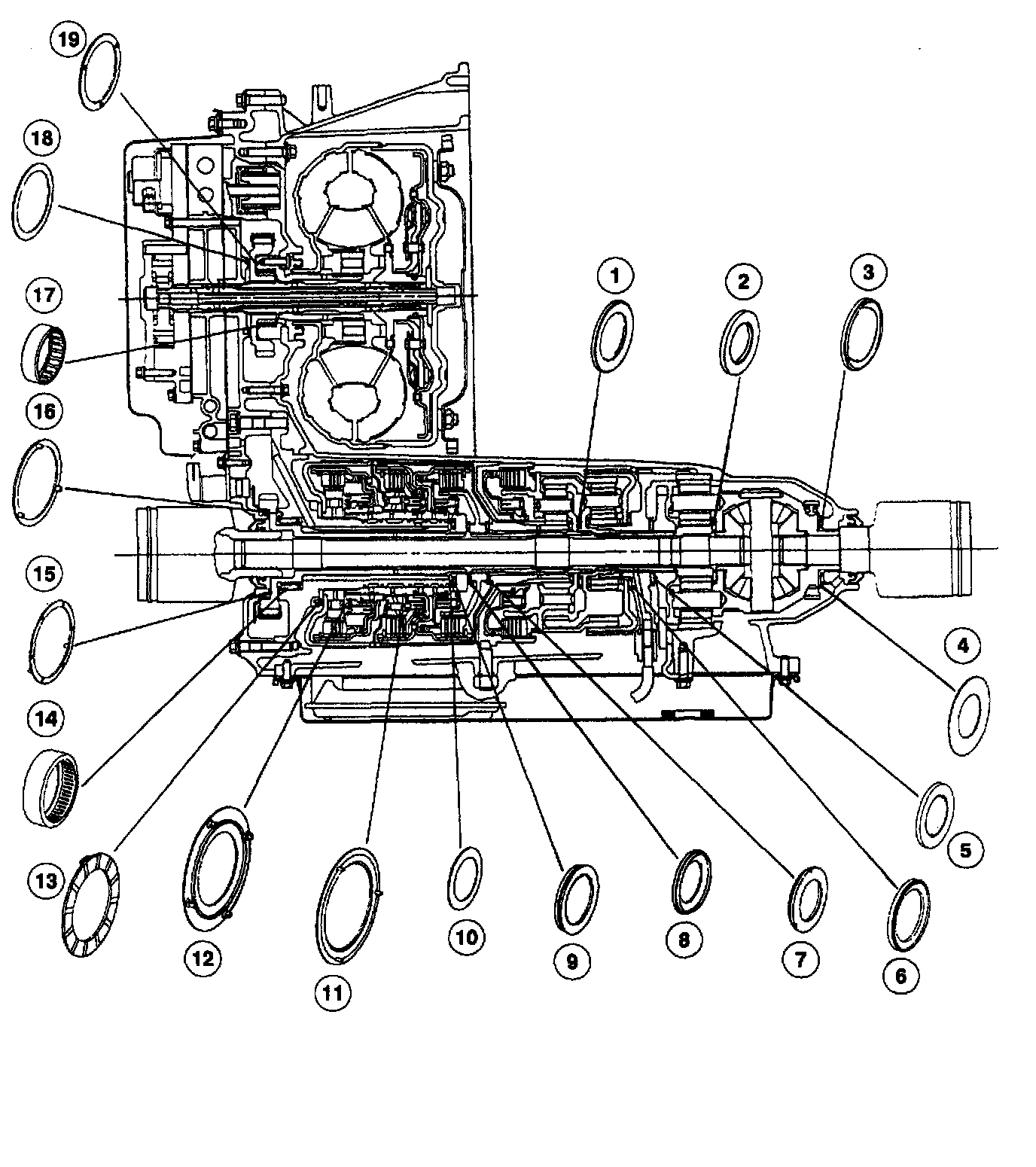

Bearing and Thrust Washer Locator

Bearing and Thrust Washer Locator

Part 1 of 2

Part 2 of 2
