Rear

Wheel Studs
Removal
1. Remove the wheel hub.

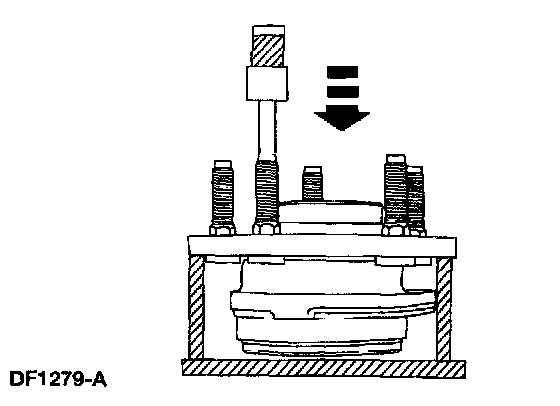

2. Position the rear hub in a press. Support the flange on each side of the wheel stud and remove the wheel stud.

Installation

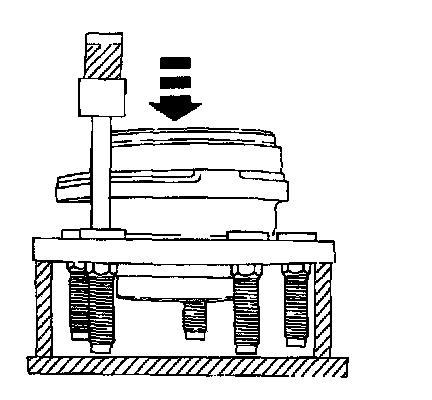

1. Position the rear hub in a press. Support the flange on each side of the wheel stud hole. Line up the serrations and install the wheel stud.
2. Install the wheel hub.
