Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

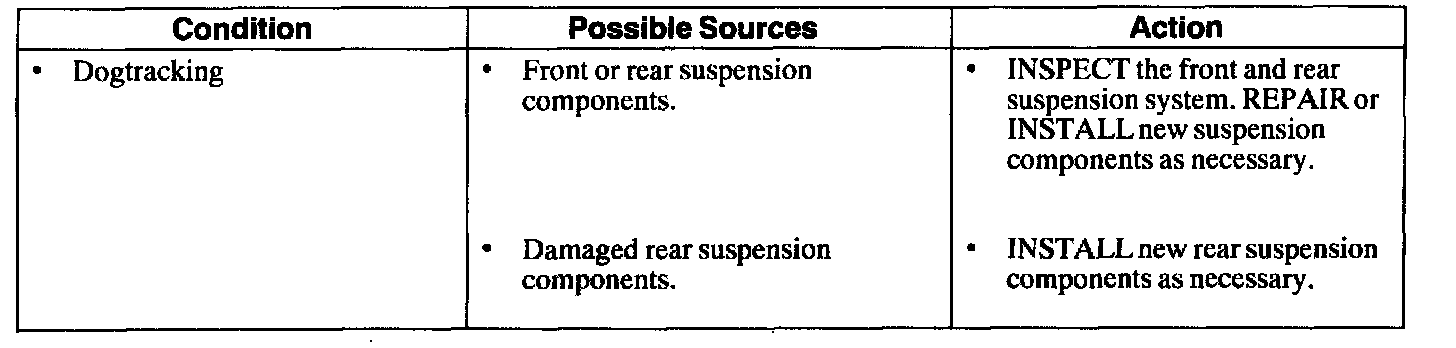

DIAGNOSIS CHART 1 OF 3

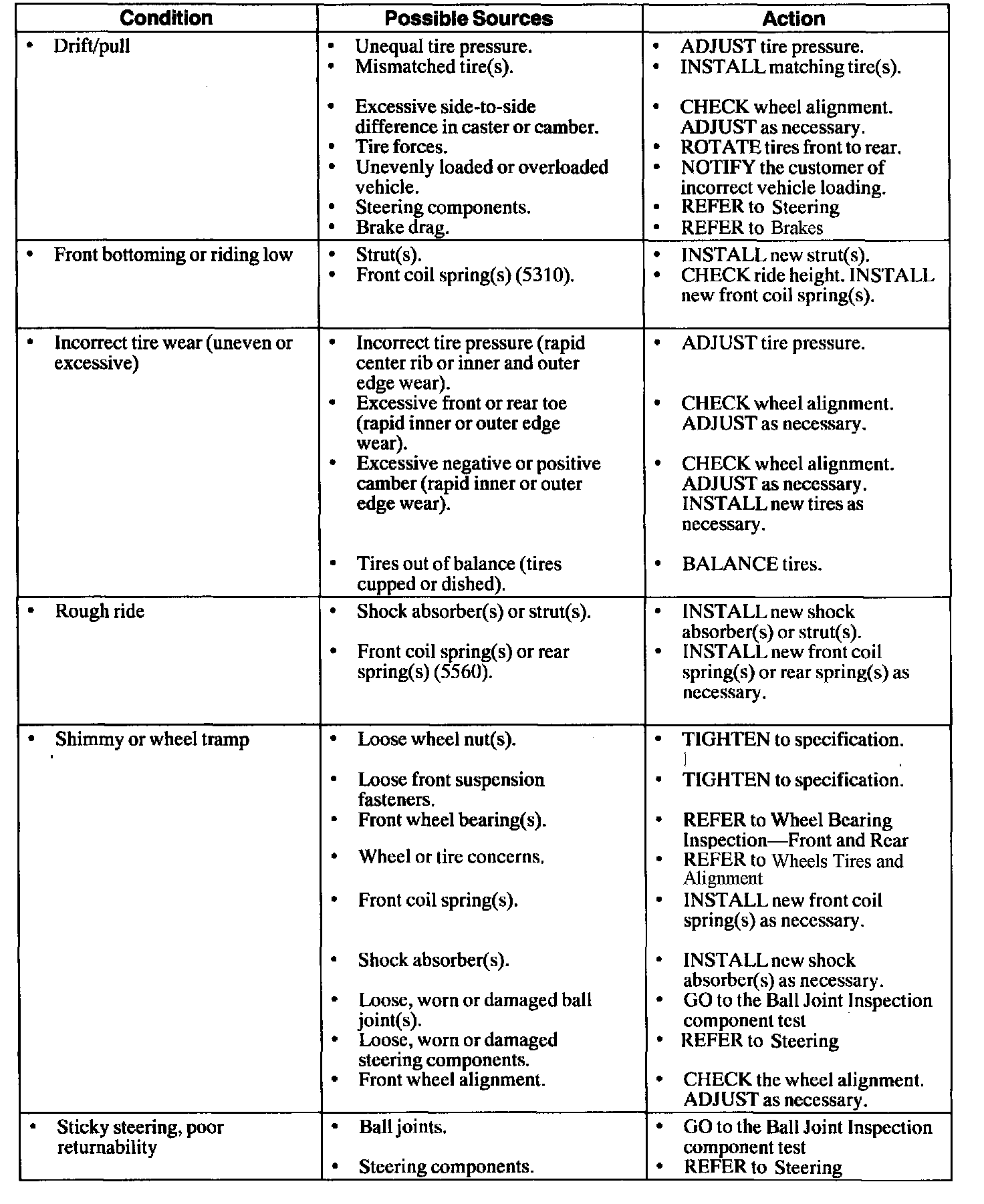

DIAGNOSIS CHART 2 OF 3

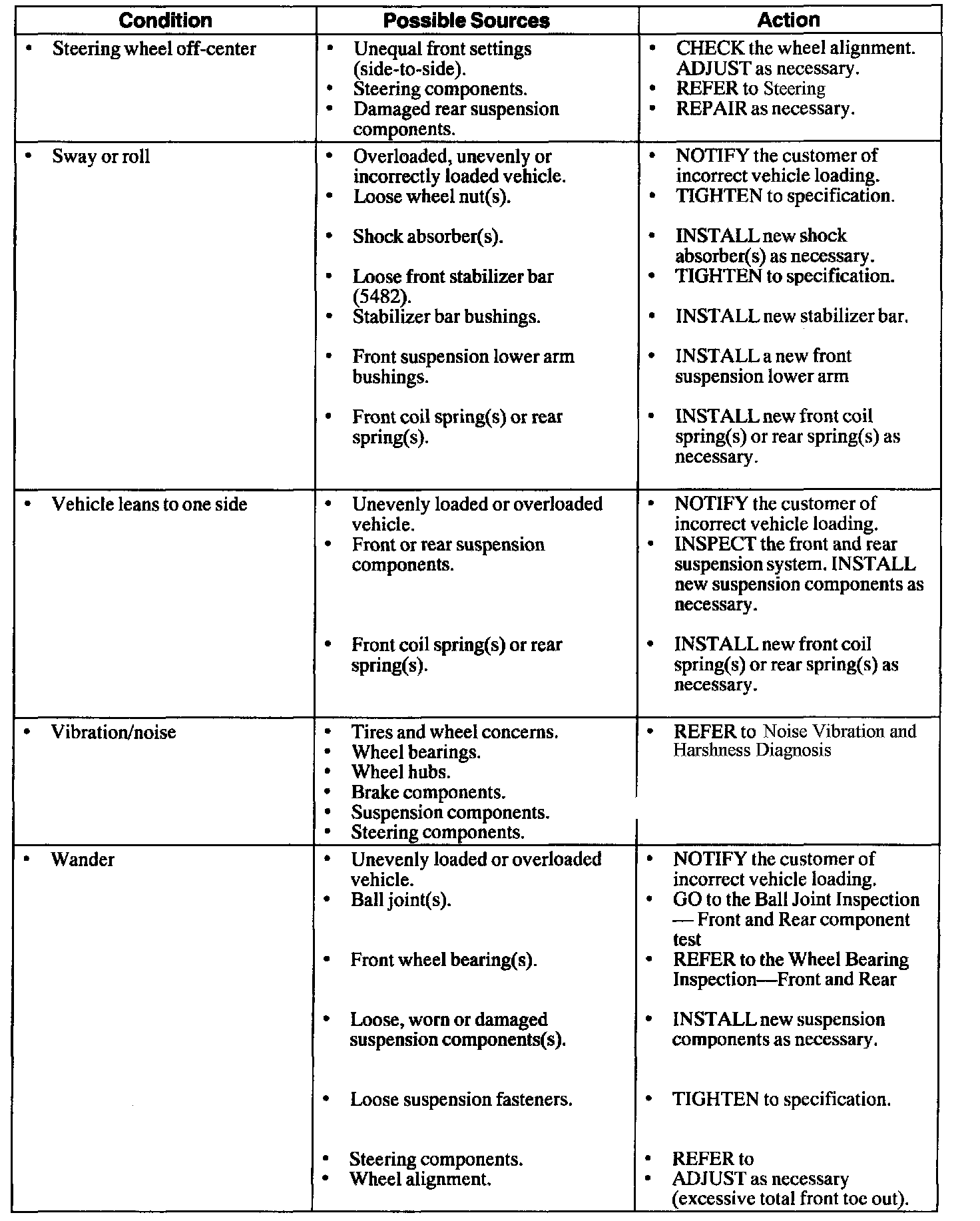

DIAGNOSIS CHART 3 OF 3
