Test C: The Ignition Switch Is Inoperative

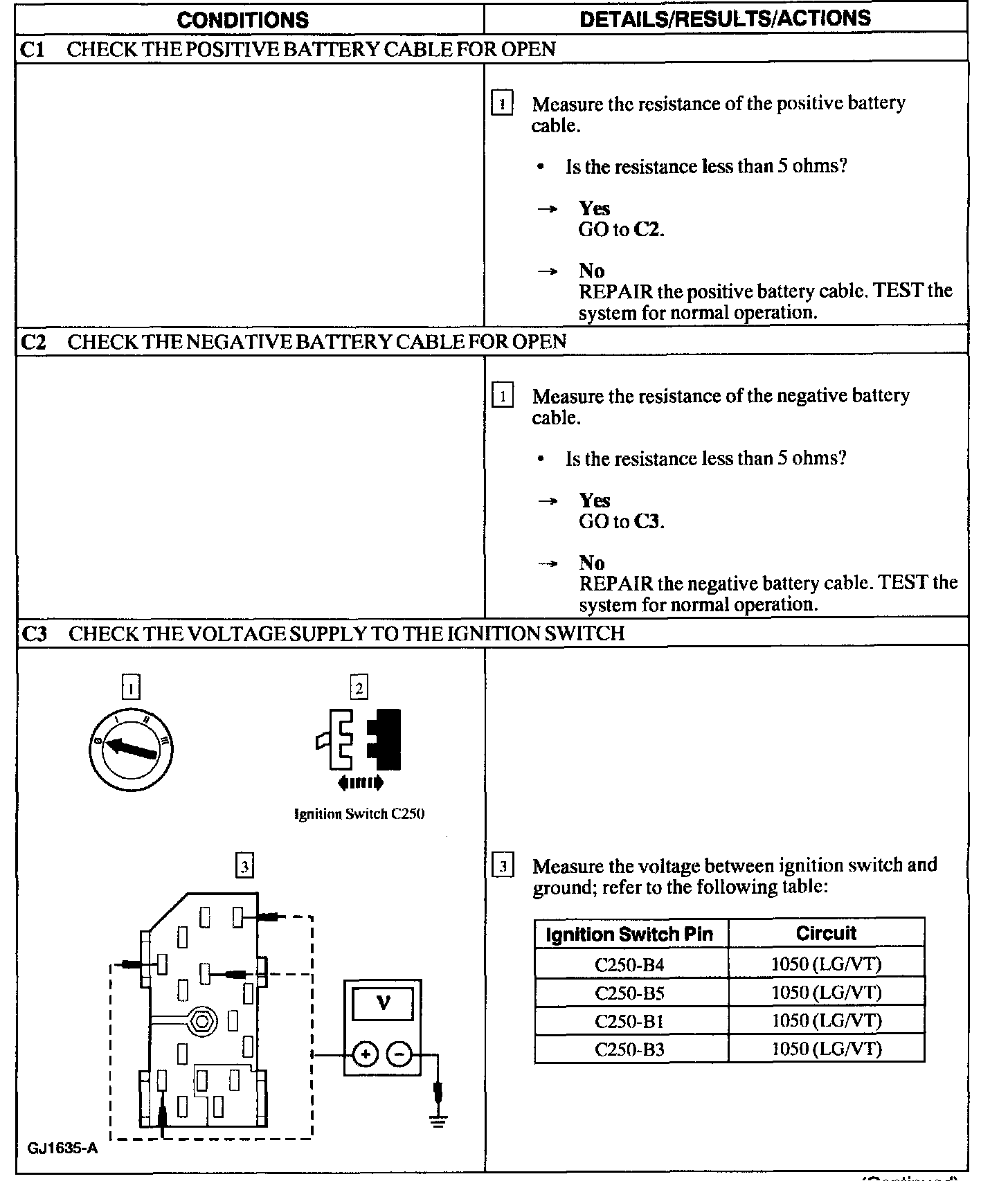

Test C1-C3

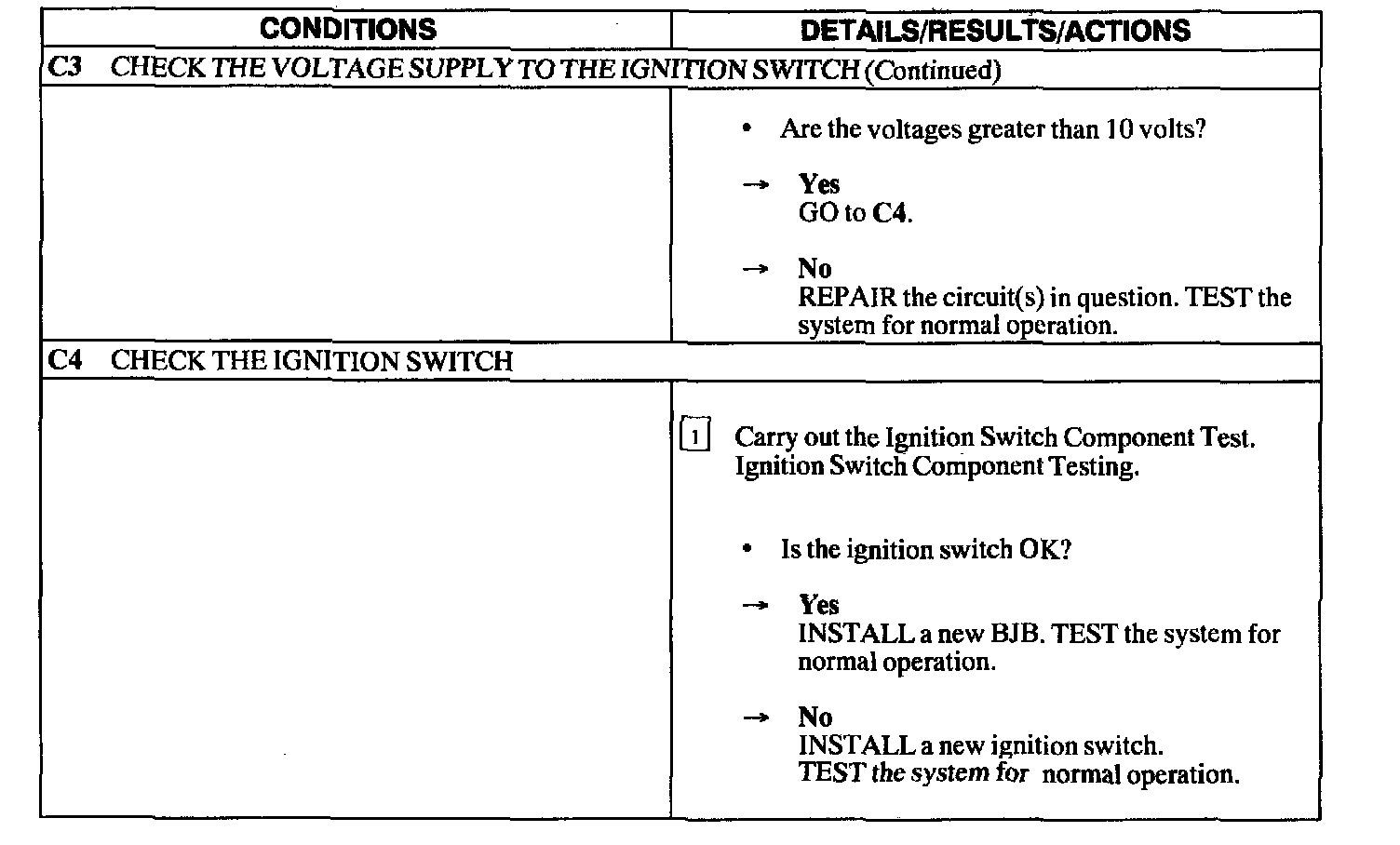

Test C3-C4

NOTE: The DTC will appear if the connection between the GEM and CJB is open on this pin. This pin open will cause the following symptoms: no auto headlamps, no DRL and no heated backlite operation.
