Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Pinpoint Tests >> Test B: Charging System Warning Indicator Stays On

Test B: Charging System Warning Indicator Stays On

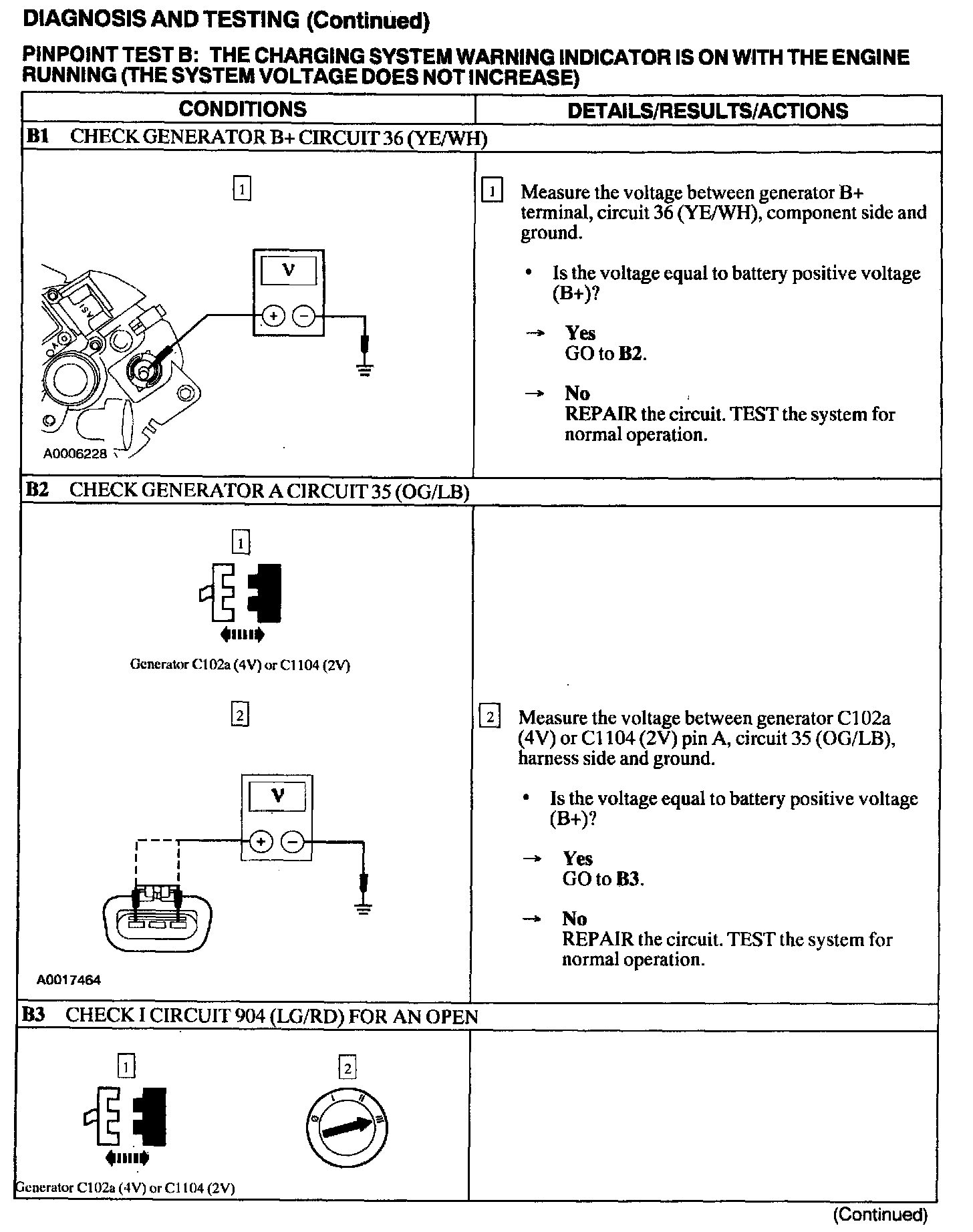

B1 - B3:

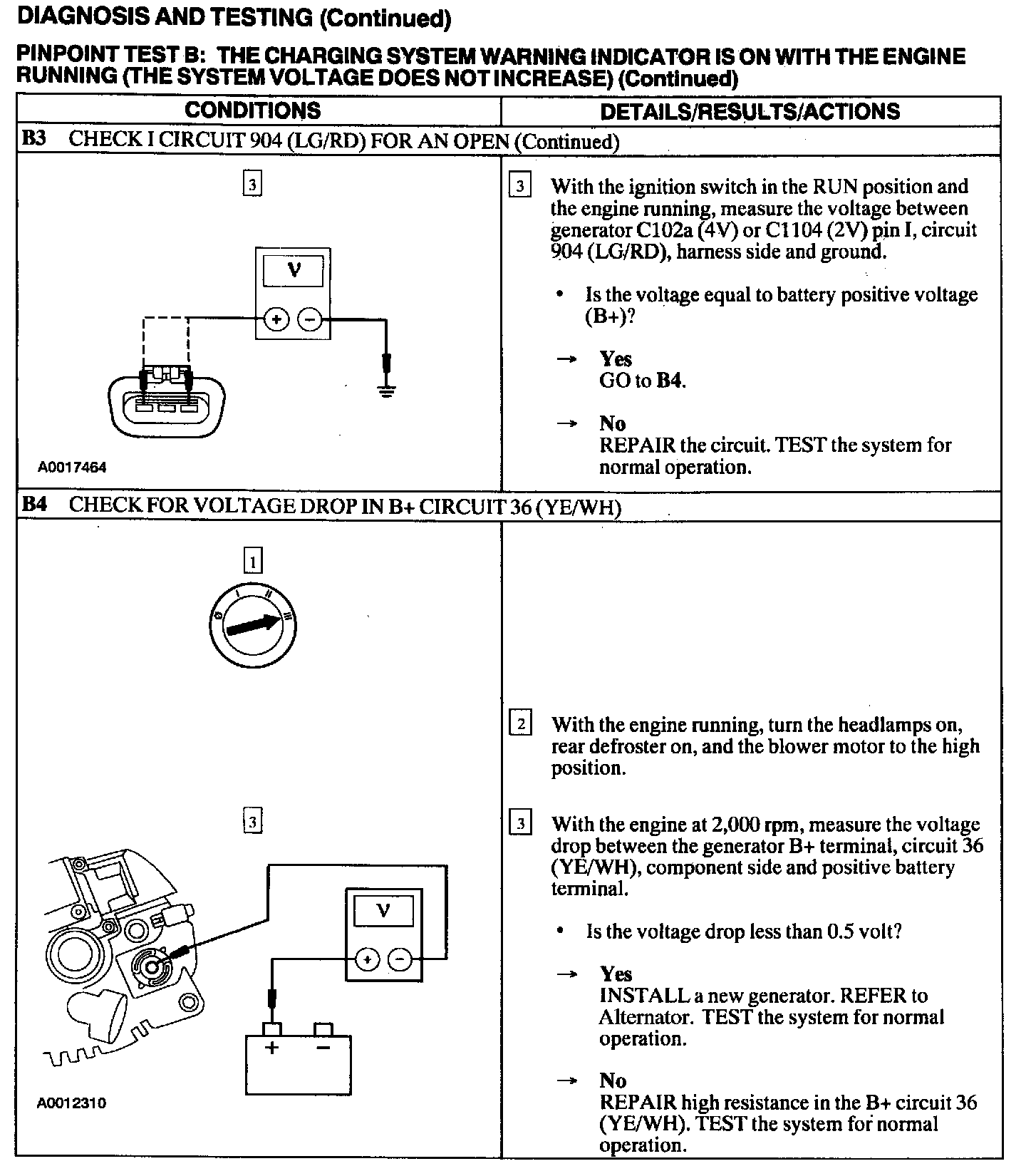

B3 - B4:
