Suspension System - General Information

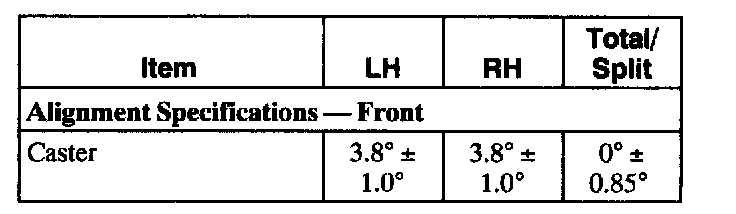

Alignment Specifications - Caster

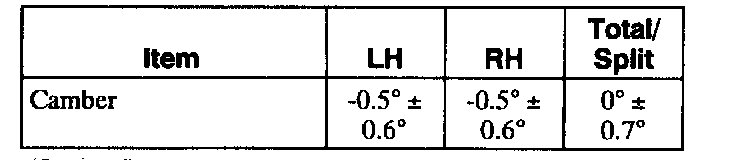

Alignment Specifications - Camber

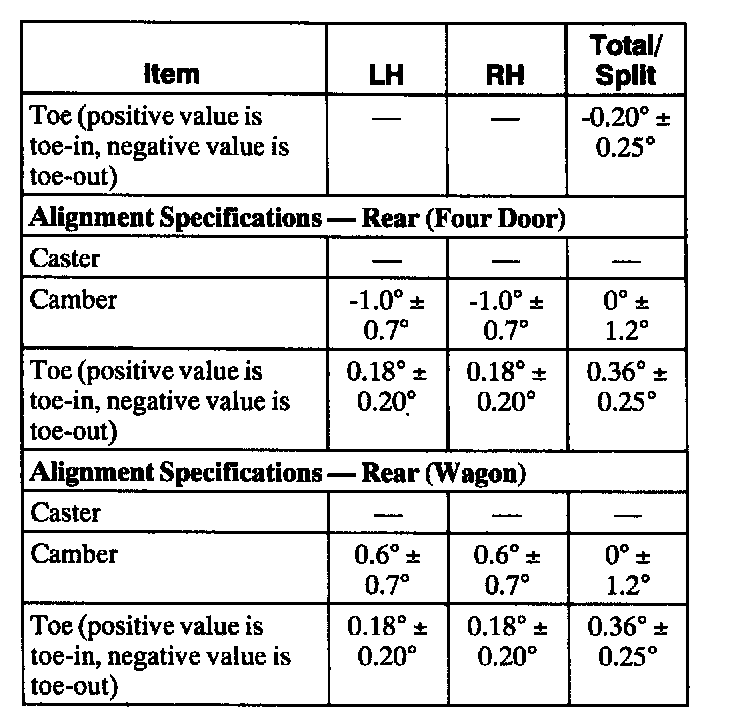

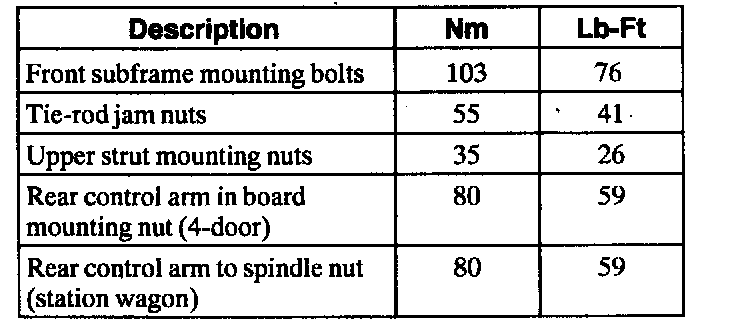

Alignment Specifications - General

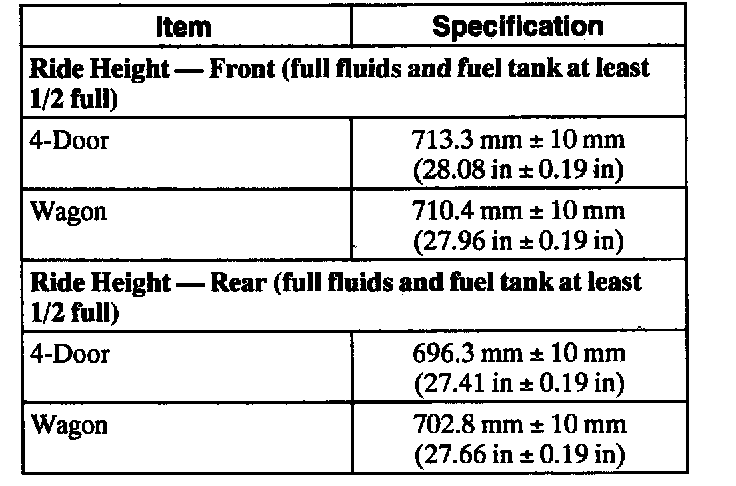

General Specifications Part 1 of 2

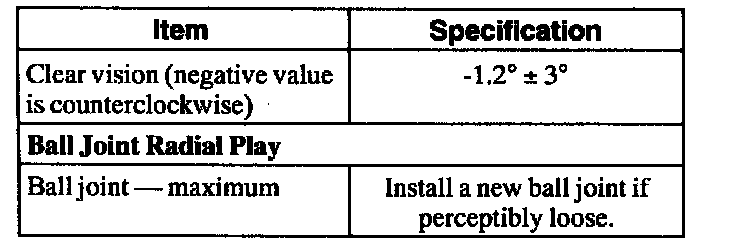

General Specifications Part 2 of 2





Tightening Specifications

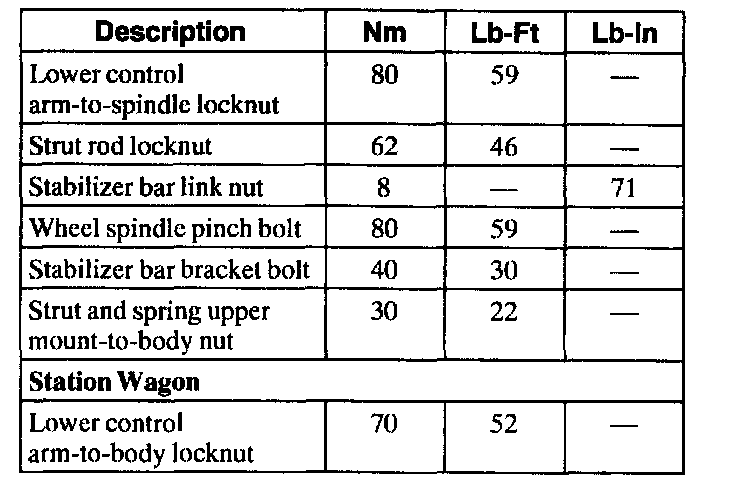

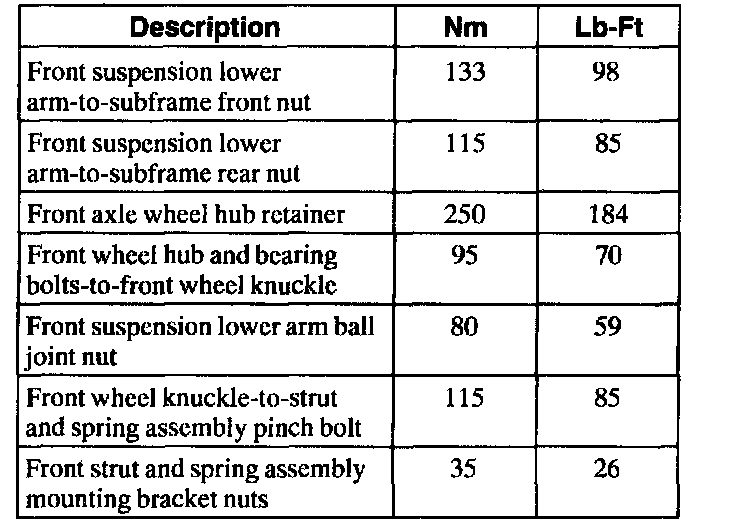

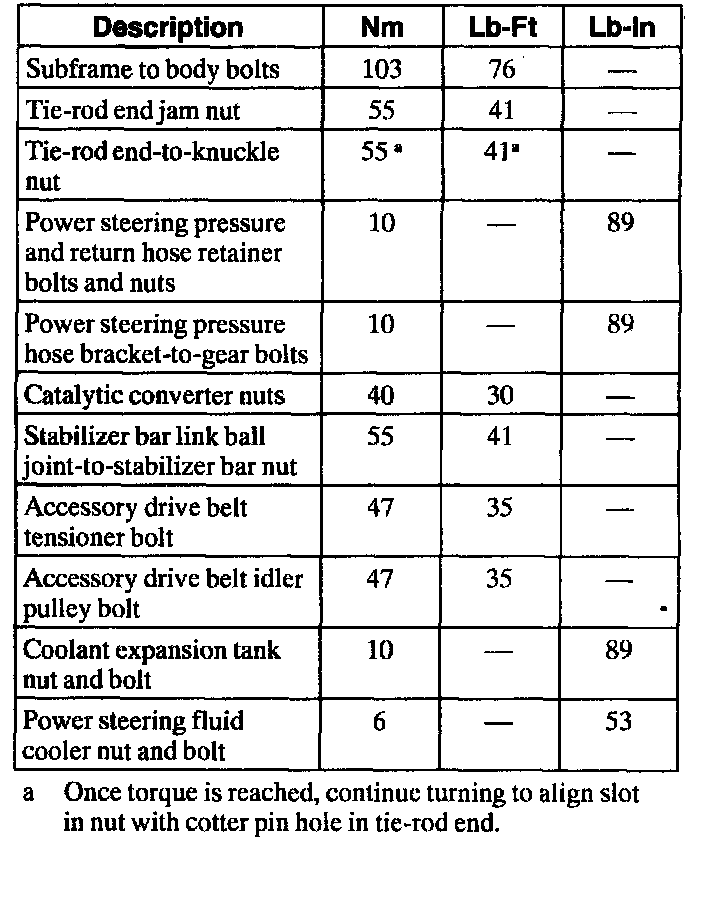

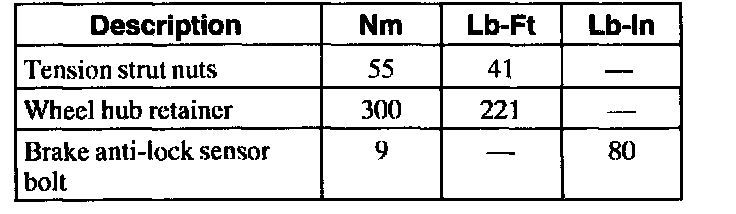

Front Suspension - Torque Specifications

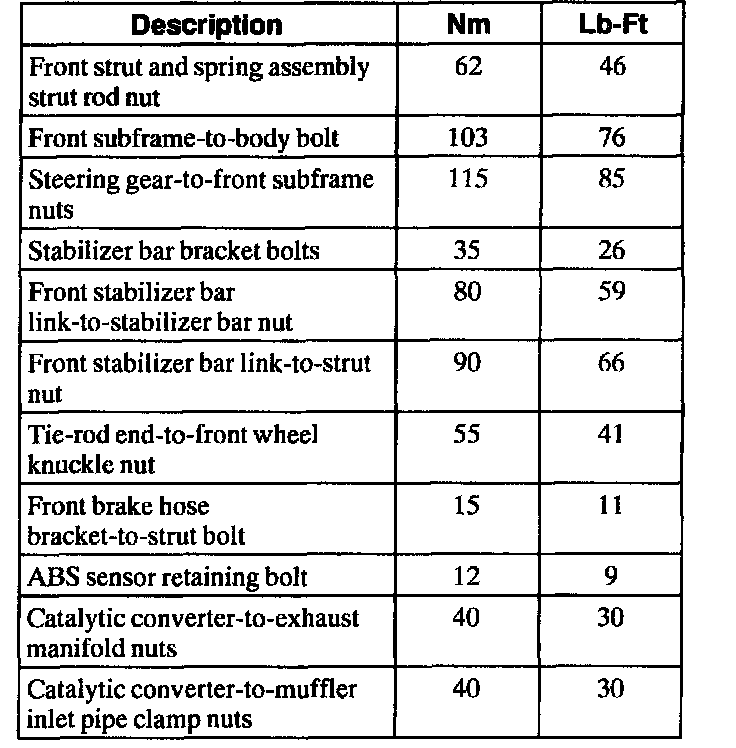

Front Suspension - Torque Specifications part 1 of 2





Front Suspension - Torque Specifications Part 2 of 2

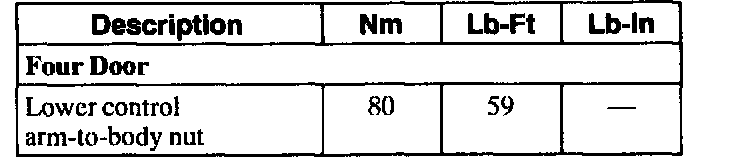

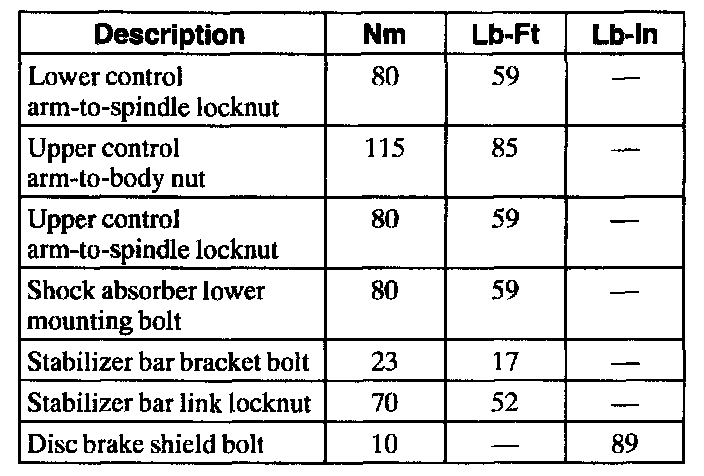

Rear Suspension - Torque Specifications Part 1 of 4





Rear Suspension - Torque Specifications Part 2 of 4





Rear Suspension - Torque Specifications Part 3 of 4





Rear Suspension - Torque Specifications Part 4 of 4

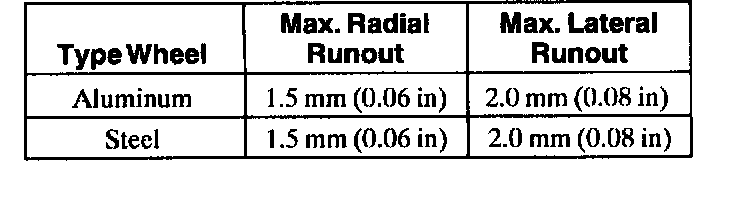

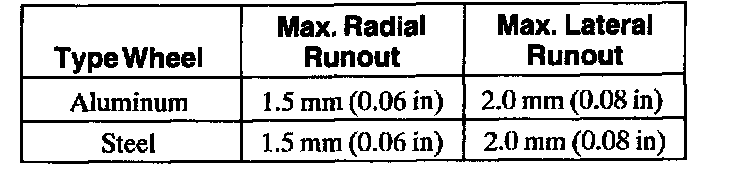

Wheel Rim Runout Specifications

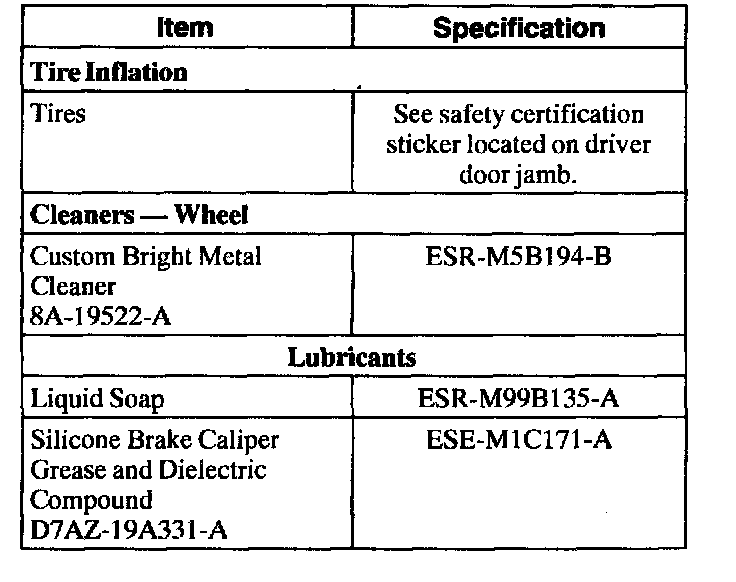

Wheels and Tires General Specifications





Tire Runout Specifications

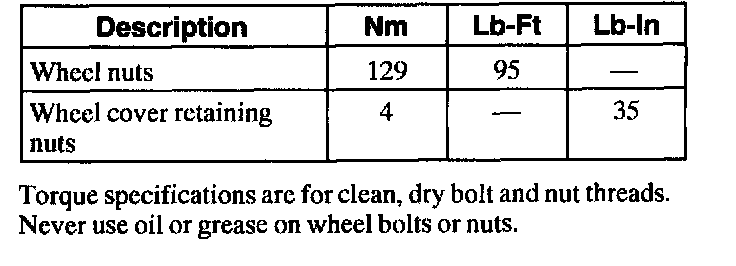

Wheels and Tires Torque Specifications





Steering System - General Specifications Part 1 of 2





Steering System - General Specifications Part 2 of 2





Steering System Torque Specifications

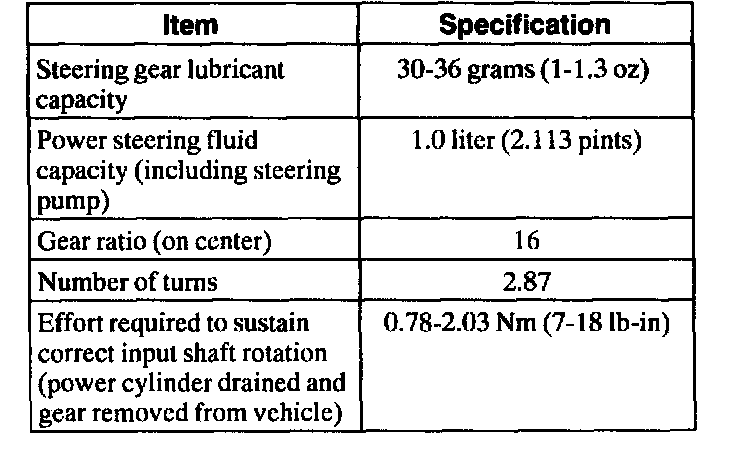

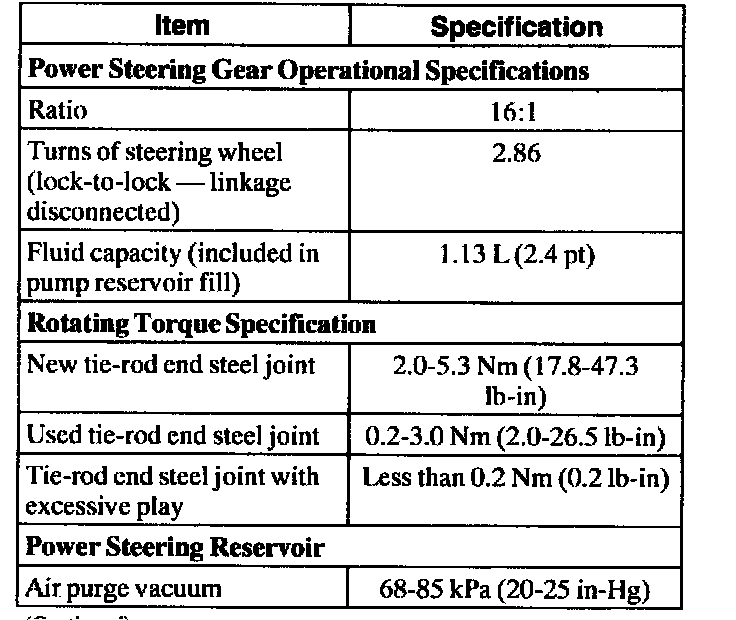

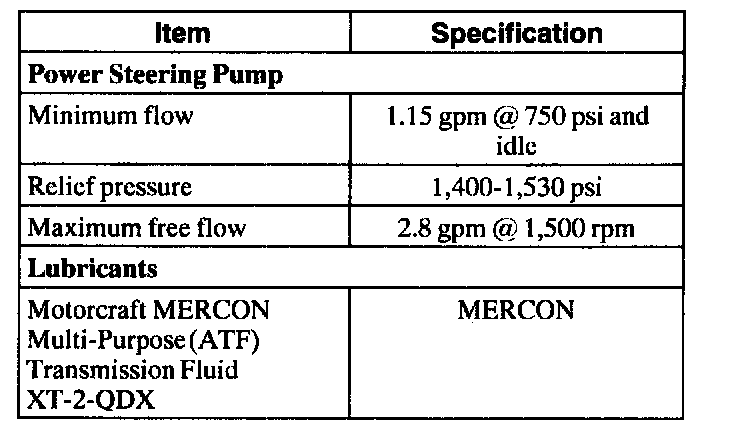

Power Steering General Specifications

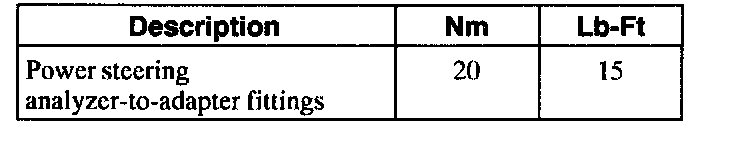

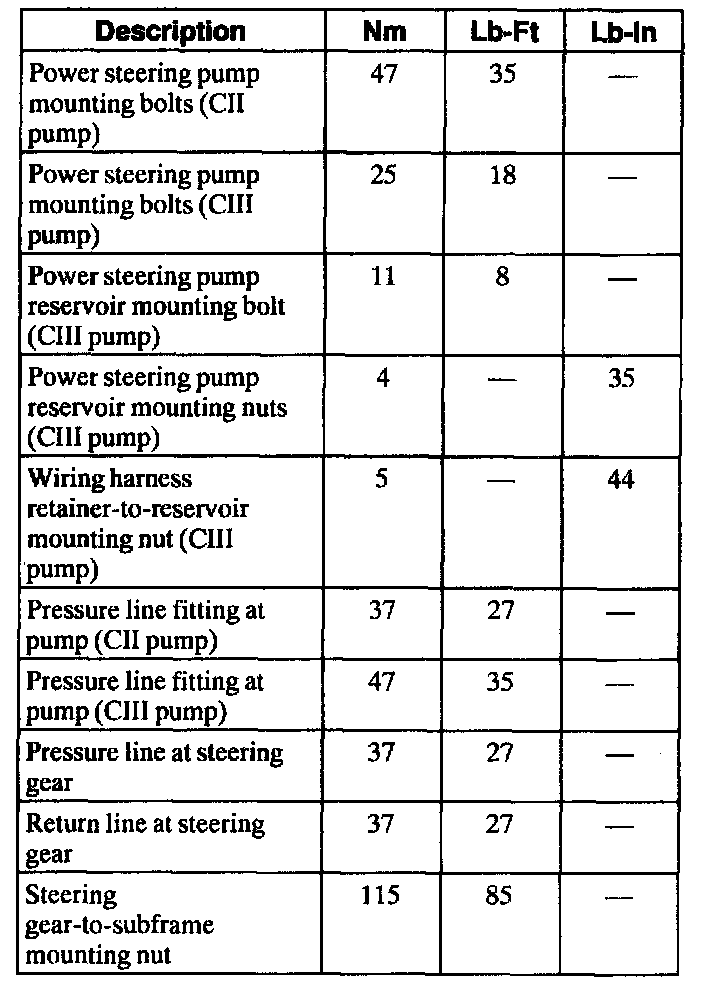

Power Steering Torque Specifications Part 1 of 3





Power Steering Torque Specifications Part 2 of 3





Power Steering Torque Specifications Part 3 of 3

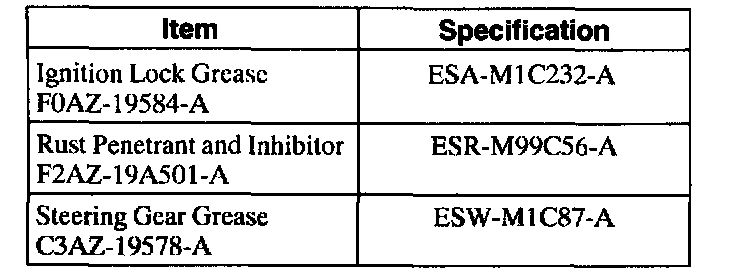

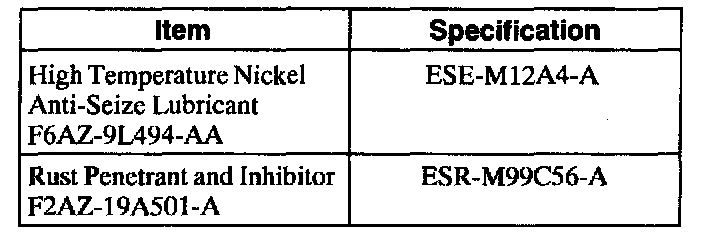

General Specifications

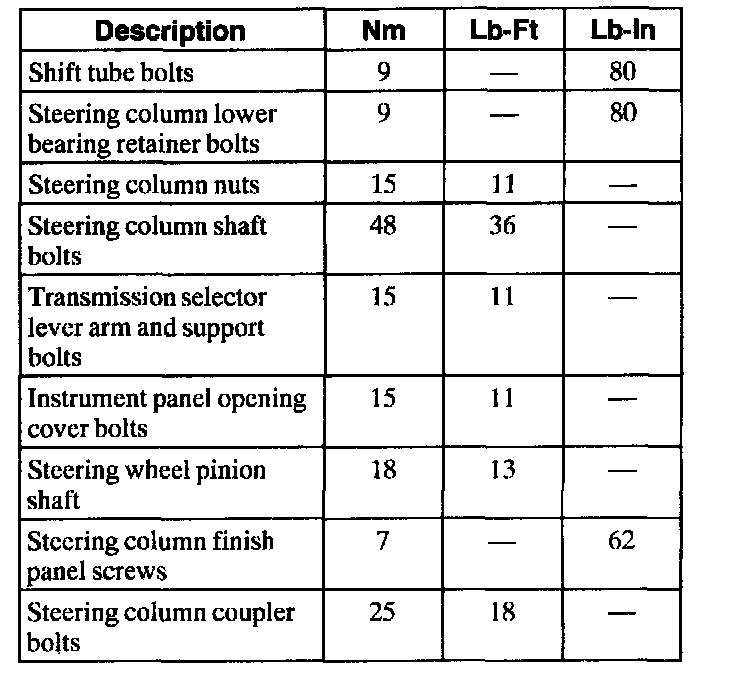

Steering Column Torque Specifications 1 of 2





Steering Column Torque Specifications 2 of 2

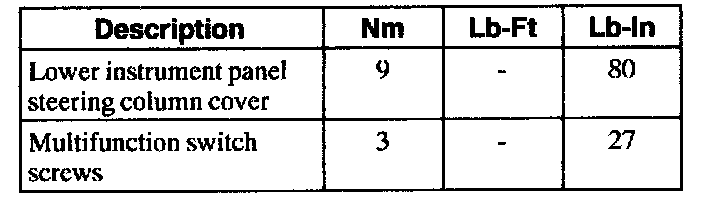

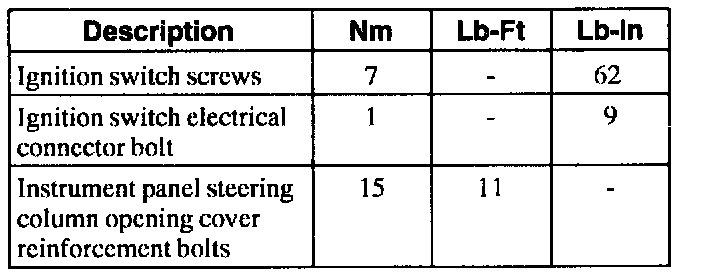

Steering Column Switches Torque Specification Part 1 of 2





Steering Column Switches Torque Specifications Part 2 of 2
