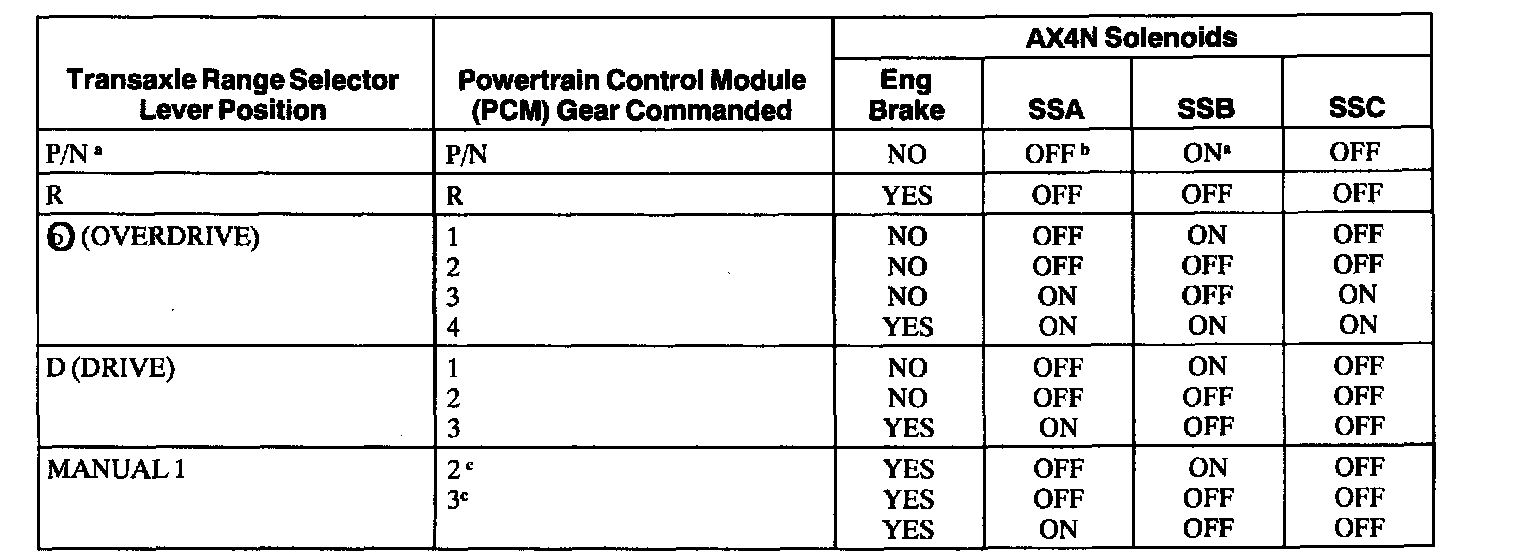

Shift Solenoid Operation Chart

Shift Solenoid Operation Chart





a When transmission fluid temperature is below 50� then SSA=OFF, SSB=ON, SSC=ON to prevent cold creep.
b Not contributing to power flow.
c When a manual pull-in occurs above calibrated speed the transaxle will downshift from the higher gear until the vehicle speed drops below this calibrated speed.
