Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Sensor/Switch >> Locations

Seat Sensor/Switch: Locations

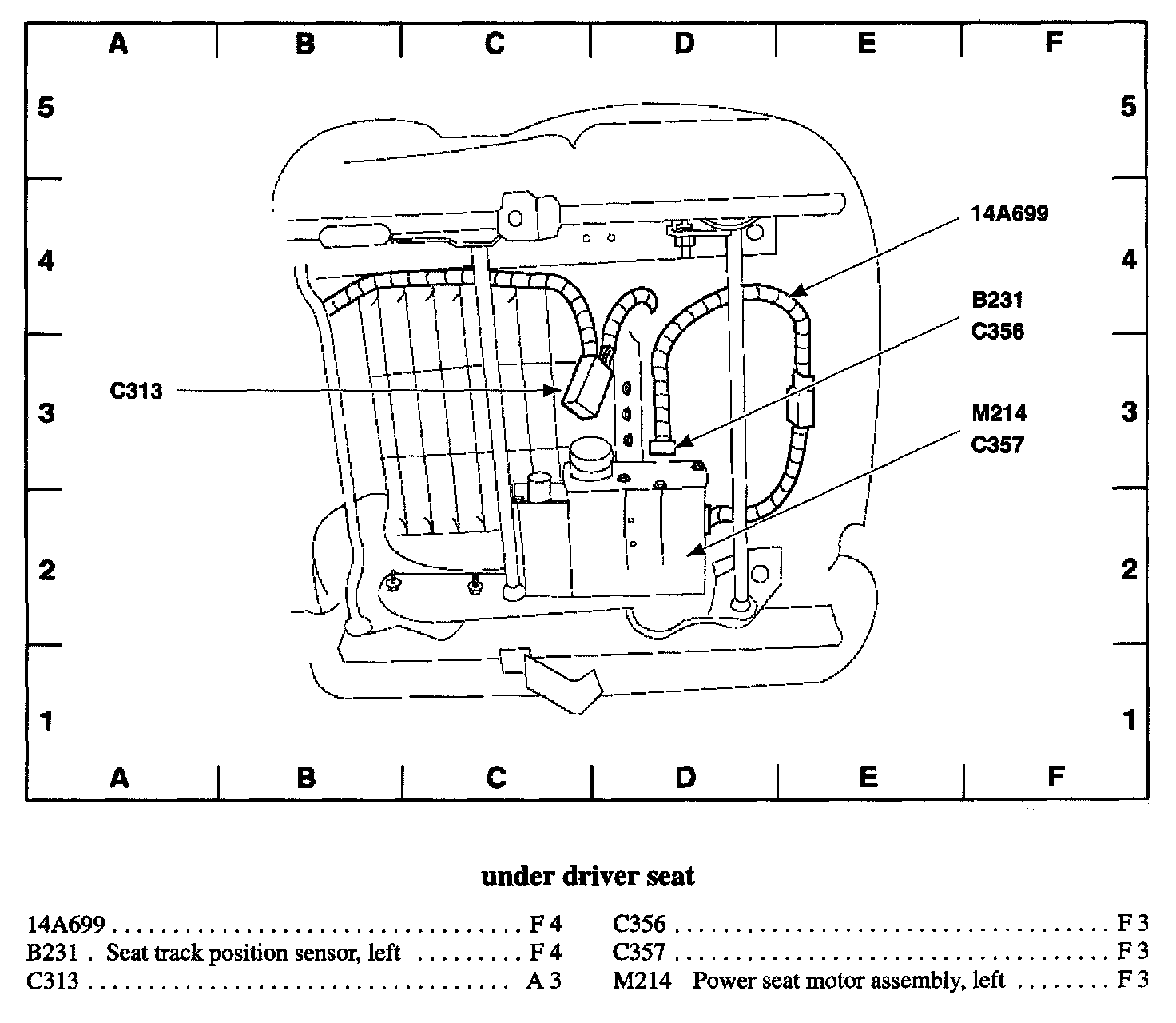

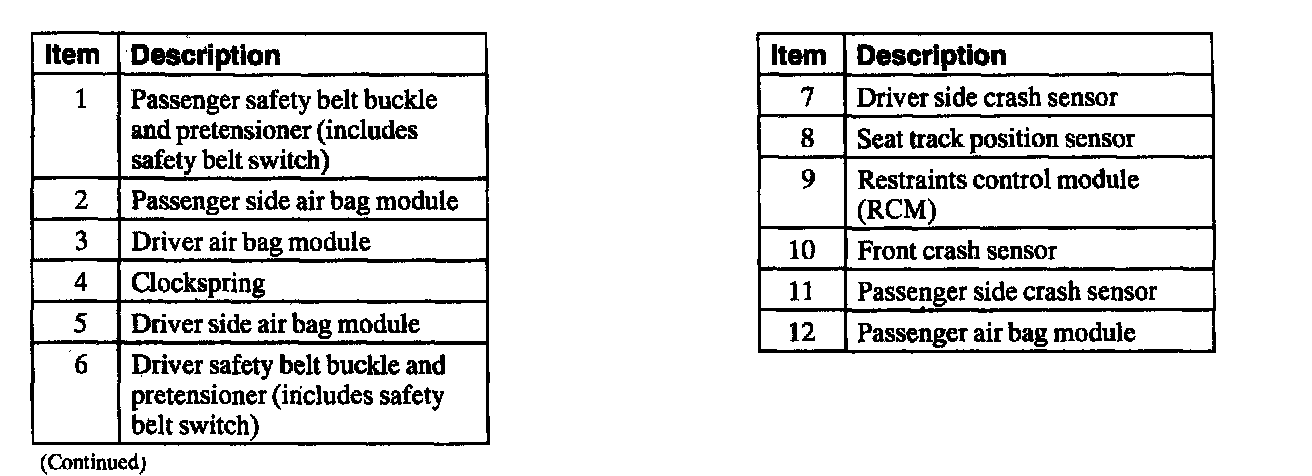

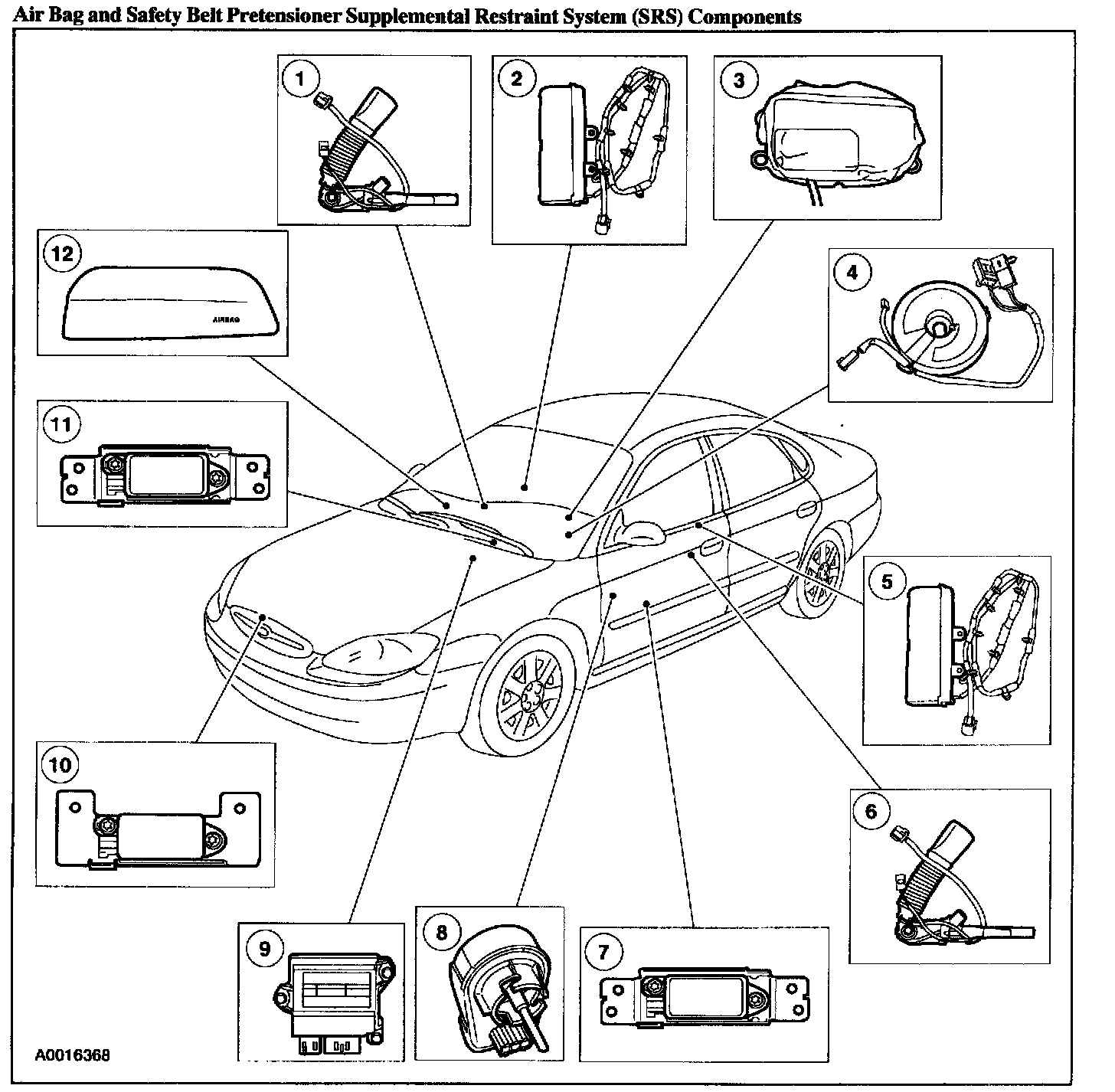

Air Bag And Safety Belt System Components Part 1 Of 2:

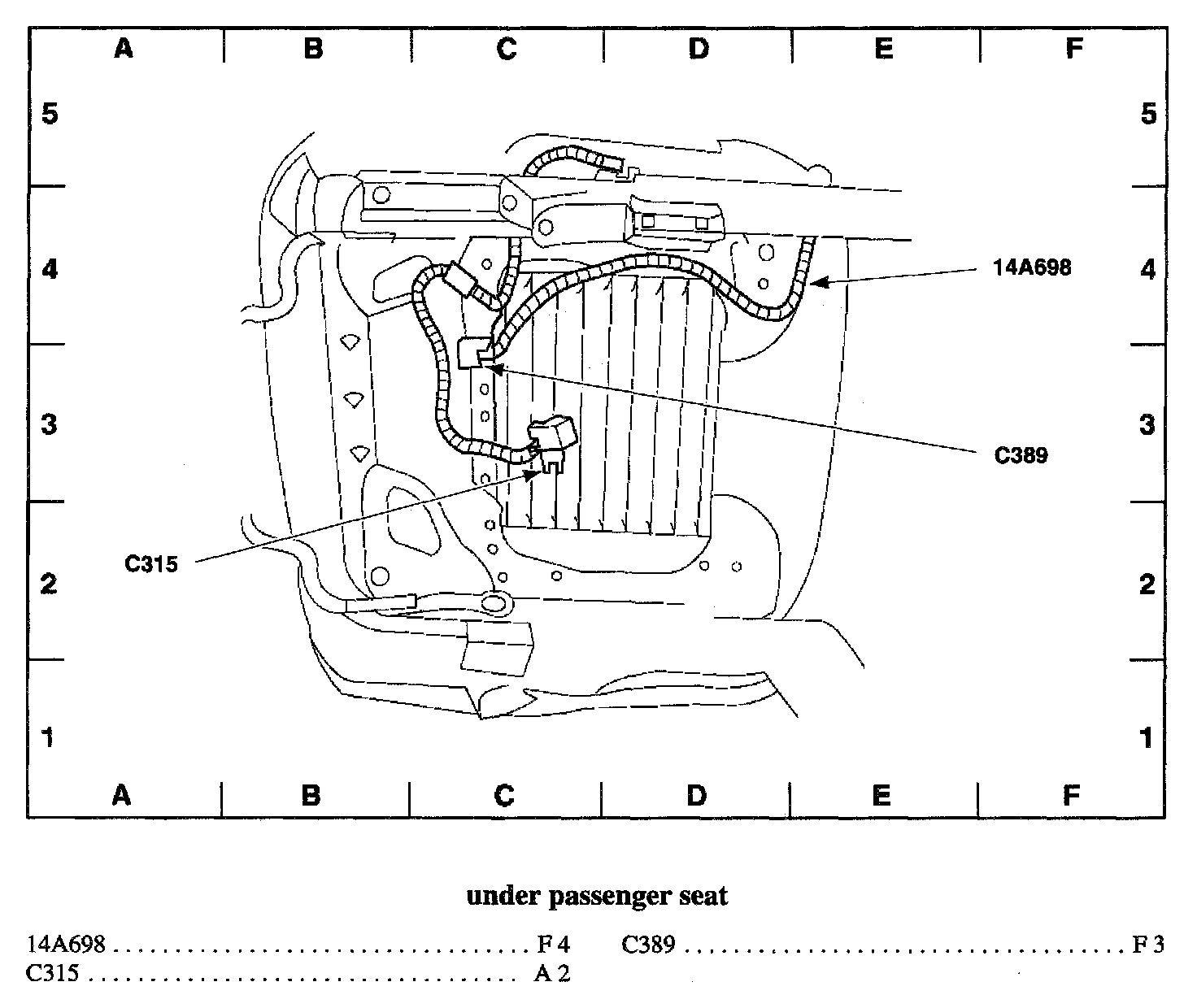

Air Bag And Safety Belt System Components Part 2 Of 2:
