Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Sensor/Switch >> Diagrams

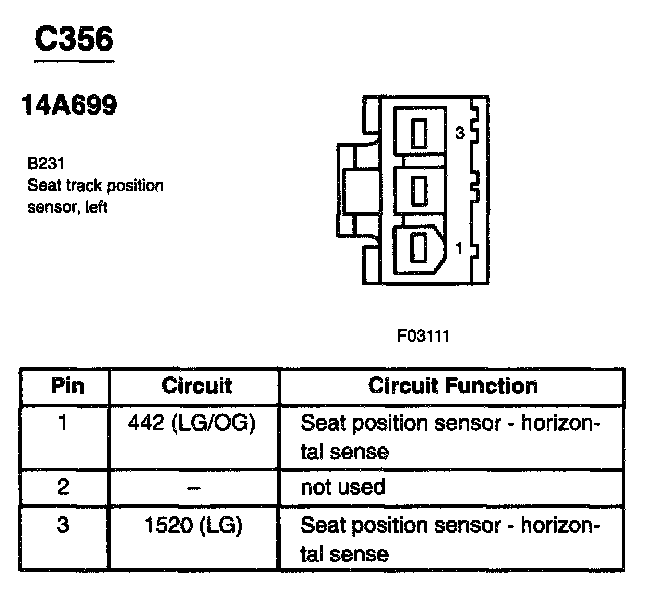

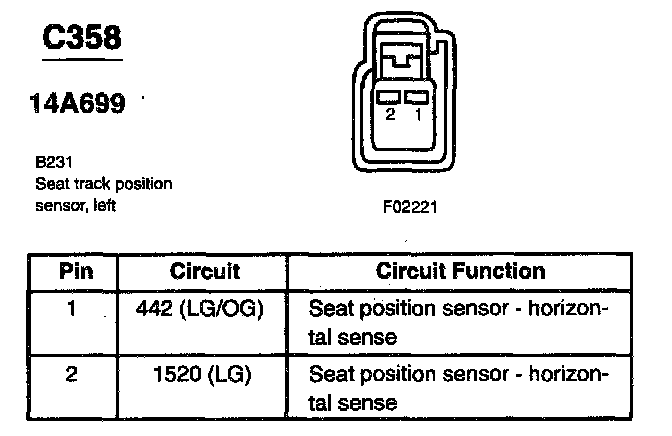

Seat Sensor/Switch: Diagrams
