Inertia Fuel Shutoff Switch: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the LH B-pillar trim.

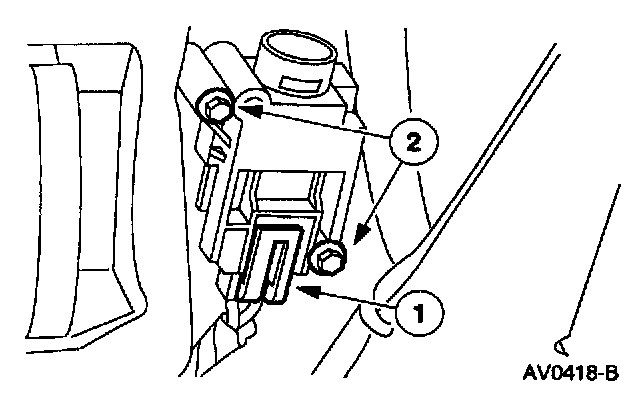

3. Remove the Inertia Fuel Shutoff (IFS) switch.
1 Disconnect the IFS switch electrical connector.
2 Remove the screws and the switch.

INSTALLATION
1. To install, reverse the removal procedure.
