Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Child Restraint >> Child Seat Tether Attachment >> Service and Repair >> Lower Anchor and Tether for Children (LATCH) >> Wagon >> Passenger Side

Passenger Side

REMOVAL
1. Remove the second row seat cushion and seat backrest. For additional information, refer to Seats.

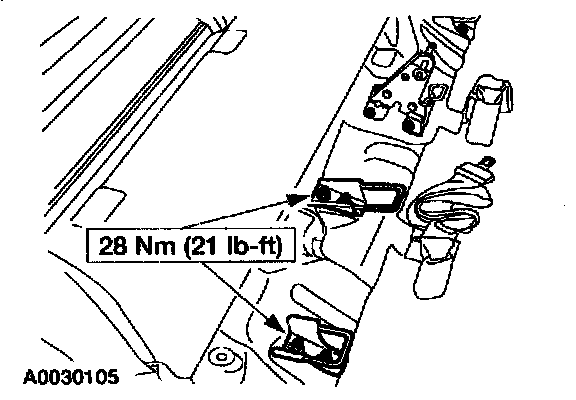

2. Remove the nuts and the LATCH attaching brackets.

INSTALLATION
1. To install, reverse the removal procedure.
