Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Child Restraint >> Child Seat Tether Attachment >> Service and Repair >> Lower Anchor and Tether for Children (LATCH) >> Four Door

Four Door

REMOVAL
1. Remove the second row seat cushion and seat backrest. For additional information, refer to Seats.

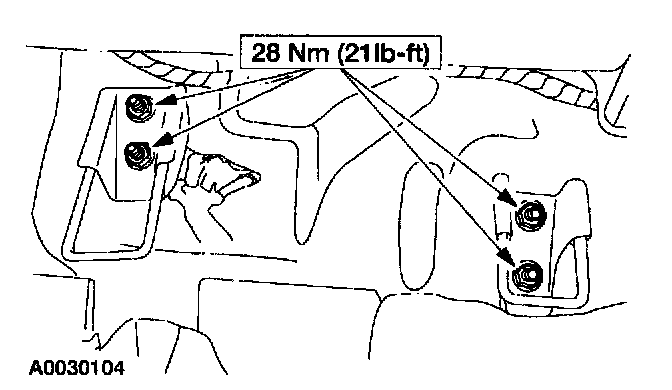

2. Remove the nuts and the Lower Anchor and Tether for Children (LATCH) attaching brackets.

NOTE: Driver side shown, passenger side similar.

INSTALLATION
1. To install, reverse the removal procedure.
