Electrical Diagrams

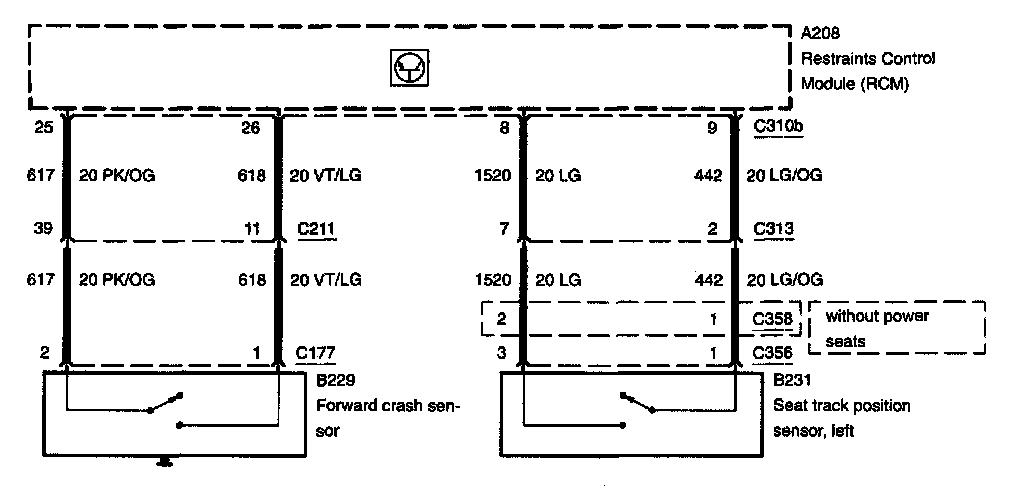

Diagram 501-20b-00-1:

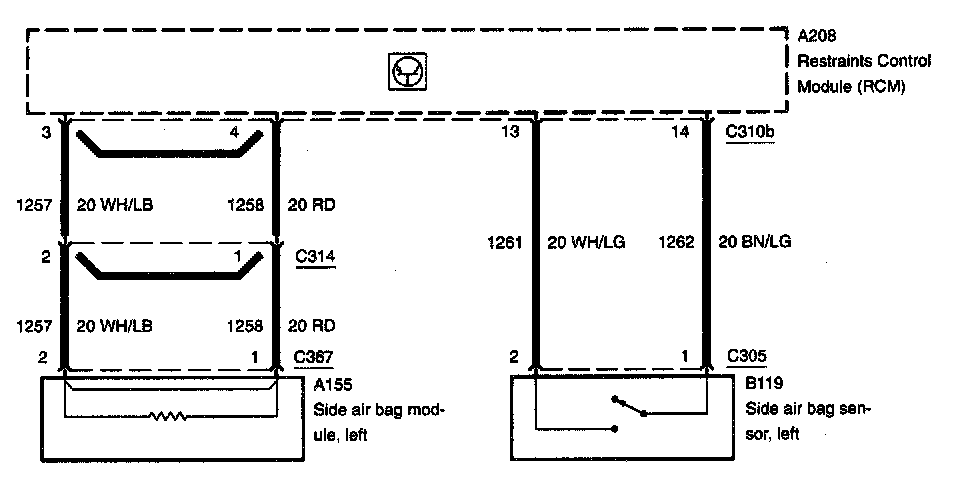

Diagram 501-20b-00-2:

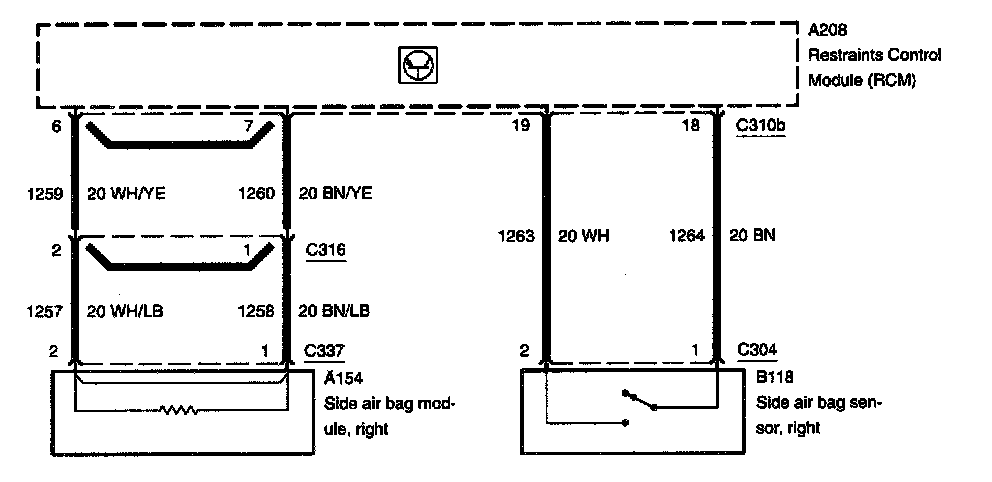

Diagram 501-20b-00-3:

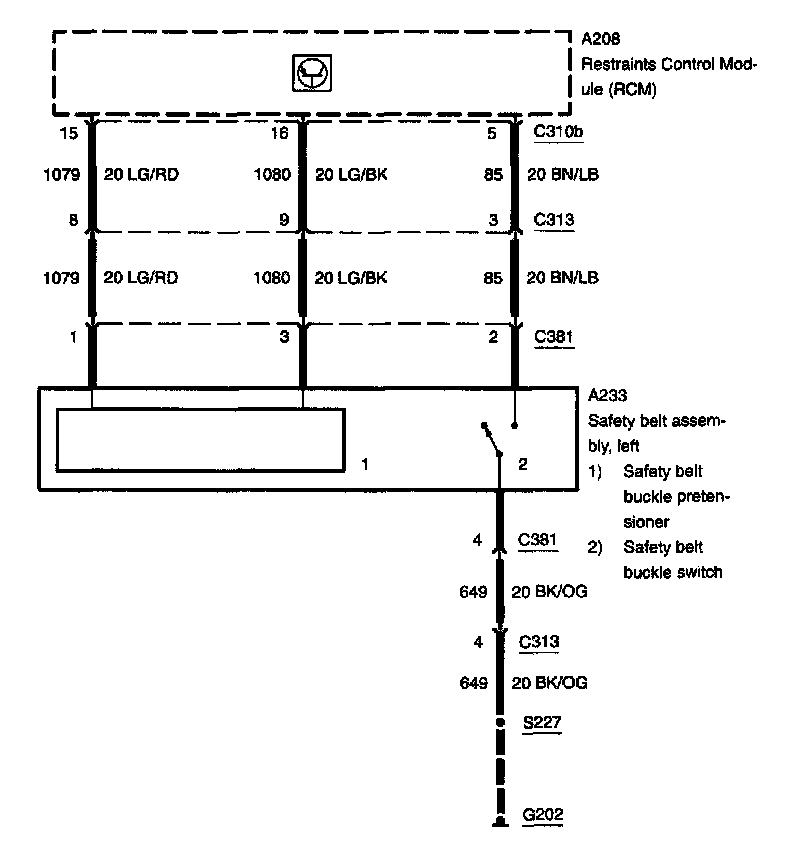

Diagram 501-20b-00-4:

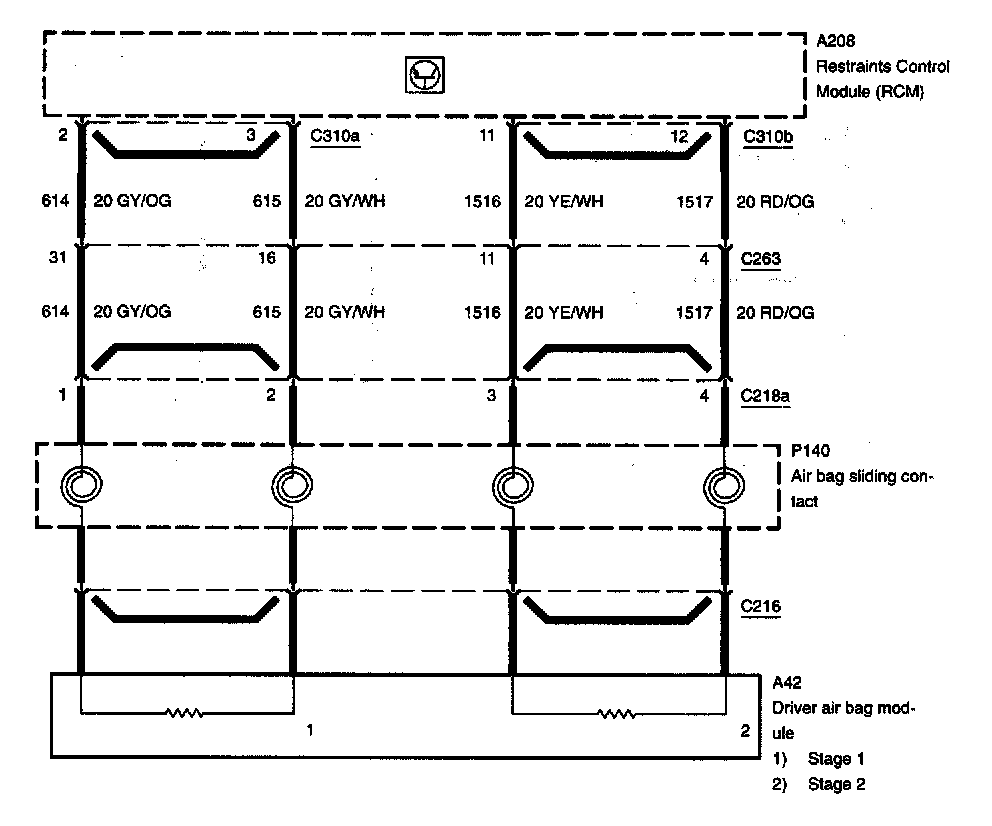

Diagram 501-20b-00-5:

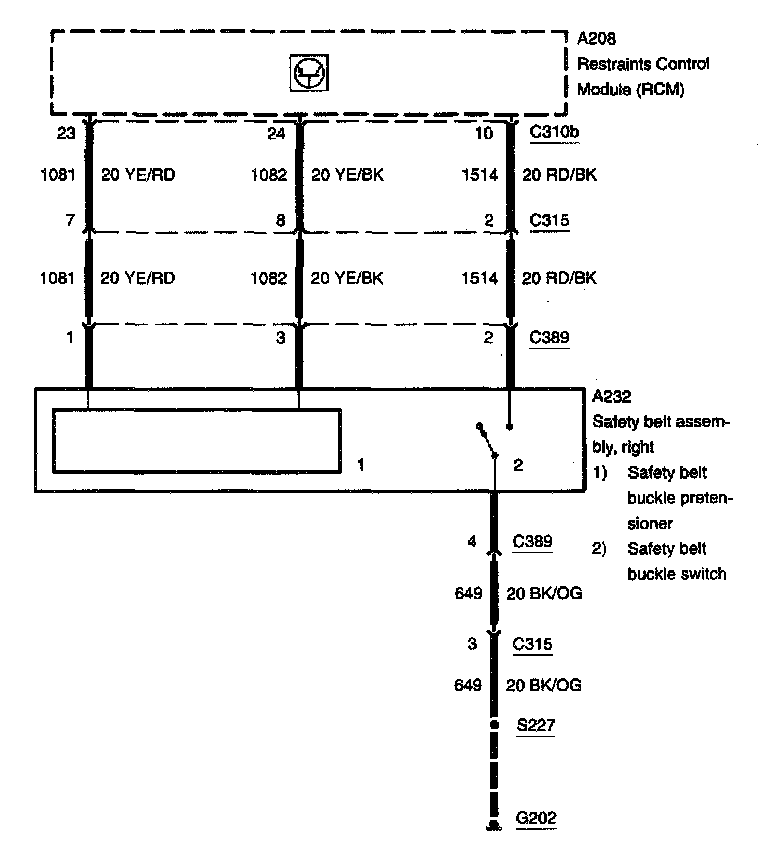

Diagram 501-20b-00-6:

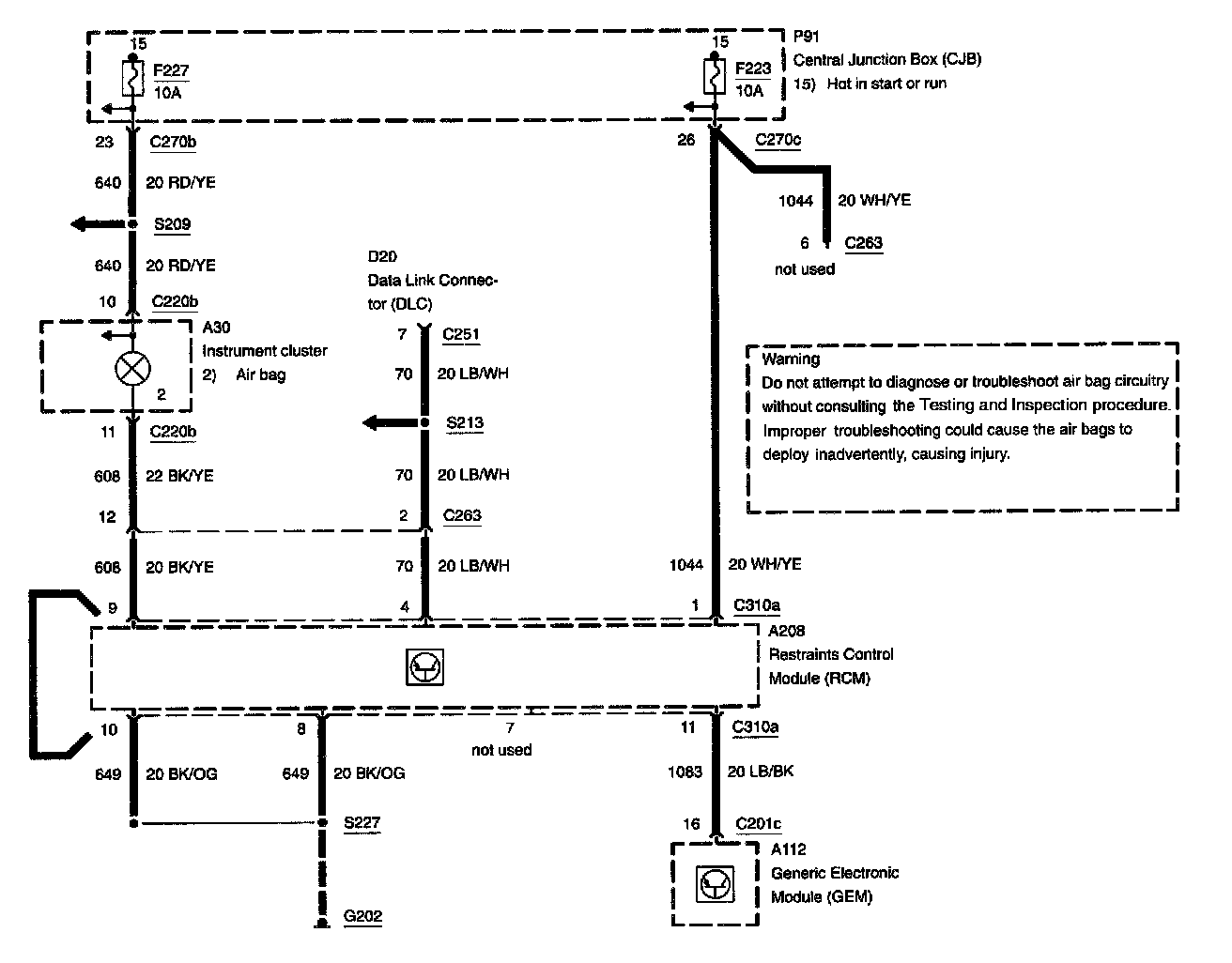

Diagram 501-20b-00-7:
Diagram 501-20b-00-8:
