Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Testing and Inspection >> Pinpoint Tests >> Test F: Unable to Refuel Vehicle

Test F: Unable to Refuel Vehicle

F1:

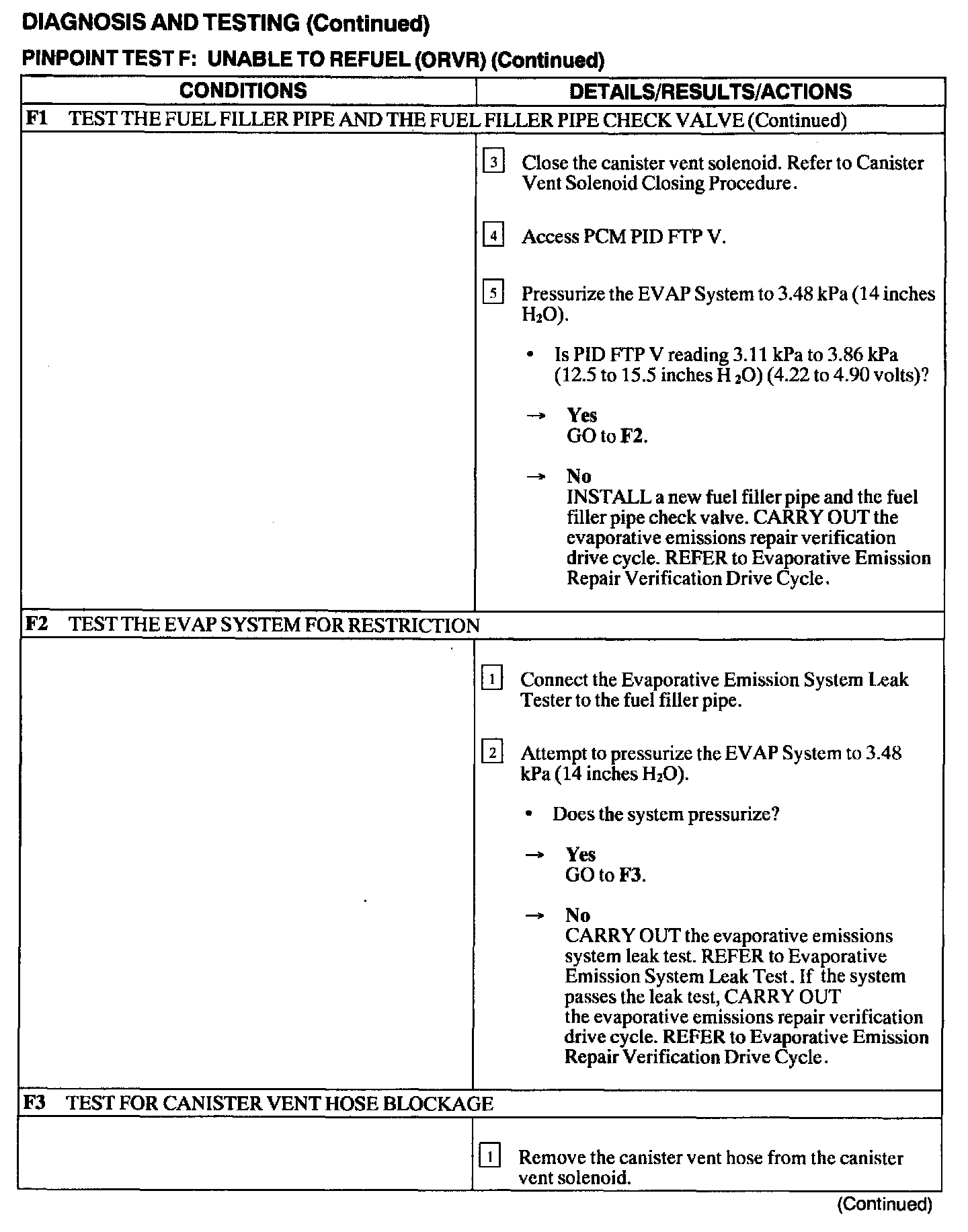

F1 - F3:

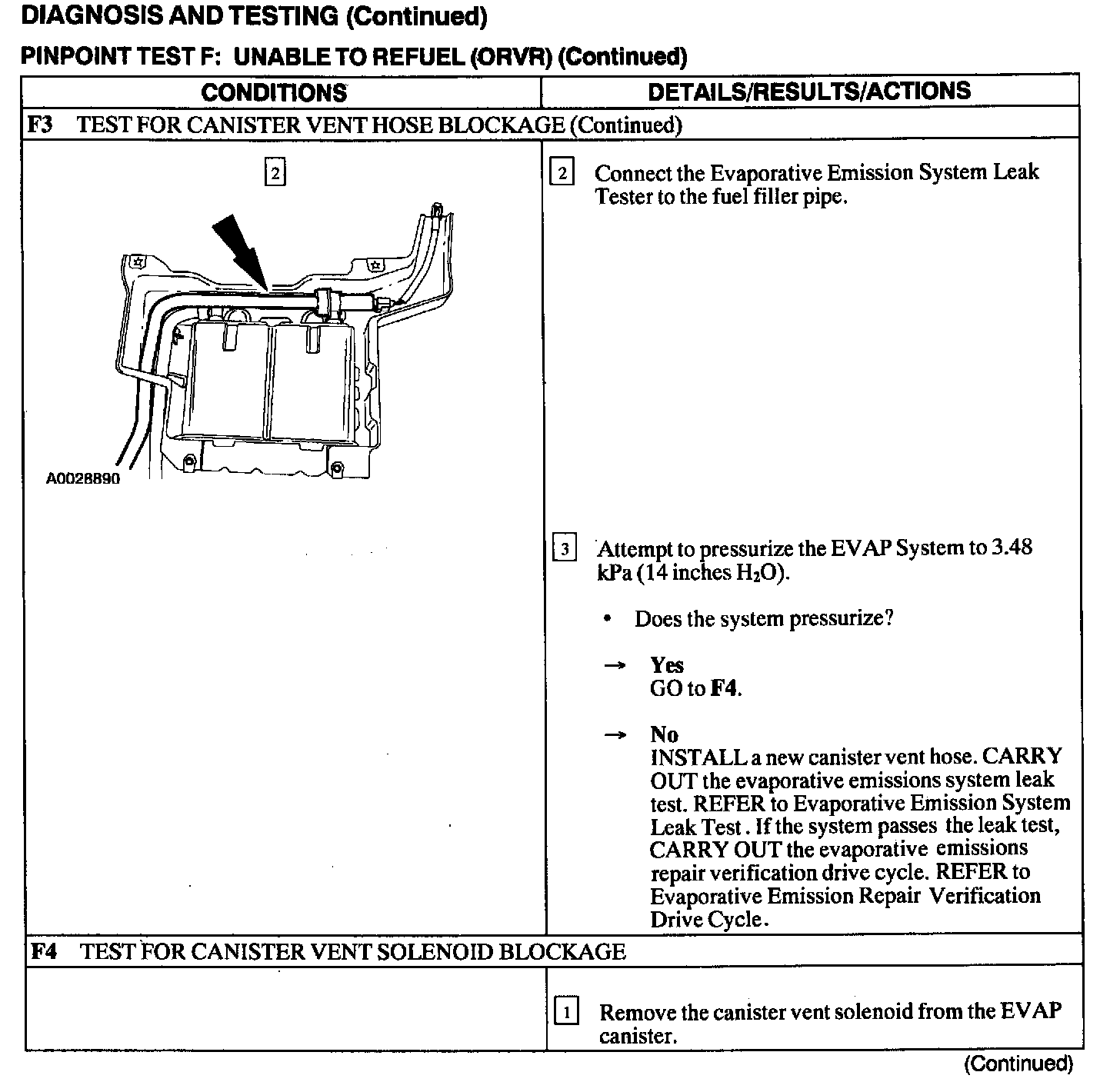

F3 - F4:

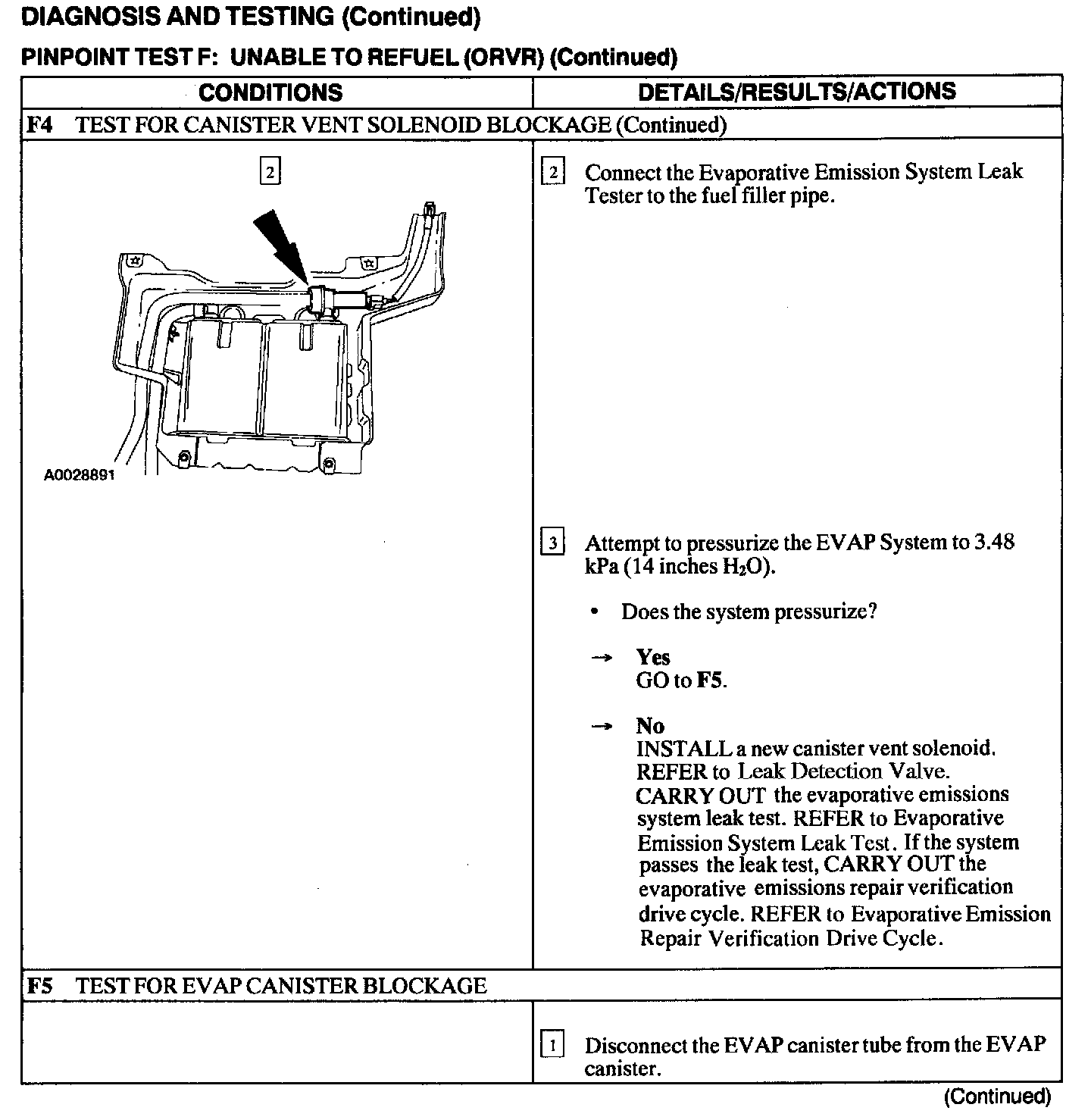

F4 - F5:

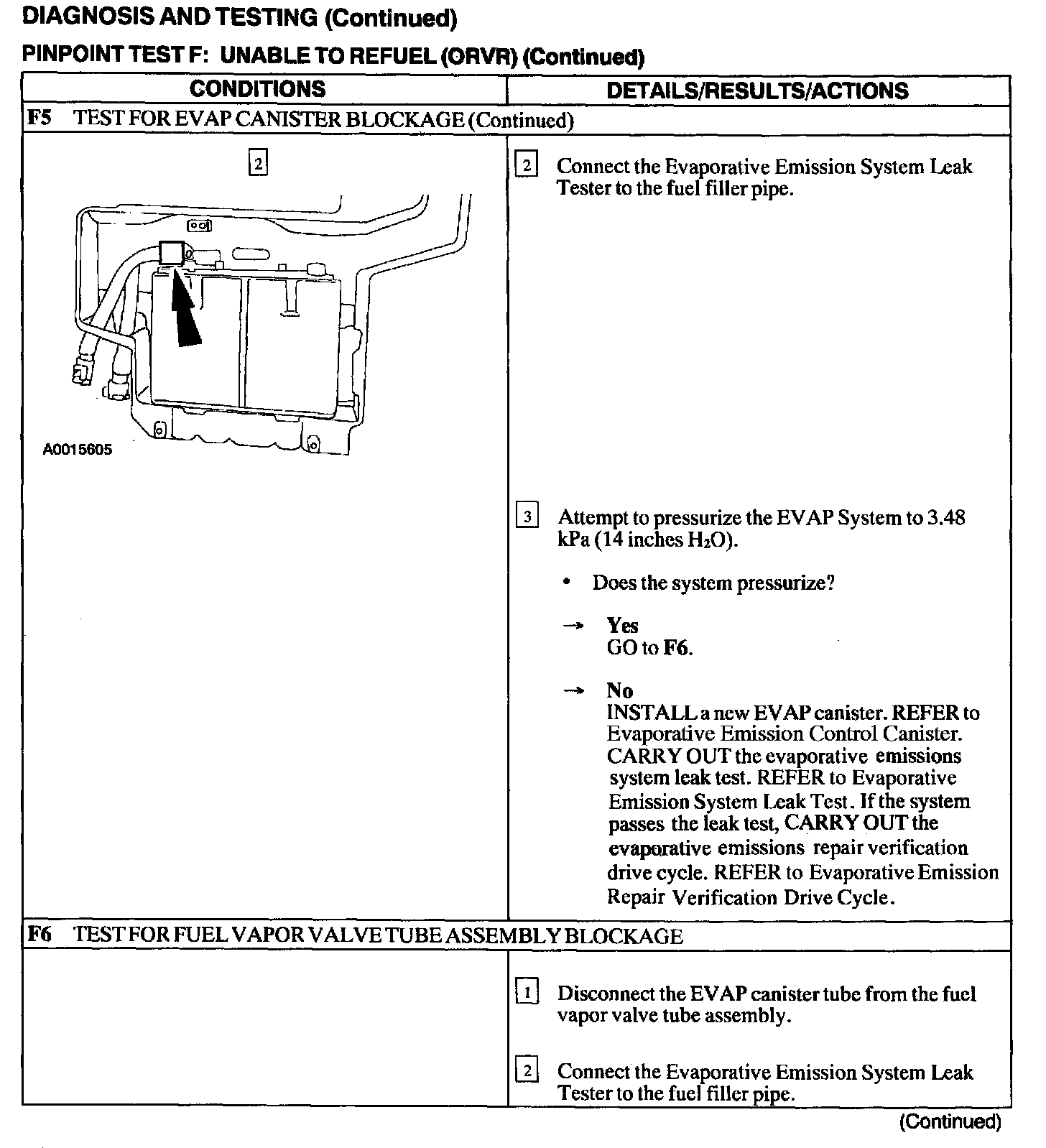

F5 - F6:

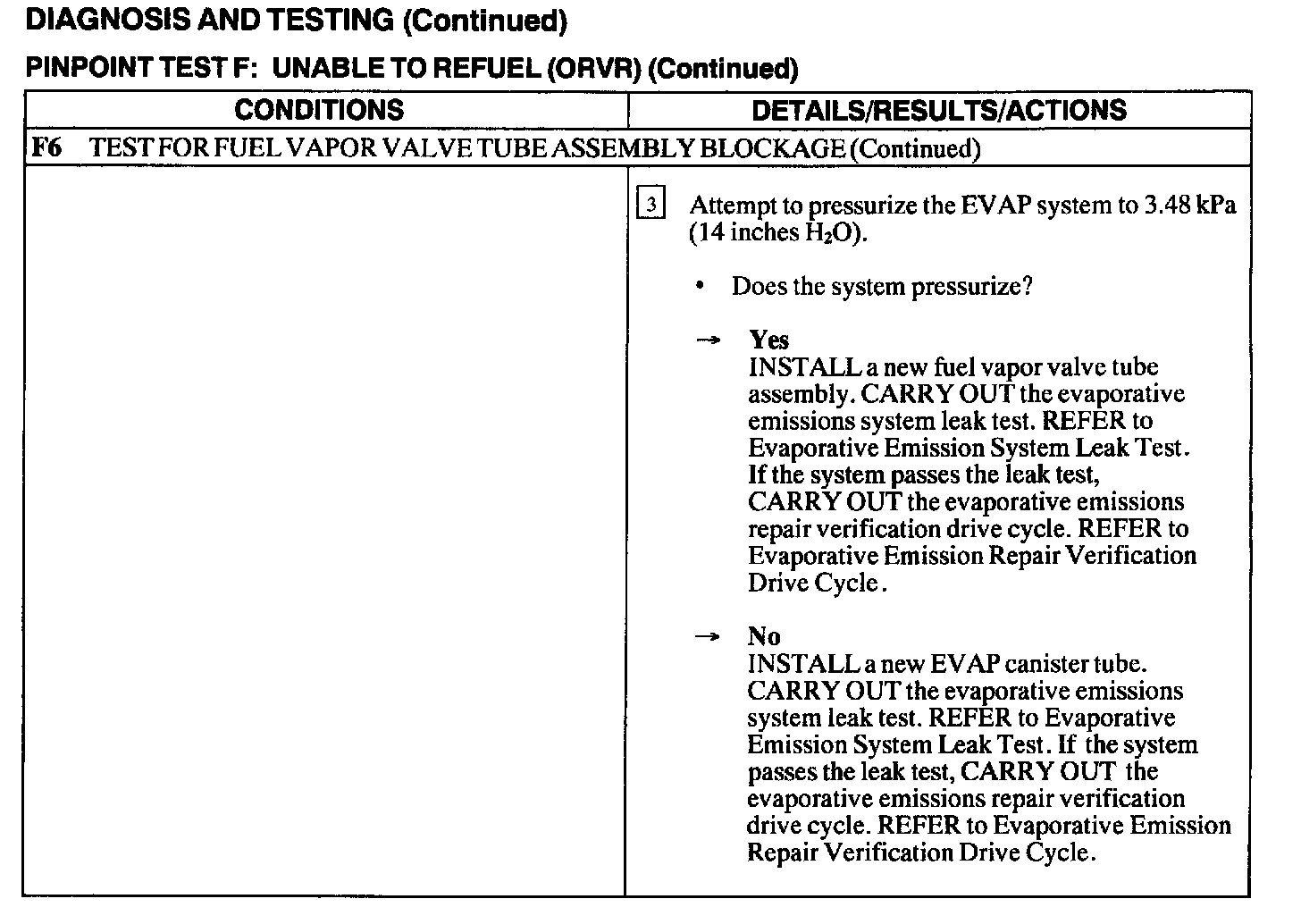

F6:
