Tests JE: Integrated Ignition Coil A, B, C or D Failure
Tests JE: Integrated Ignition Coil A, B, C or D Failure
JE: Integrated
Ignition Coil
A, B, C or D Failure

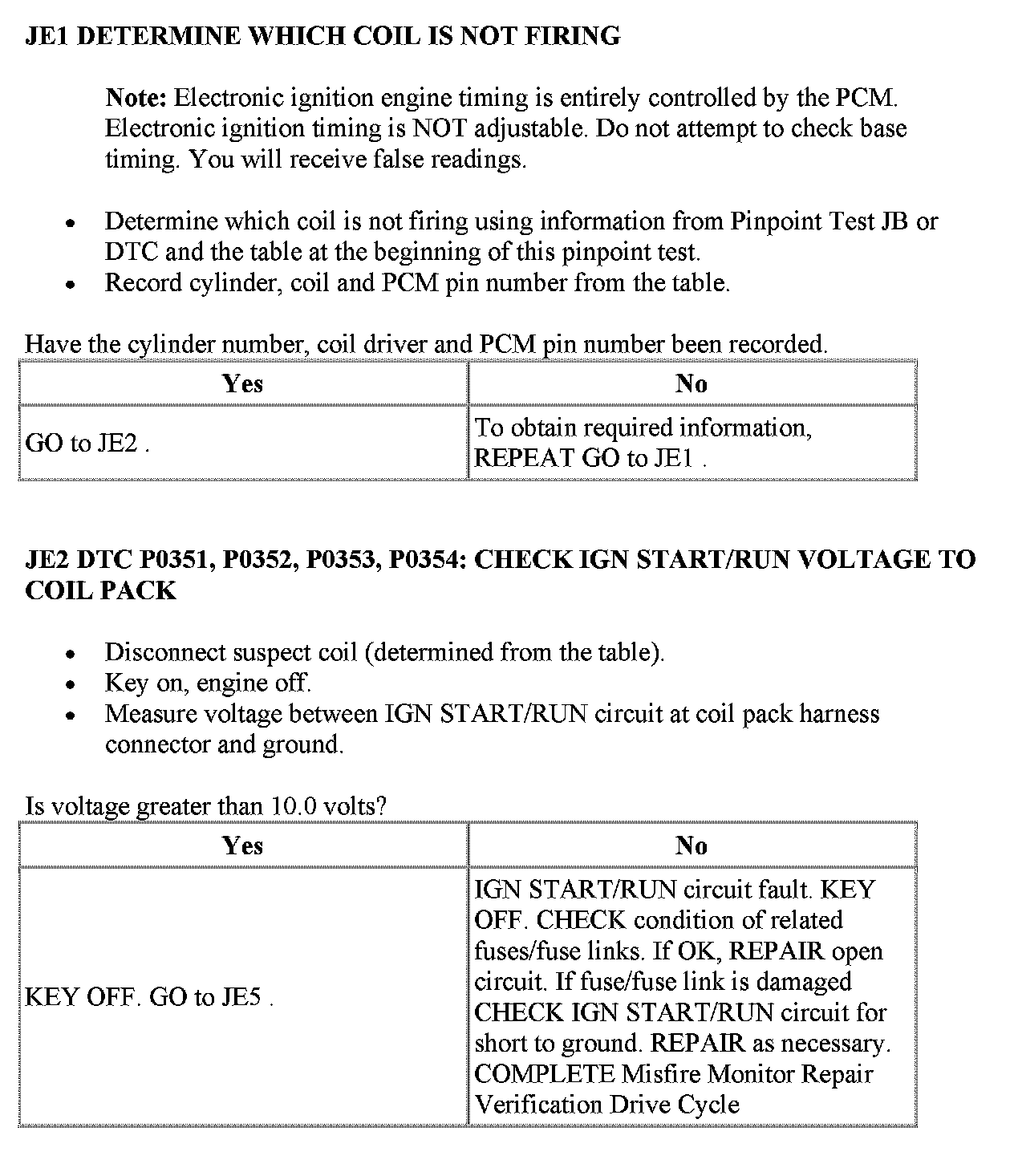

Pinpoint Test JE1 - JE2:

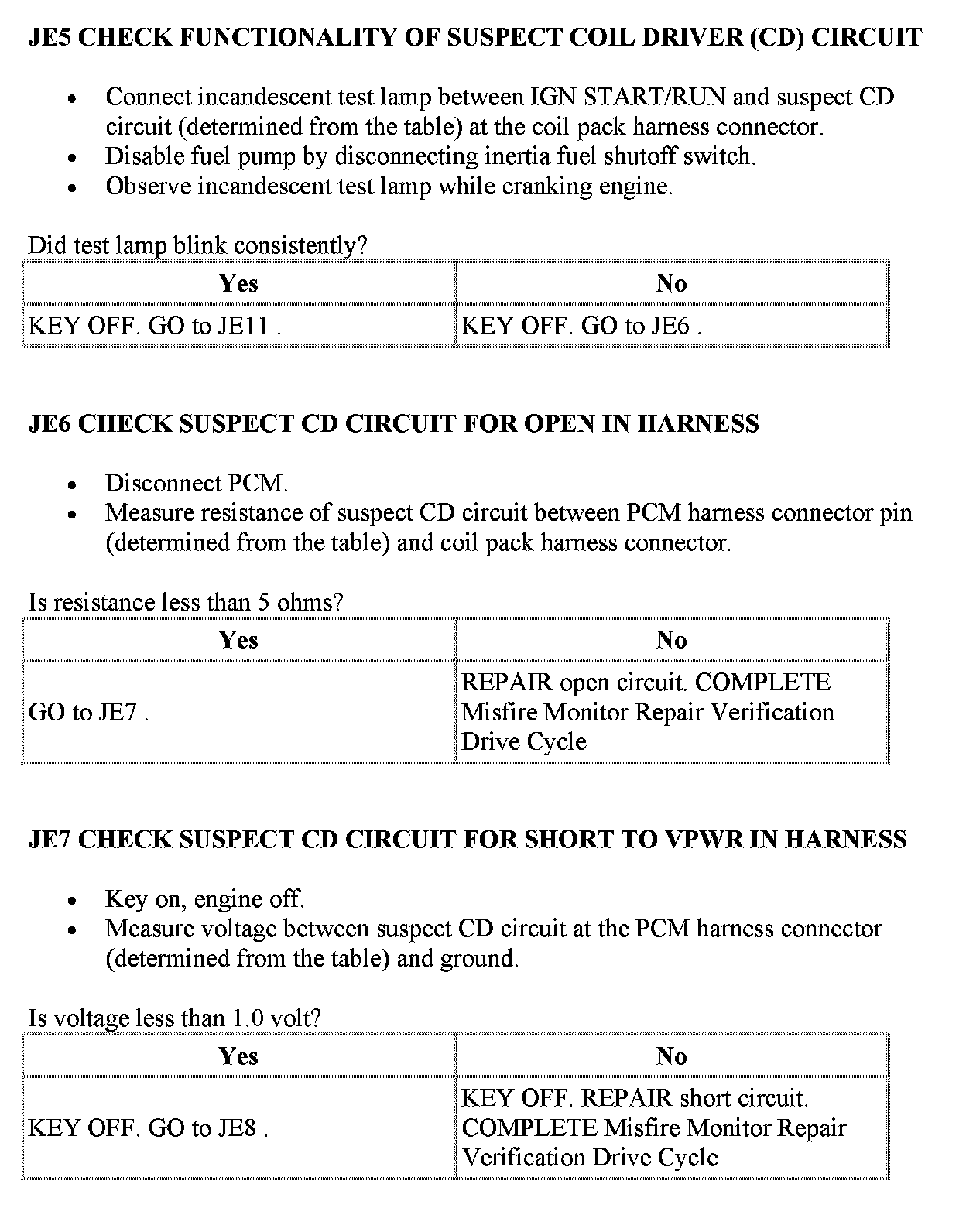

Pinpoint Test JE5 - JE7:

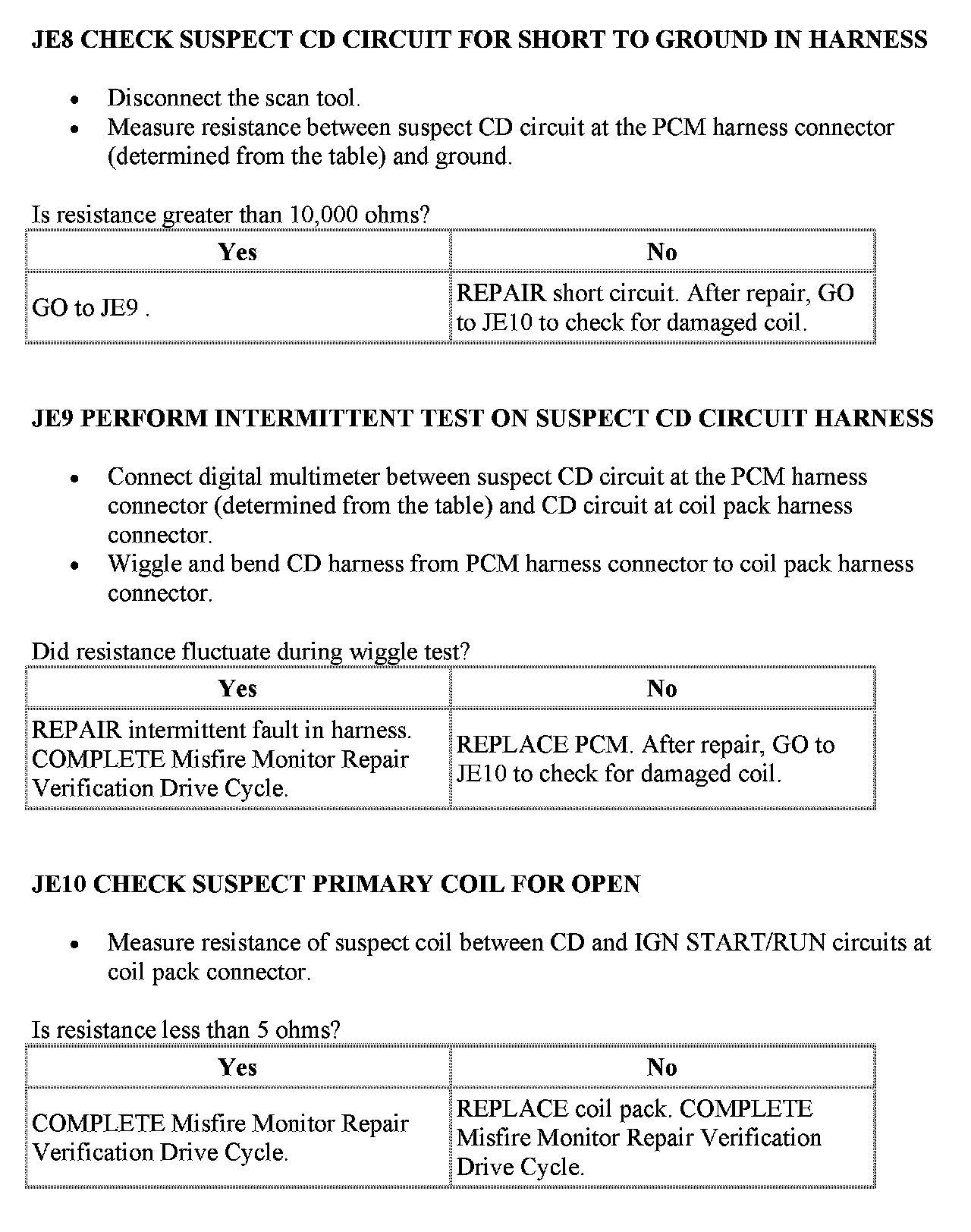

Pinpoint Test JE8 - JE10:

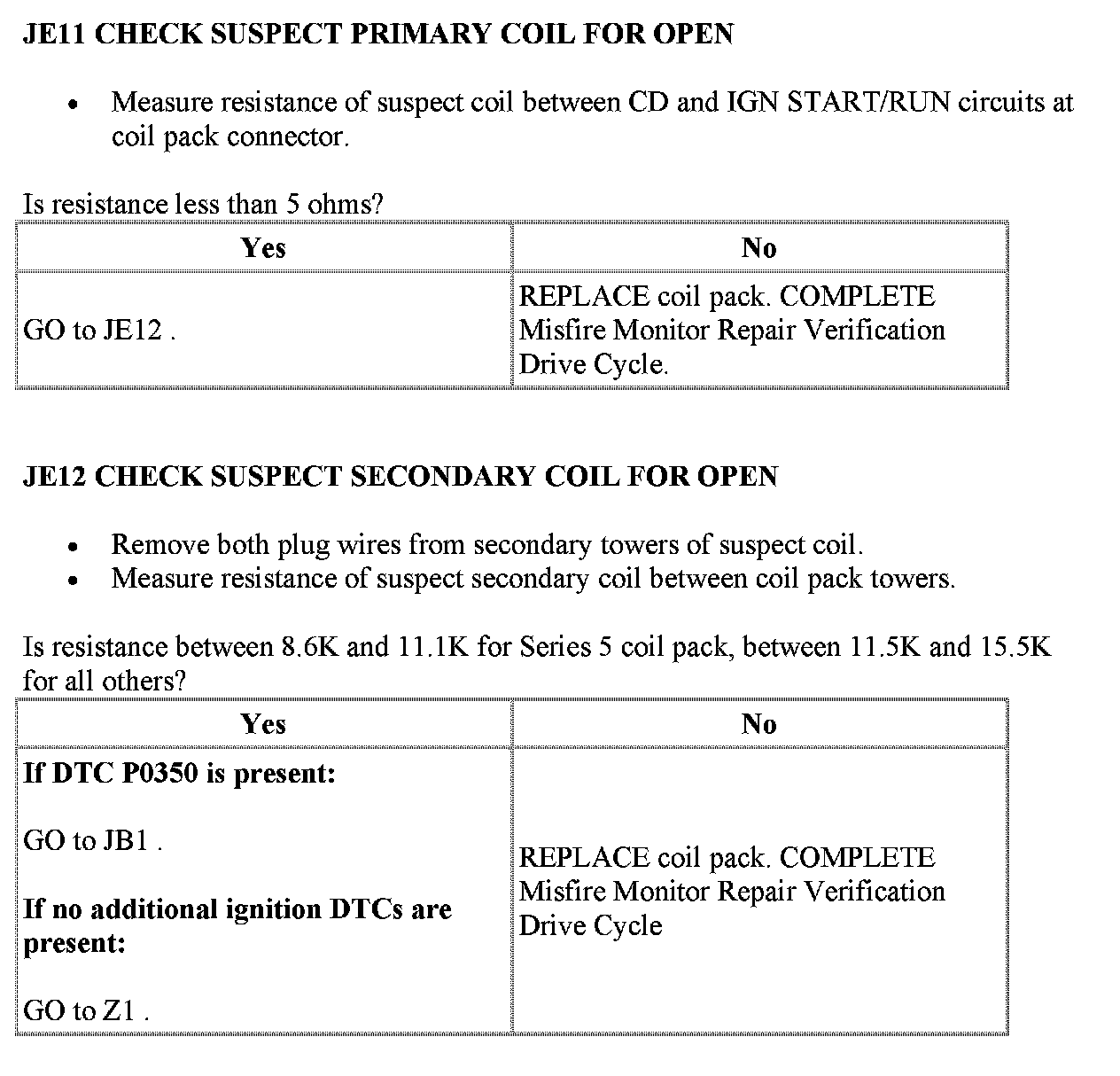

Pinpoint Test JE11 - JE12:
