Tests HU: Intake Air Systems
Tests HU: Intake Air Systems

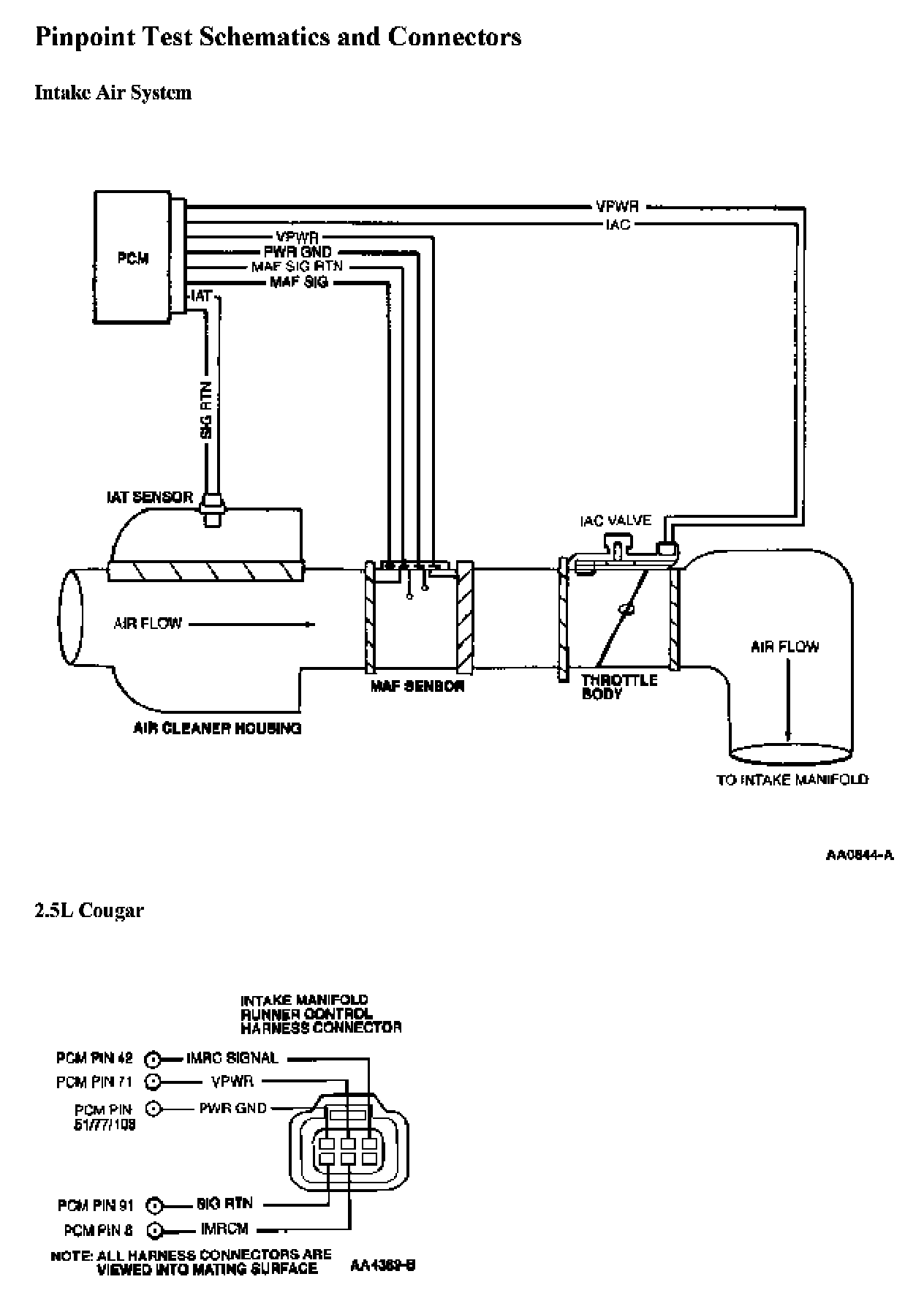

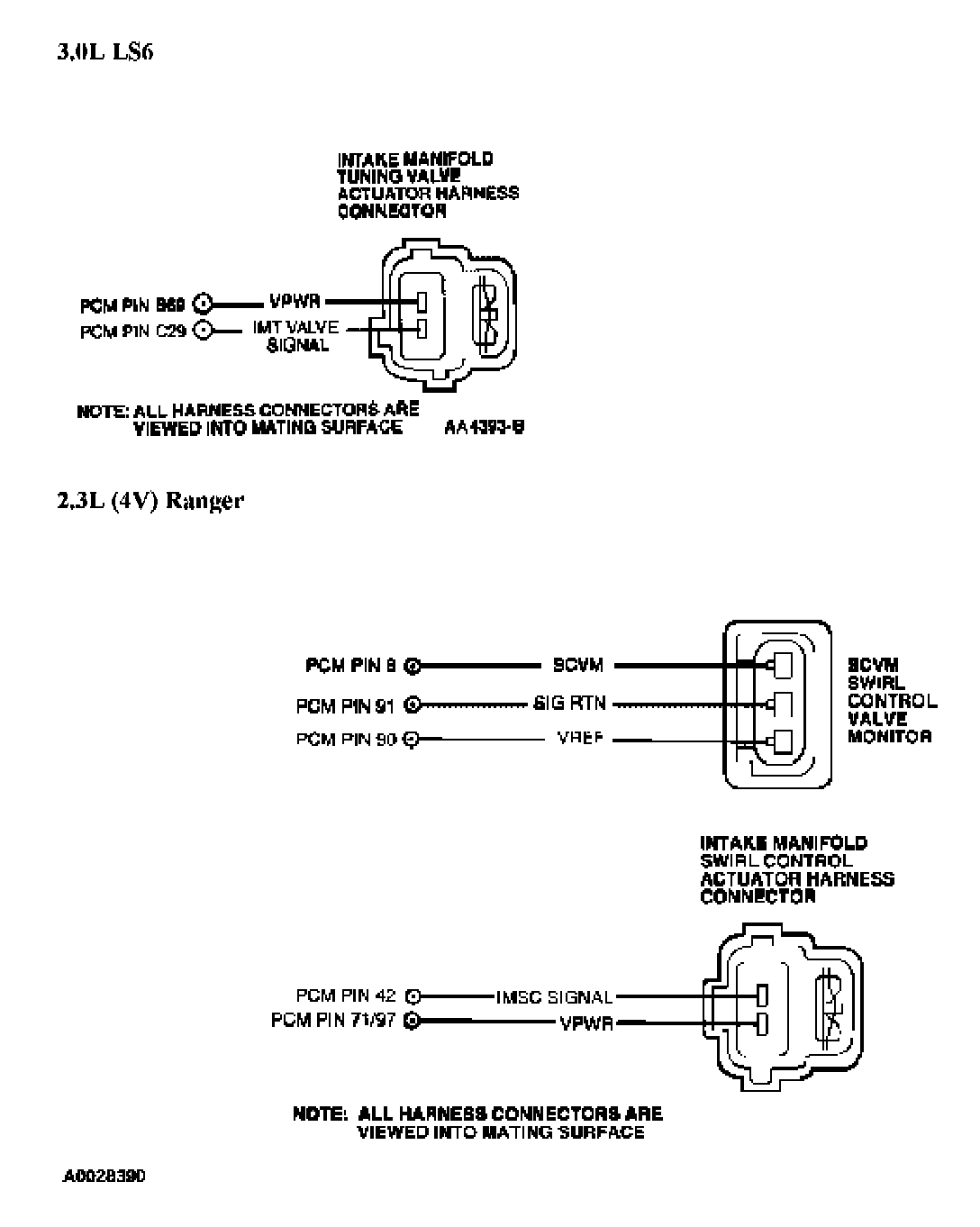

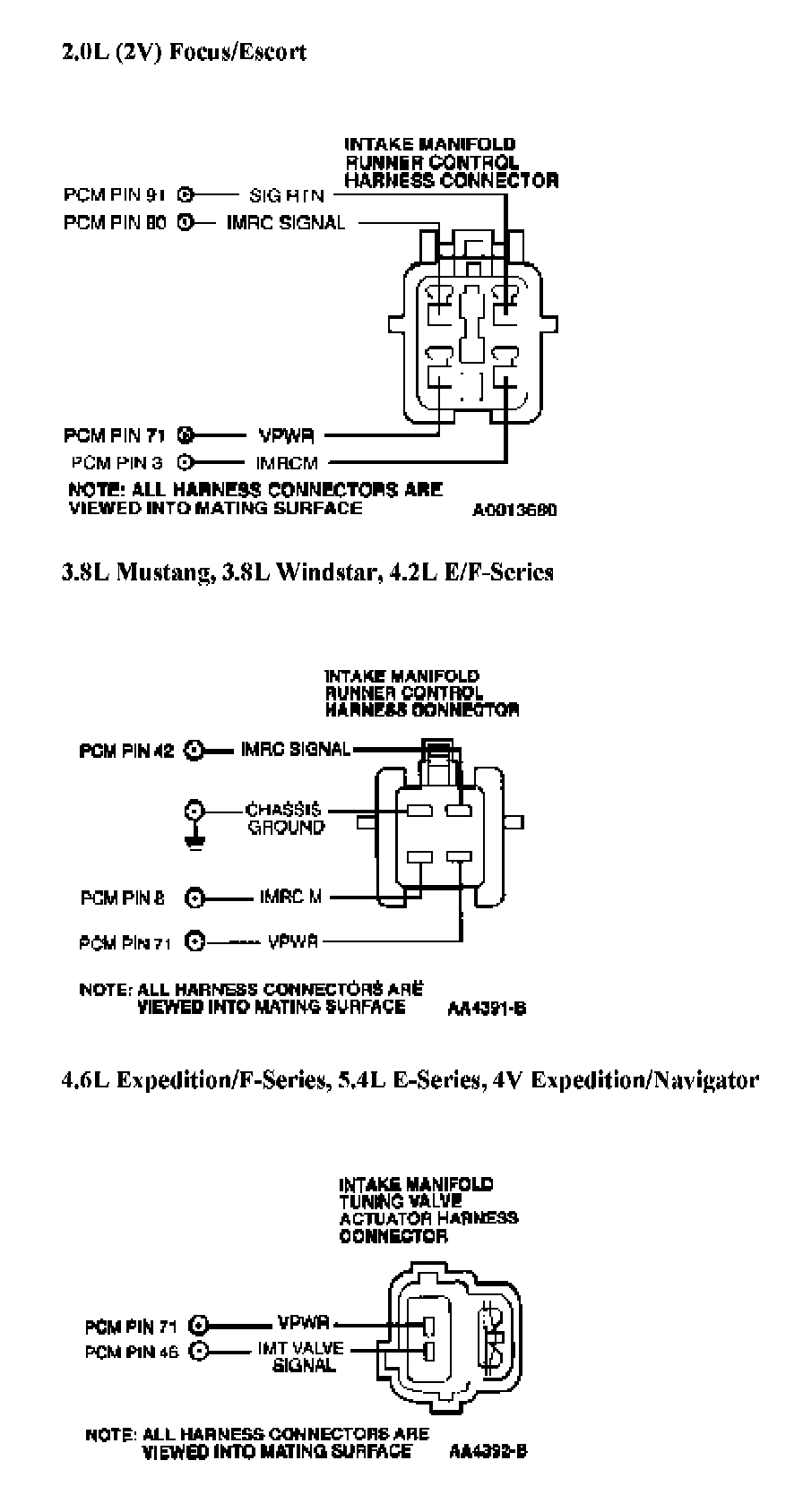

HU INTRODUCTION:

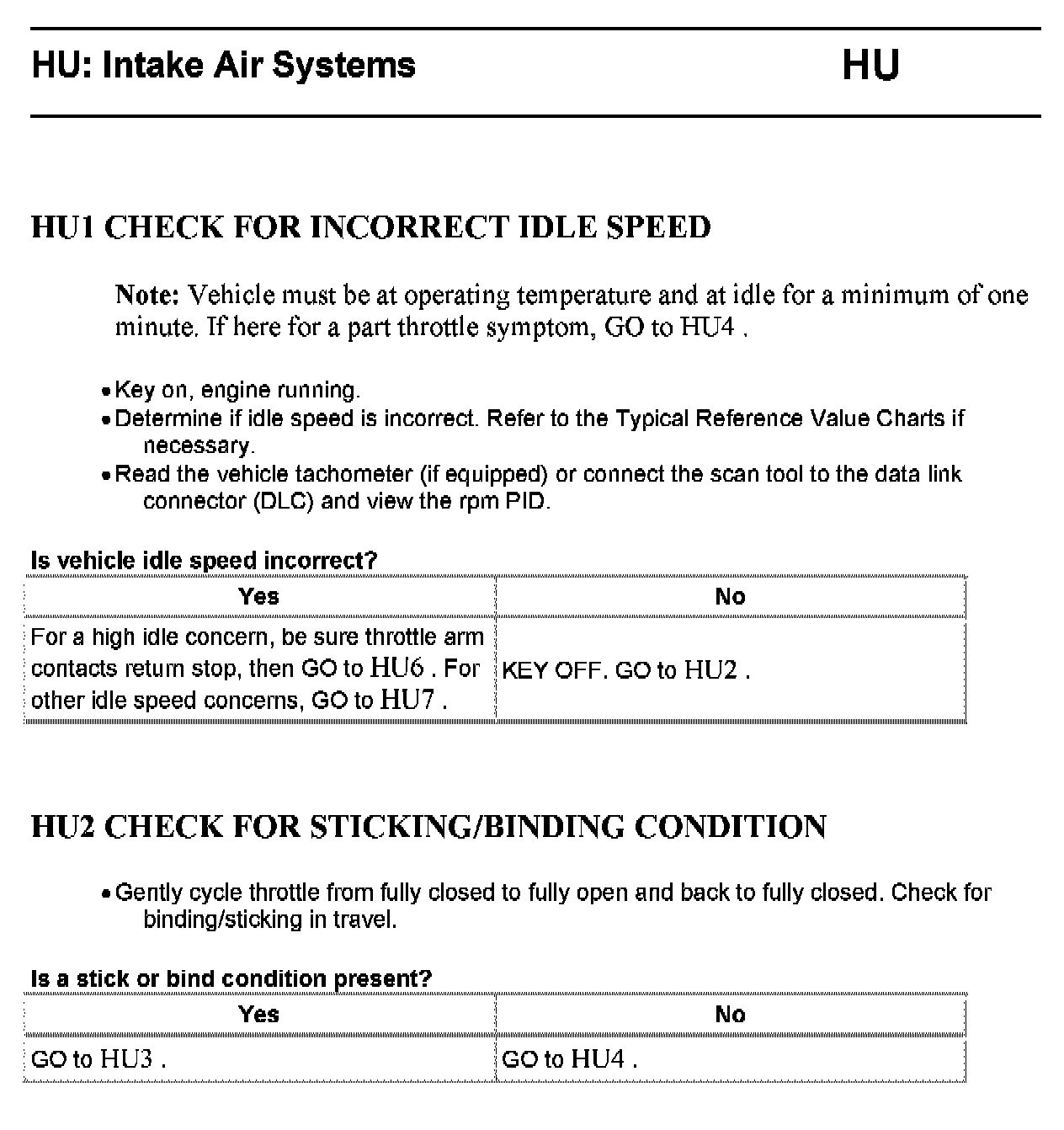

HU1 - HU2:

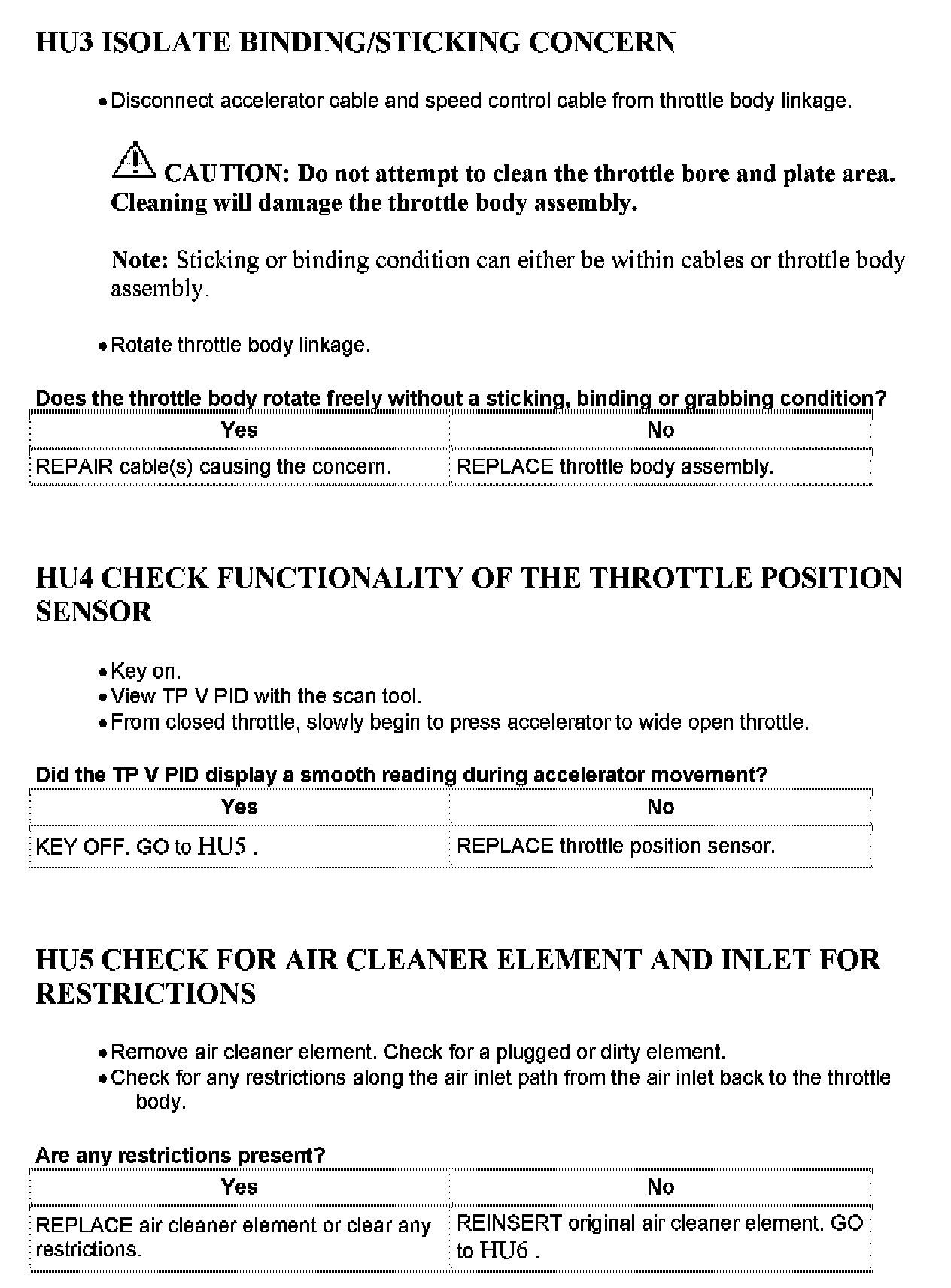

HU3 - HU5:

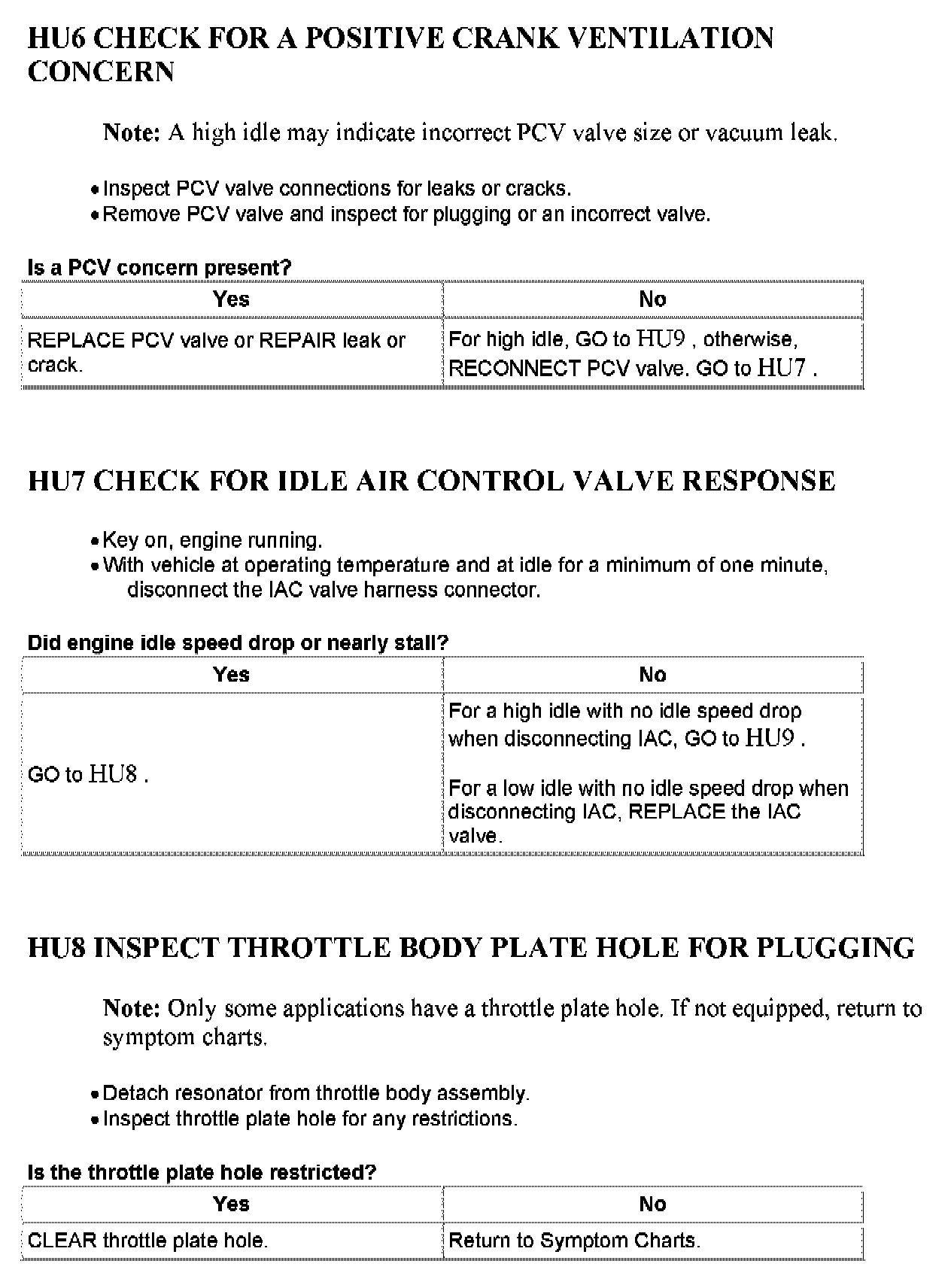

HU6 - HU8:

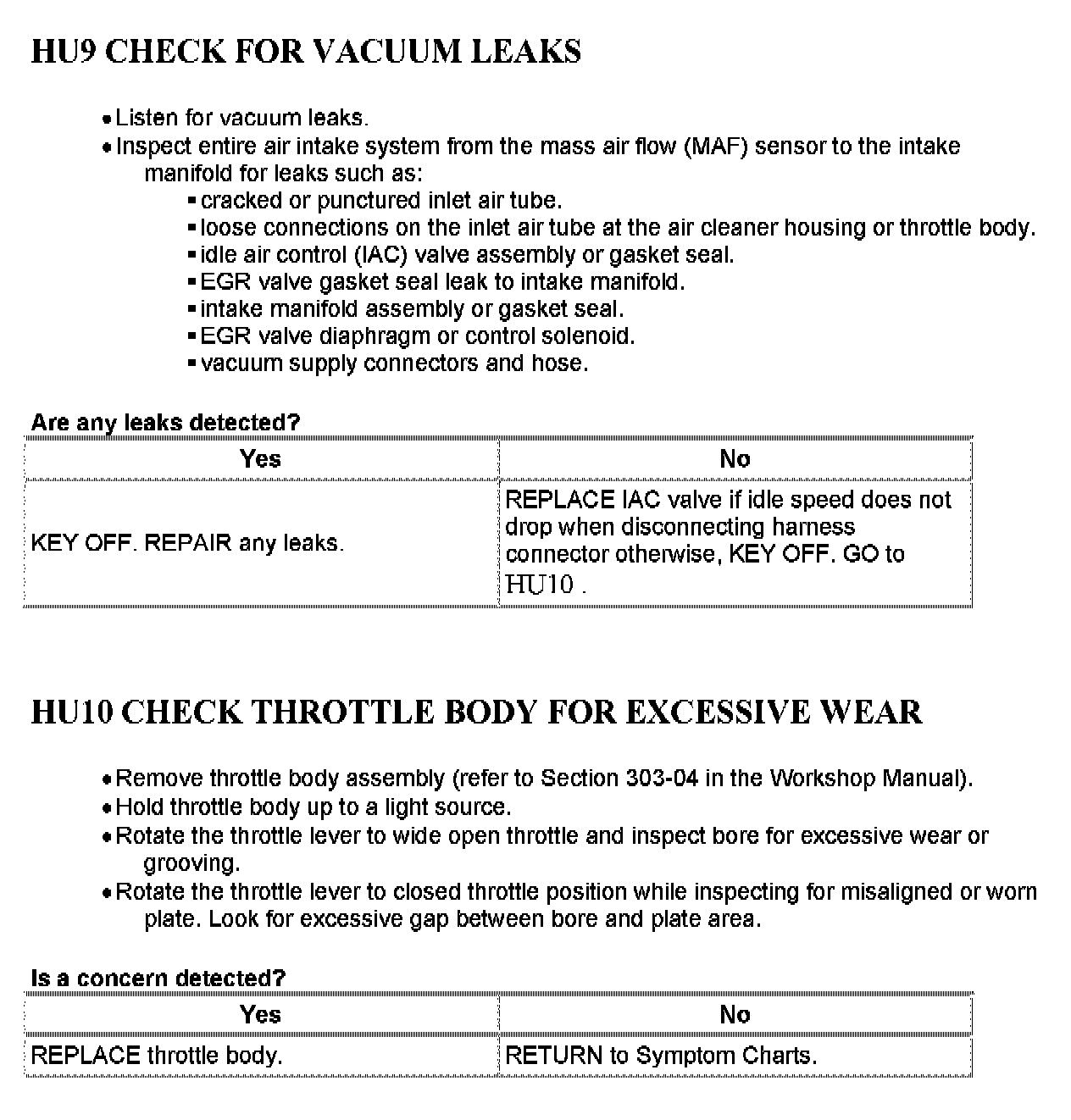

HU9 - HU10:
HU15 - HU16:

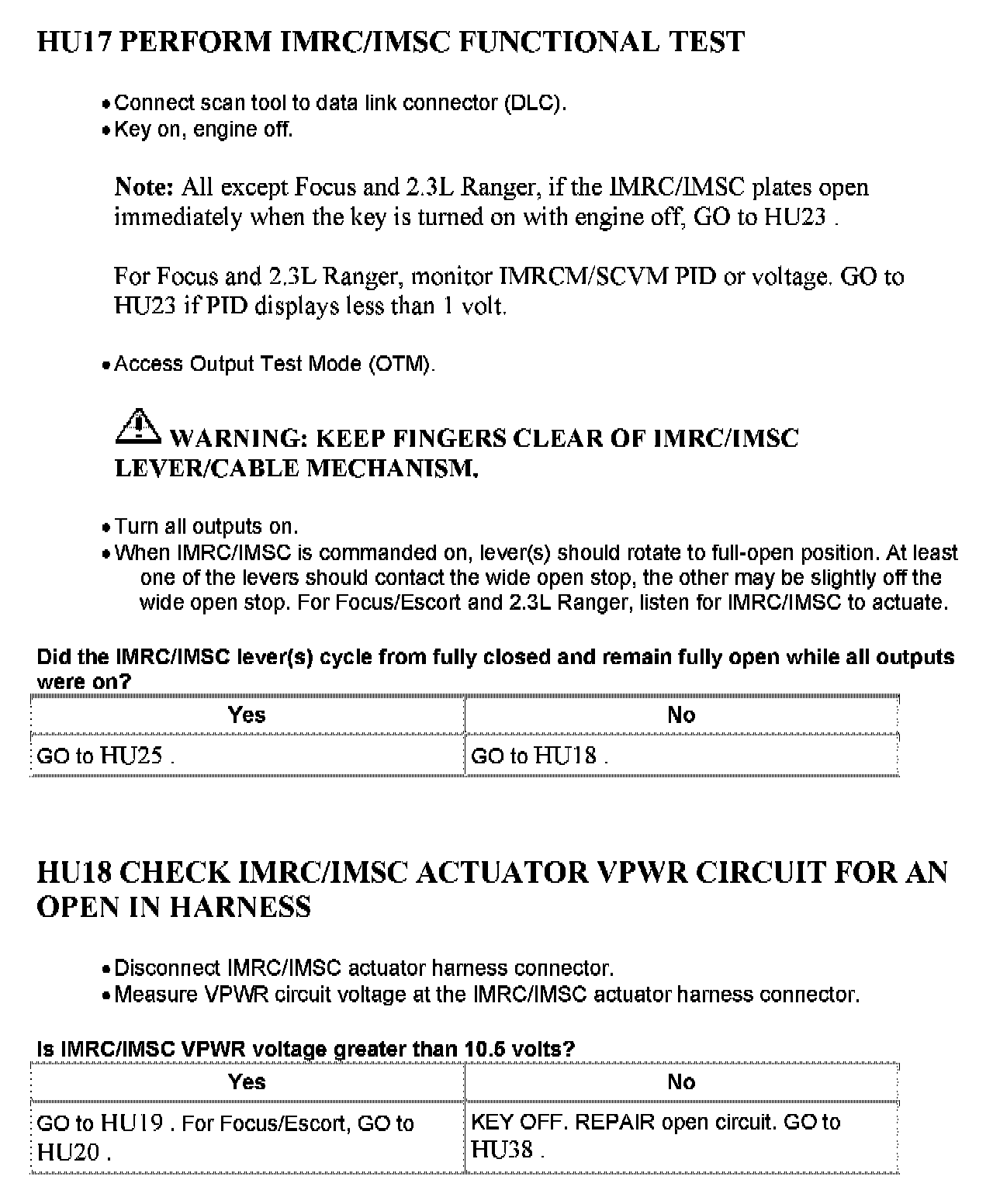

HU17 - HU18:

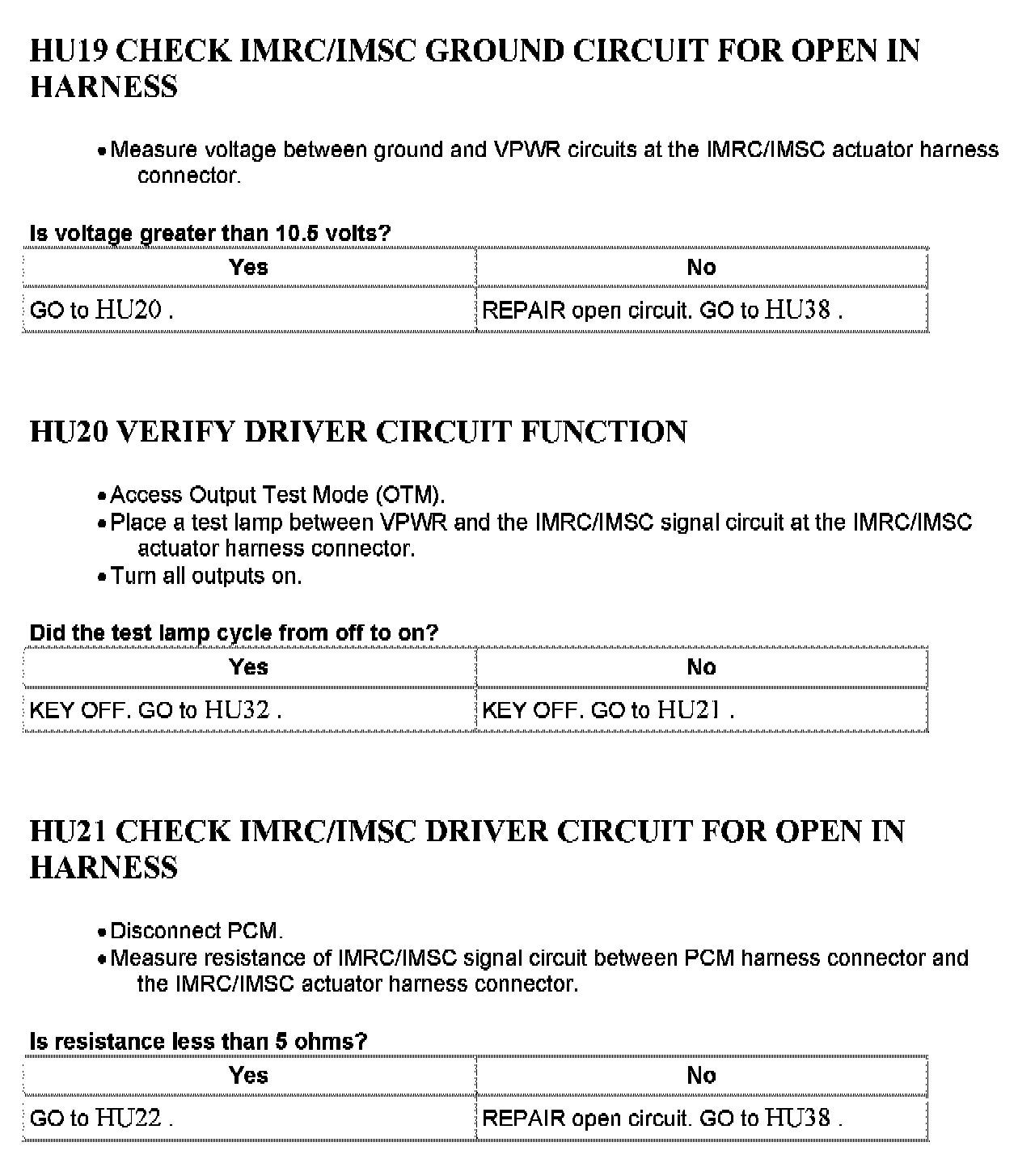

HU19 - HU21:

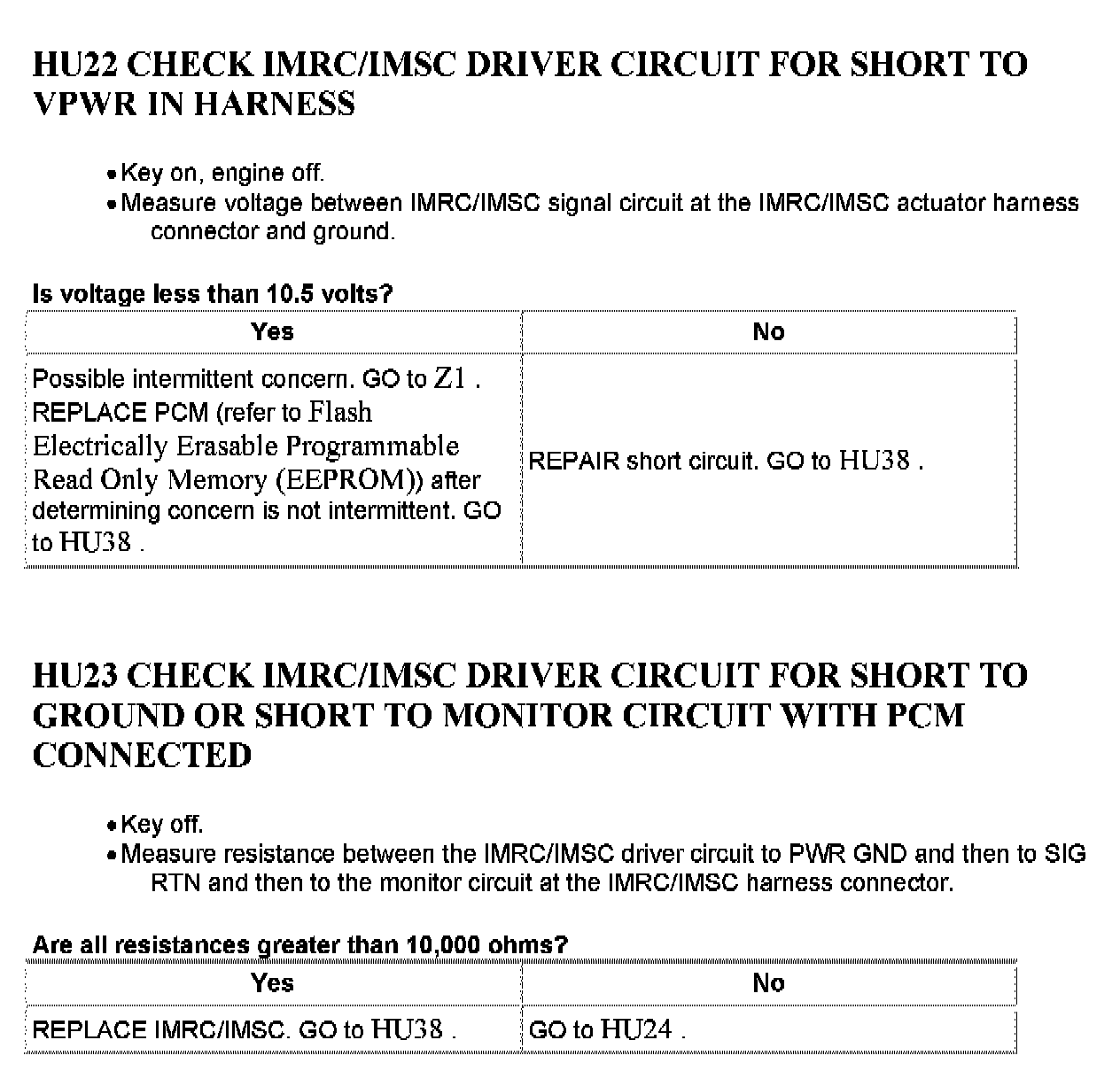

HU22 - HU23:

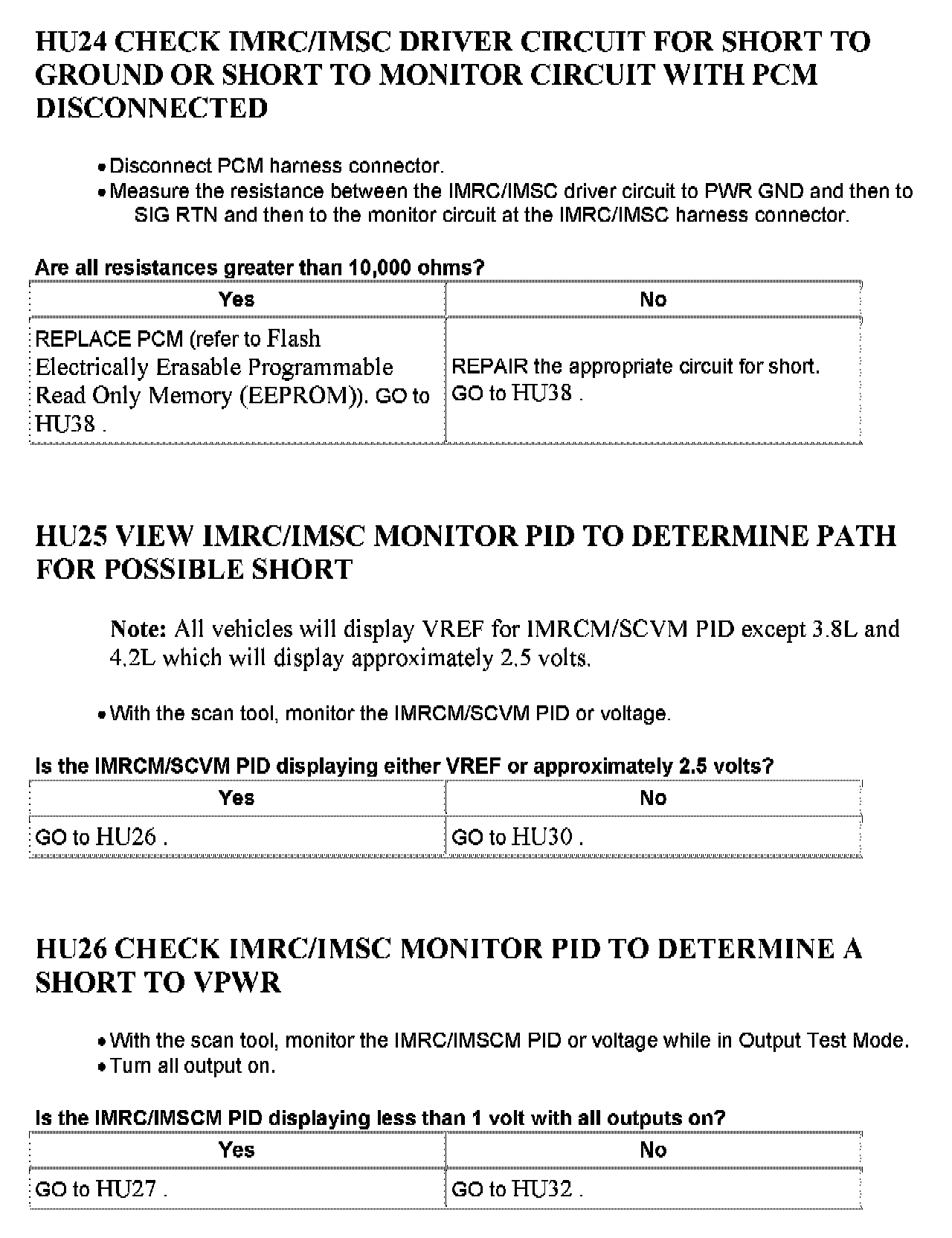

HU24 - HU26:

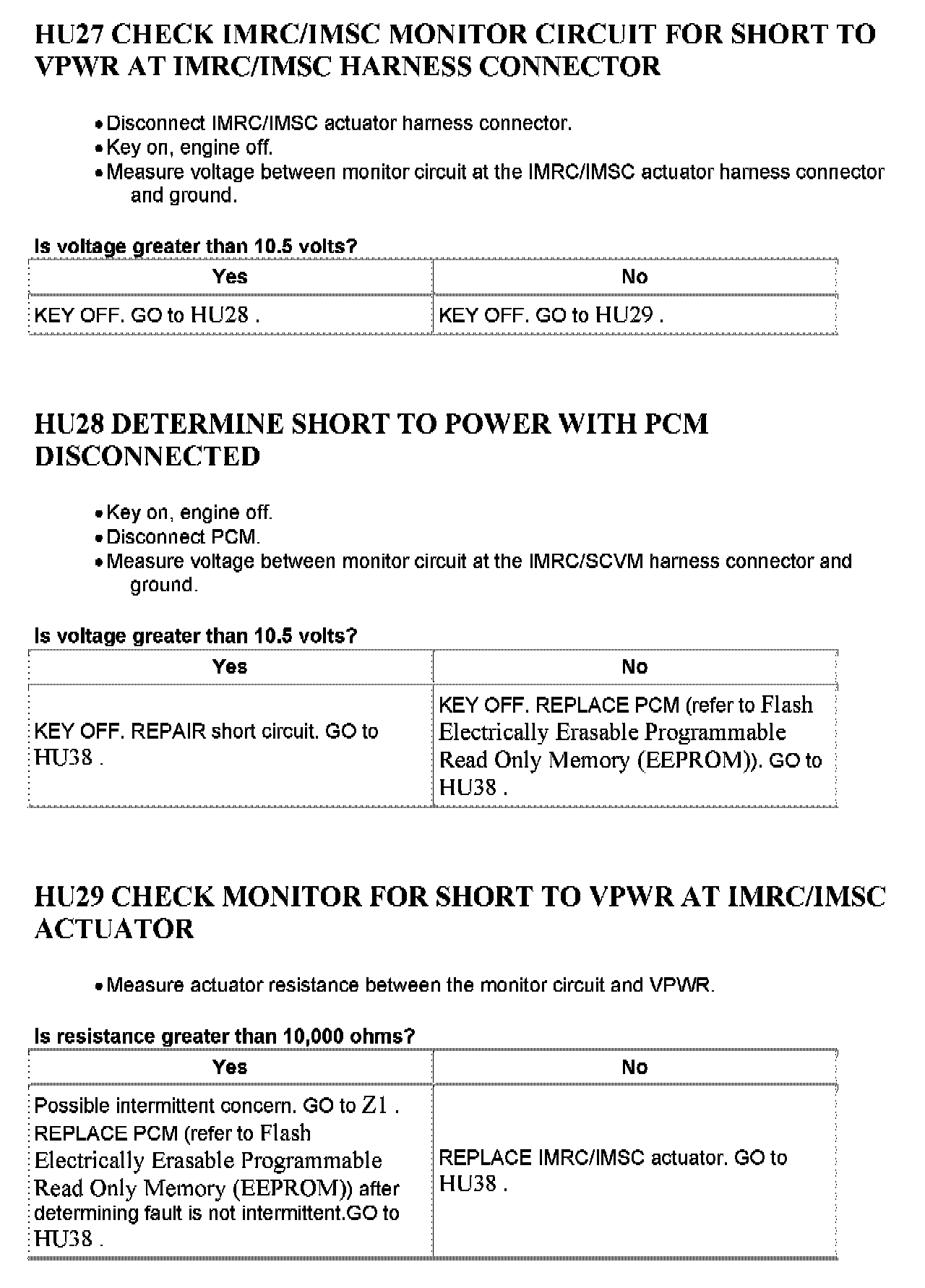

HU27 - HU29:

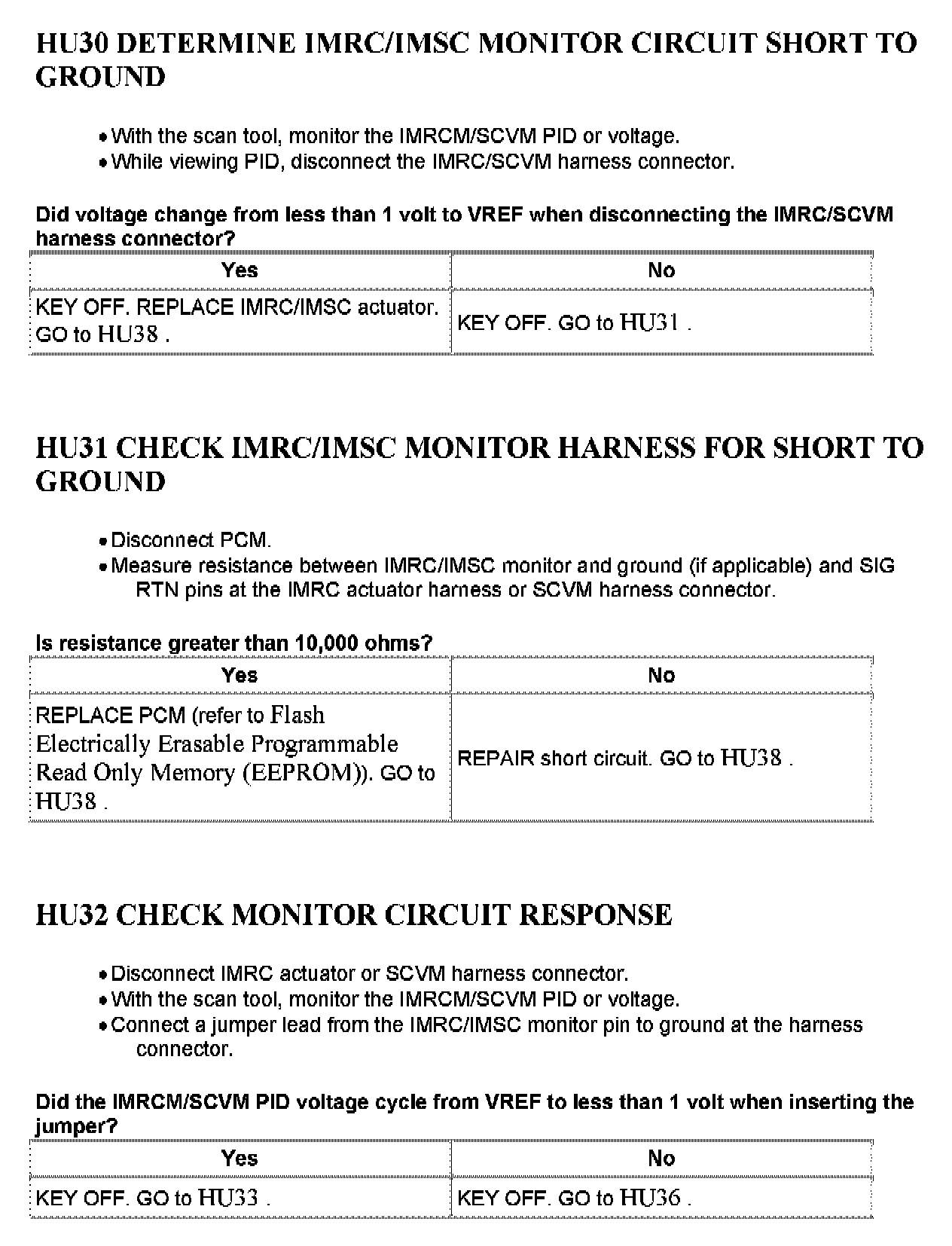

HU30 - HU32:

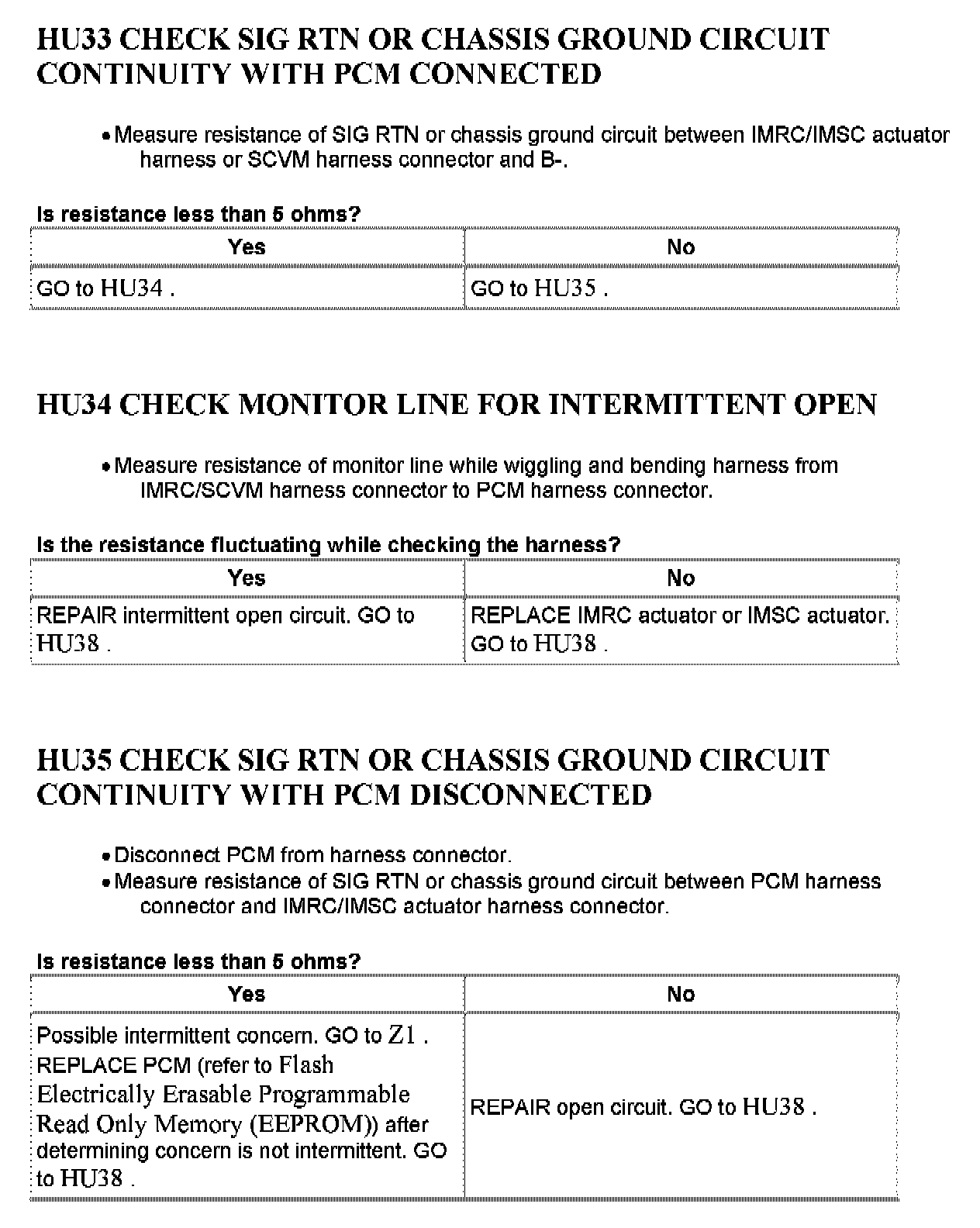

HU33 - HU35:

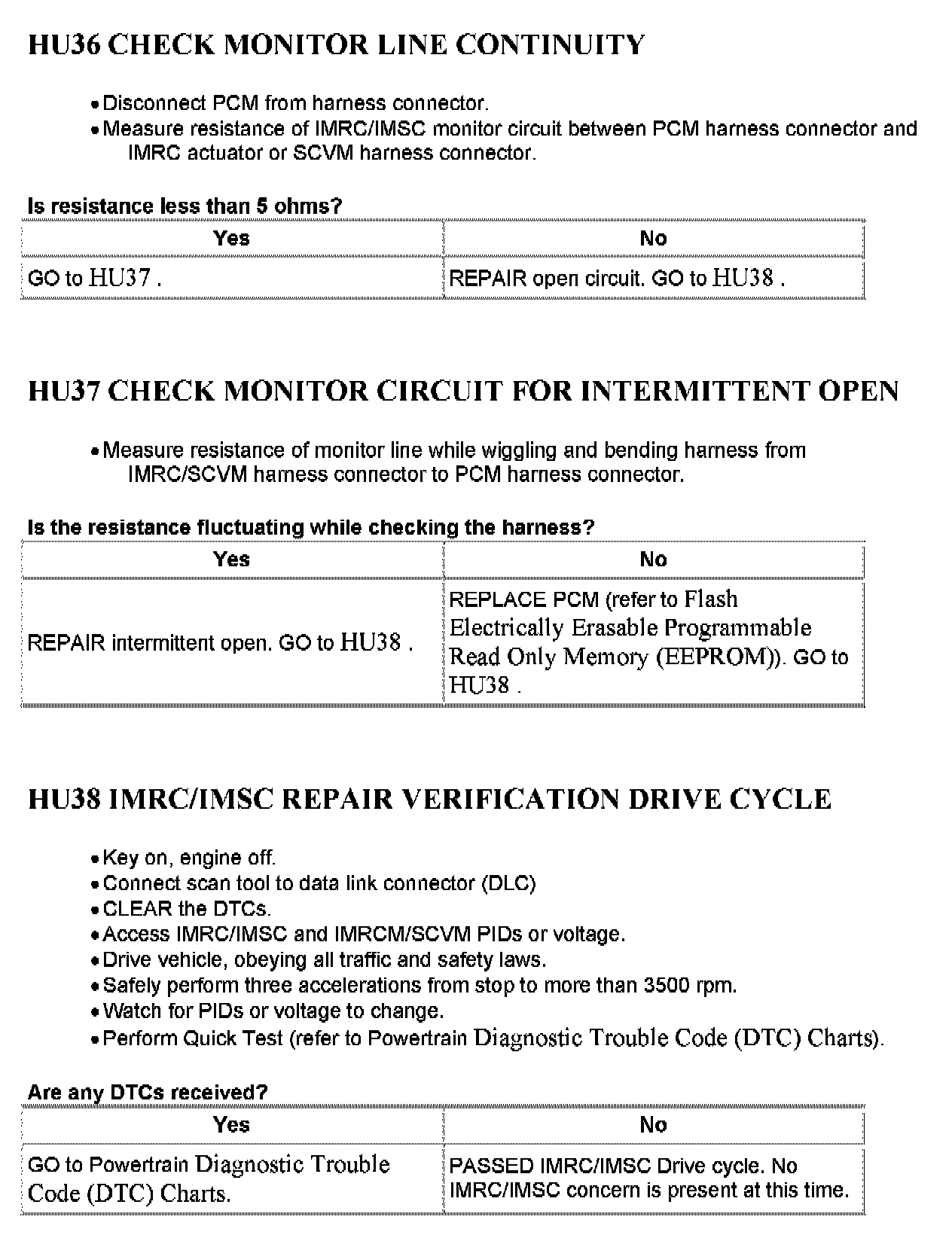

HU36 - HU38:

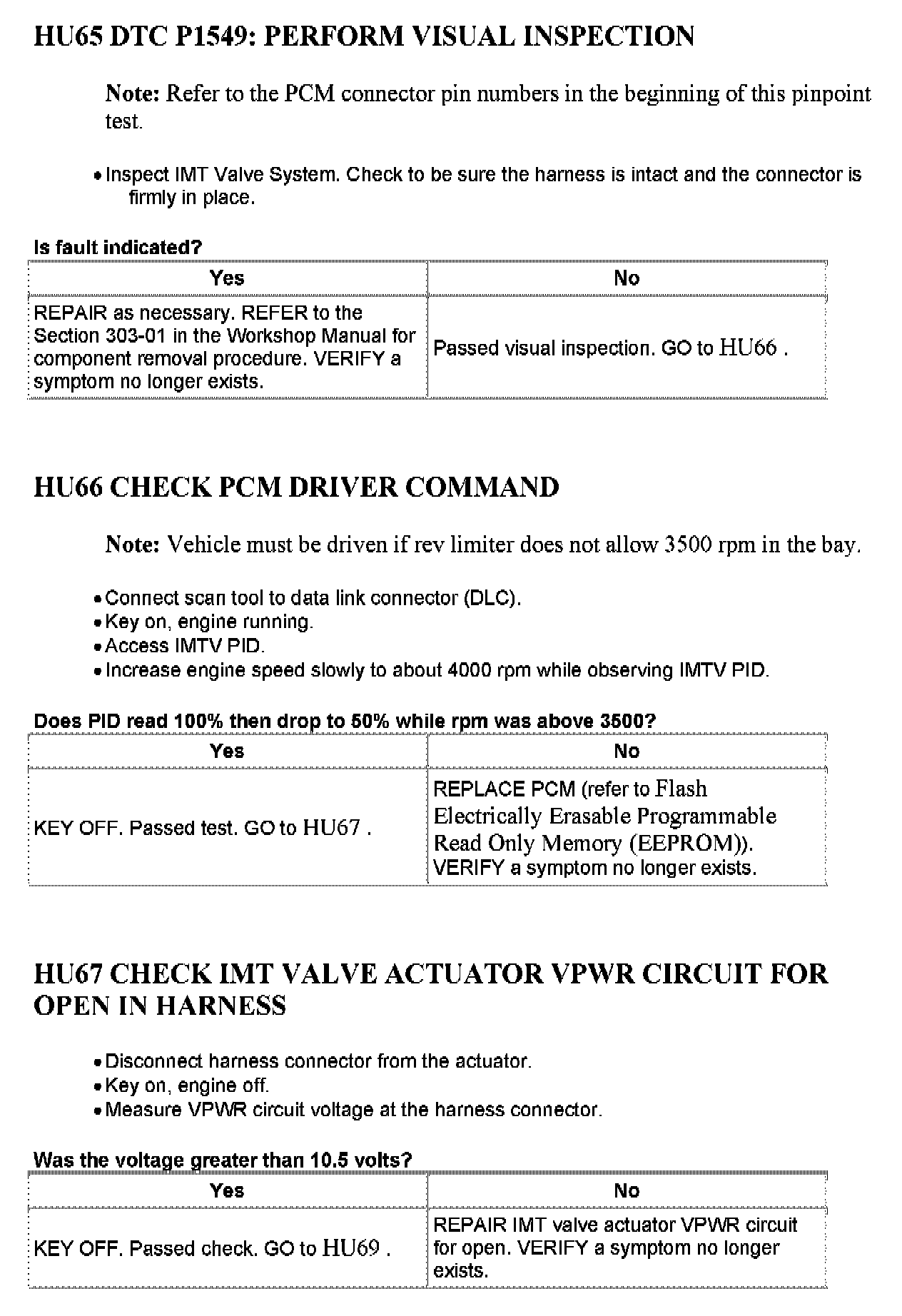

HU65 - HU67:

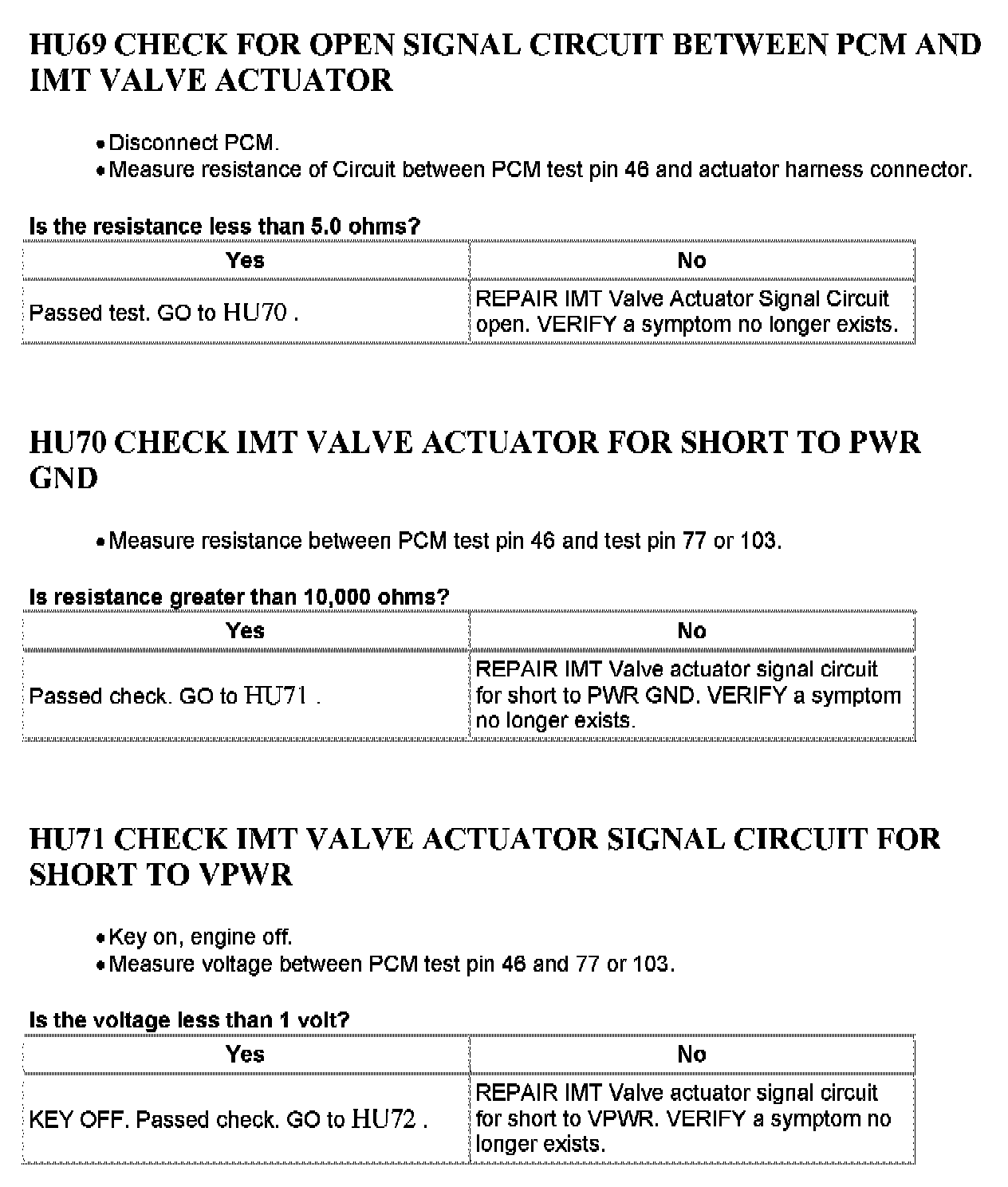

HU69 - HU71:

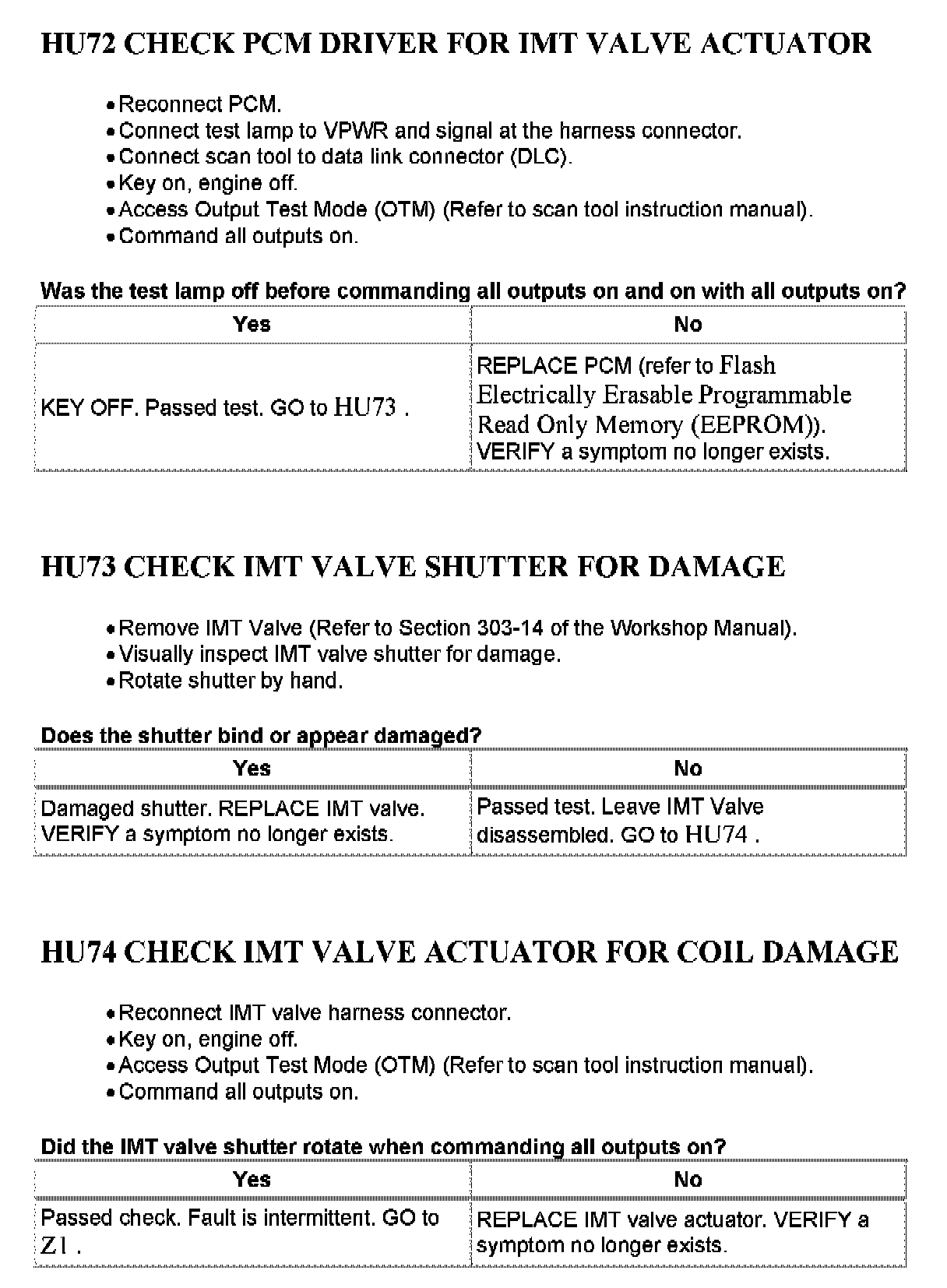

HU72 - HU74:
