Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests DT: Power Steering Pressure (PSP) Sensor

Tests DT: Power Steering Pressure (PSP) Sensor

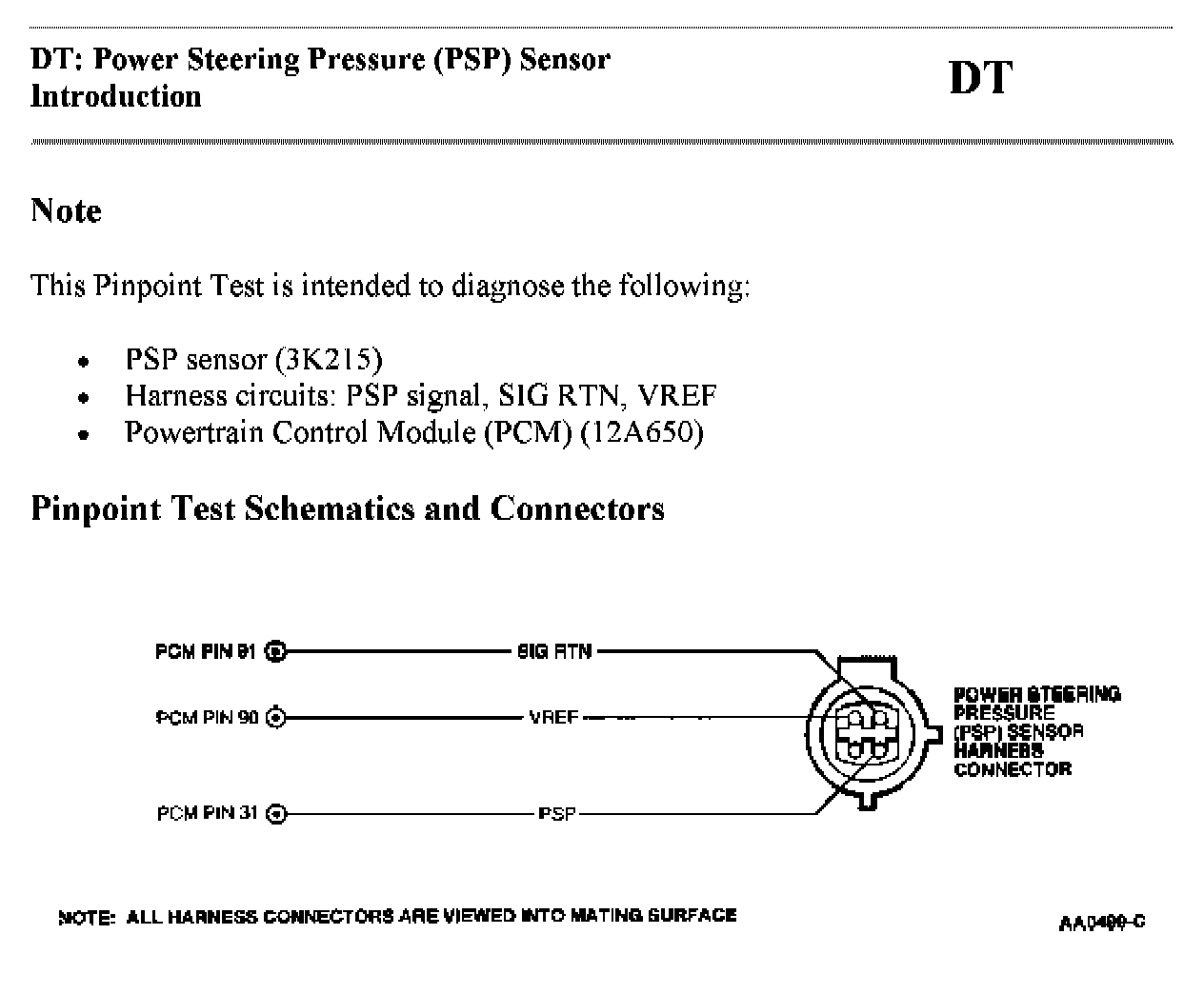

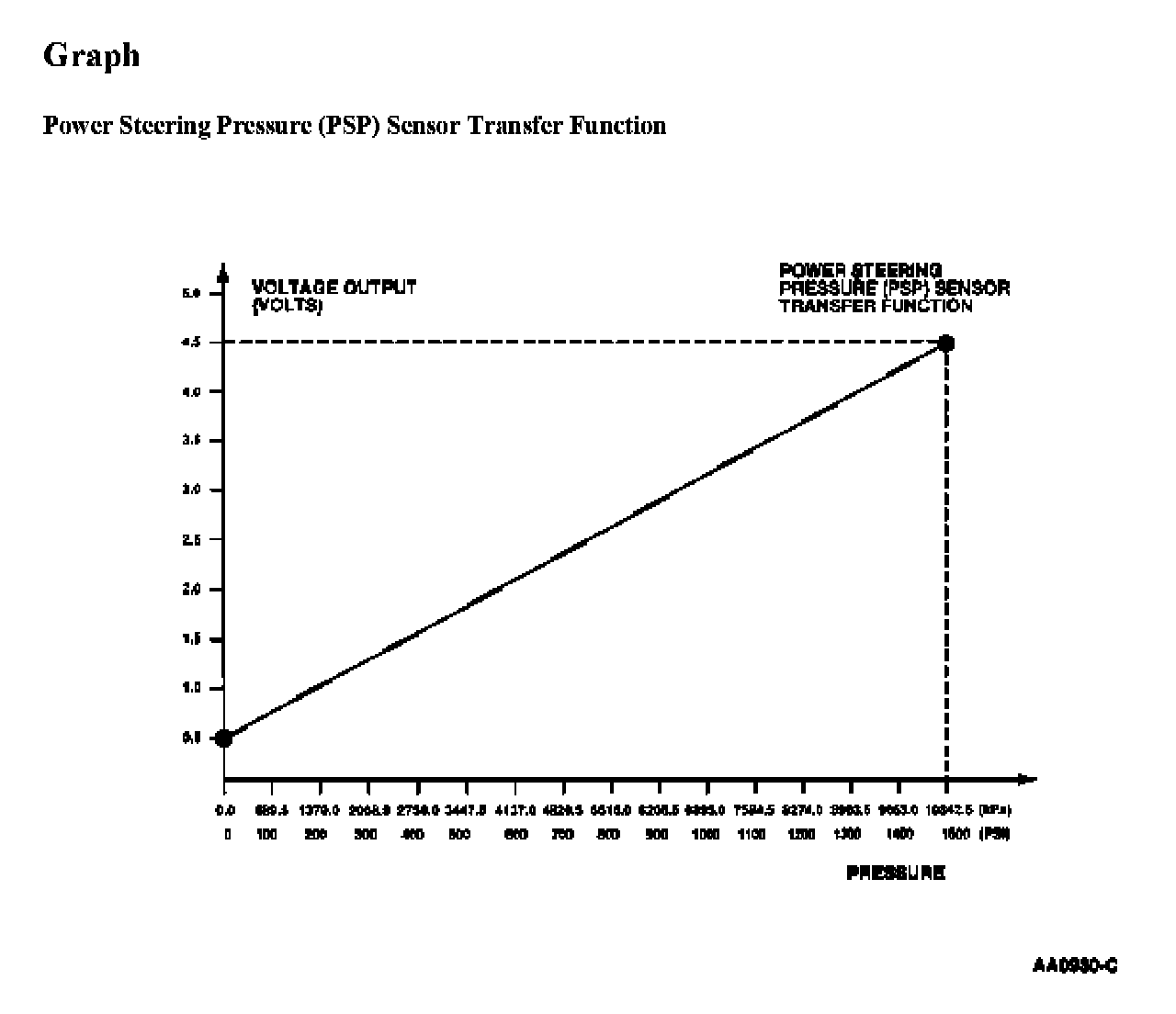

DT INTRODUCTION:

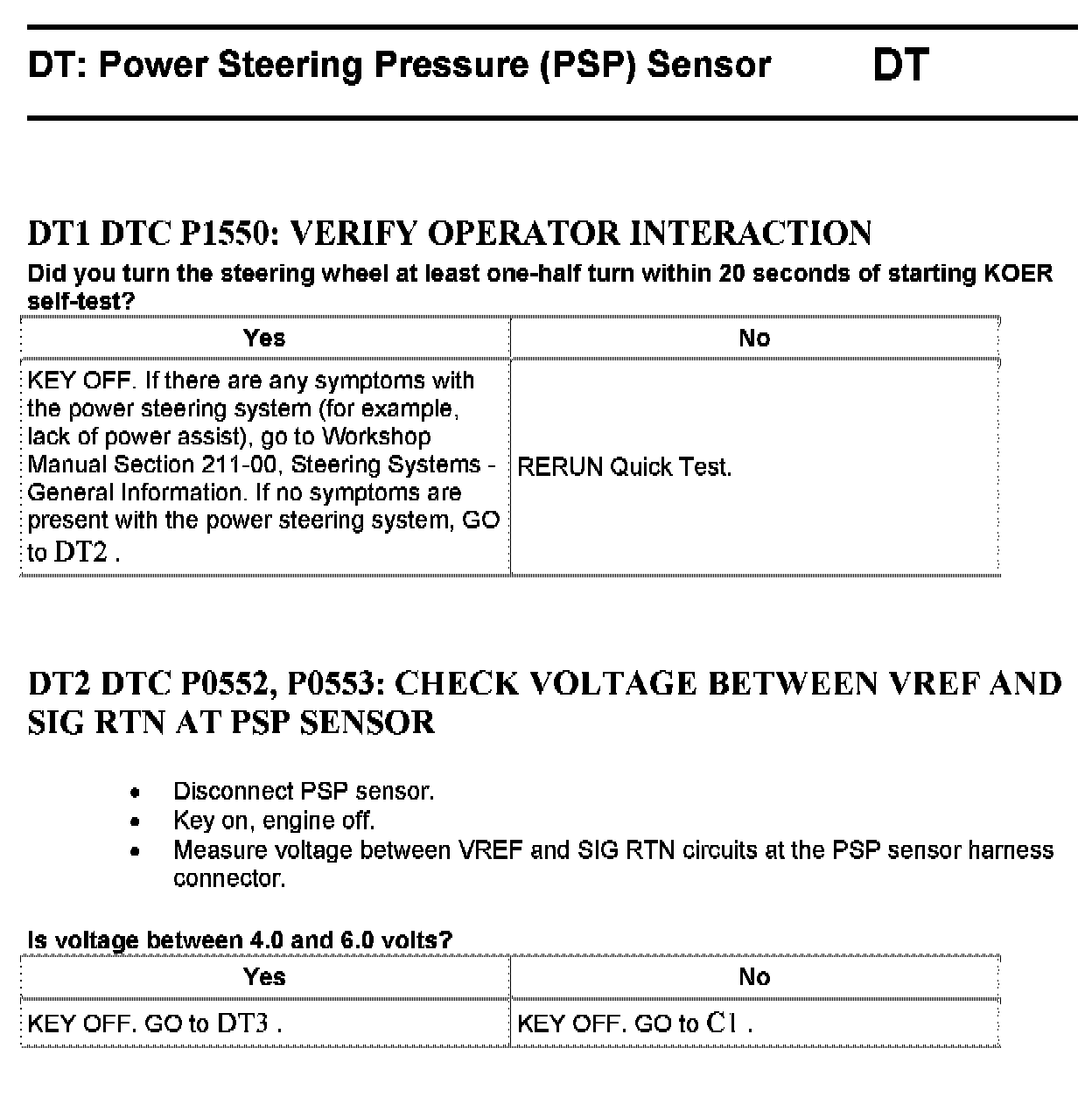

DT1 - DT2:

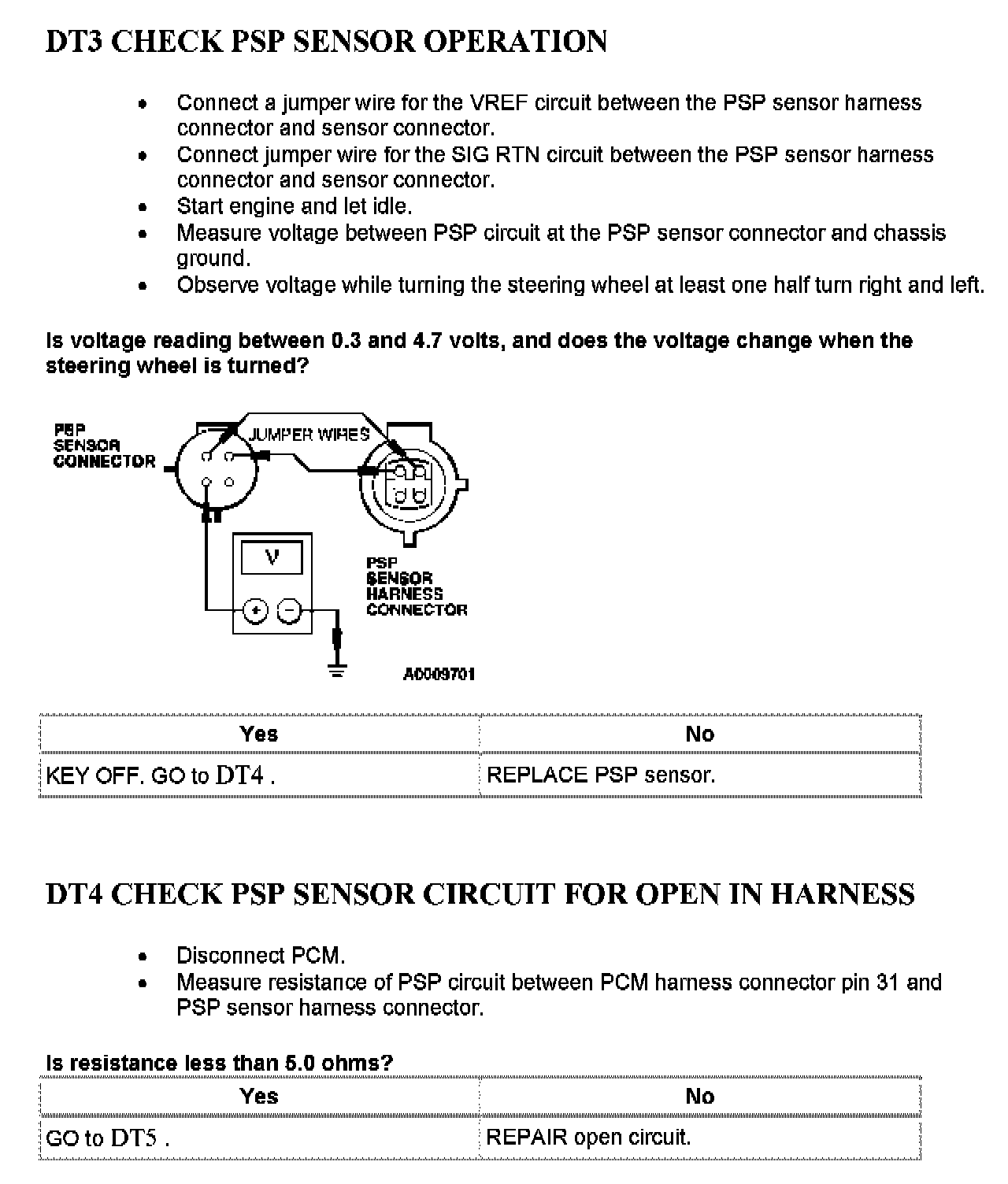

DT3 - DT4:

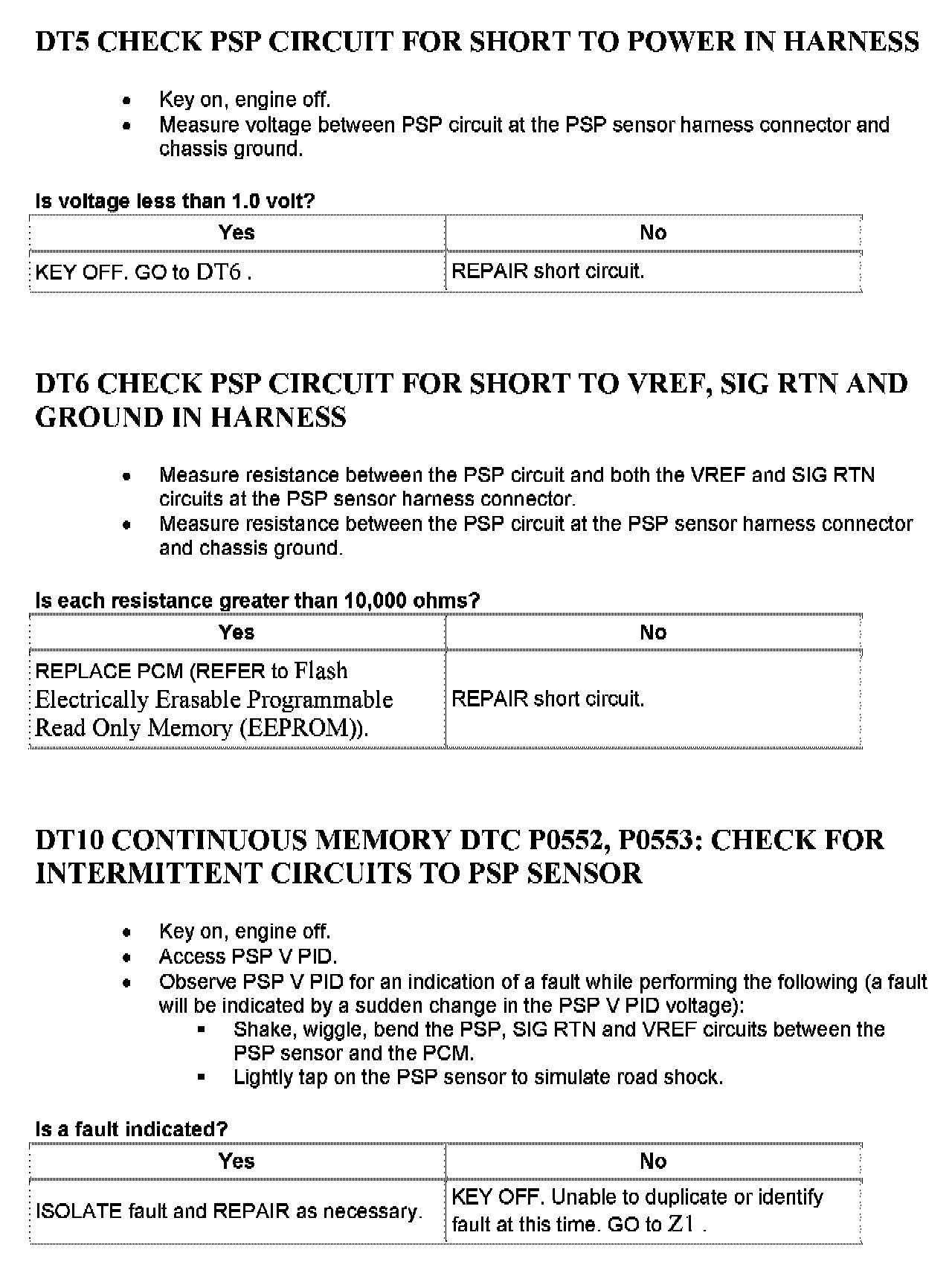

DT5 - DT10:
