Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests DF: Vehicle Speed Circuit Check

Tests DF: Vehicle Speed Circuit Check

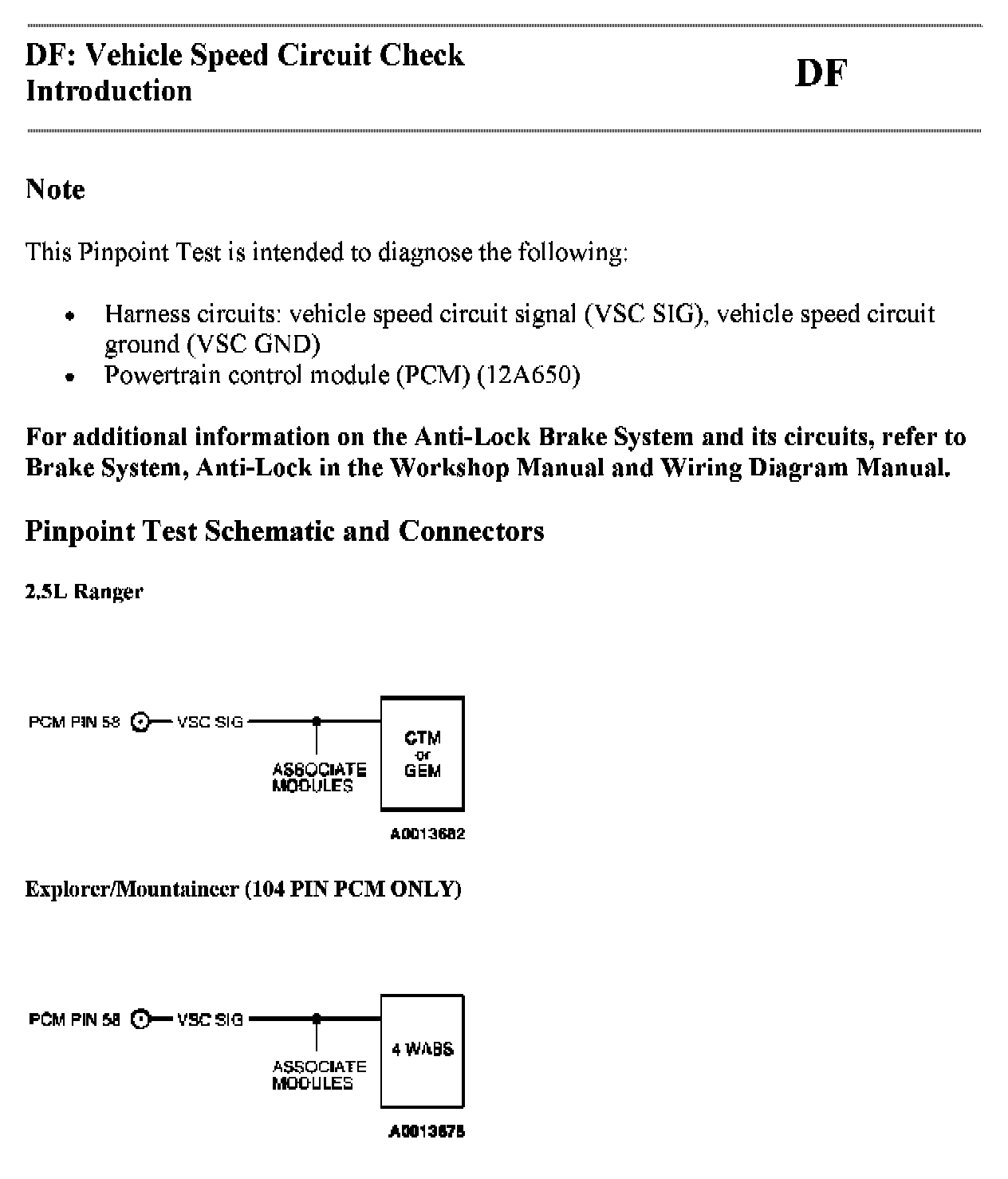

DF INTRODUCTION:

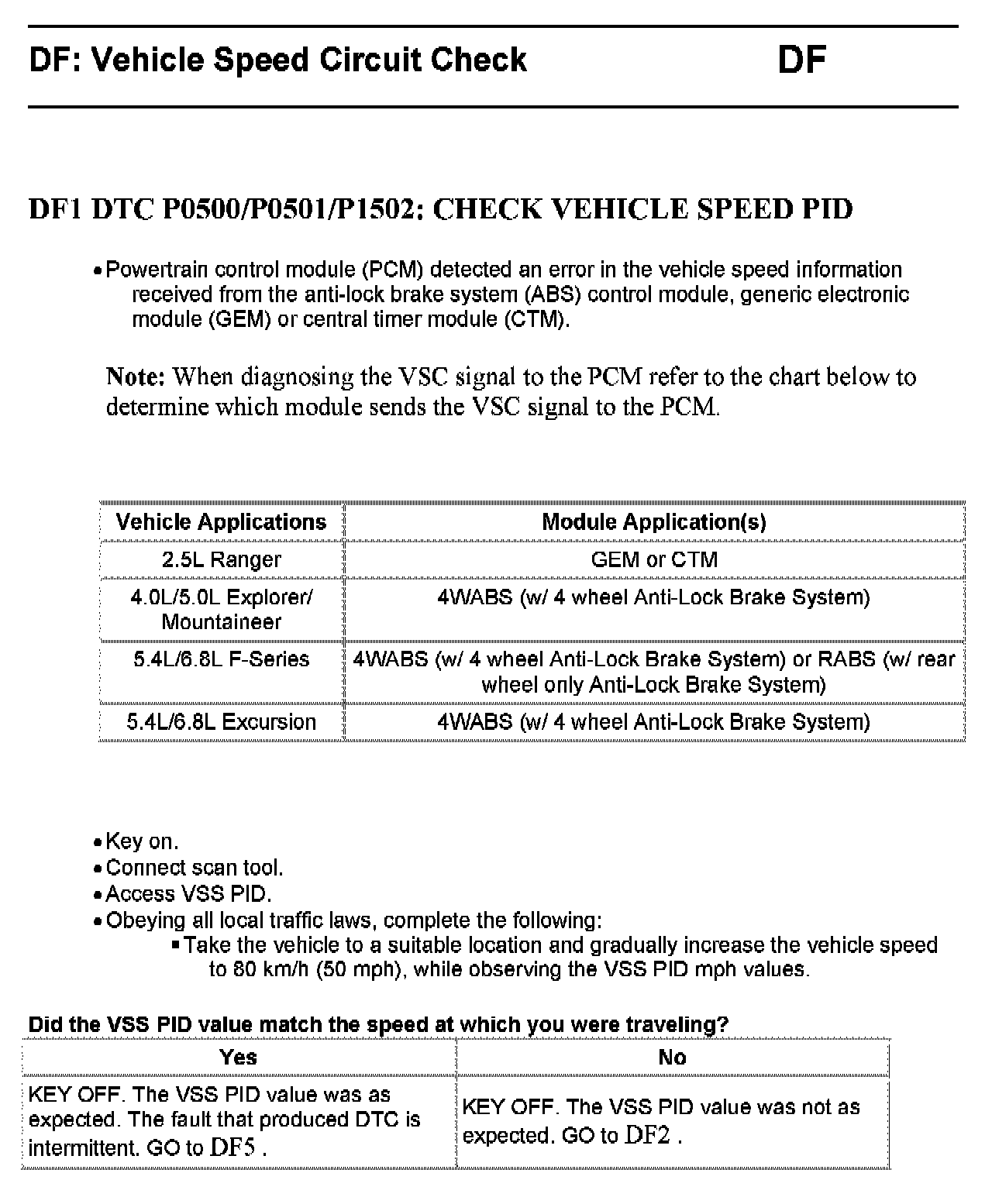

DF1:

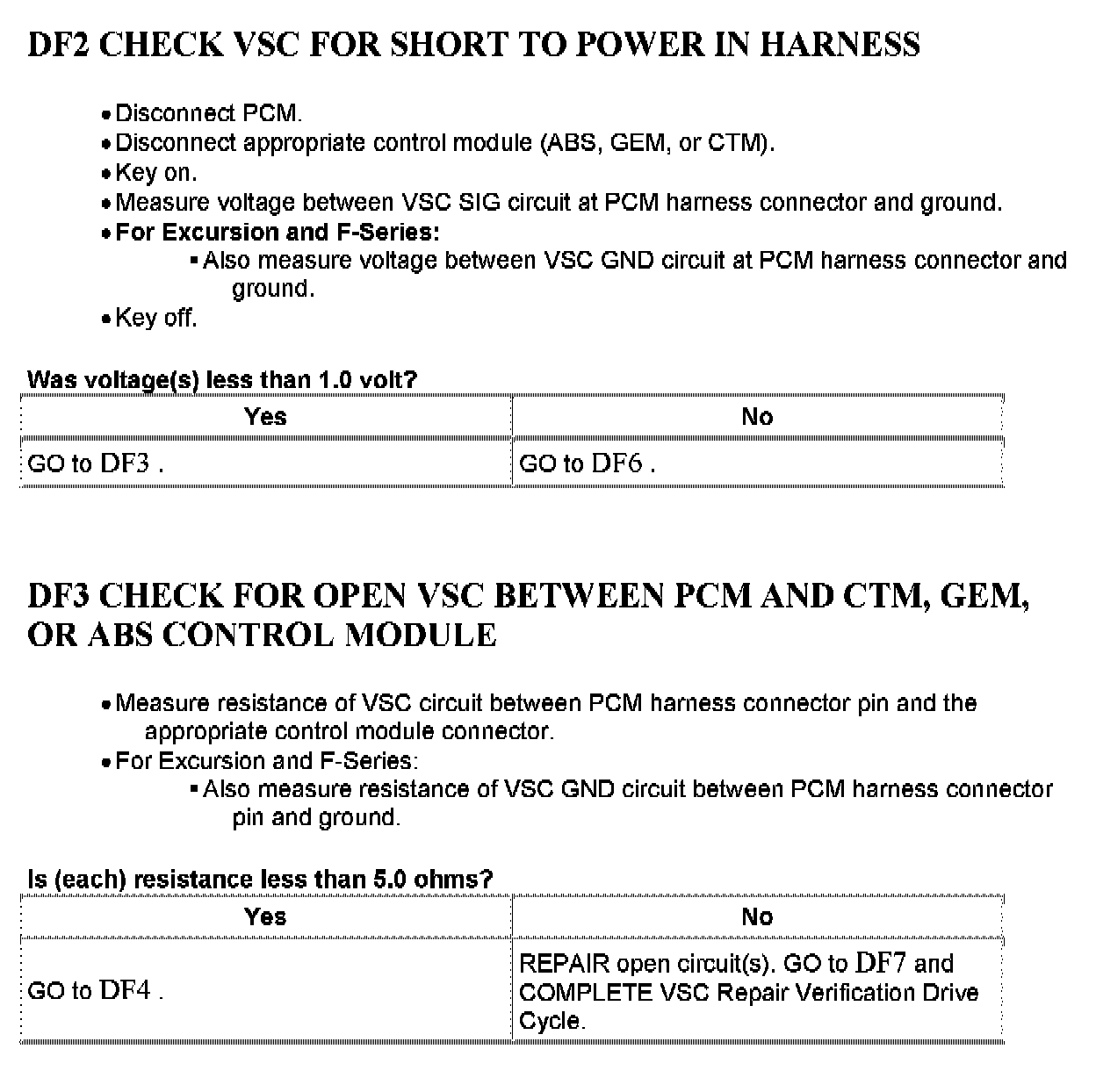

DF2 - DF3:

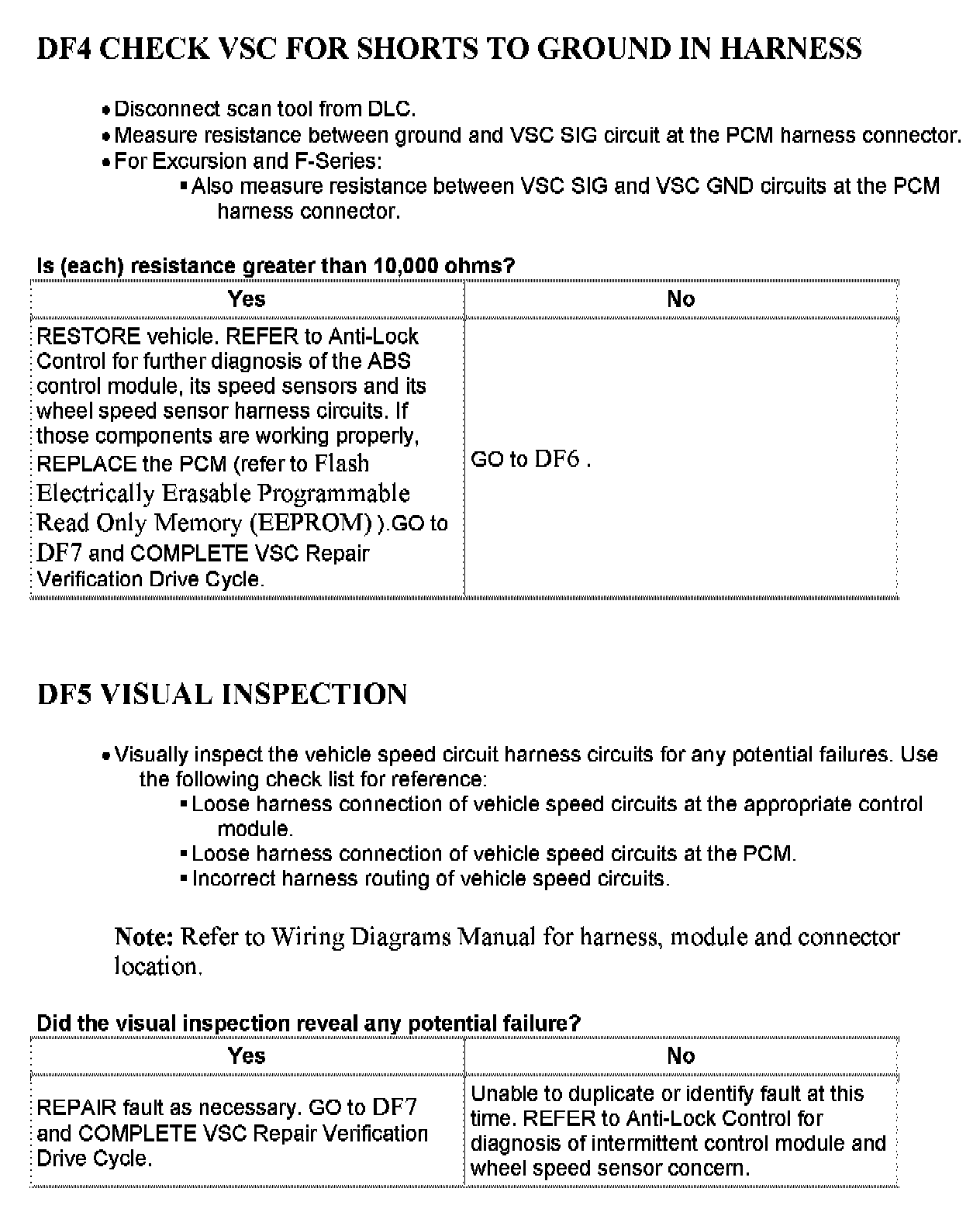

DF4 - DF5:





DF6 - DF7:
