Wagon

REMOVAL
1. Remove the lift gate trim panel.

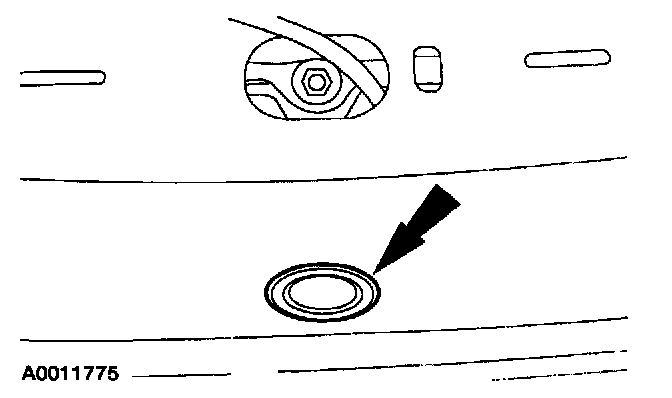

2. Remove the rubber plug.







3. Remove the rear high mounted stoplamp nuts.







4. Remove the rear high mounted stoplamp.

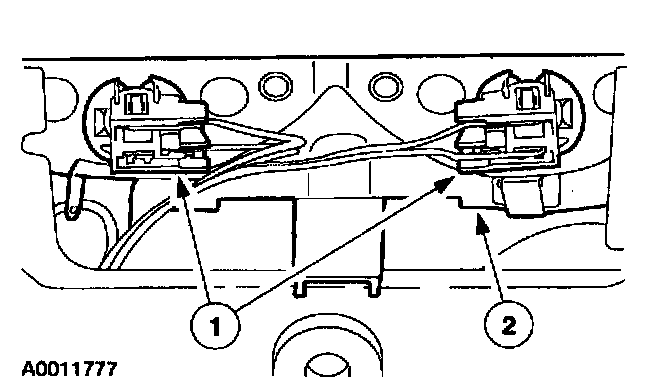

1 Remove the bulb connectors.
2 Remove the lamp assembly.

INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: To prevent water from entering the luggage compartment, make sure the rubber grommet is fully seated.
