Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test I: Charge System Warning Indicator Is Never ON

Test I: Charge System Warning Indicator Is Never ON

I1:

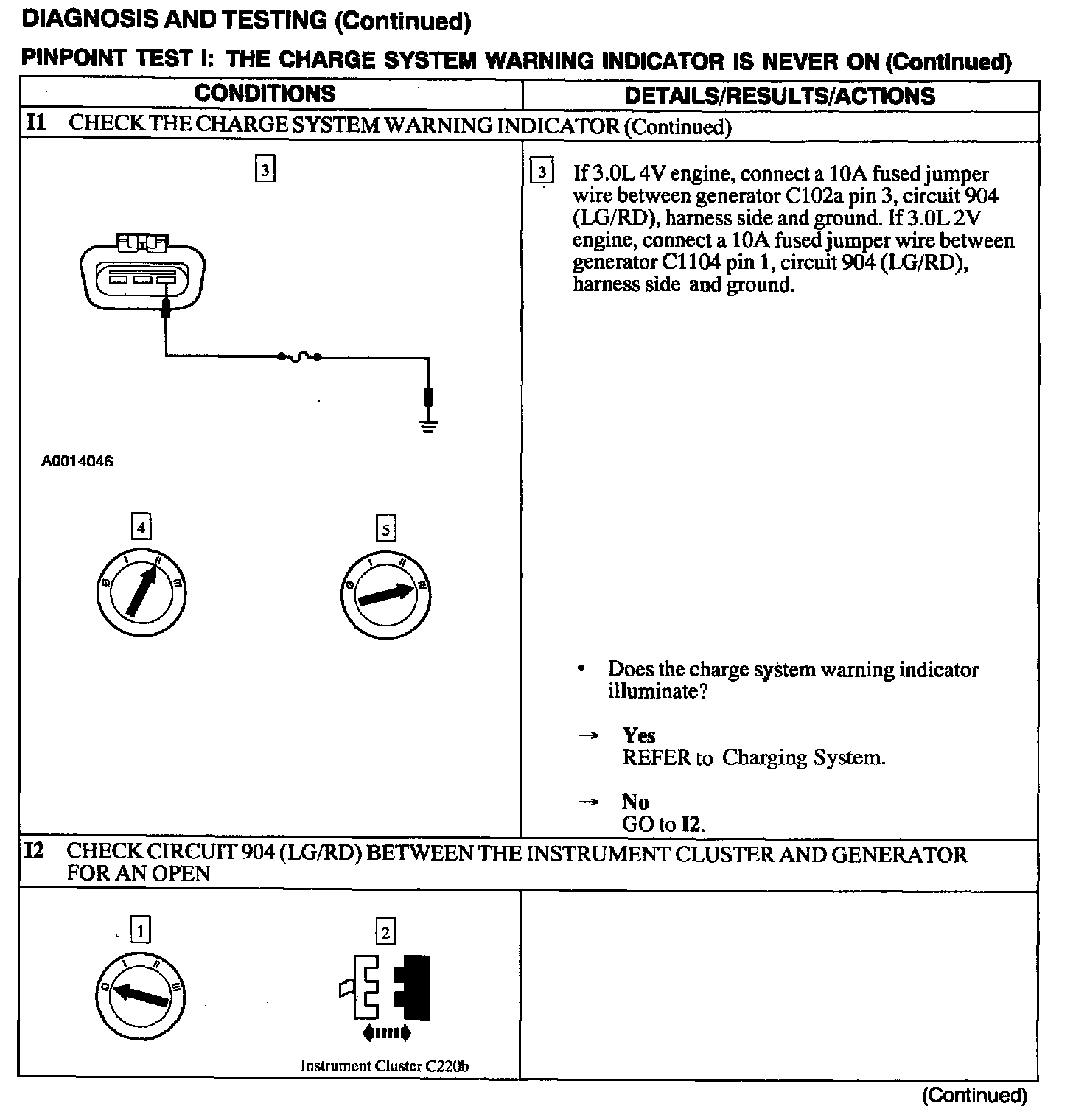

I1 - I2:

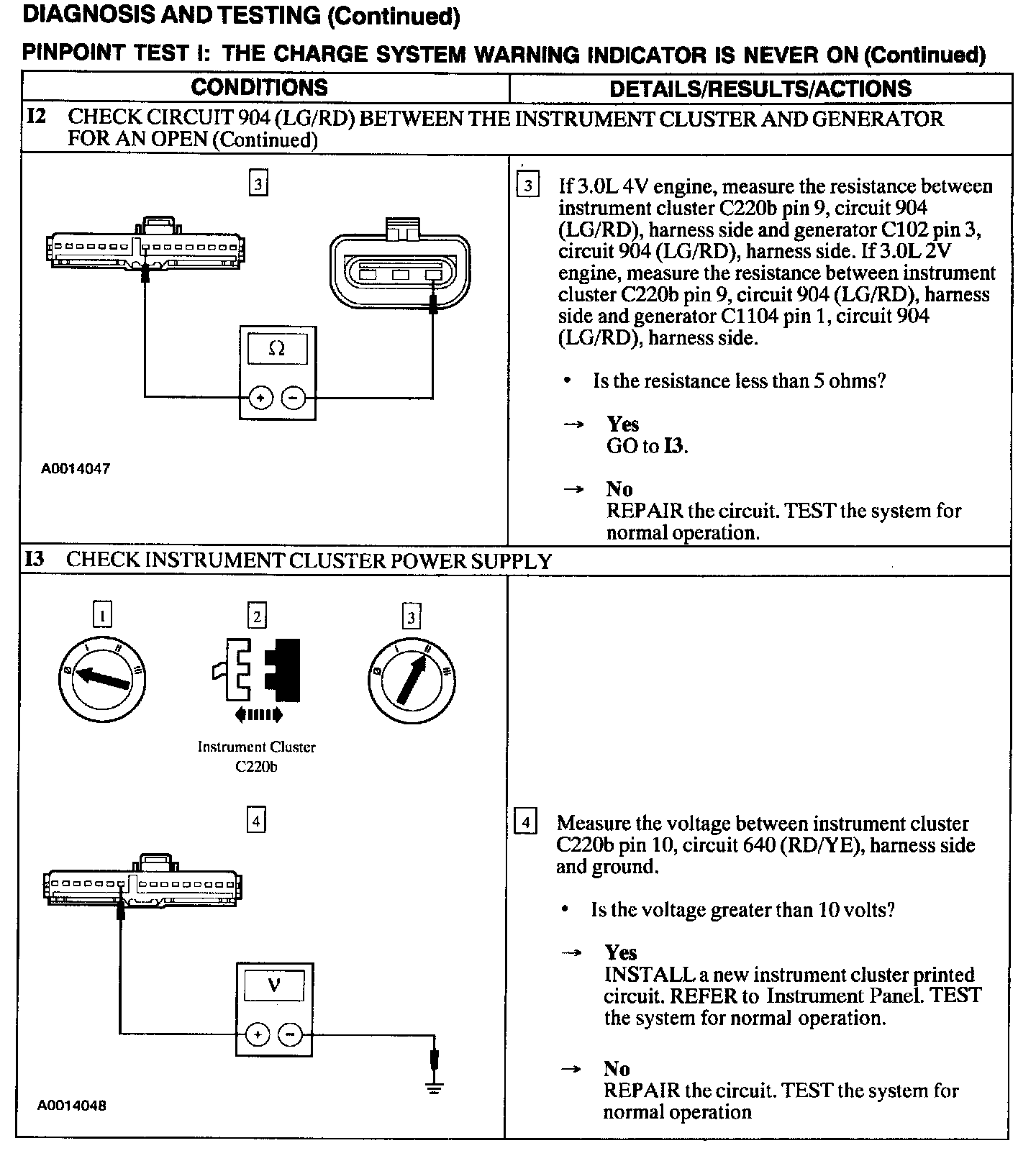

I2 - I3:
