Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Trouble Code Diagnostic Charts - Instrument Cluster
Trouble Code Diagnostic Charts - Instrument Cluster

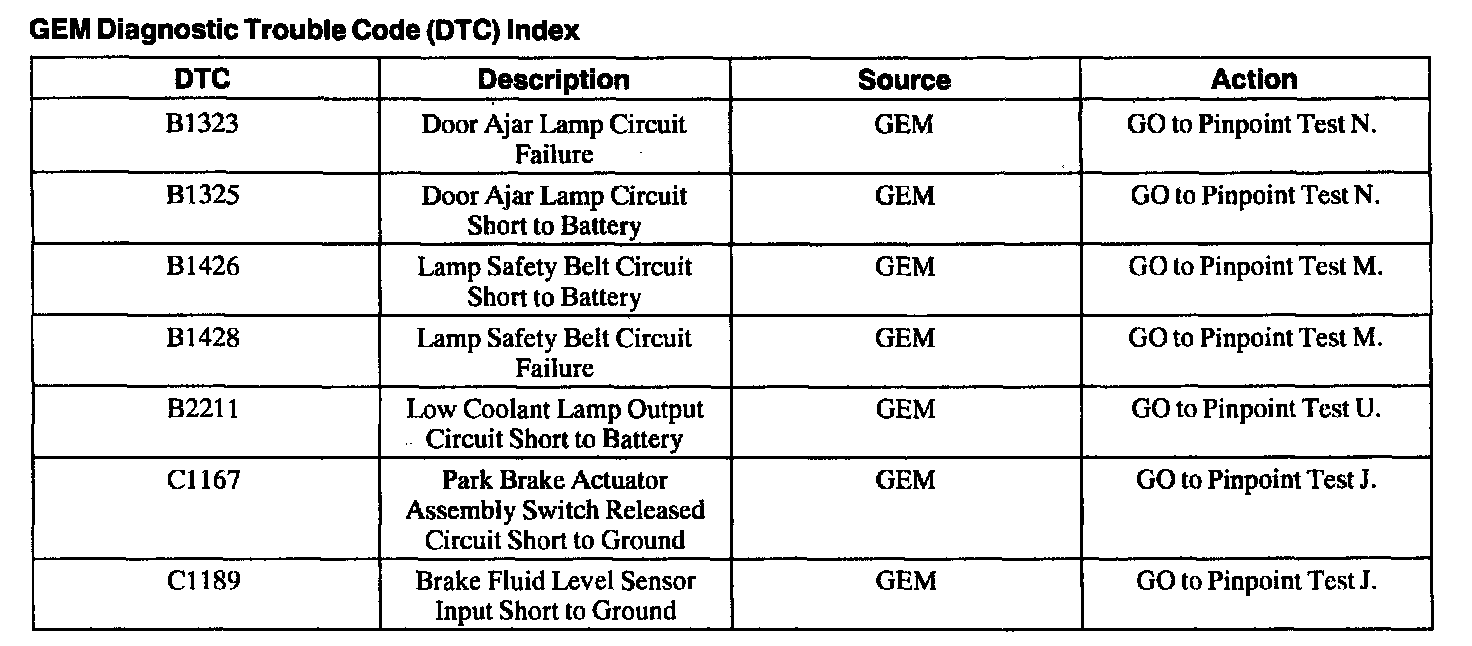

DTC Index B1323 - C1189:
For a complete list of GEM module DTCs refer to Multifunction Electronic Control Module (General Module).
