Instrument Cluster Bulb

REMOVAL
1. Remove the instrument cluster.

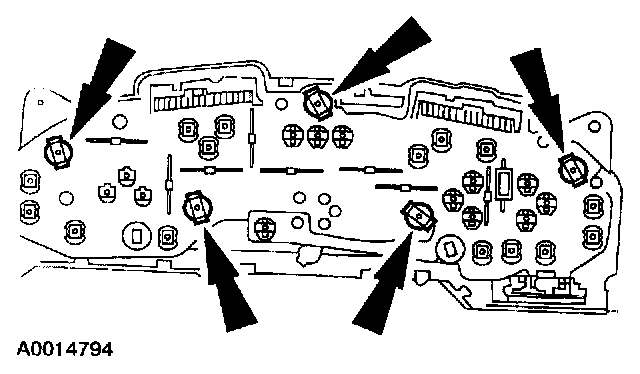

2. Remove the illumination bulbs.

INSTALLATION
1. To install, reverse the removal procedure.
