Driver Side

REMOVAL
1. Remove the instrument cluster finish panel.







2. Remove the driver side register.

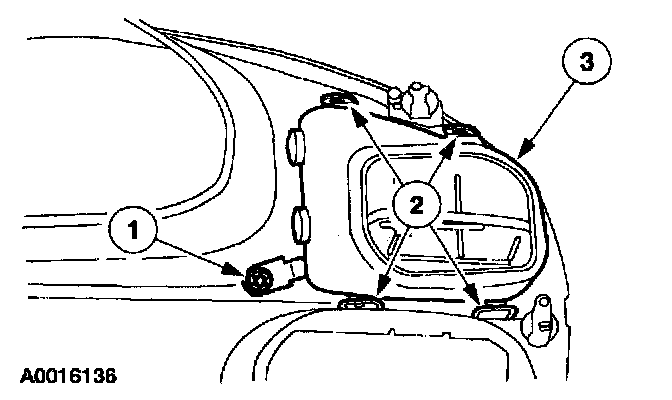

1 Remove the screw.
2 Disengage the tabs.
3 Remove the driver side register.

INSTALLATION
1. To install, reverse the removal procedure.
