Manual Climate Control System

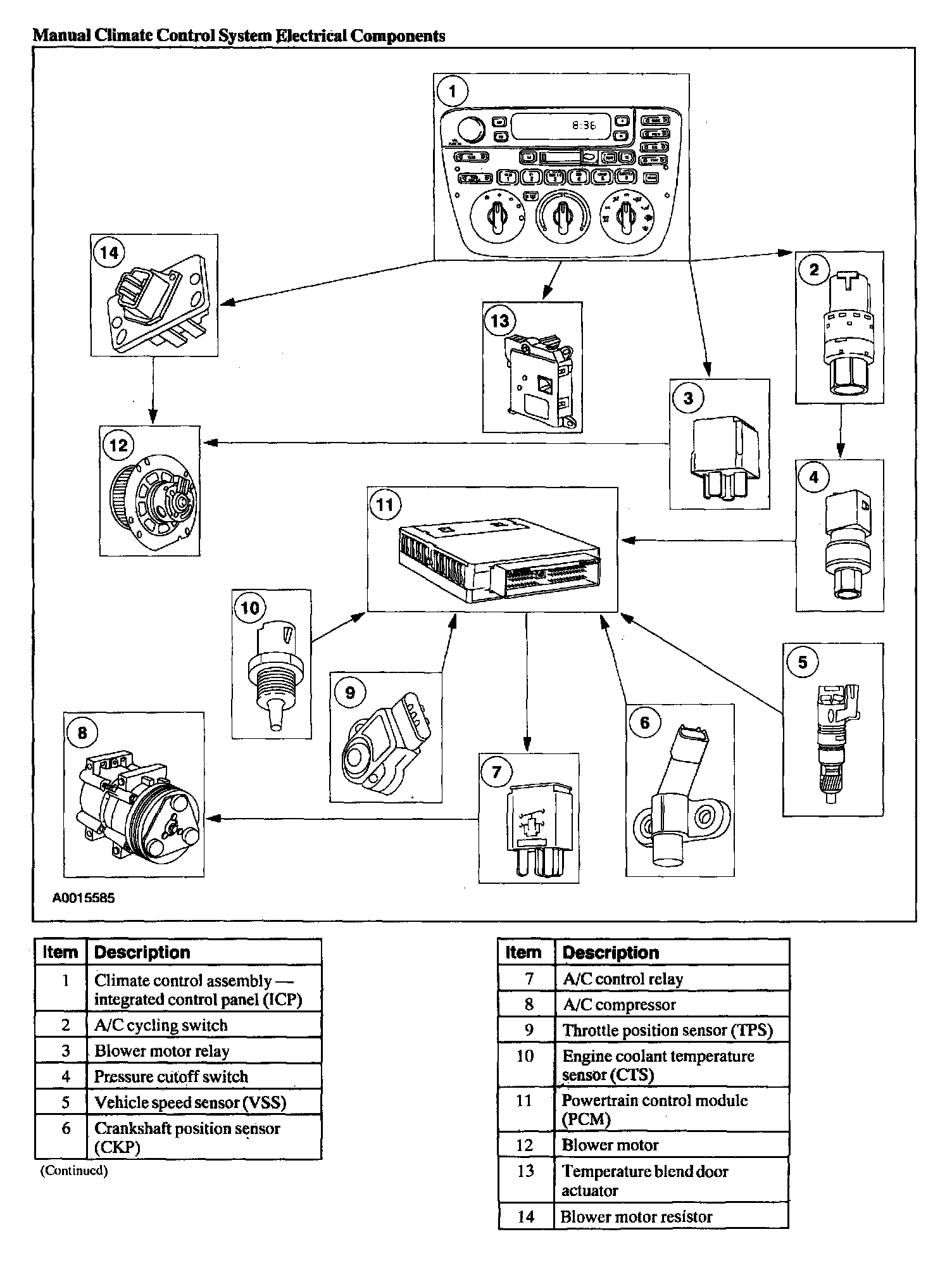

Manual Climate Control System Electrical Components, Part 1:

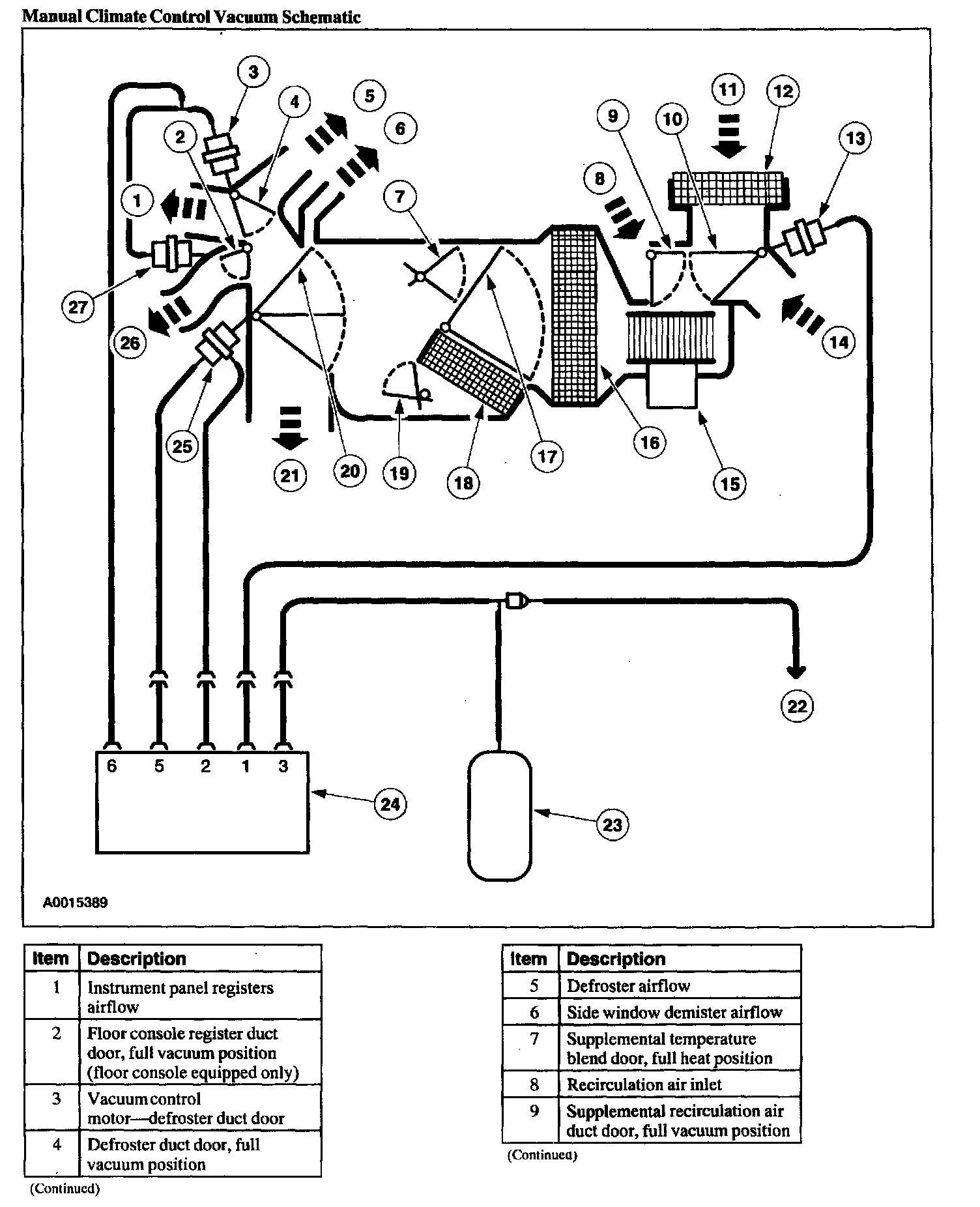

Manual Climate Control Vacuum Schematic, Part 1:

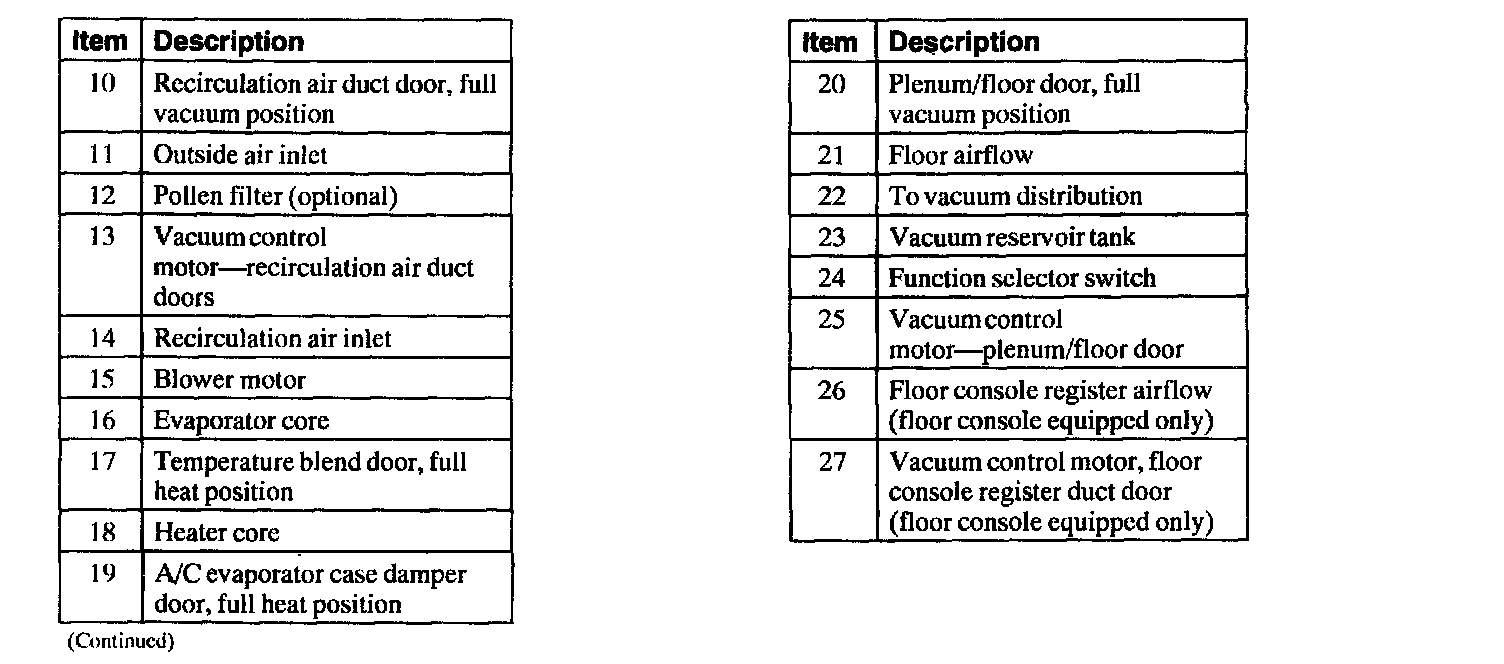

Manual Climate Control Vacuum Schematic, Part 2:
