Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heating and Air Conditioning >> System Diagram >> General System

General System

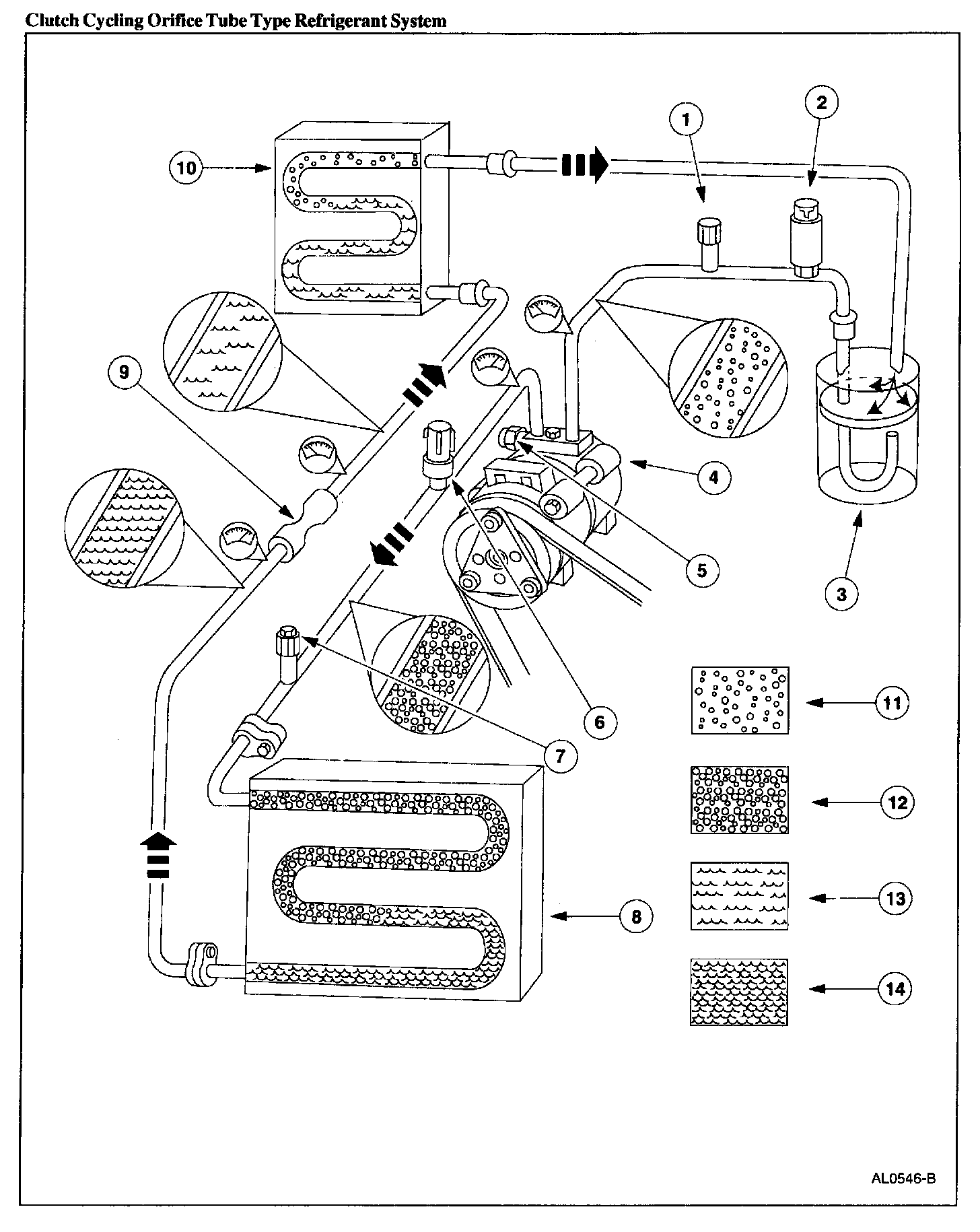

Clutch Cycling Orifice Tube Type Refrigerant System, Part 1:

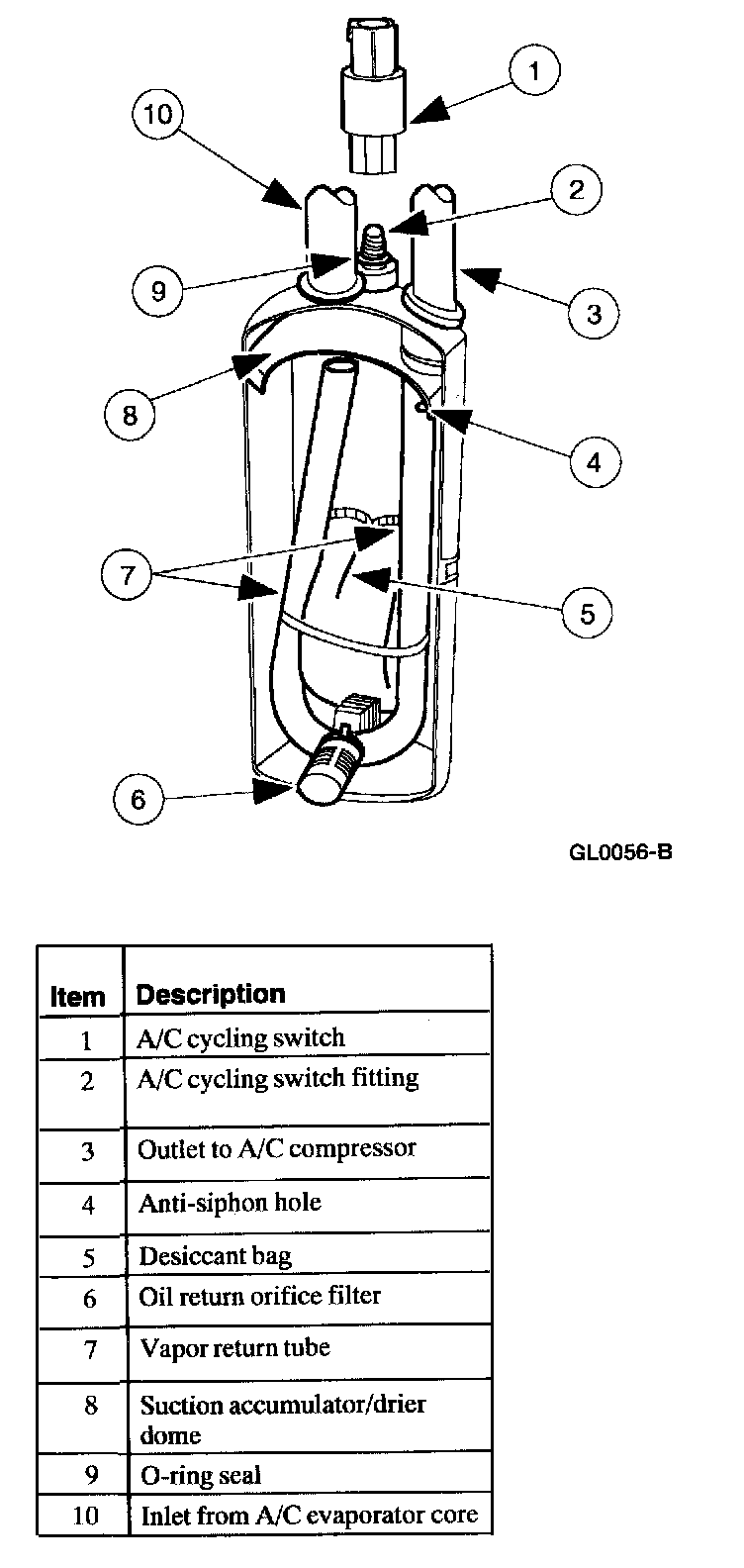

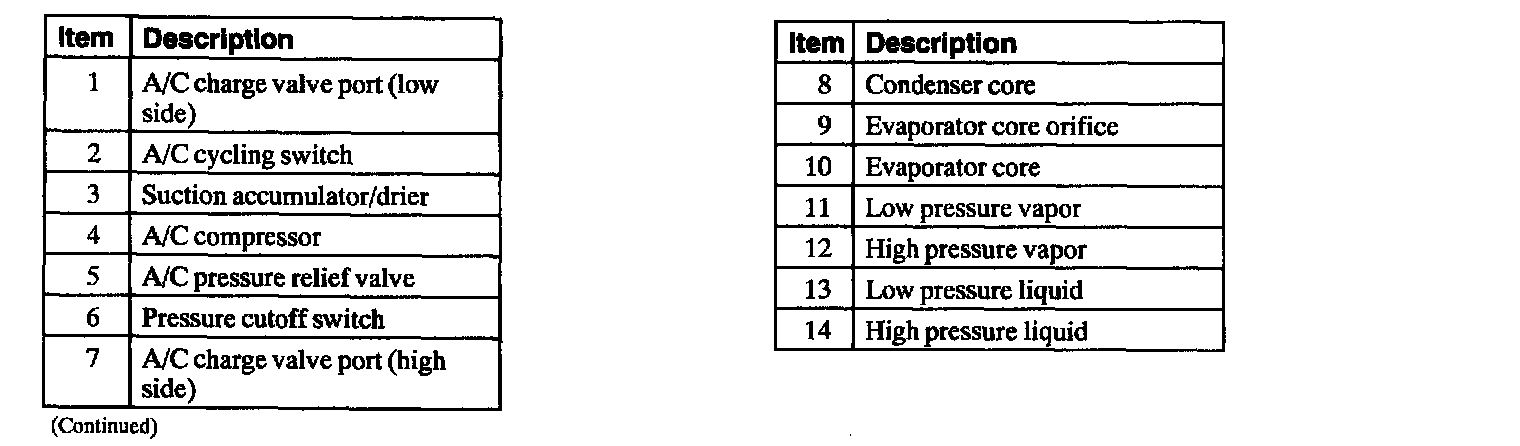

Clutch Cycling Orifice Tube Type Refrigerant System, Part 2:

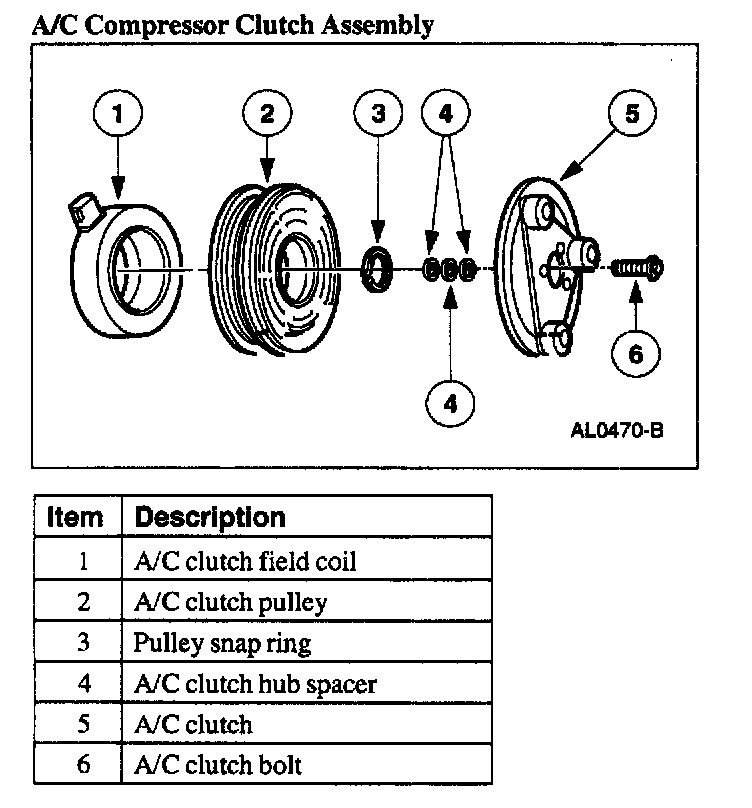

A/C Compressor Clutch Assembly:











Spring Lock Coupling:






Service Gauge Port Values:
