Home
>>
Mercury
>>
2001
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>

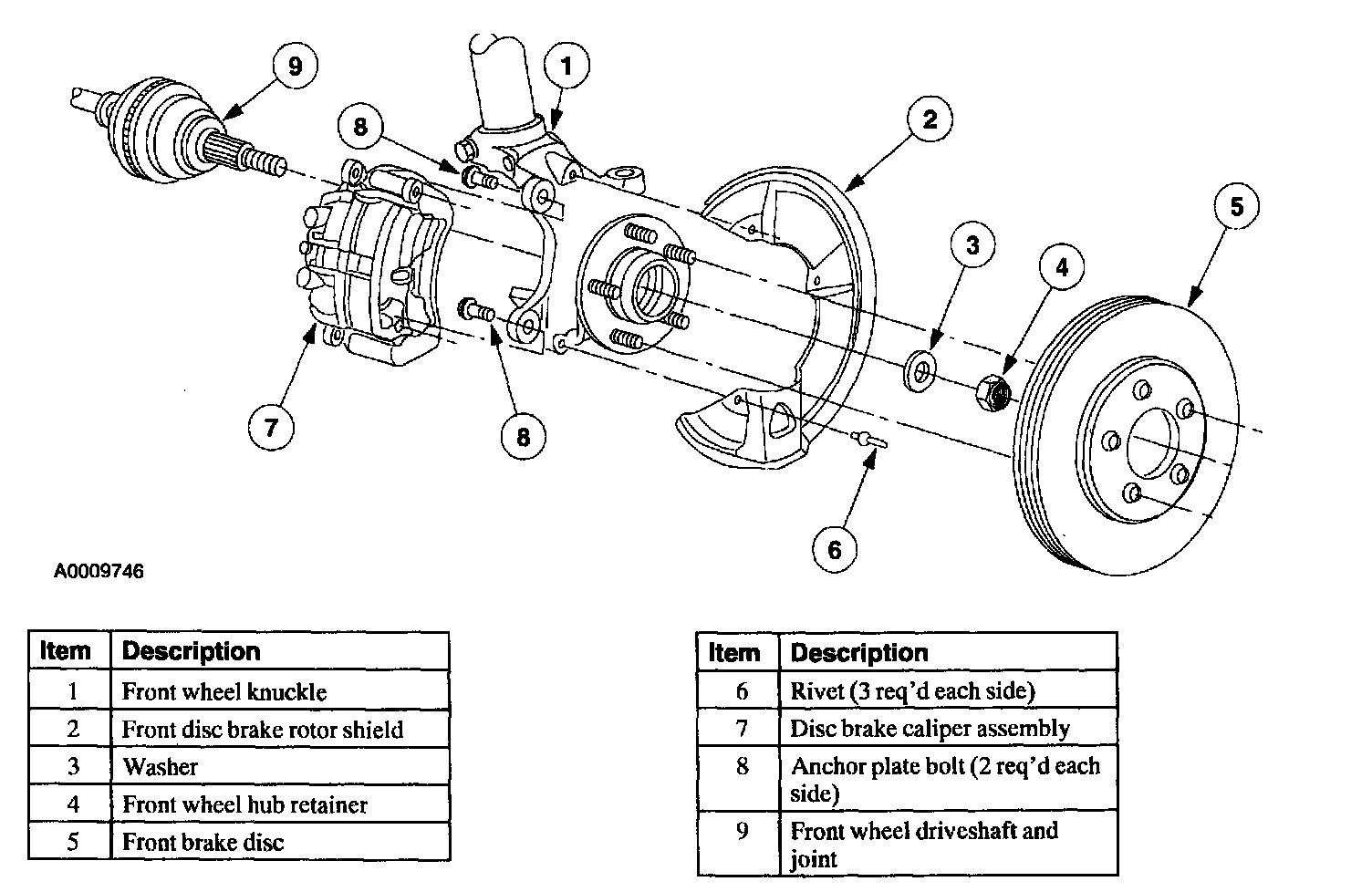

Exploded Views
>>
Disc Brake System
>>
System Diagram
>>
Front
Front
