Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> 4F50N

4F50N

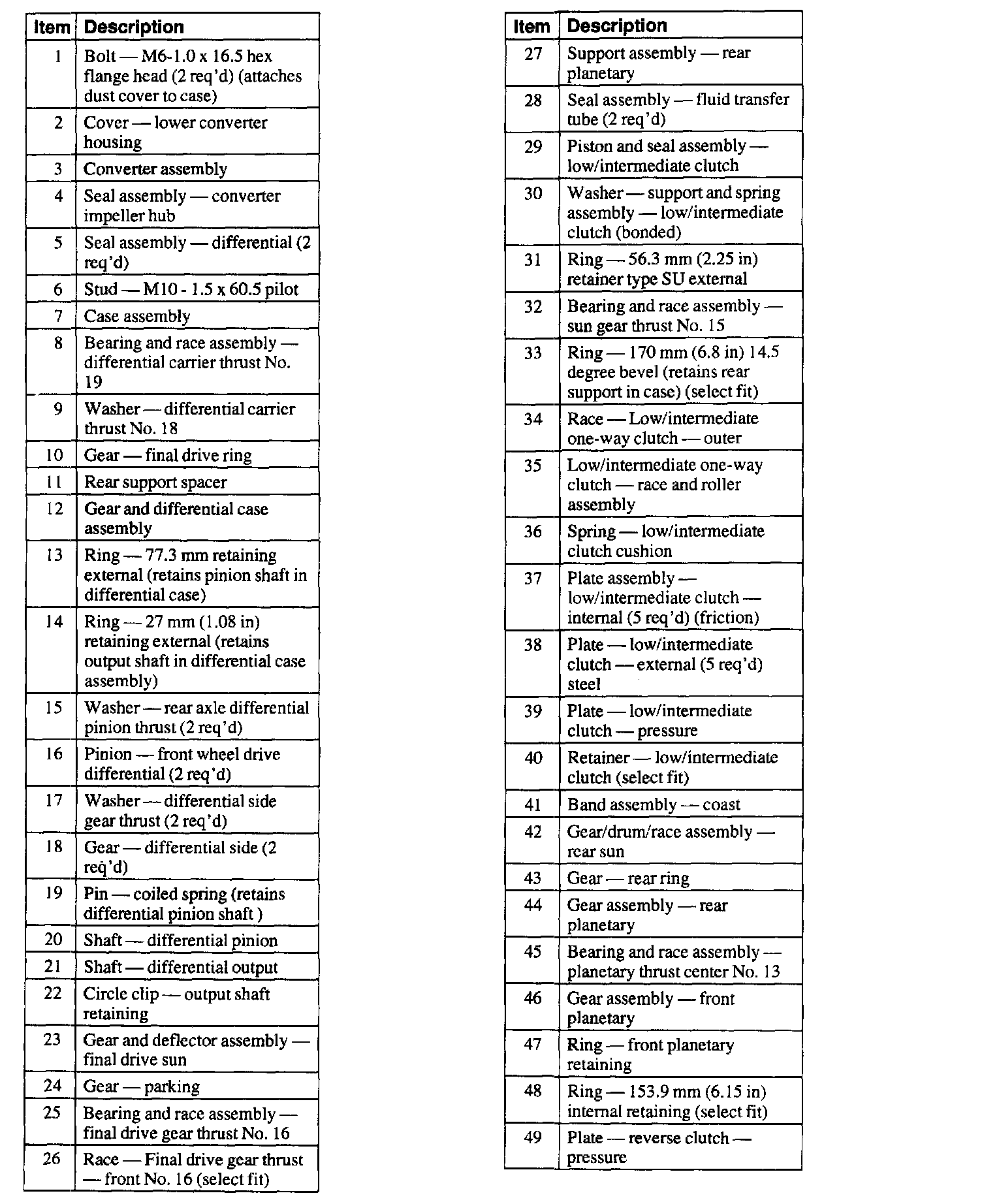

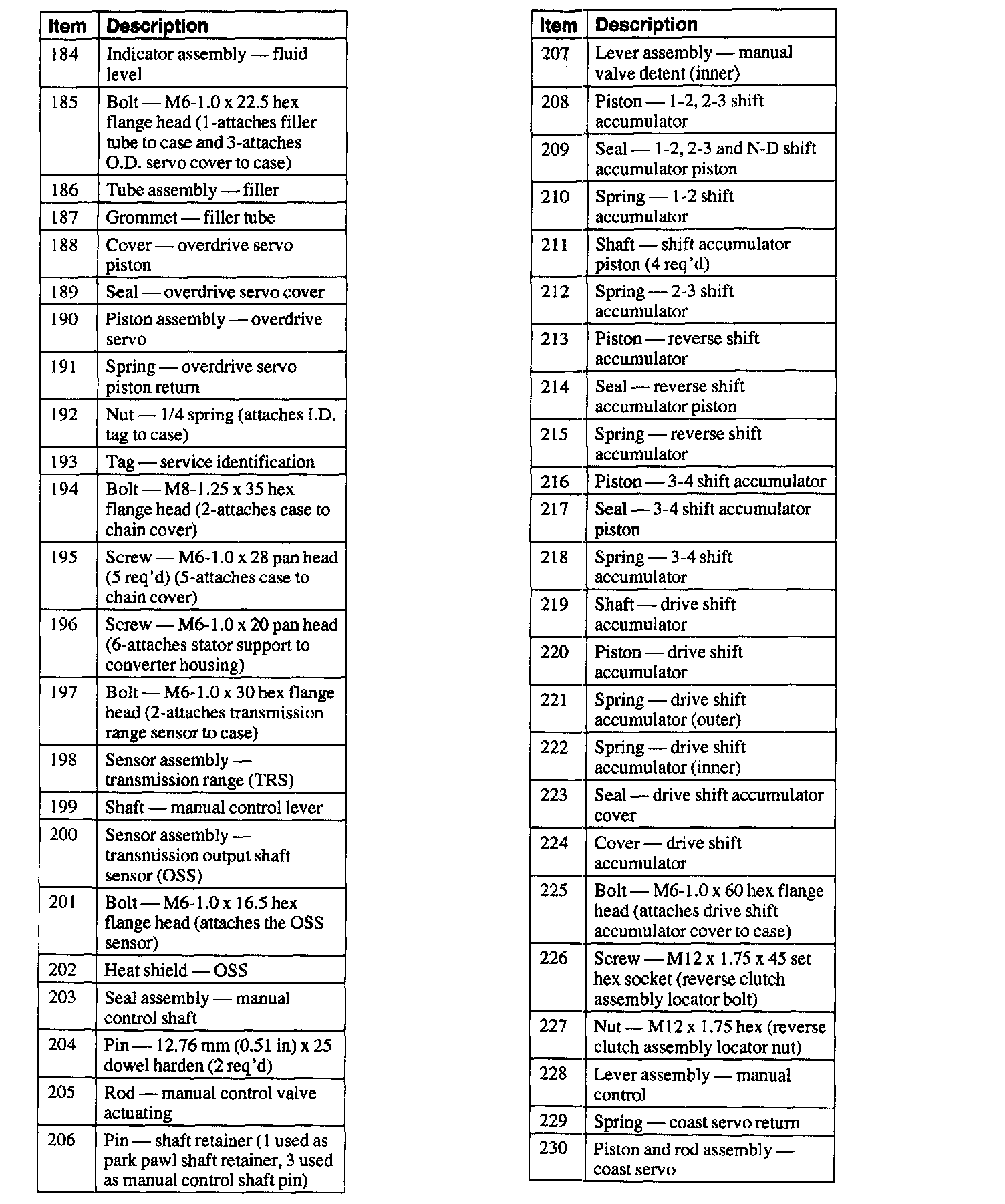

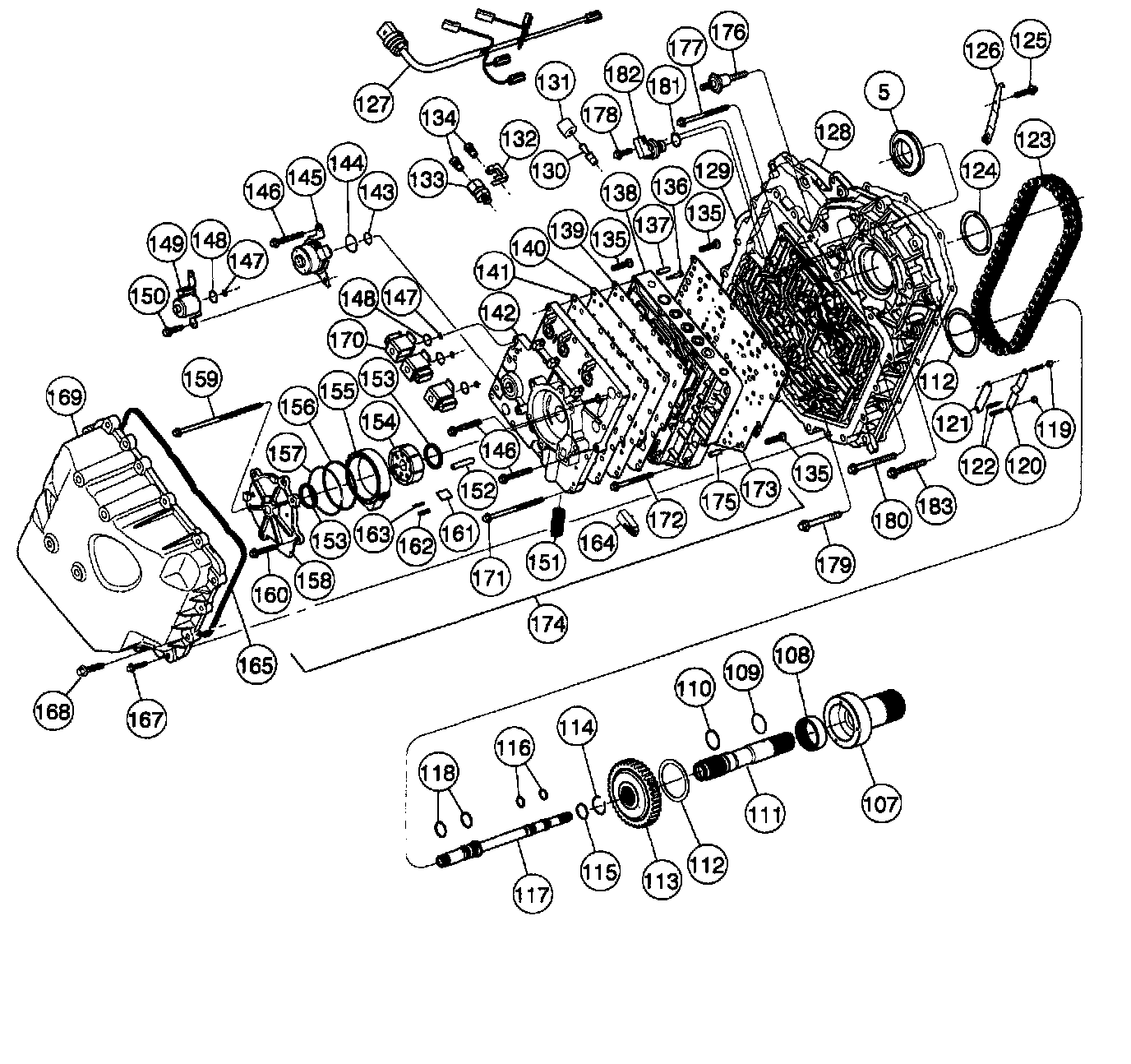

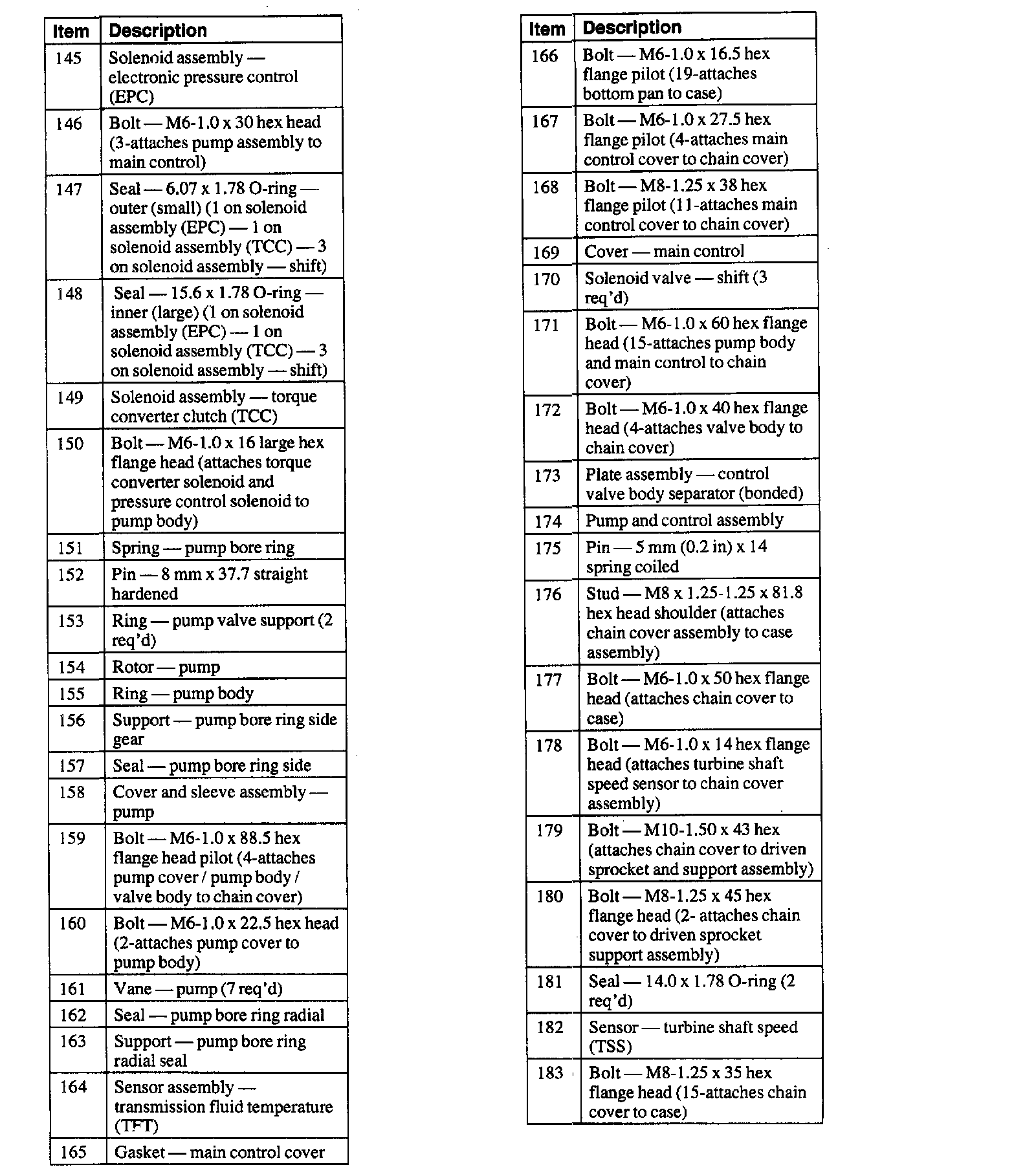

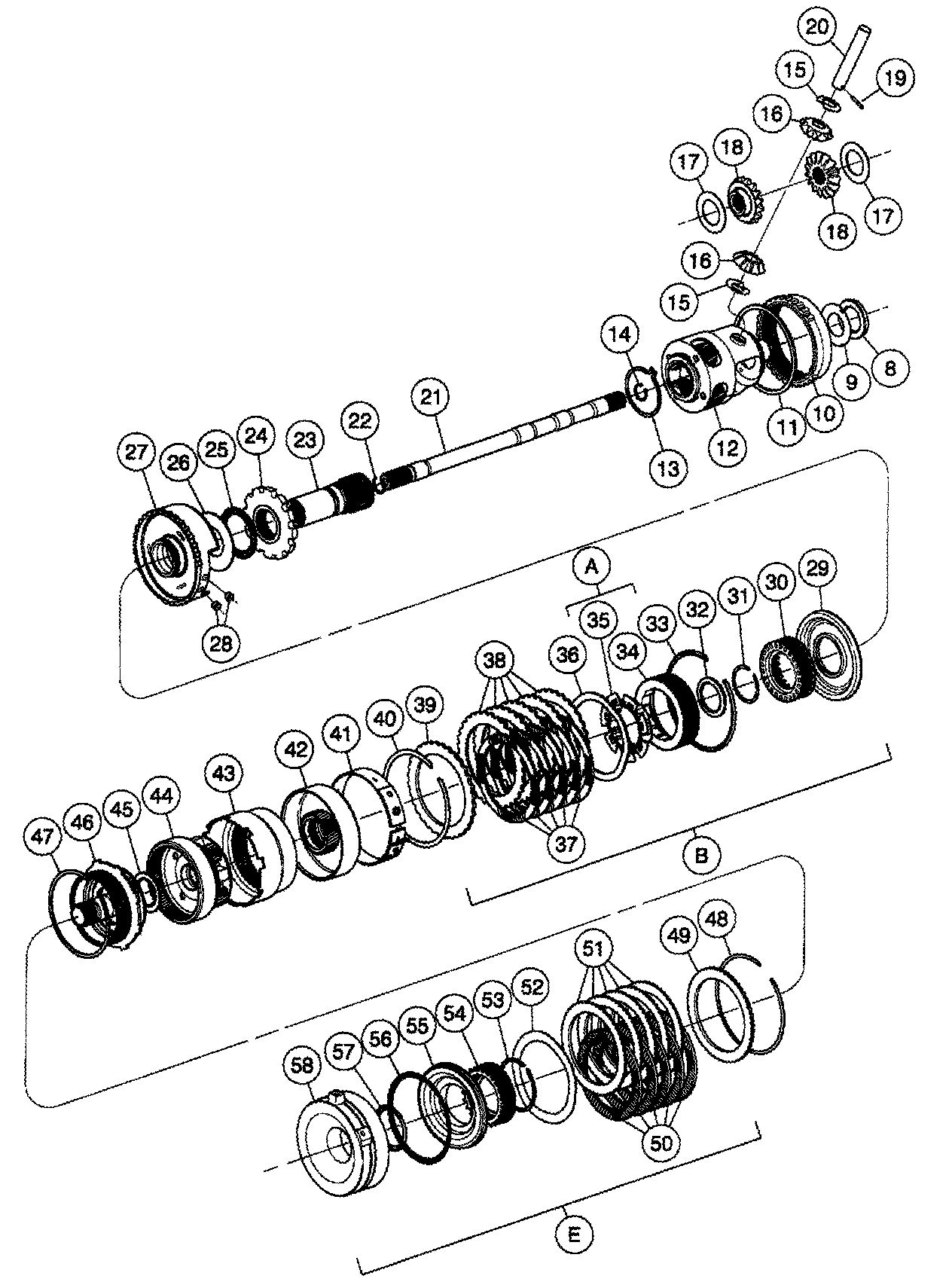

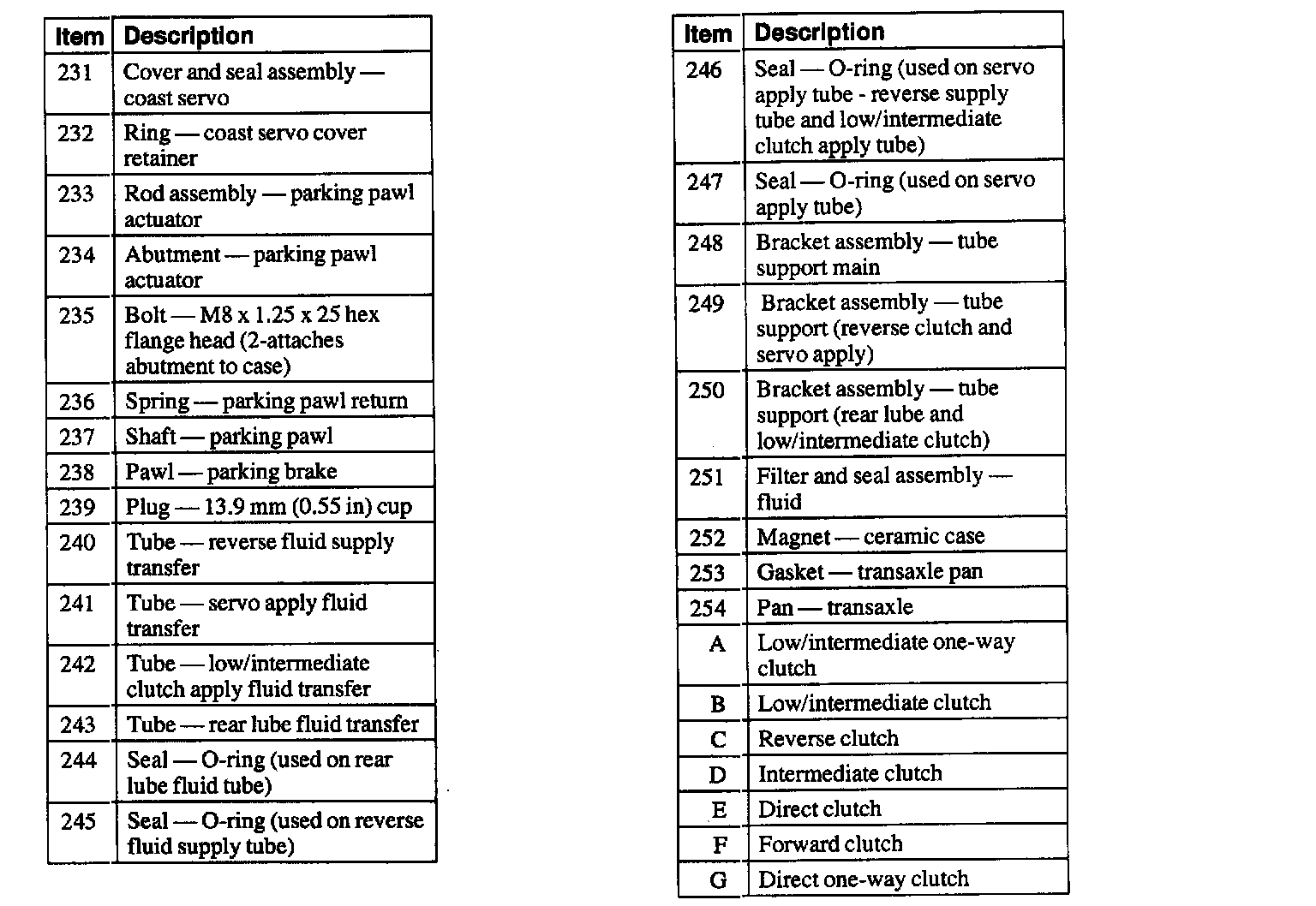

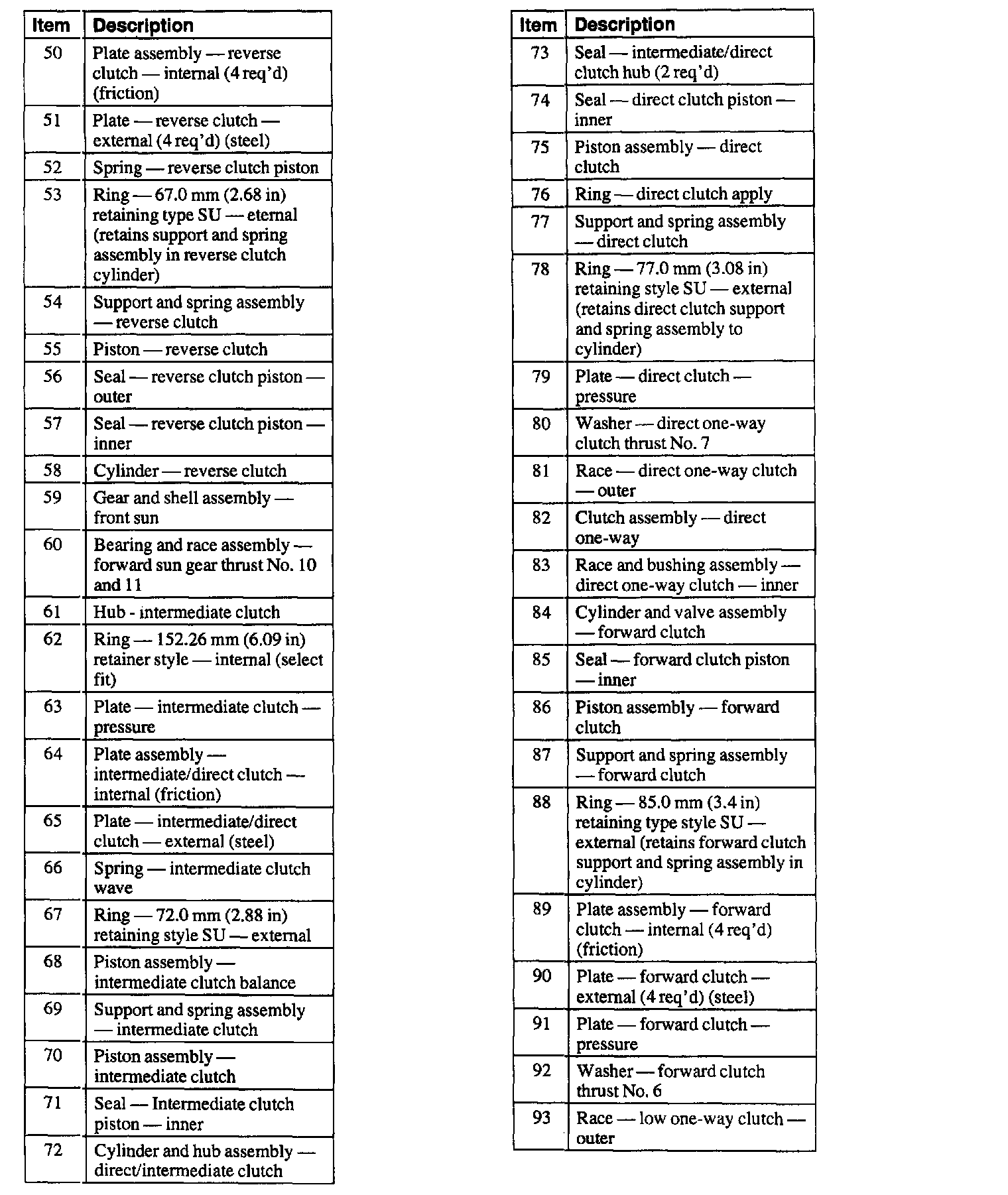

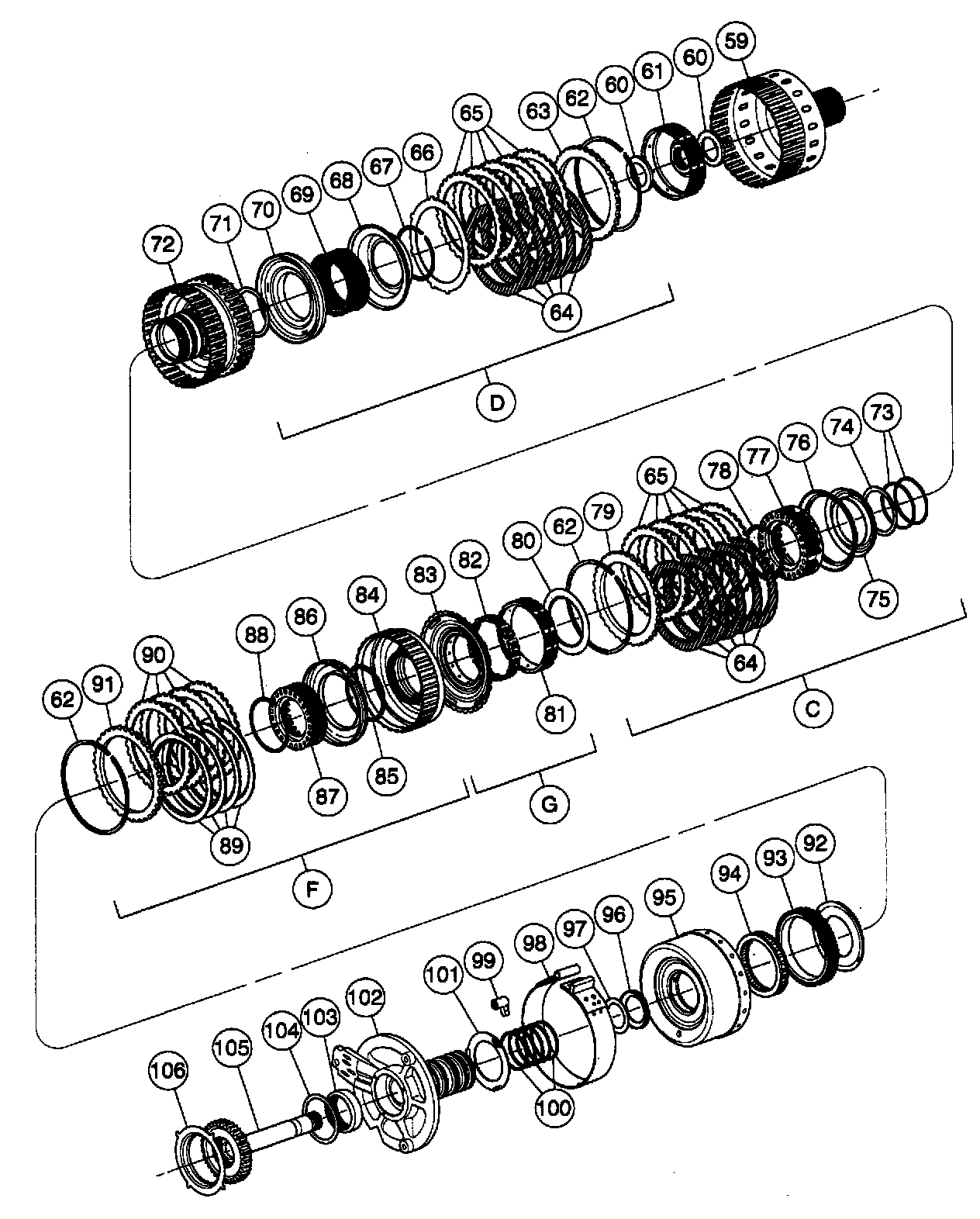

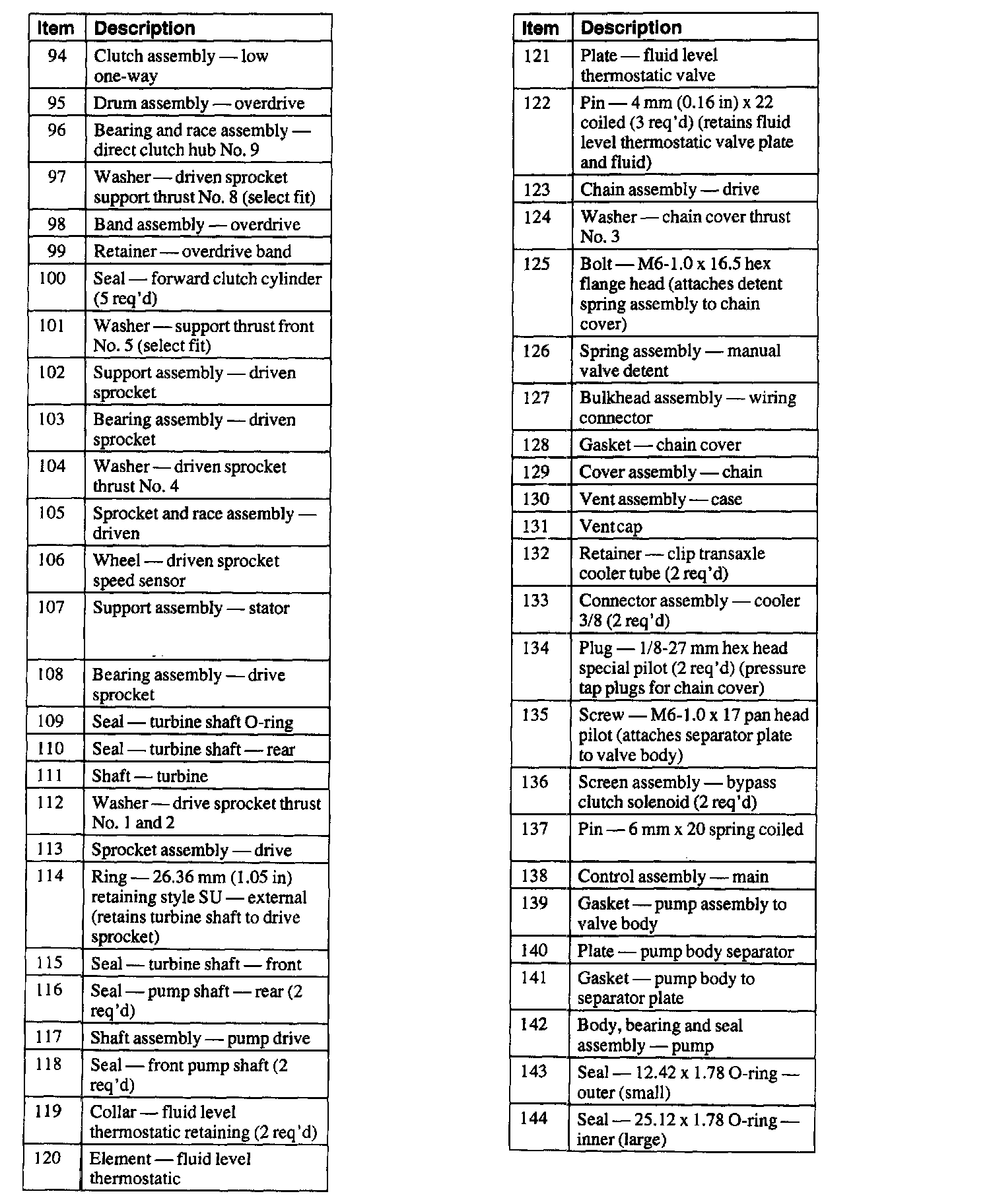

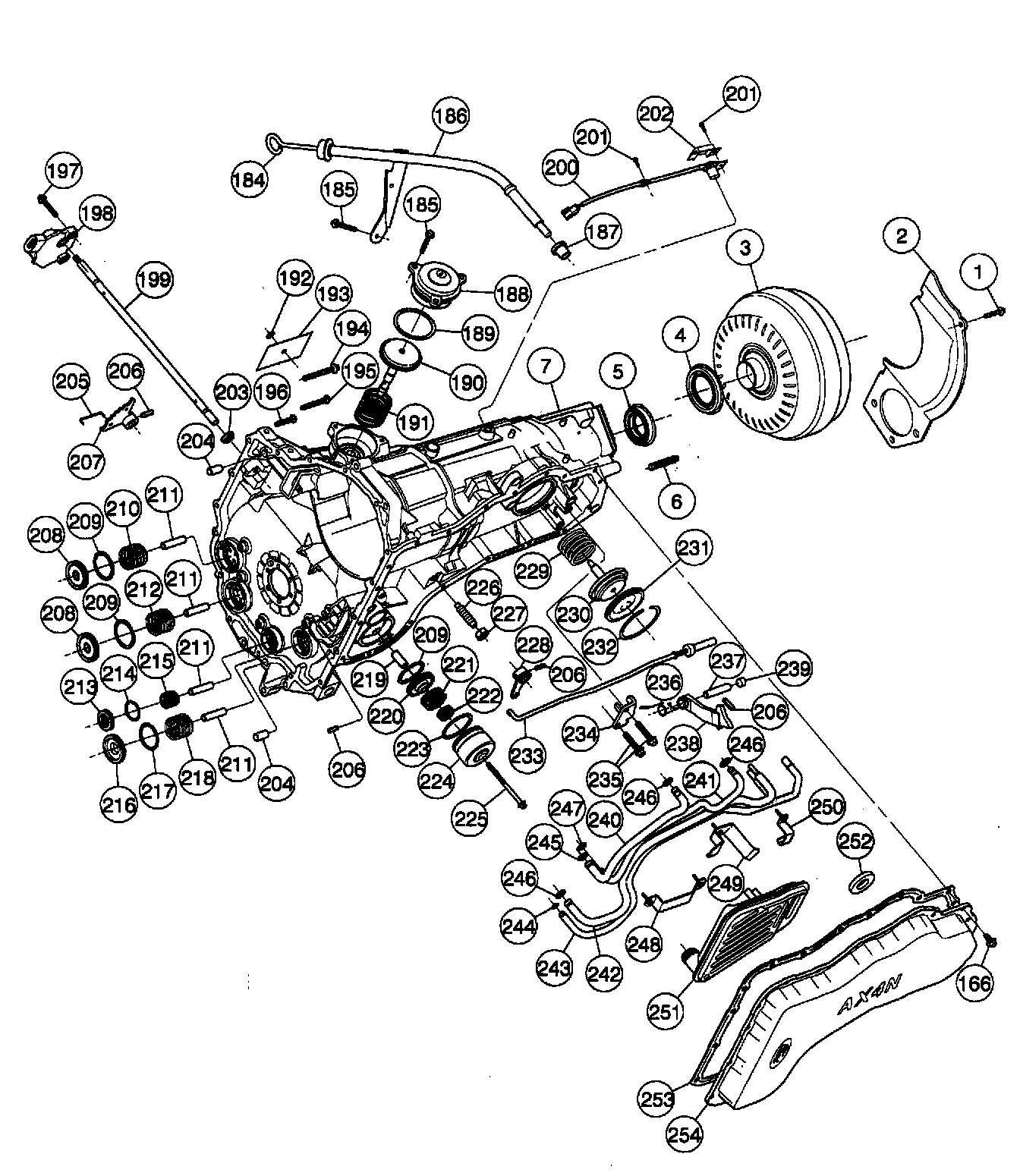

Disassembled Views





Part 1 of 10





Part 2 of 10





Part 3 of 10





Part 4 of 10





Part 5 of 10





Part 6 of 10





Part 7 of 10





Part 8 of 10





Part 9 of 10





Part 10 of 10
