Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Fuse Circuits >> F222 >> Wagon

Wagon

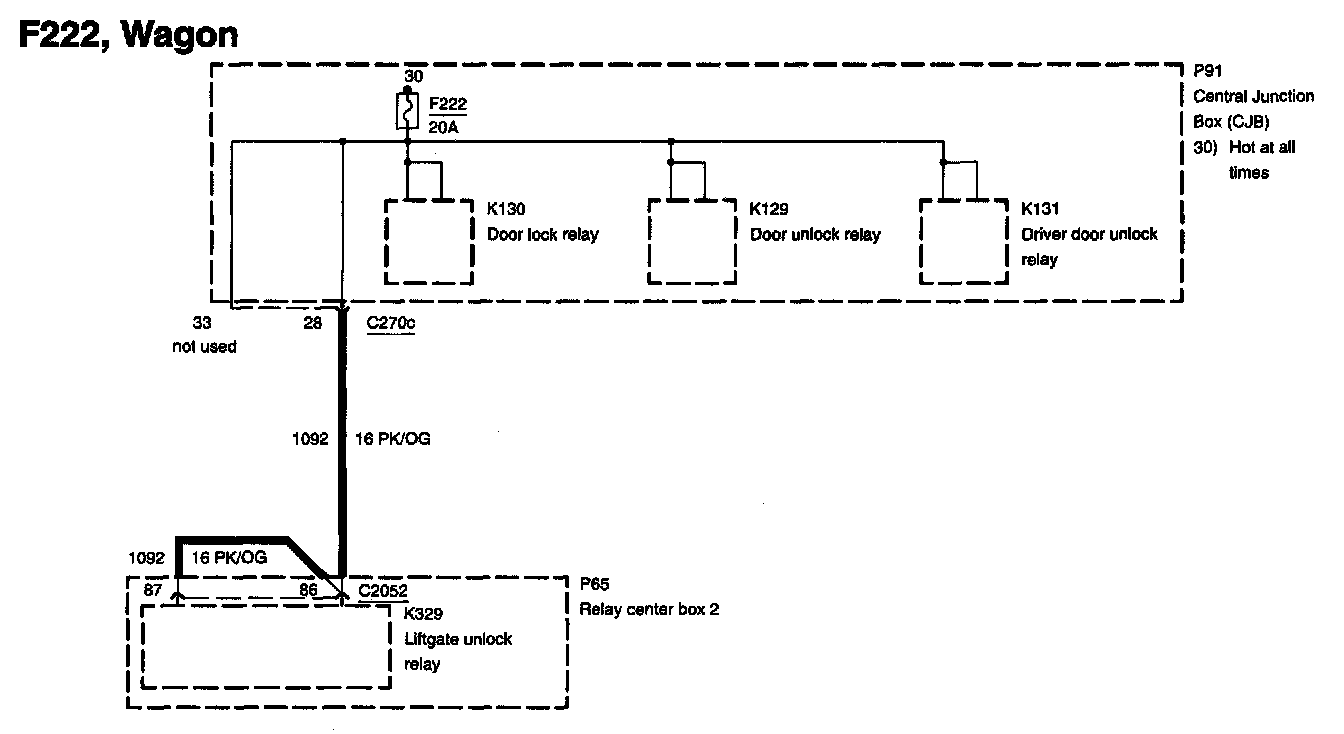

Diagram 700-03-00-11:



Diagram 700-02-00-1:
