Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> System Diagram >> Wagon

Wagon

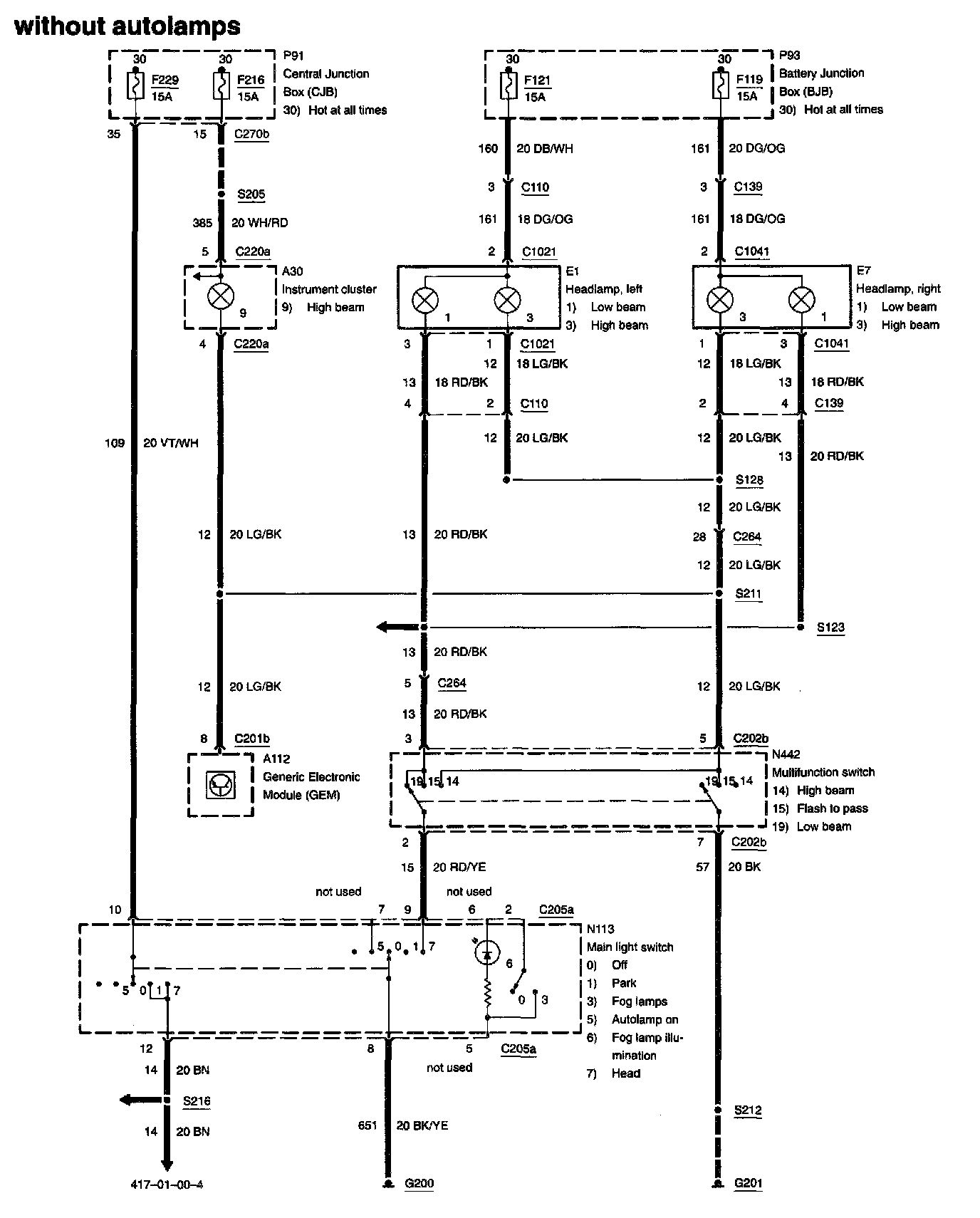

Diagram 417-01-00-1:

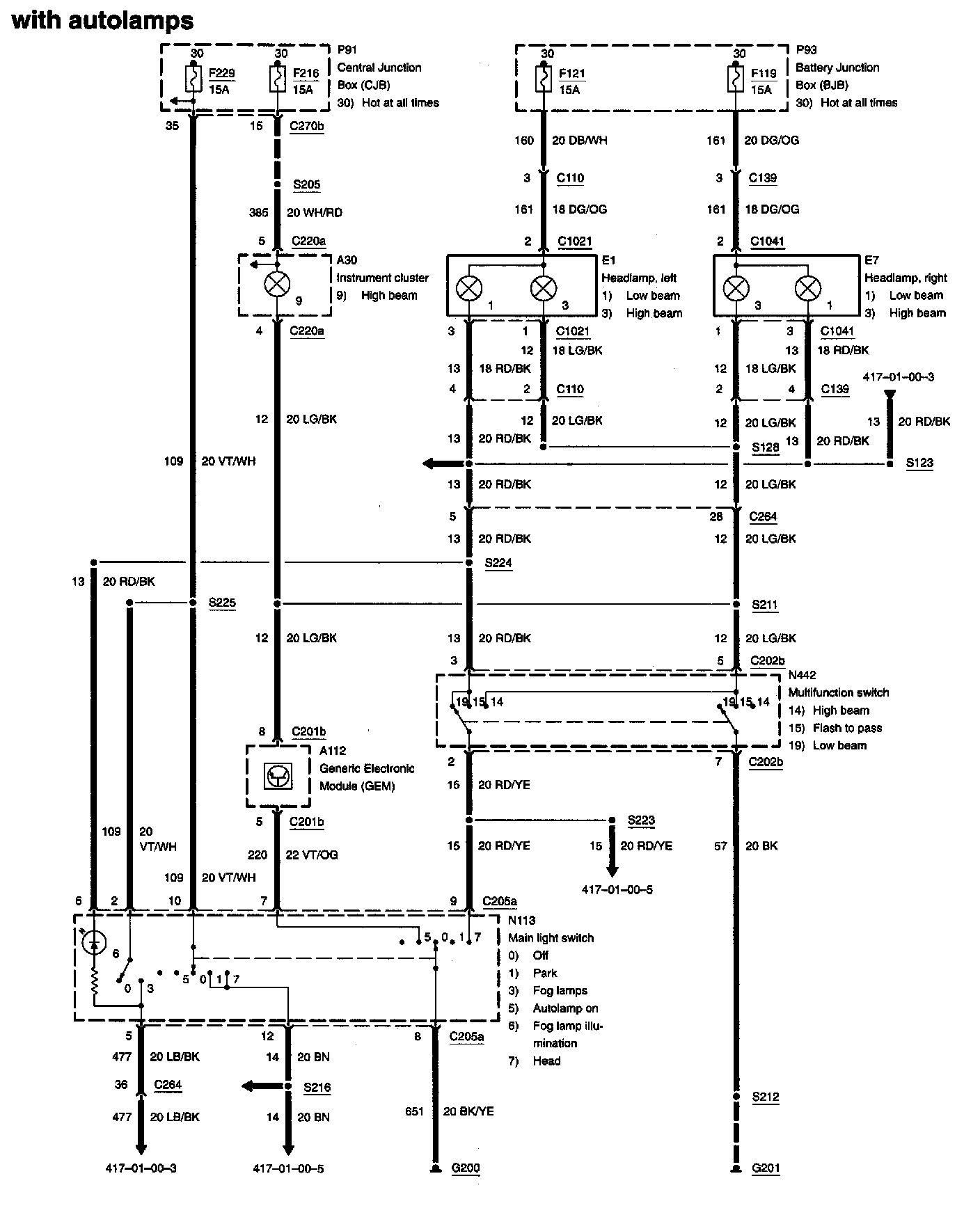

Diagram 417-01-00-2:

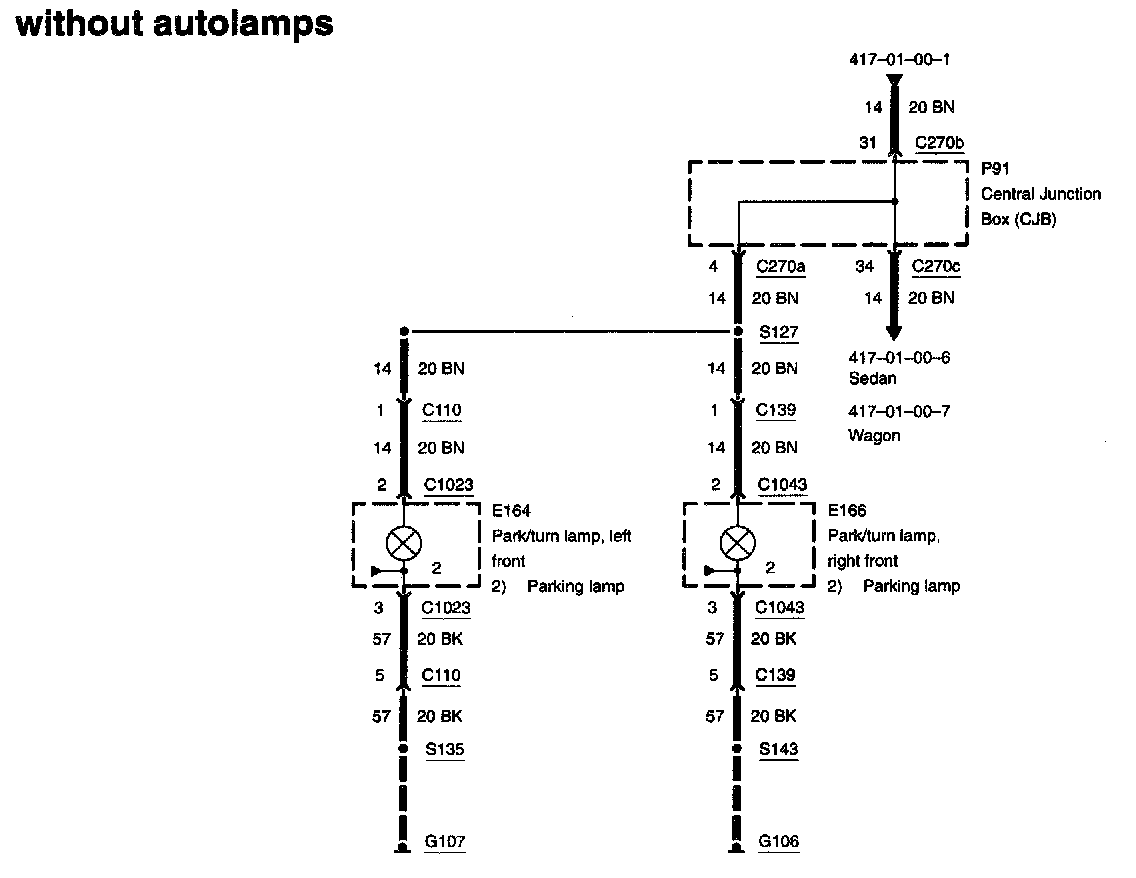

Diagram 417-01-00-3:

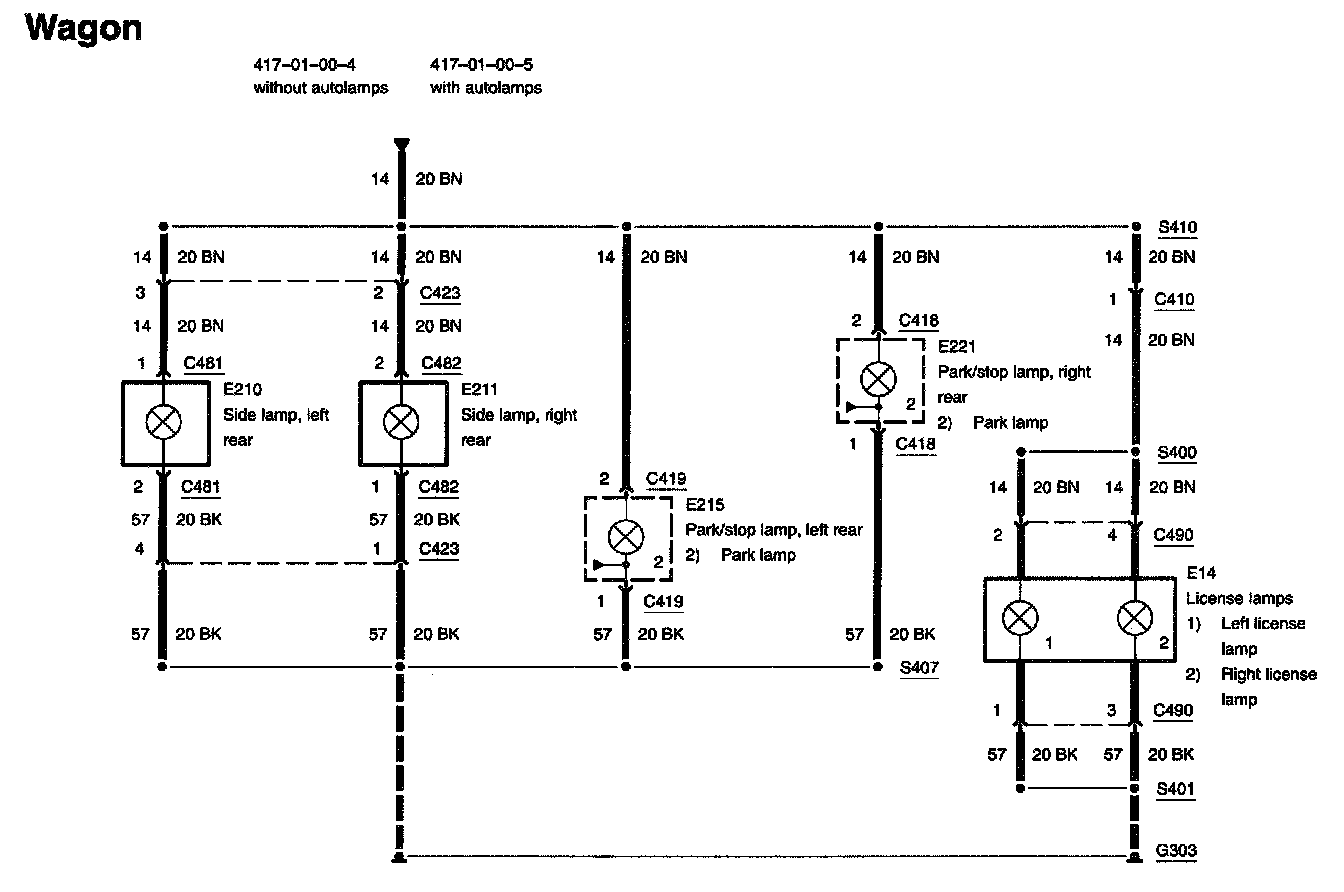

Diagram 417-01-00-4:

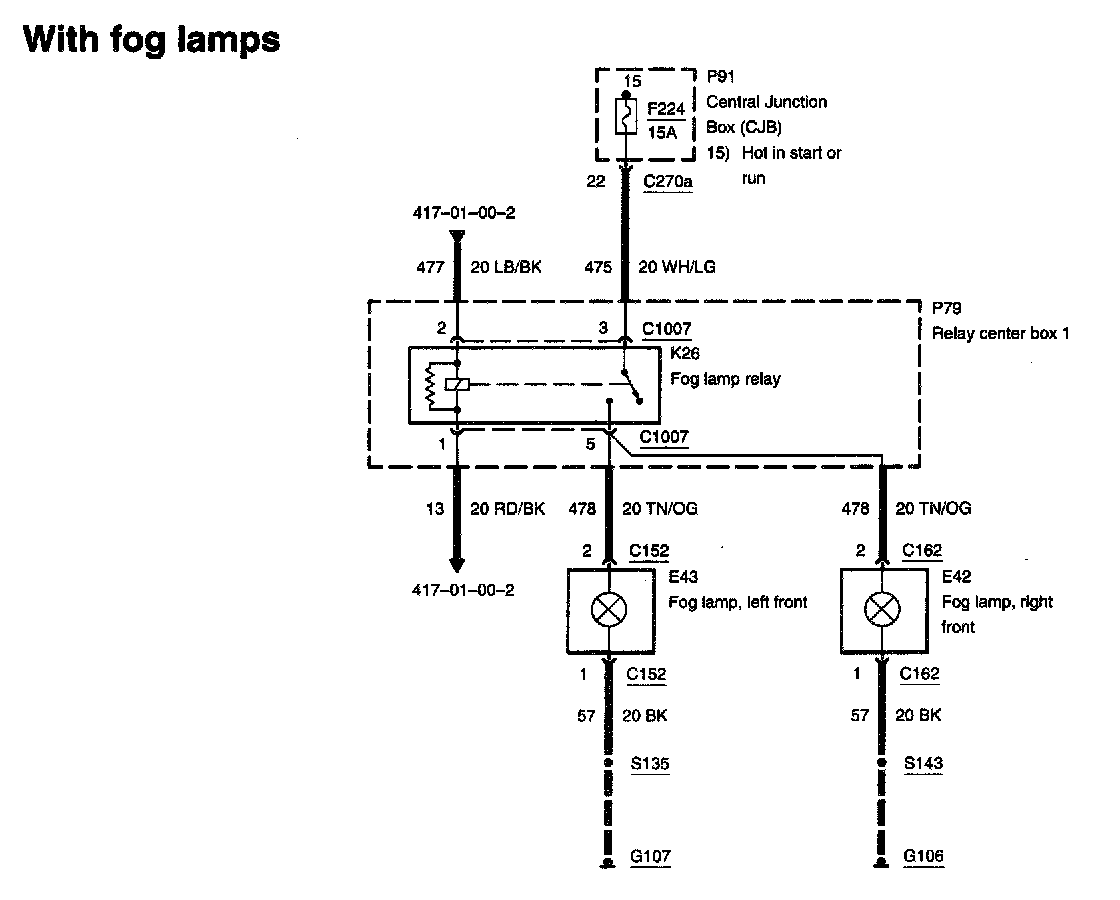

Diagram 417-01-00-5:






Diagram 417-01-00-7:

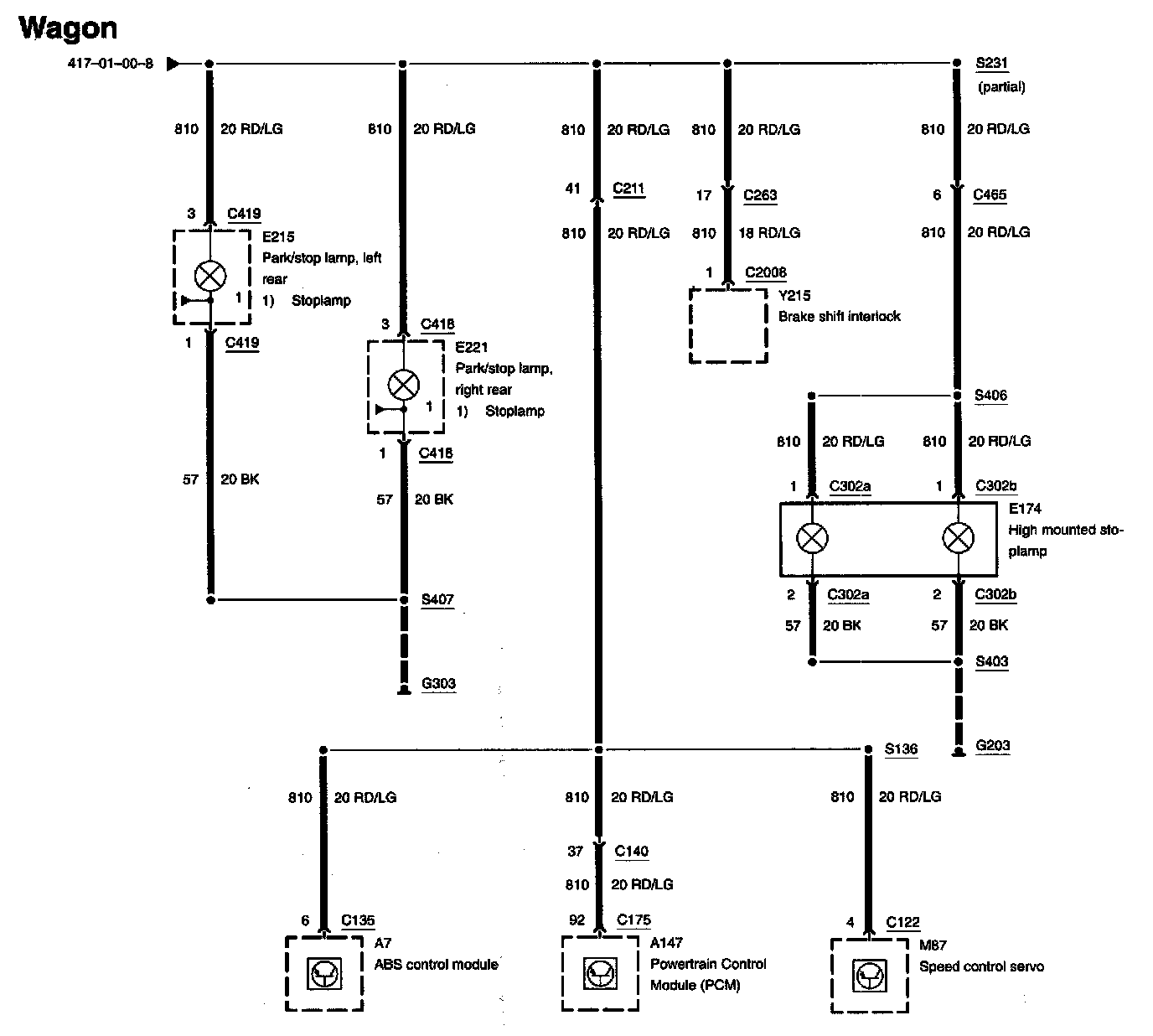

Diagram 417-01-00-8:






Diagram 417-01-00-9:

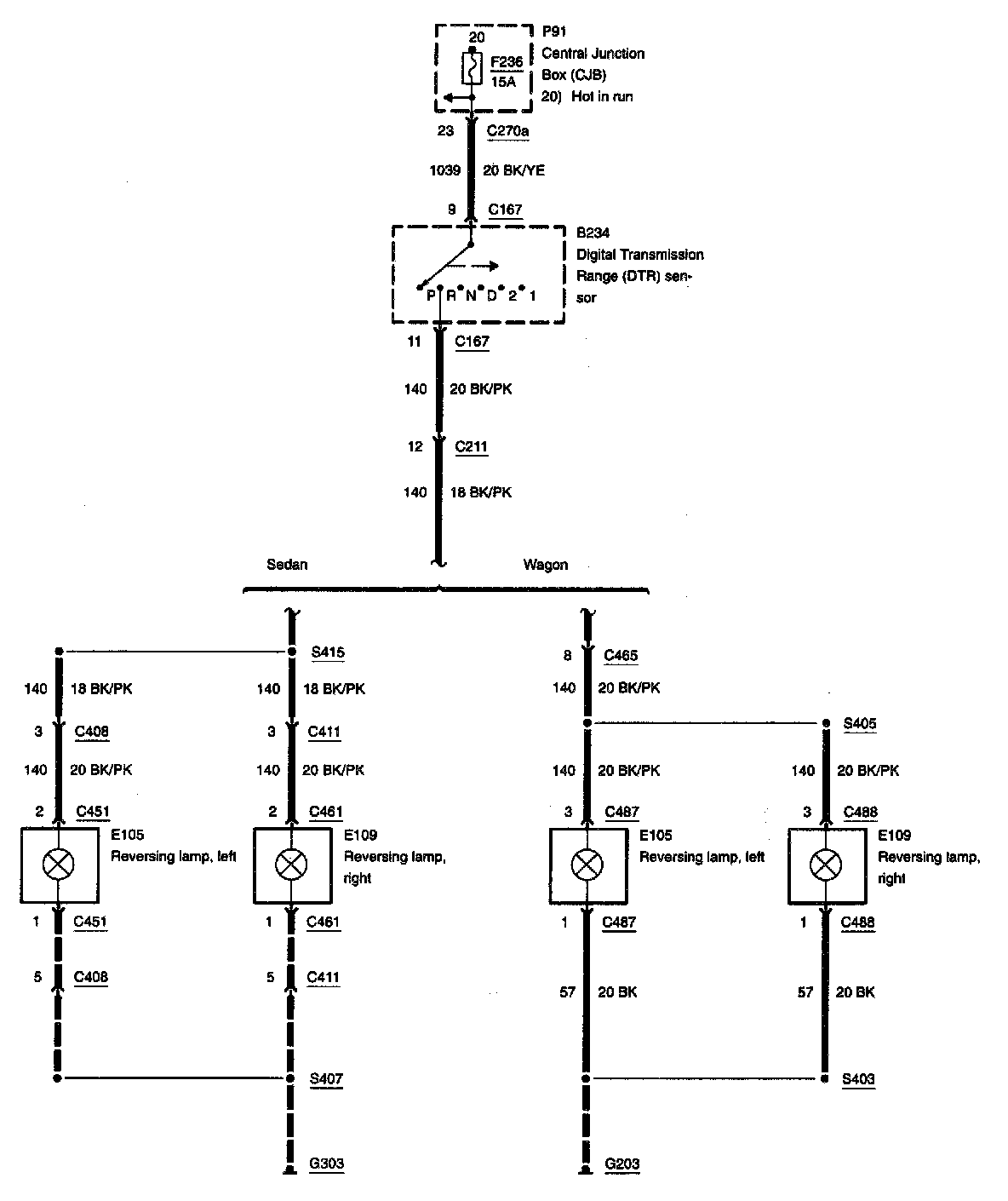

Diagram 417-01-00-11:

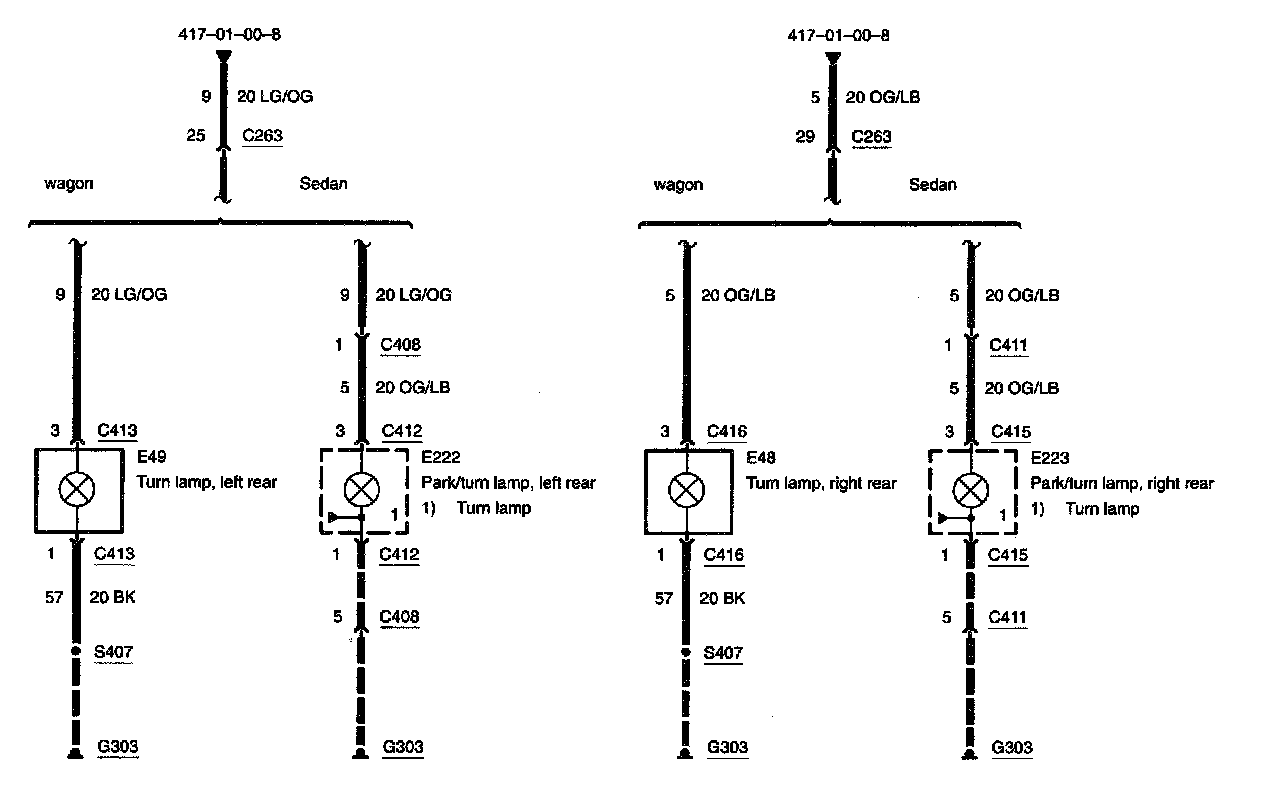

Diagram 417-01-00-12:
