Instrument Cluster

DETAILED DIAGRAMS

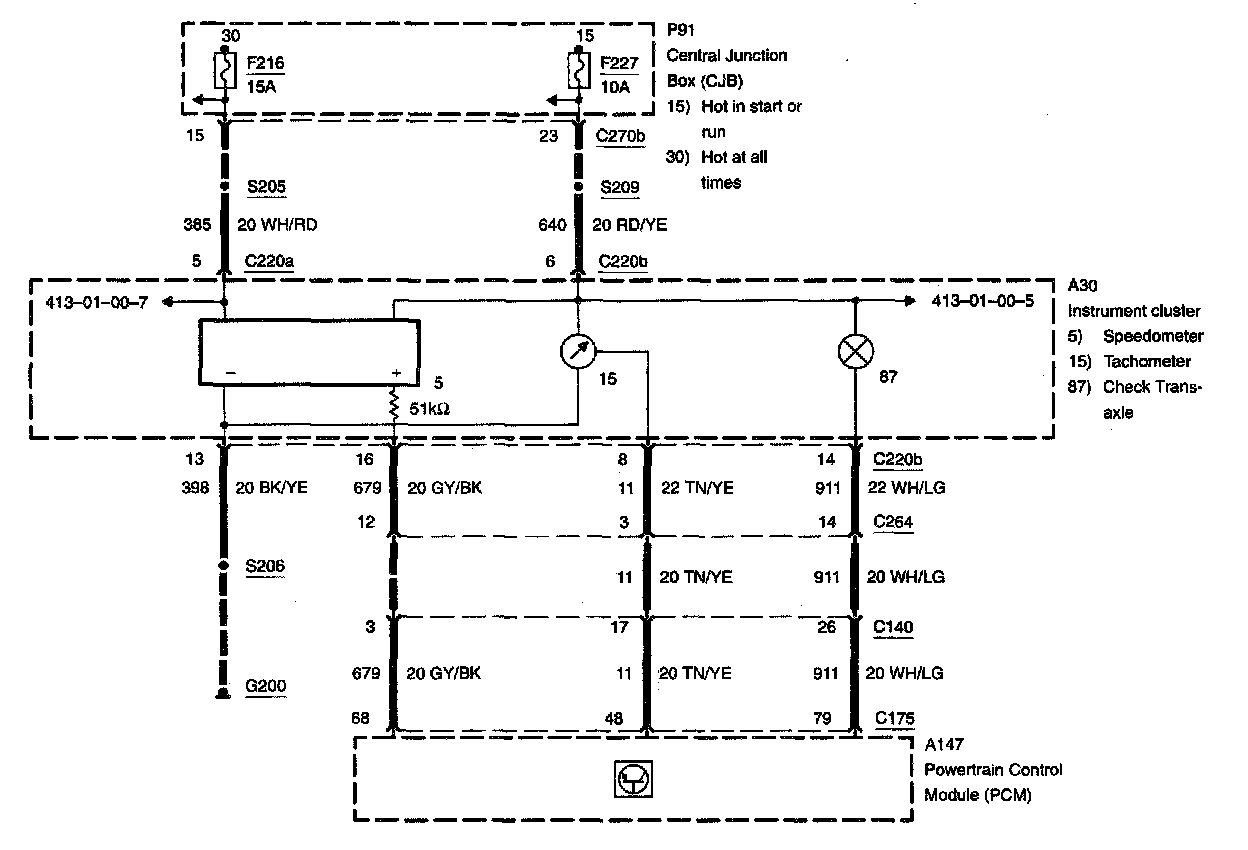

Diagram 413-01-00-1:

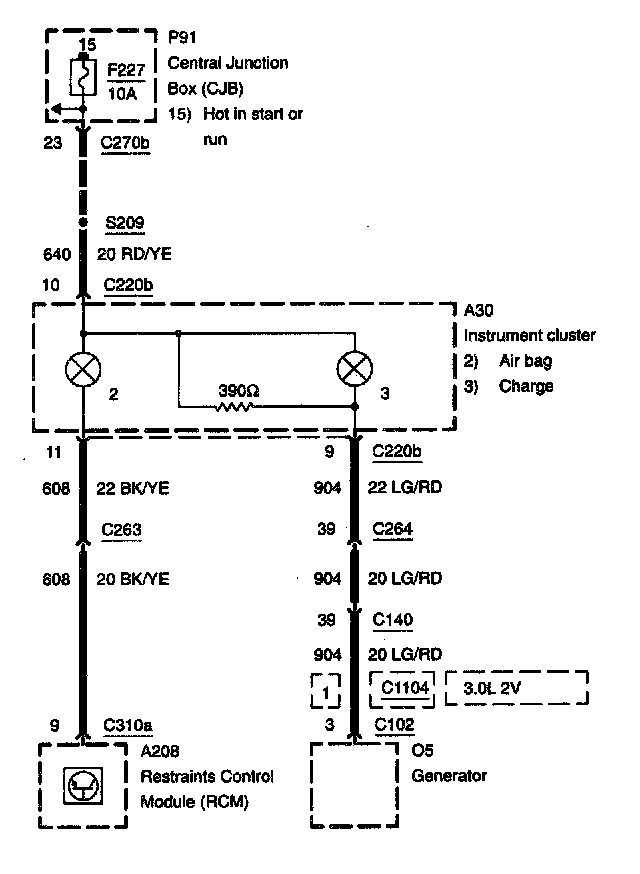

Diagram 413-01-00-3:

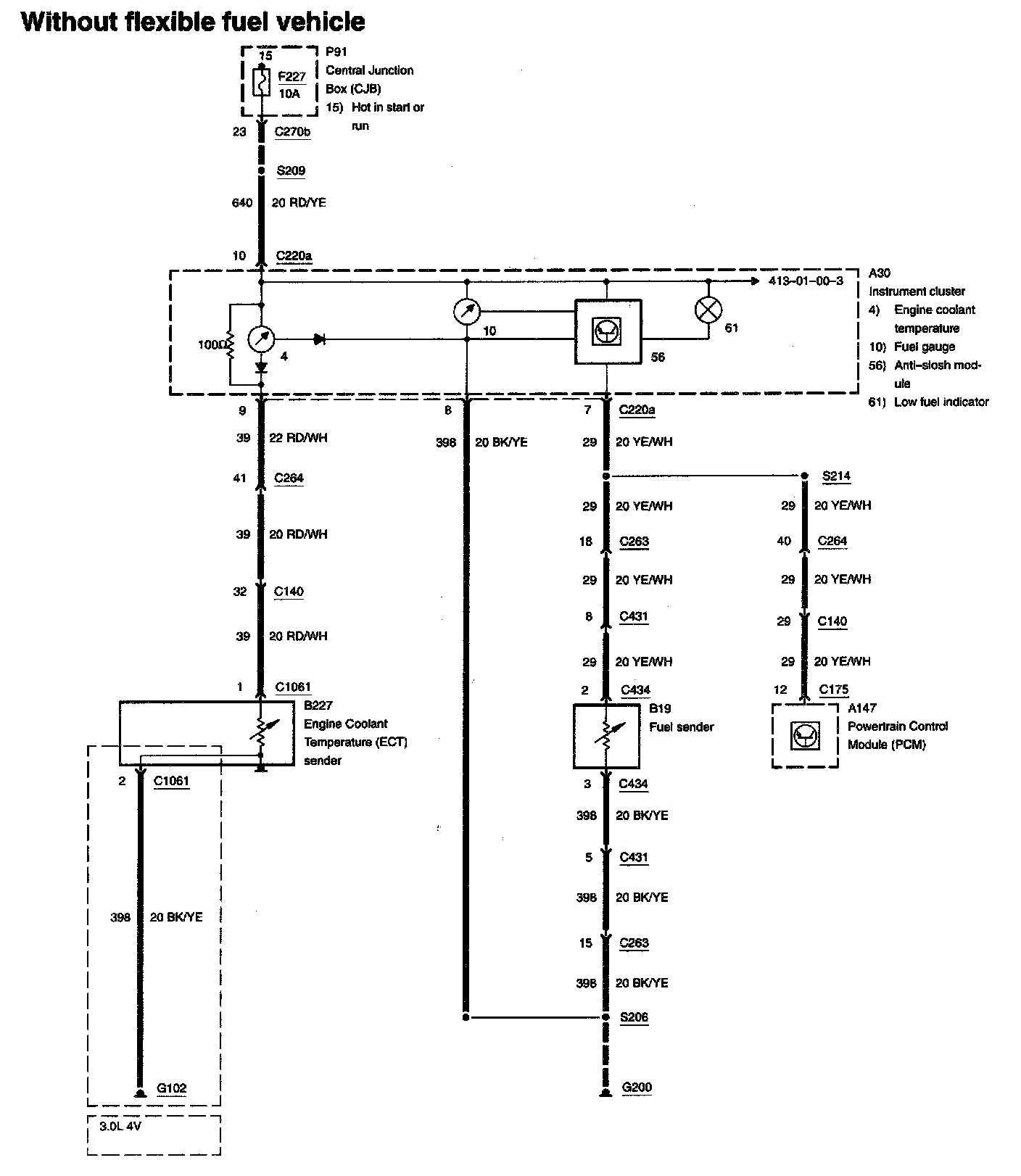

Diagram 413-01-00-4:

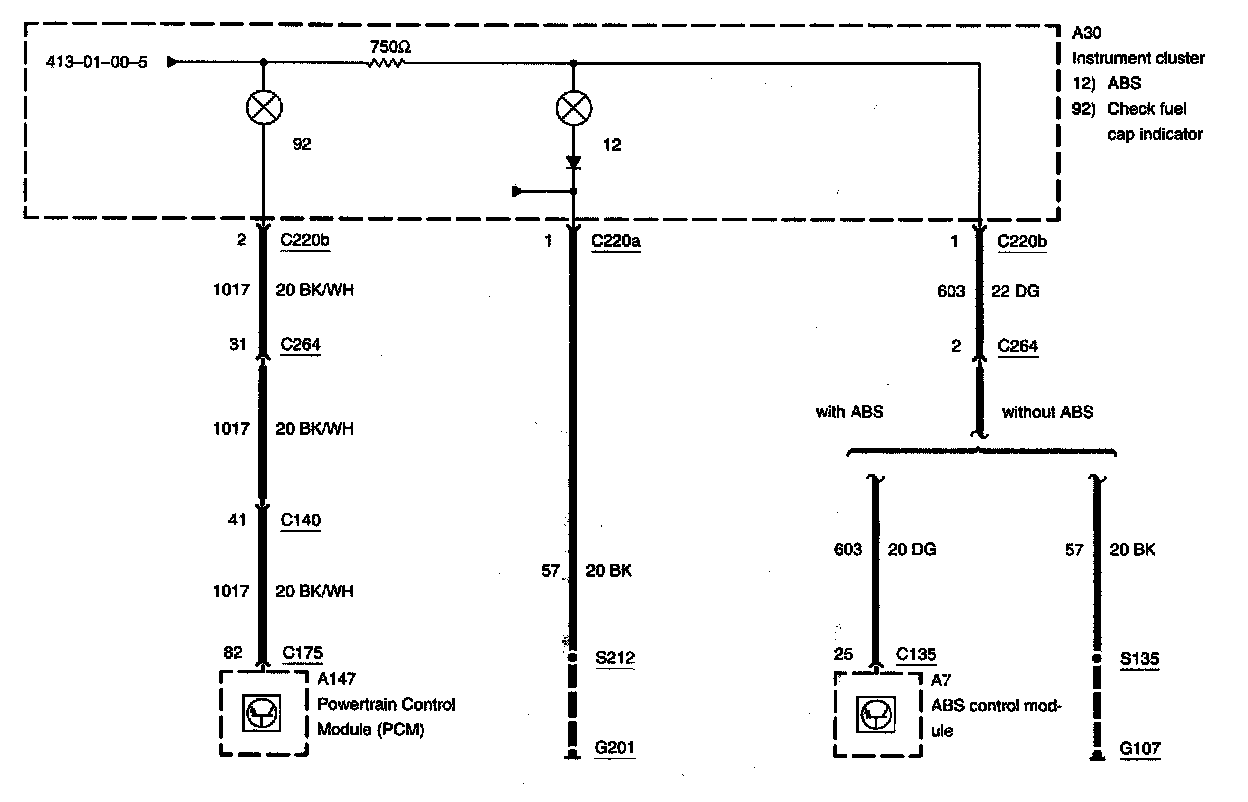

Diagram 413-01-00-5:

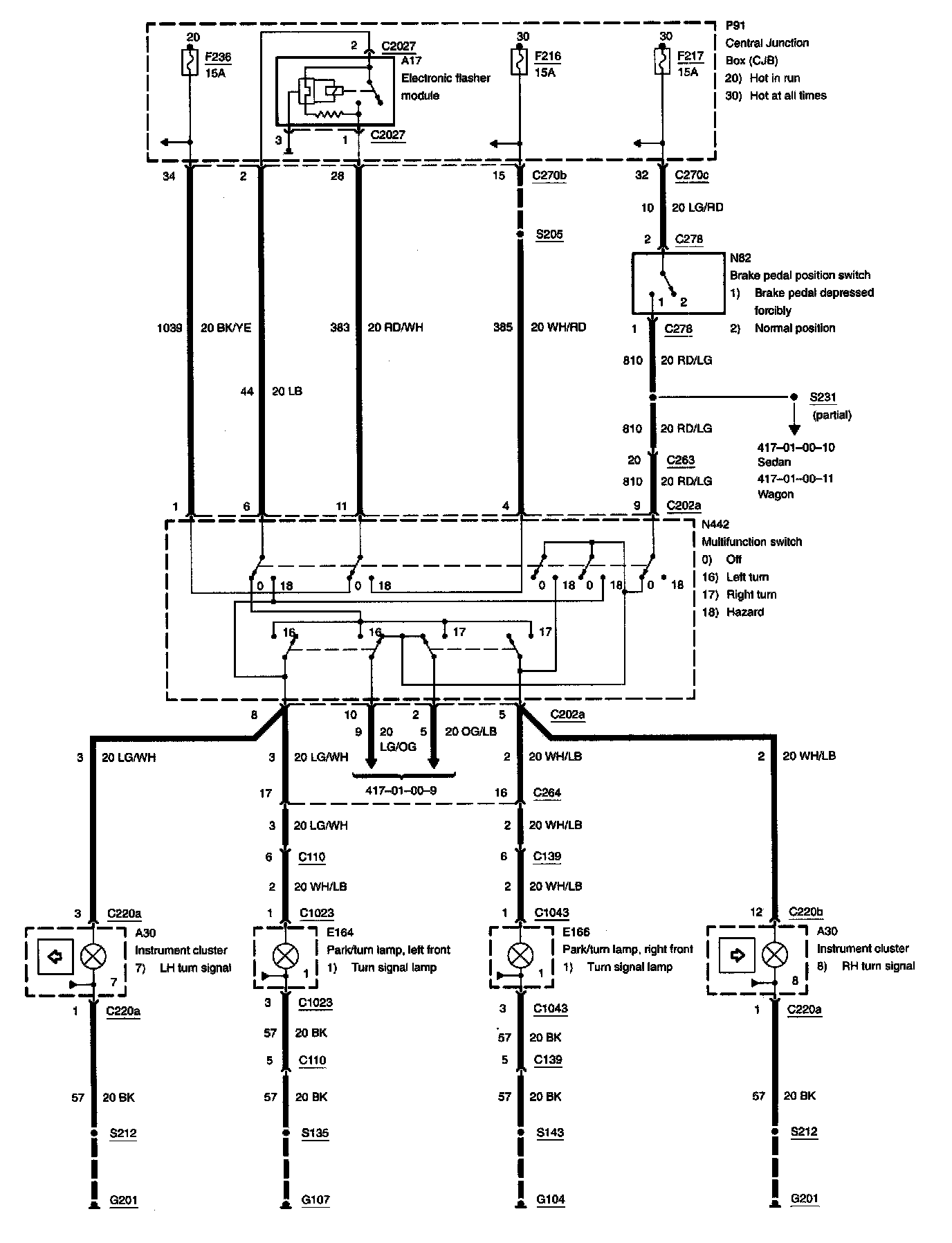

Diagram 413-01-00-6:

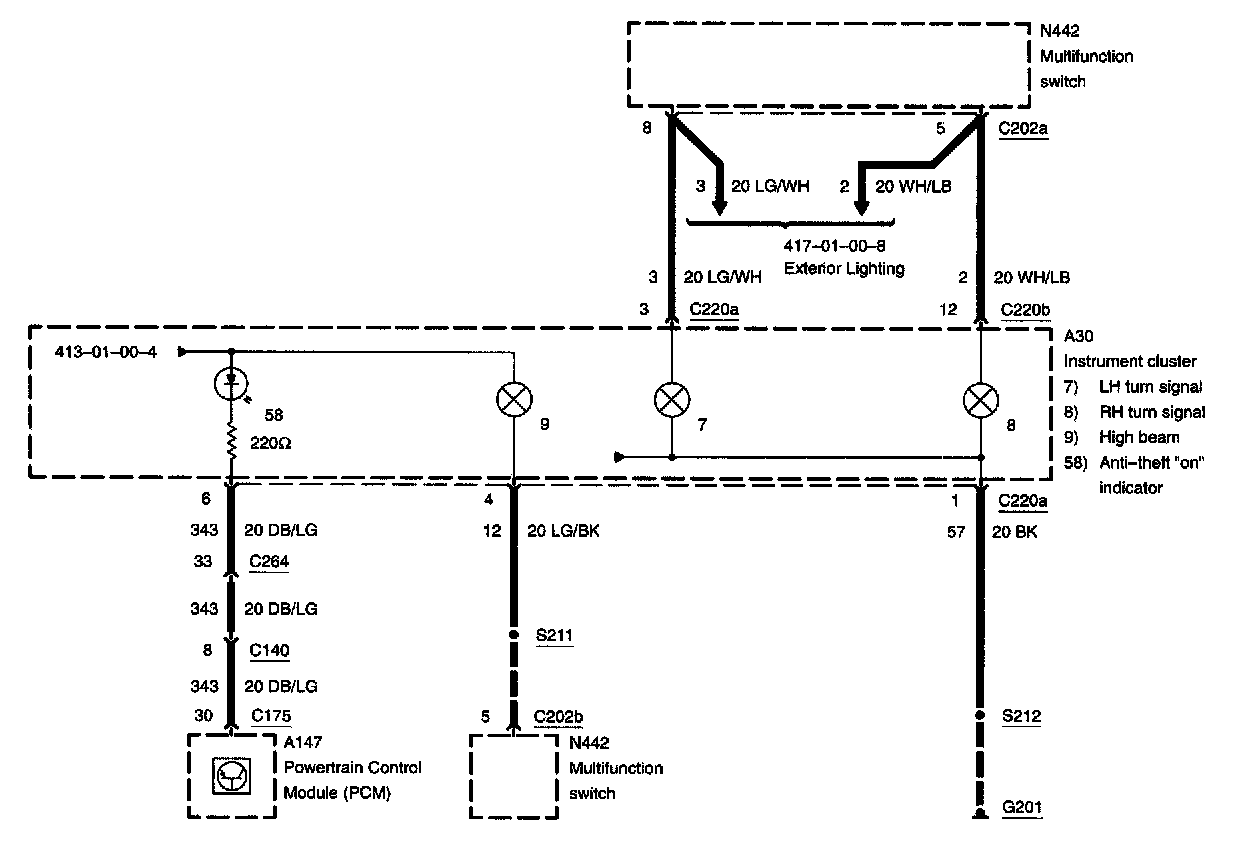

Diagram 413-01-00-7:

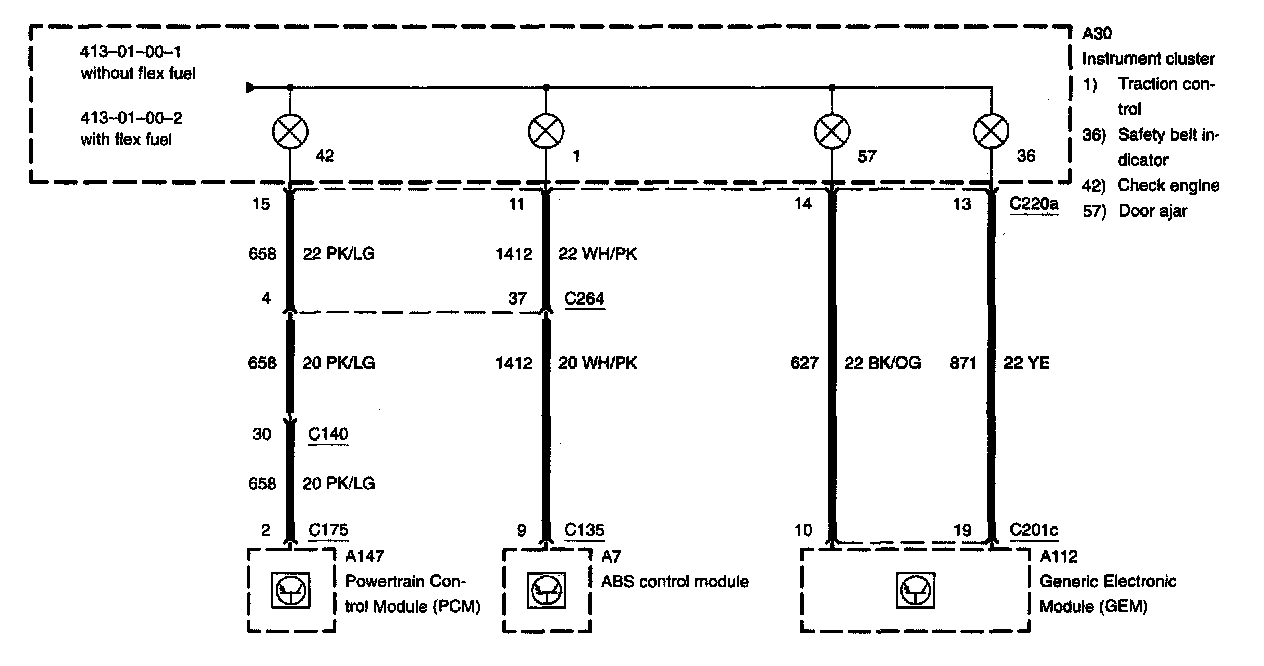

Diagram 413-01-00-8:






RELATED DIAGRAMS


Diagram 417-01-00-8:
