Cellular Phone
Cellular Phone
DETAILED DIAGRAMS

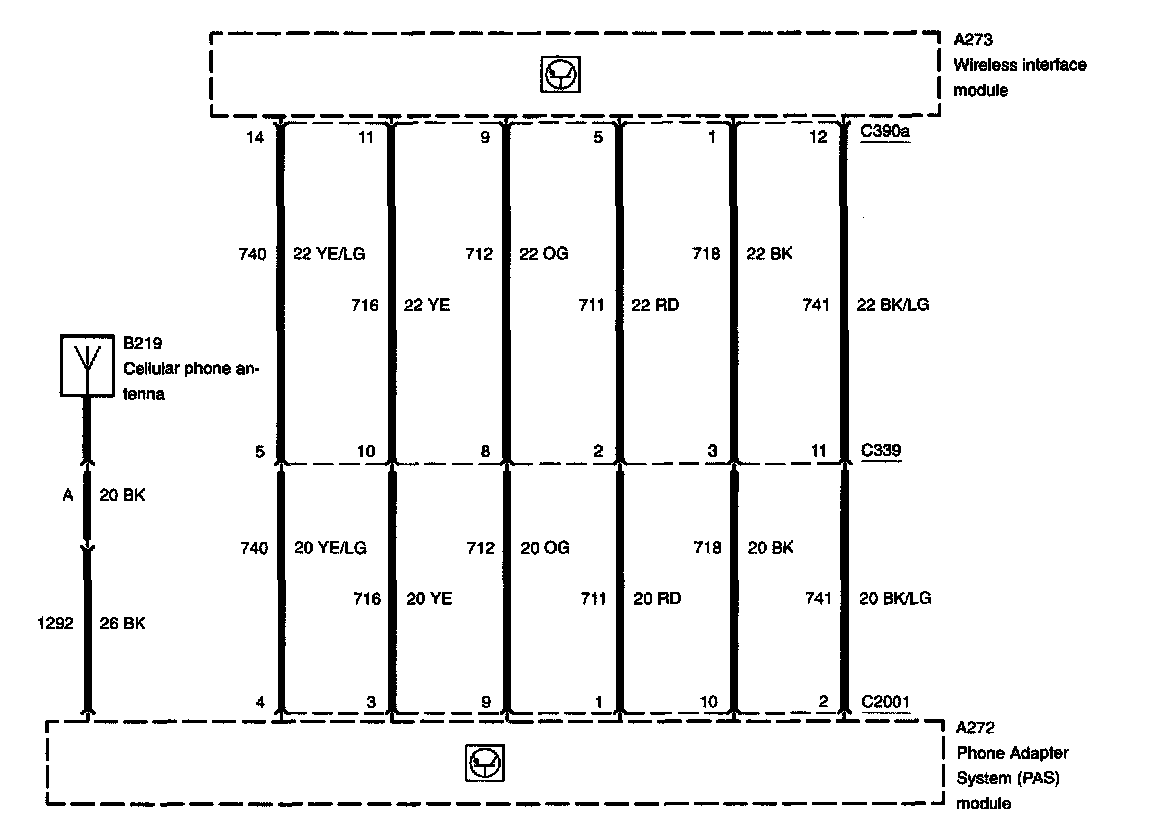

Diagram 419-08-00-1:

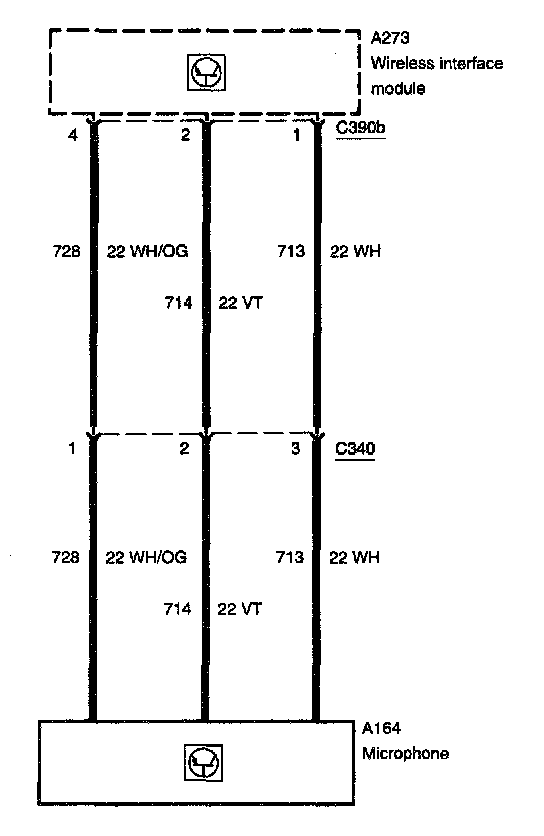

Diagram 419-08-00-2:

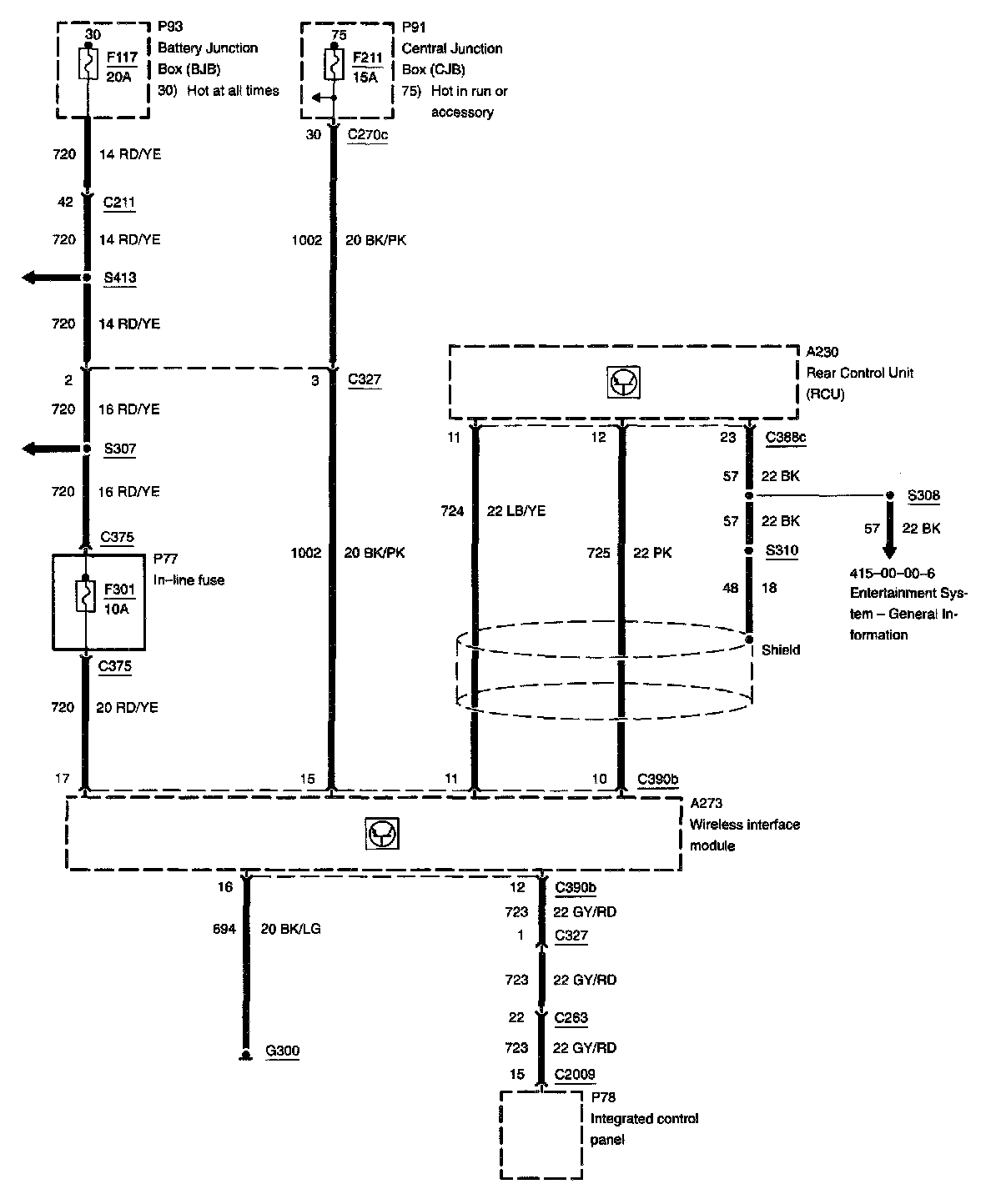

Diagram 419-08-00-3:

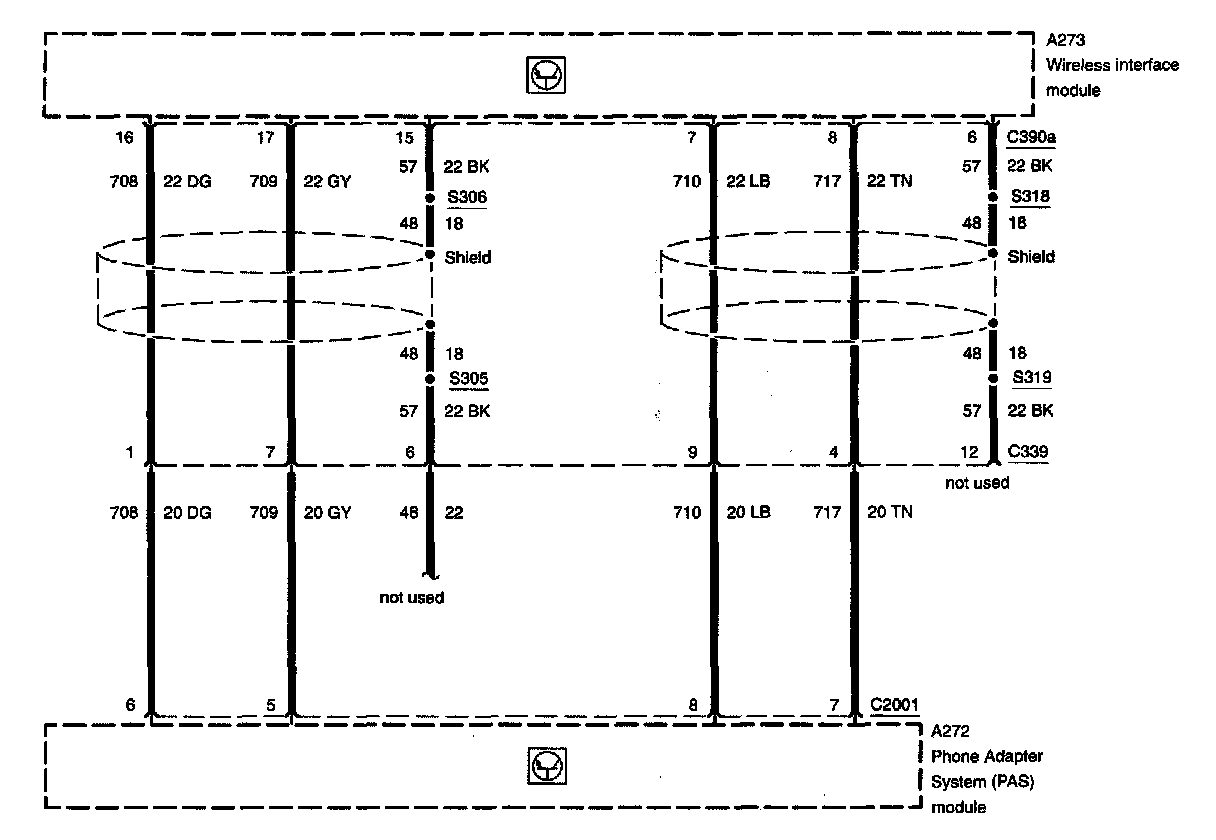

Diagram 419-08-00-4:
RELATED DIAGRAMS
Diagram 415-00-00-6:
