Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Active
>>
Sedan
Sedan
DETAILED DIAGRAMS

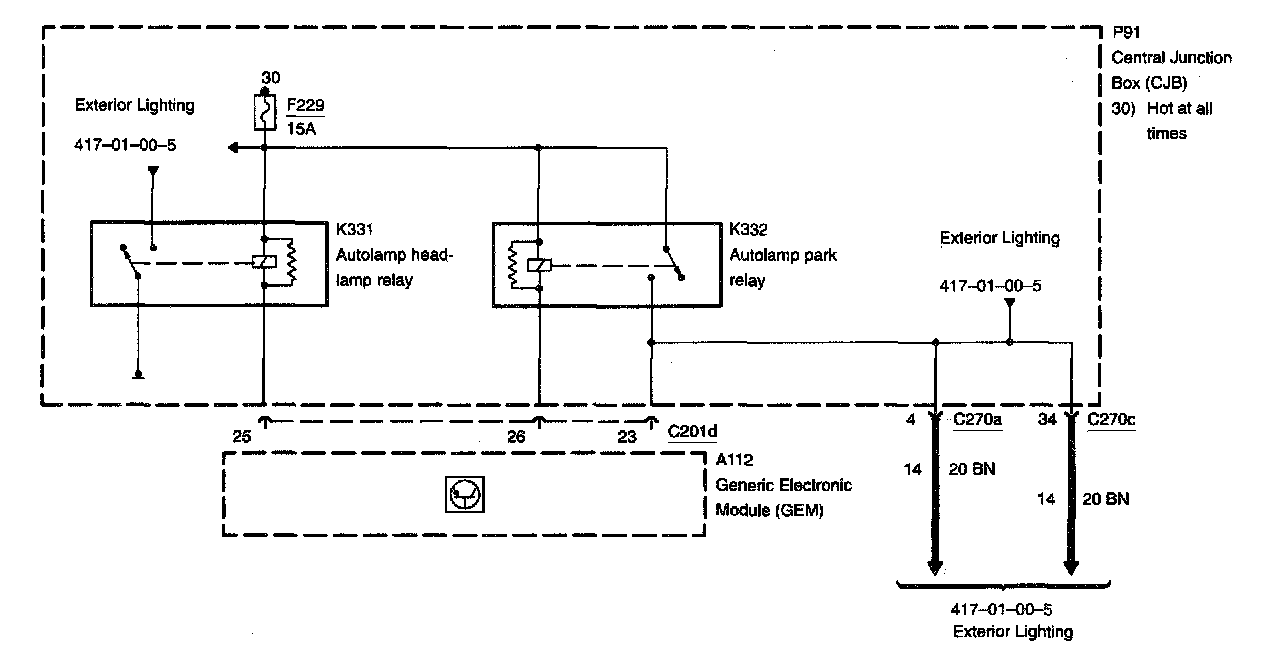

Diagram 419-01a-00-1:

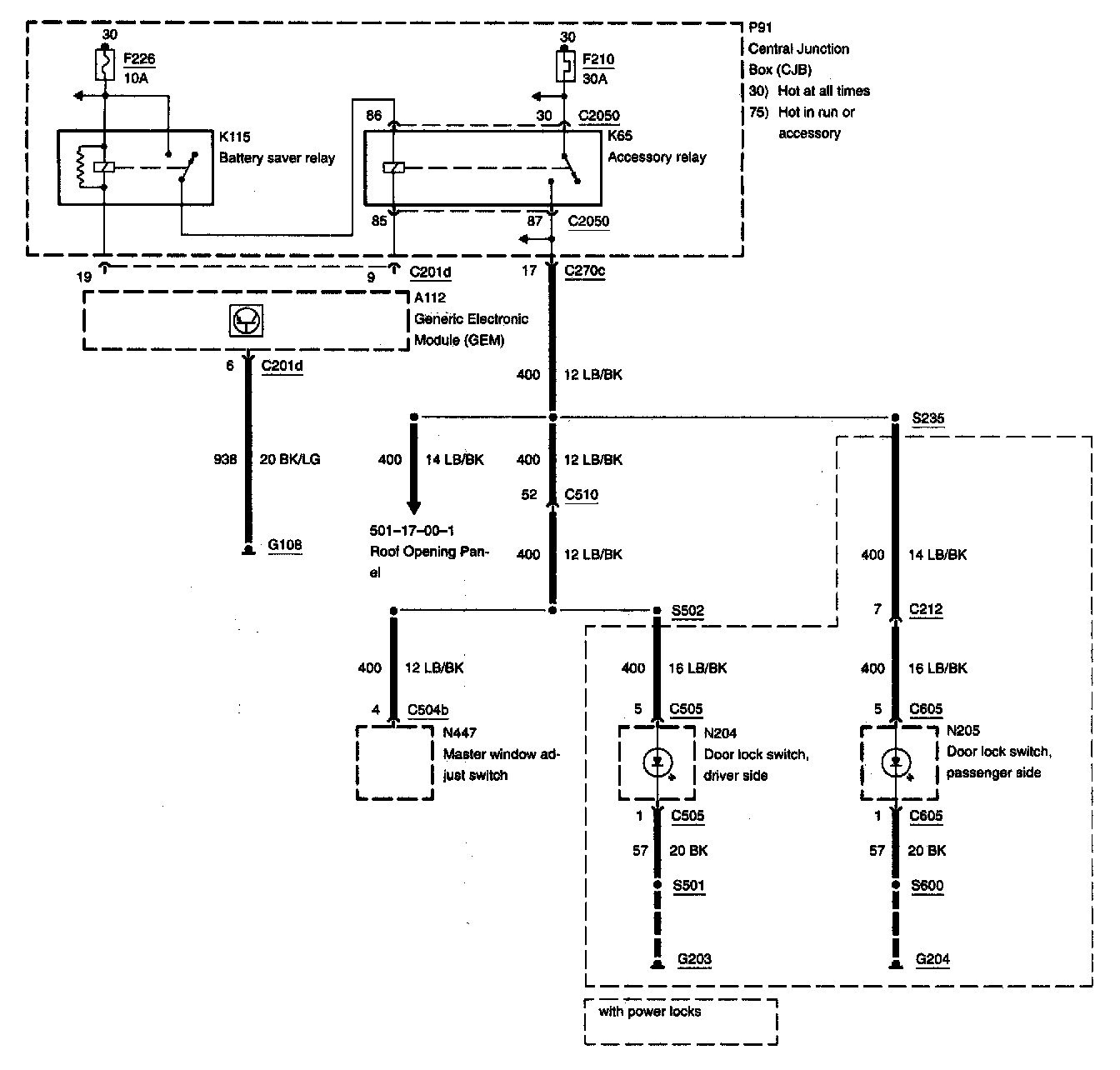

Diagram 419-01a-00-2:

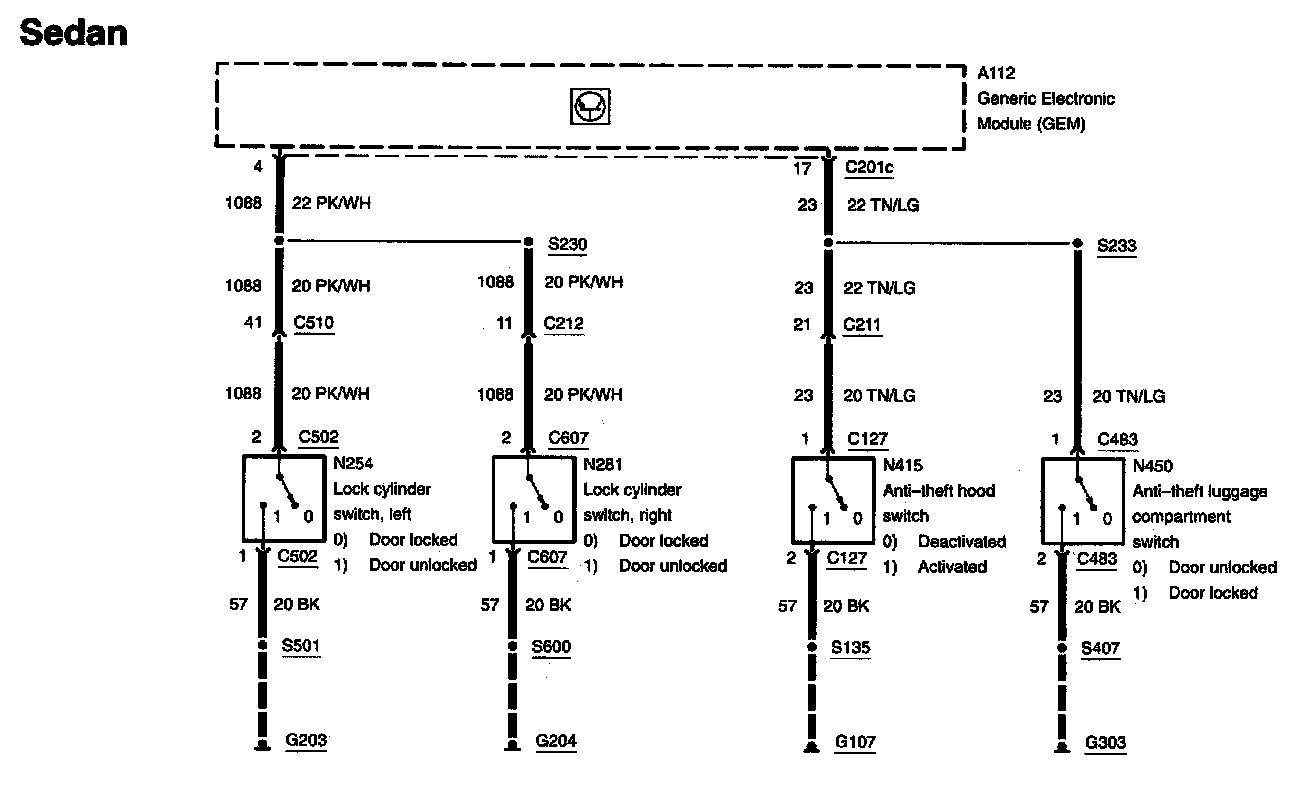

Diagram 419-01a-00-4:

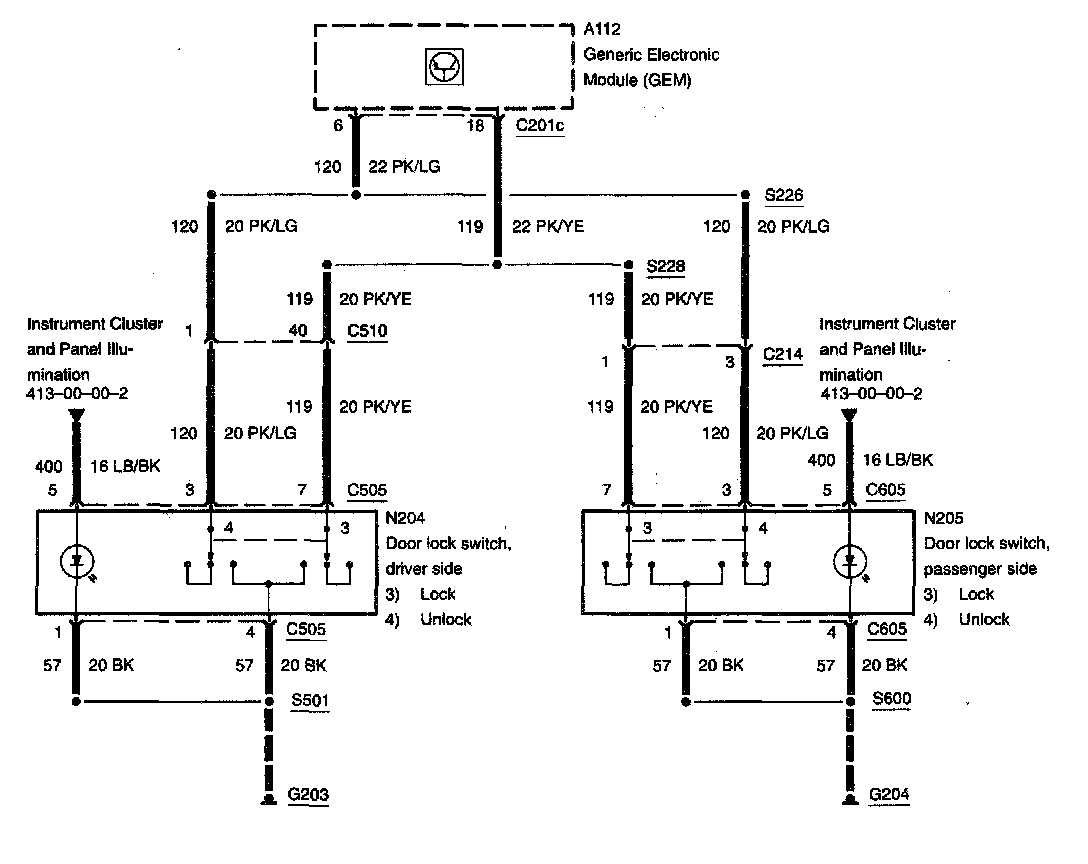

Diagram 419-01a-00-5:

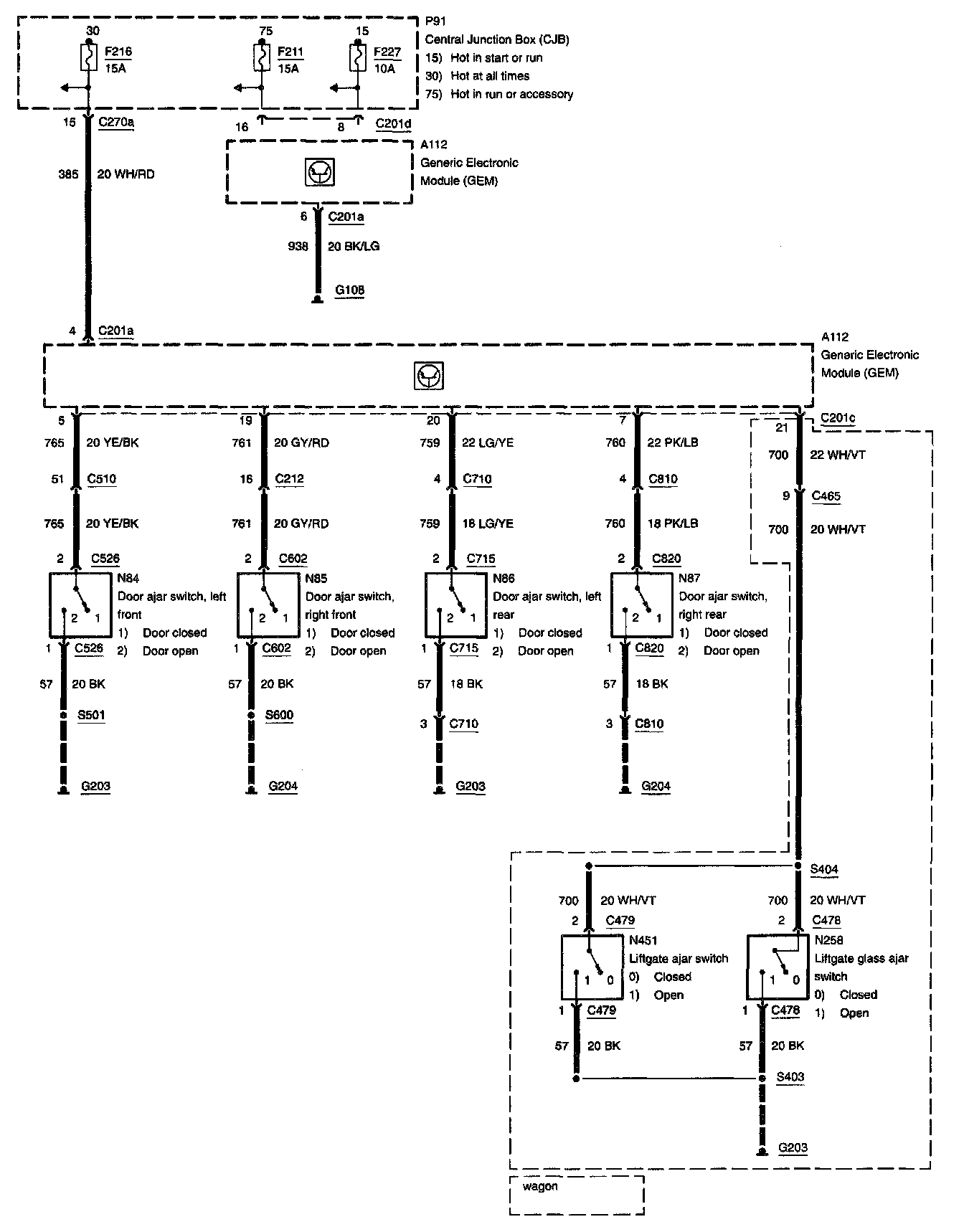

Diagram 419-01a-00-6:
RELATED DIAGRAMS
Diagram 413-00-00-2:

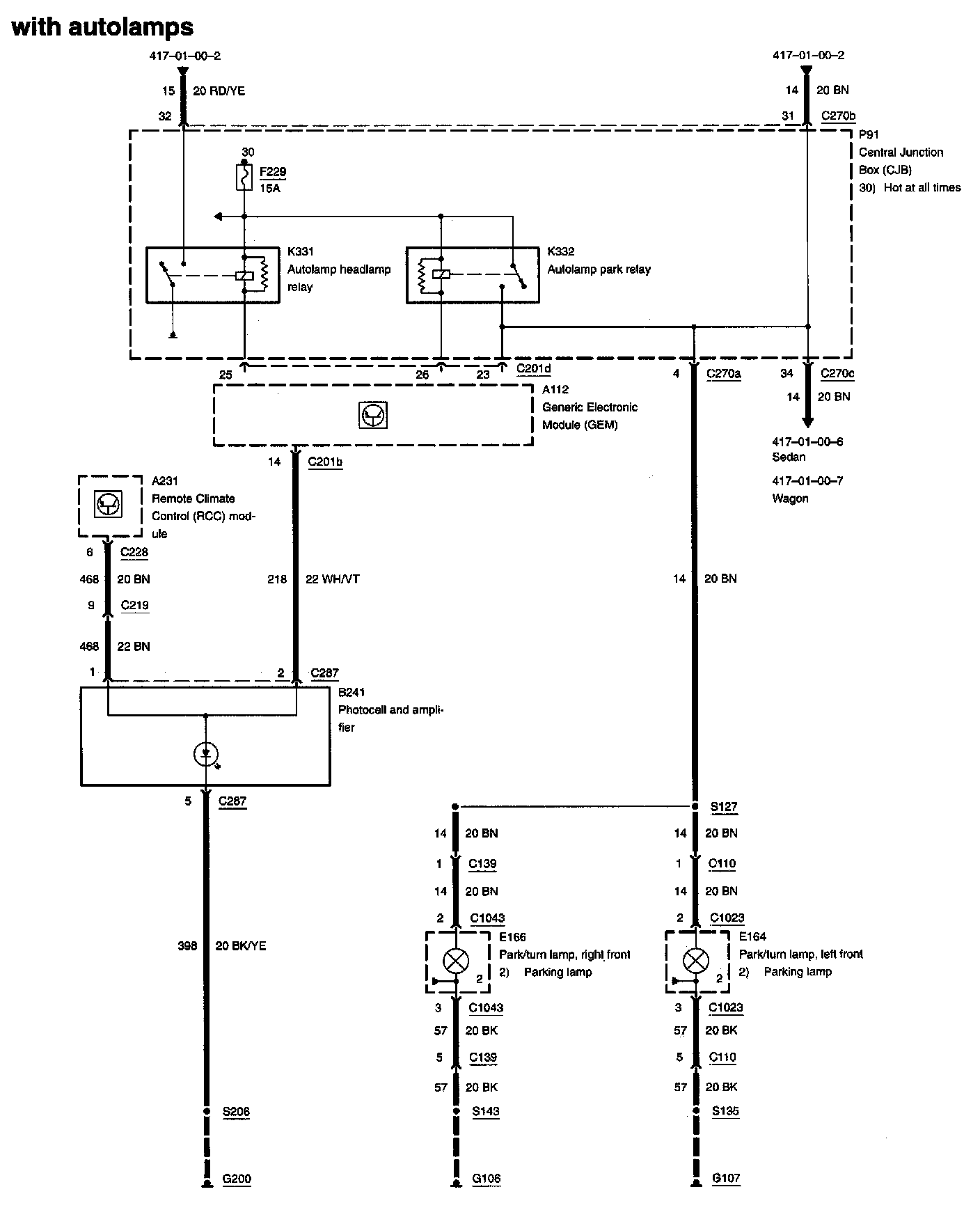

Diagram 417-01-00-5:
