Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test E: Speed Control Is Inoperative - No Flash Codes

Test E: Speed Control Is Inoperative - No Flash Codes

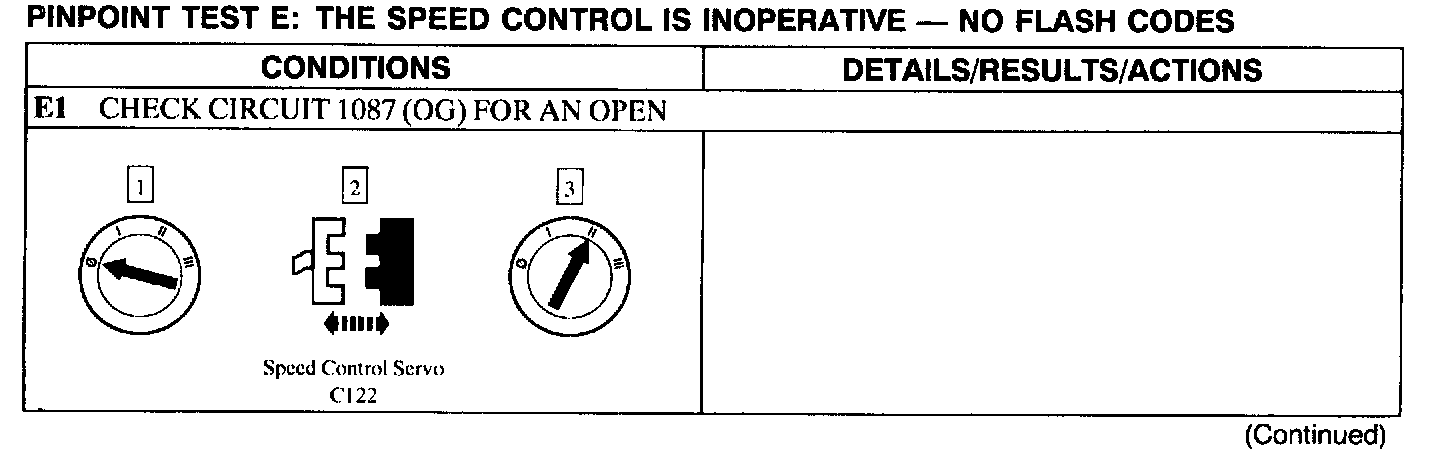

E1:

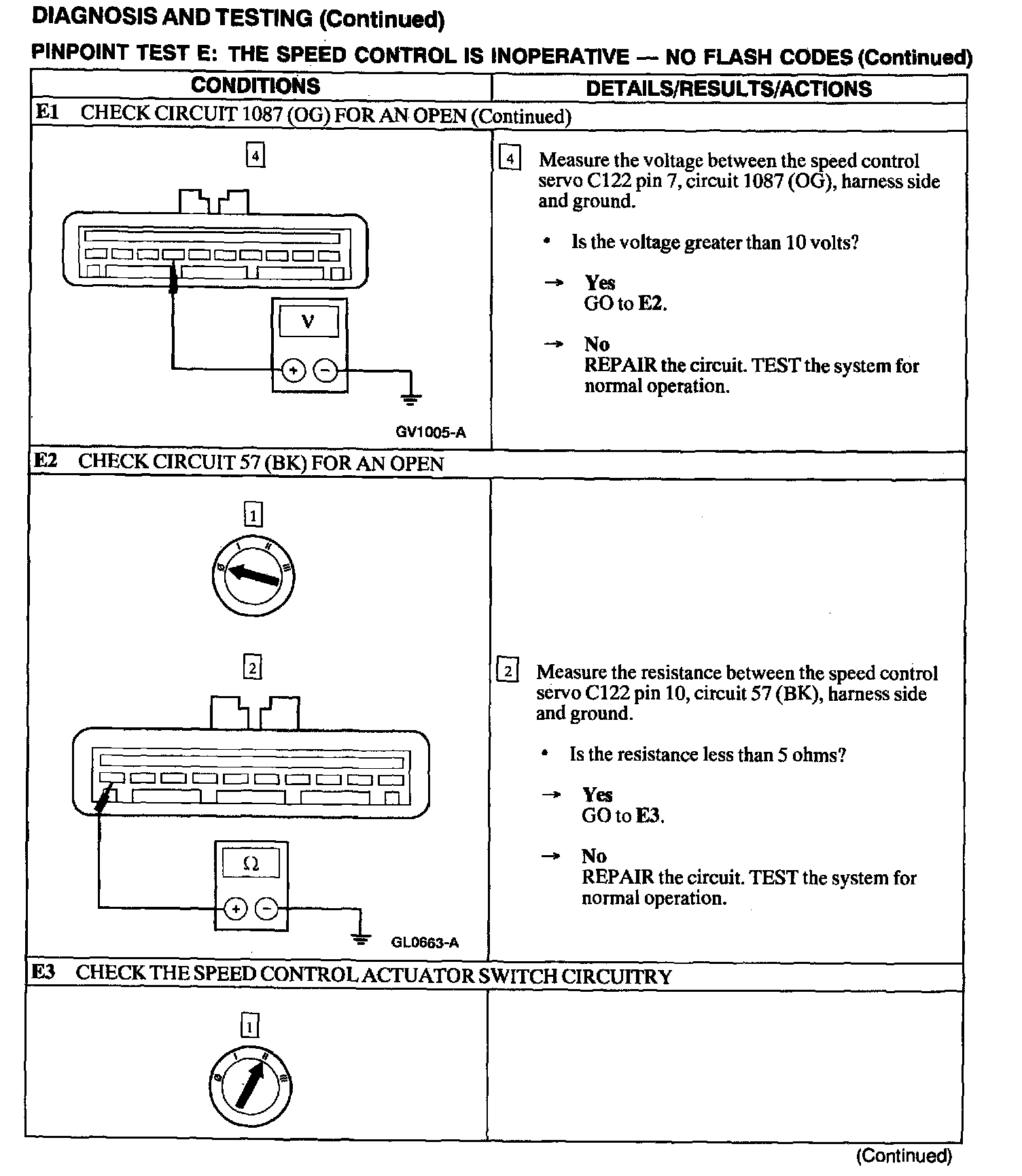

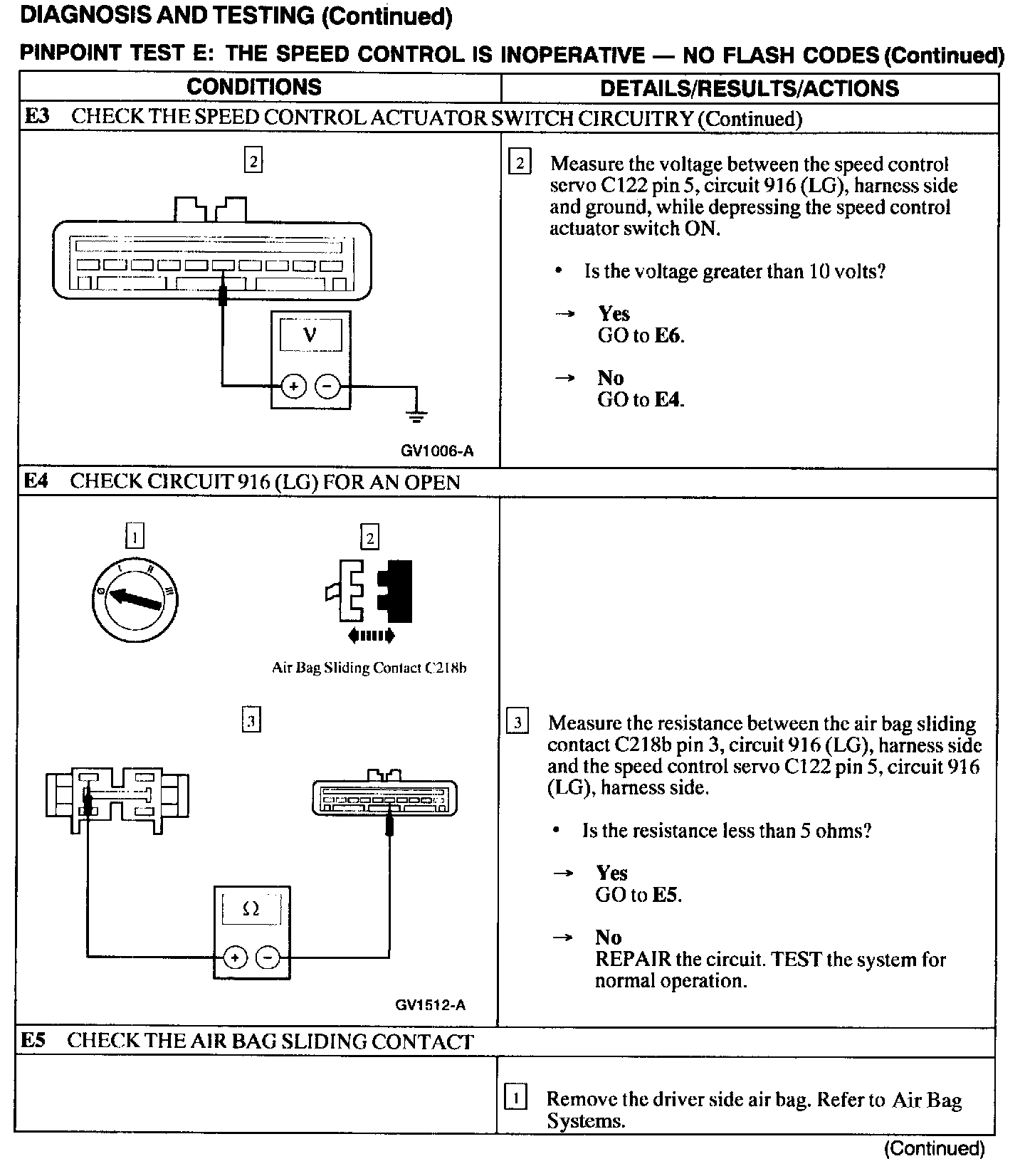

E1 - E3:

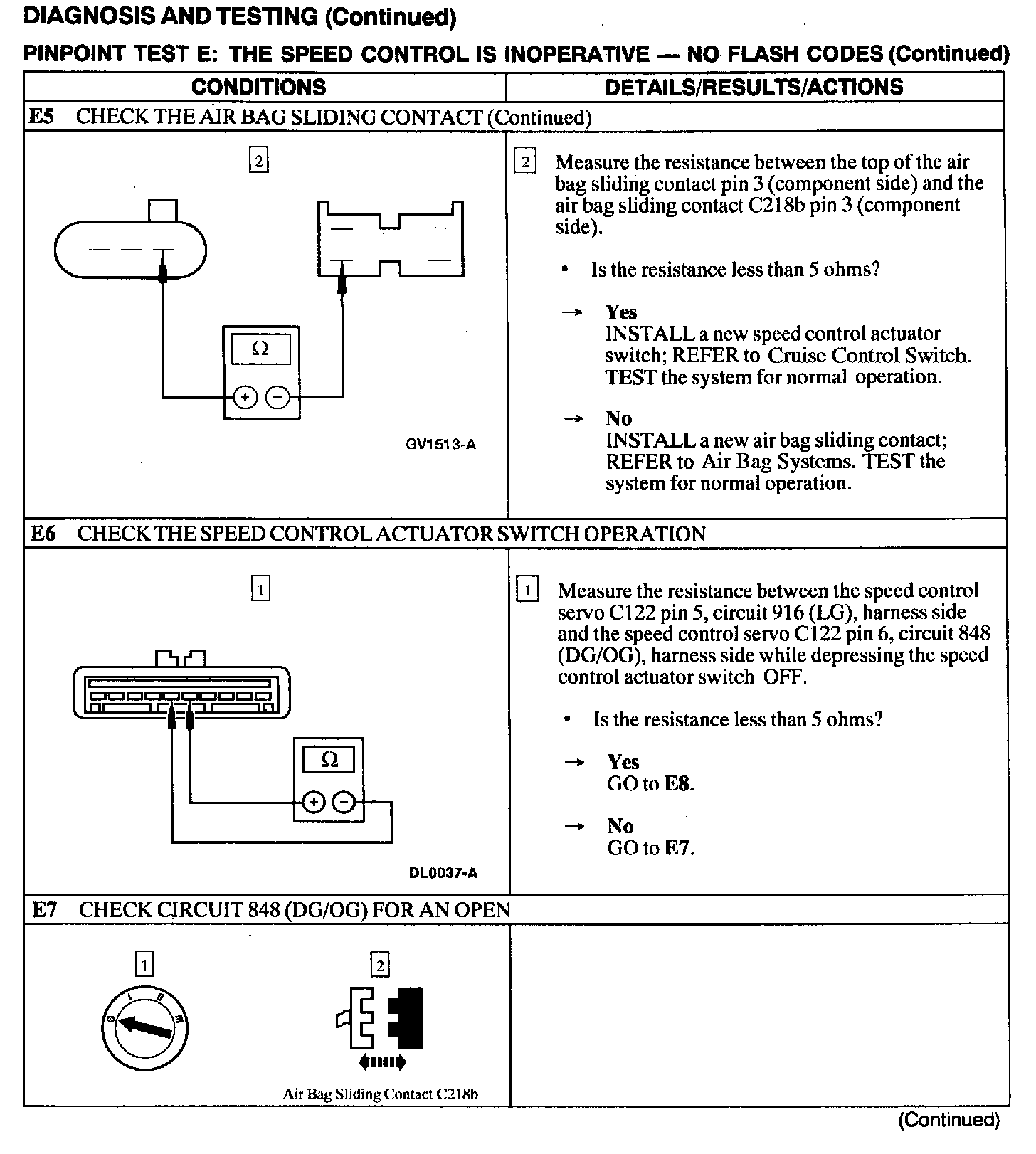

E3 - E5:

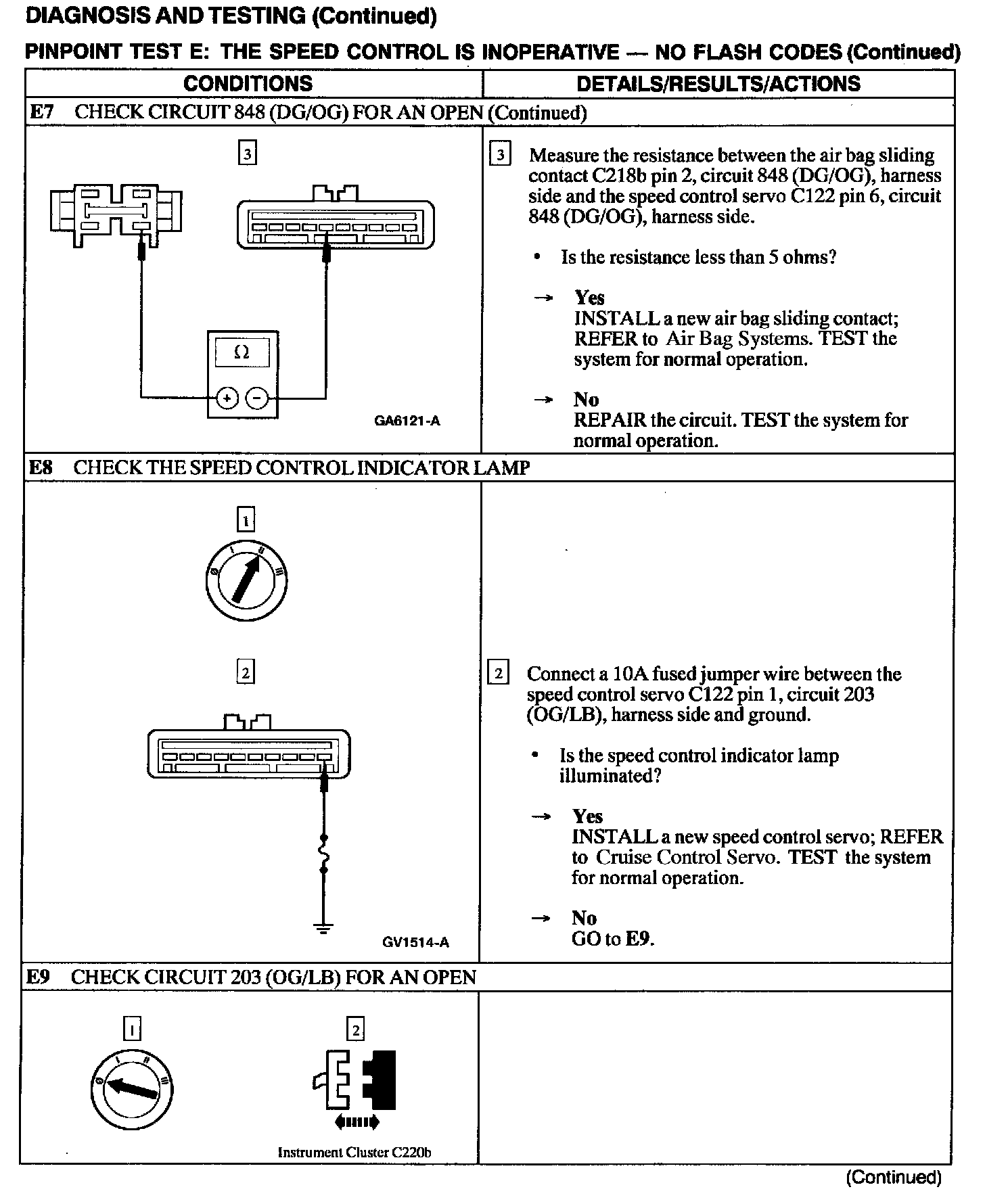

E5 - E7:






E7 - E9:

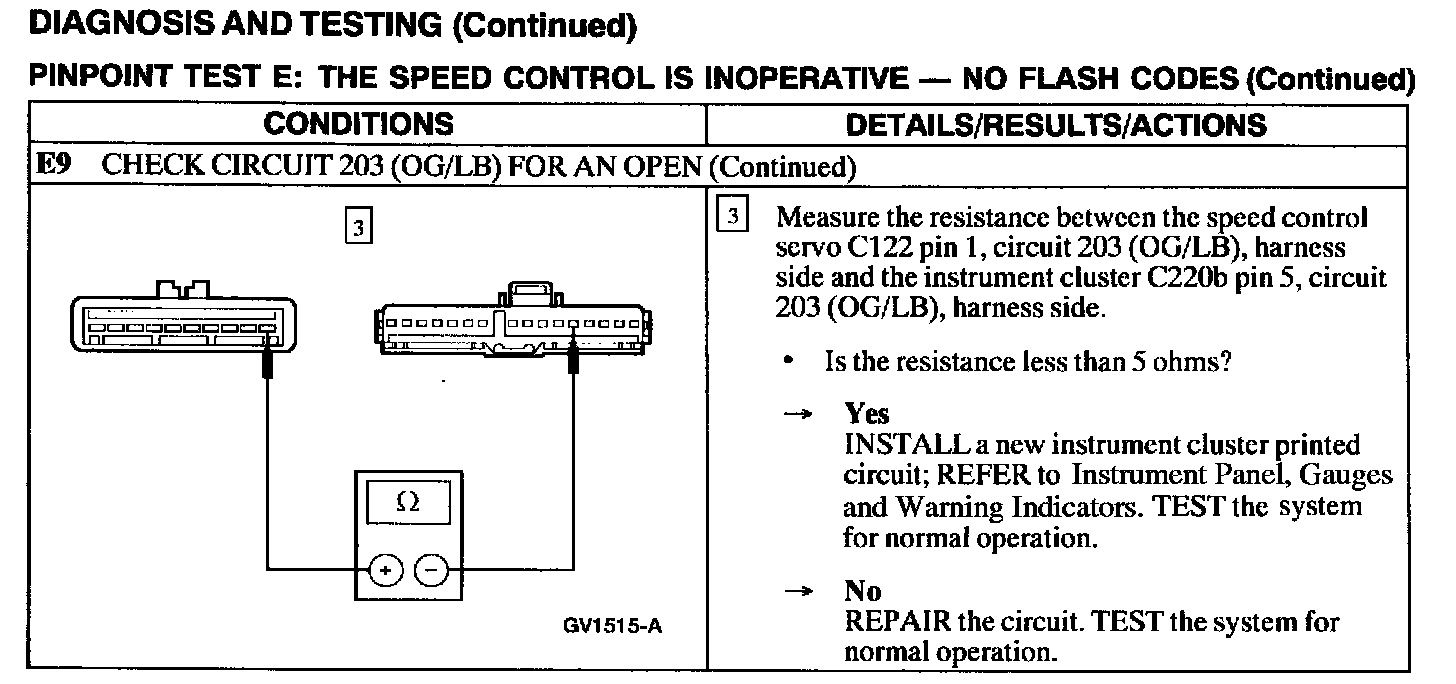

E9:
