Test E: Adjustable Pedal Not Operate Correctly-W/Out Memory
Test E: Adjustable Pedal Not Operate Correctly-W/Out Memory
PINPOINT TEST E: ADJUSTABLE BRAKE PEDAL DOES NOT OPERATE/DOES NOT OPERATE CORRECTLY

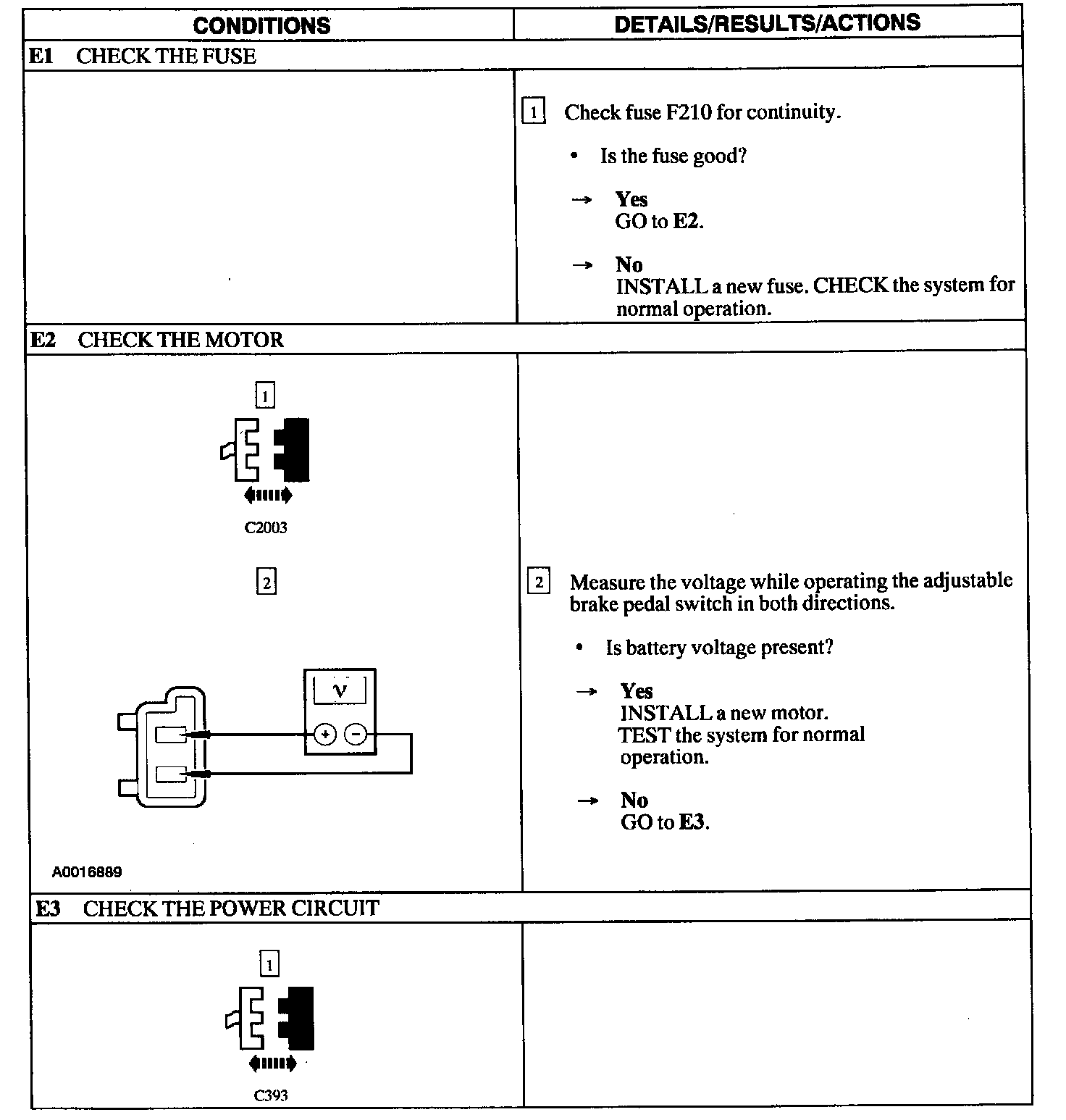

Test E1-E3:

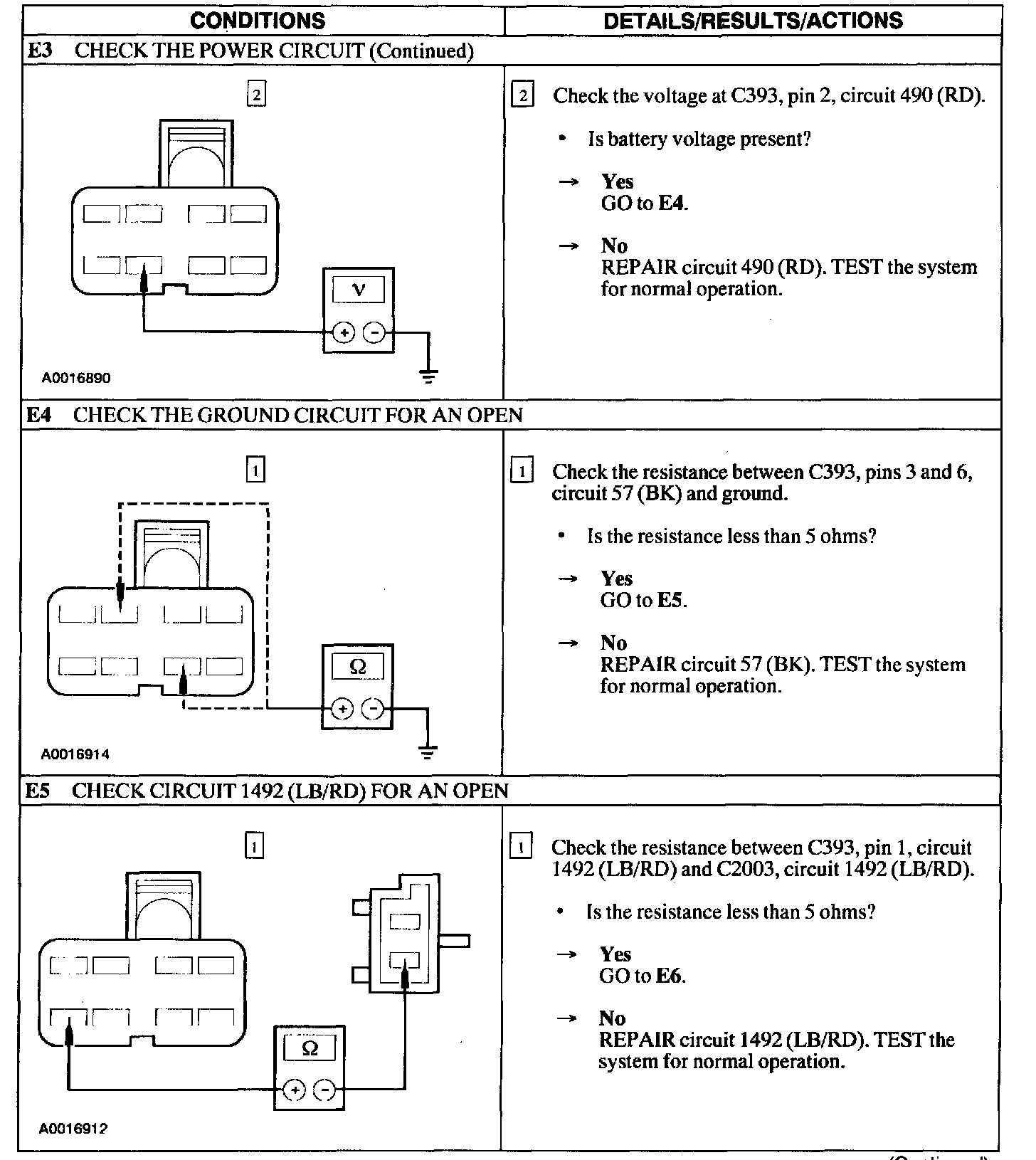

Test E3-E5:

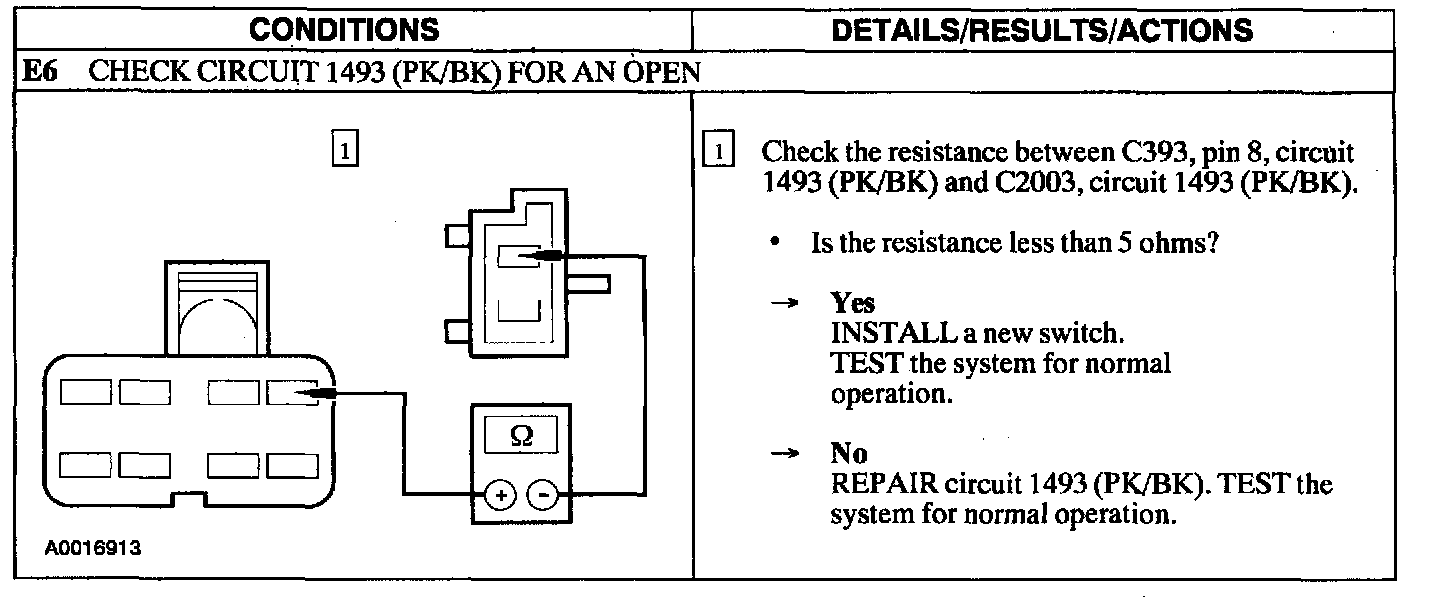

Test E6:
