D: Antilock Brake Sensor Circuit Failure
D: Antilock Brake Sensor Circuit Failure
PINPOINT TEST D: DTC B1484-BRAKE PEDAL INPUT OPEN CIRCUIT

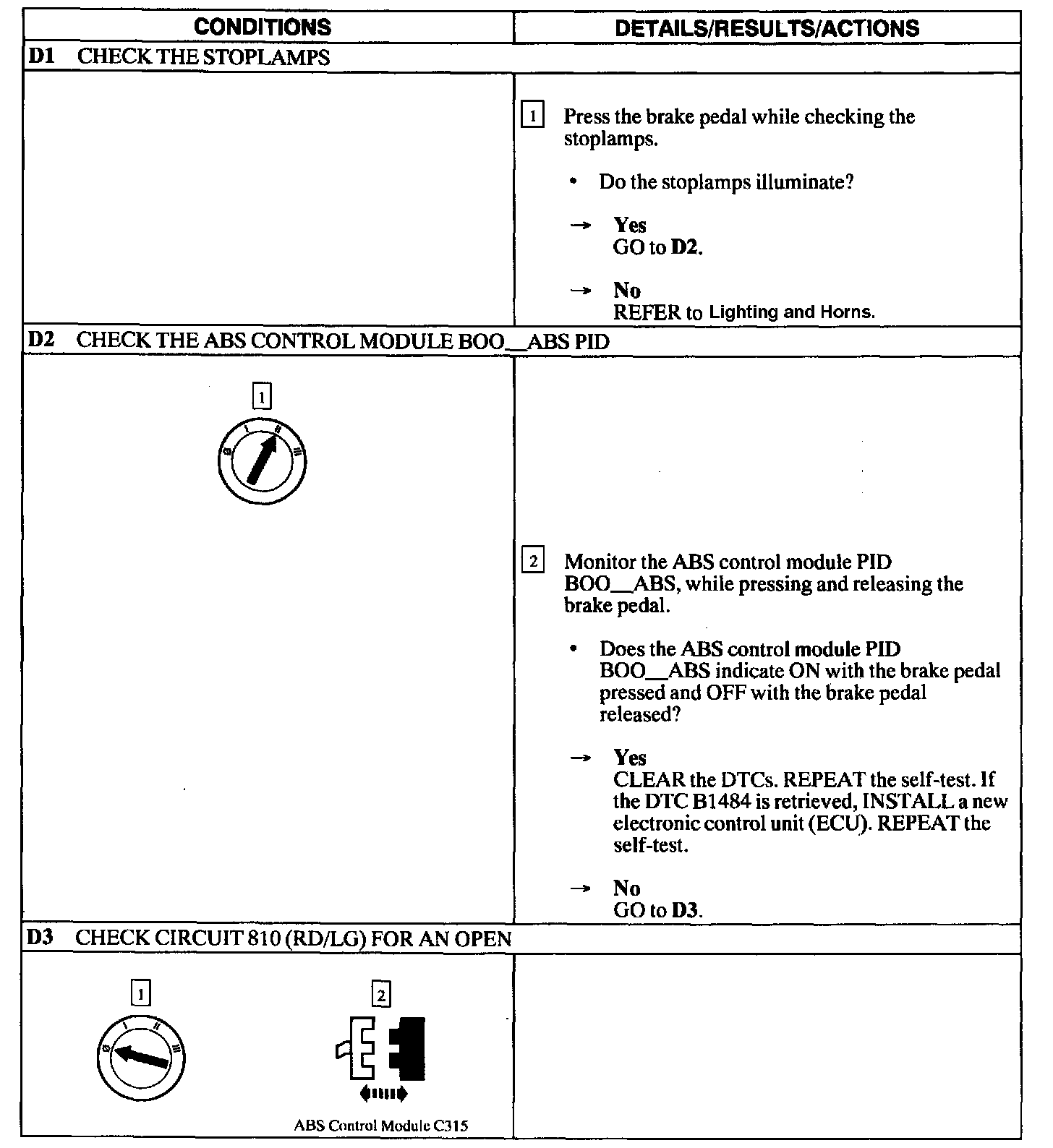

Test D1-D3:

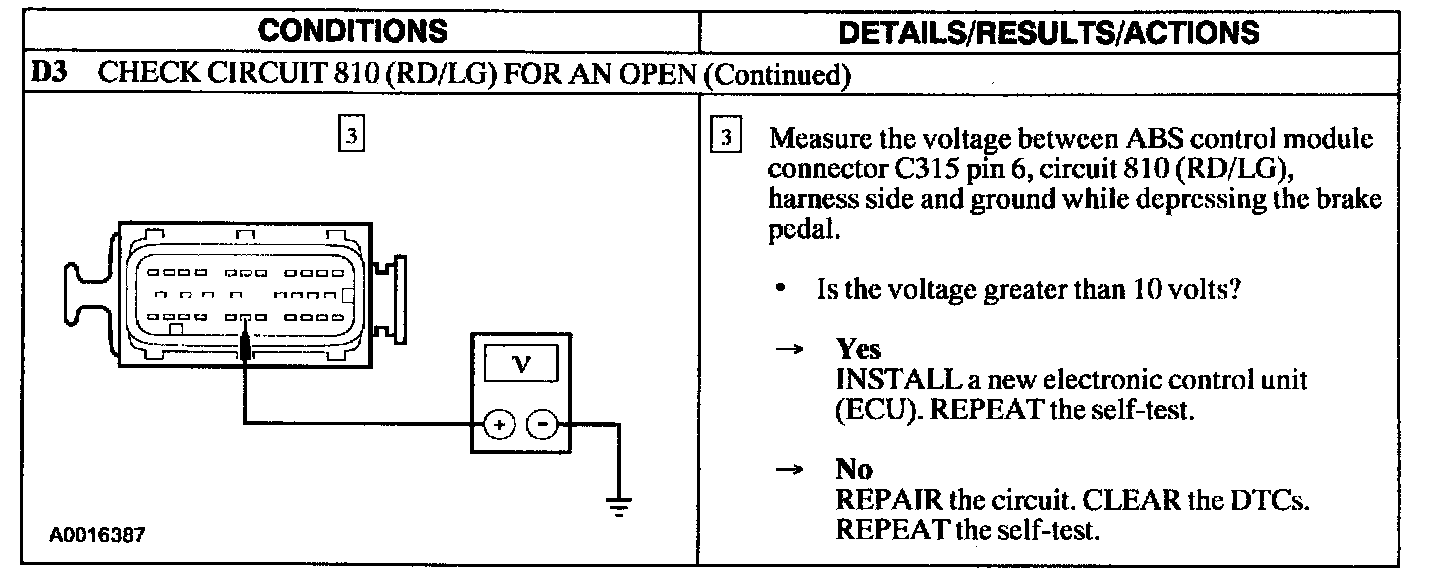

Test D3 Continued:
