Antilock Control - Traction Control
Antilock Control - Traction Control
DETAILED DIAGRAMS

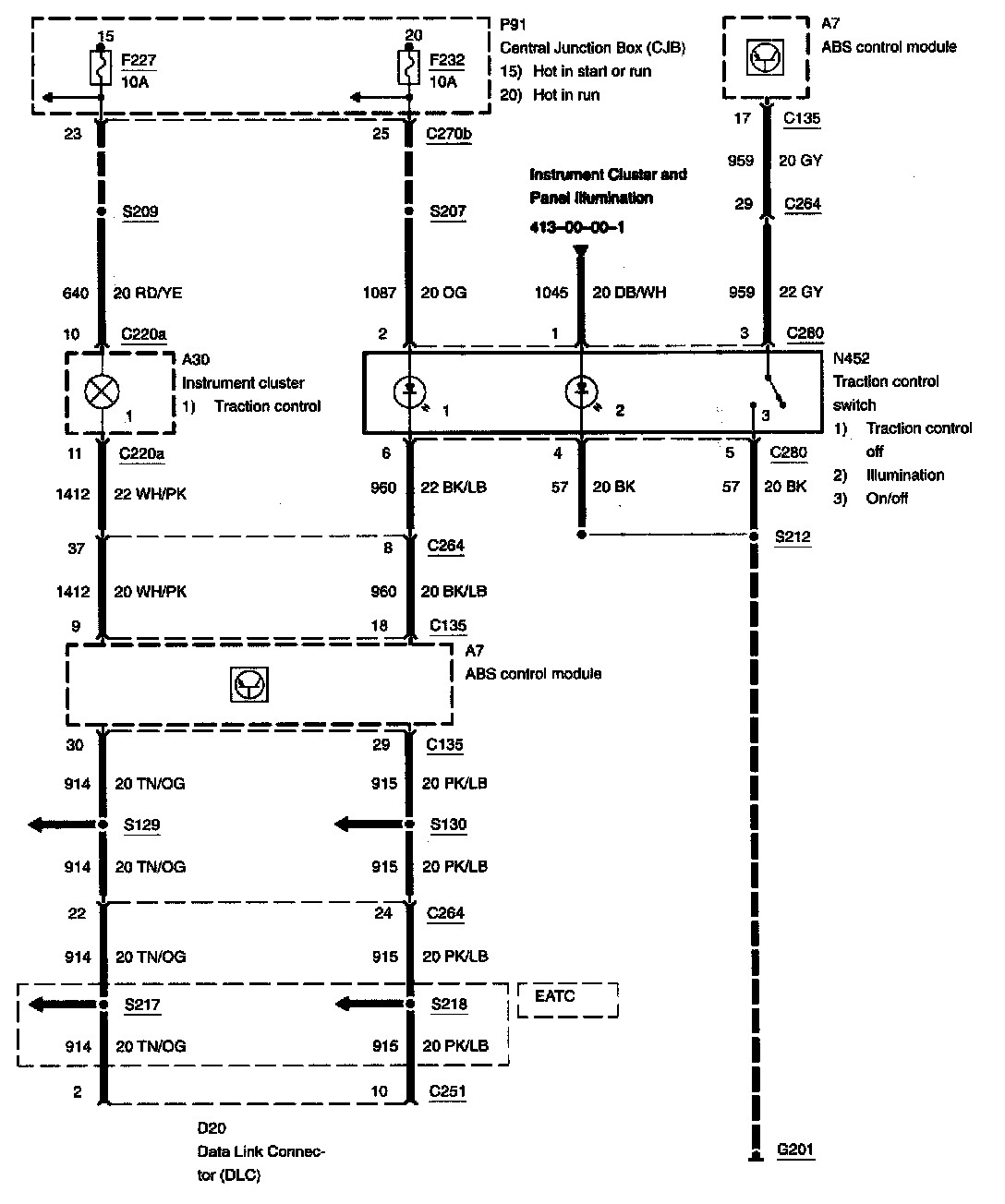

Diagram 206-09b-00-1:

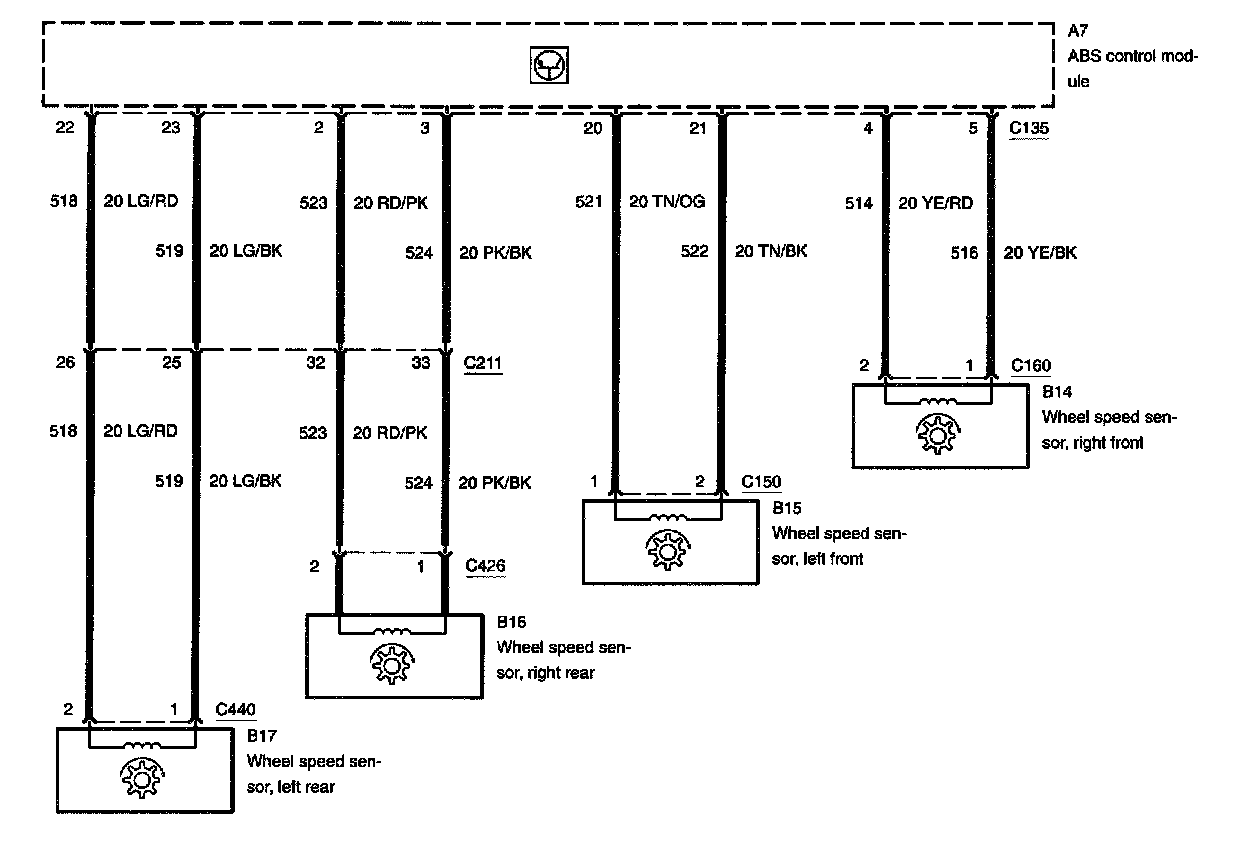

Diagram 206-09b-00-2:
Diagram 206-09b-00-3:
RELATED DIAGRAMS
Diagram 413-00-00-1:
