Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test H: Power Seat Does Not Move Vertically - Drivers Seat, Front Height

Test H: Power Seat Does Not Move Vertically - Drivers Seat, Front Height

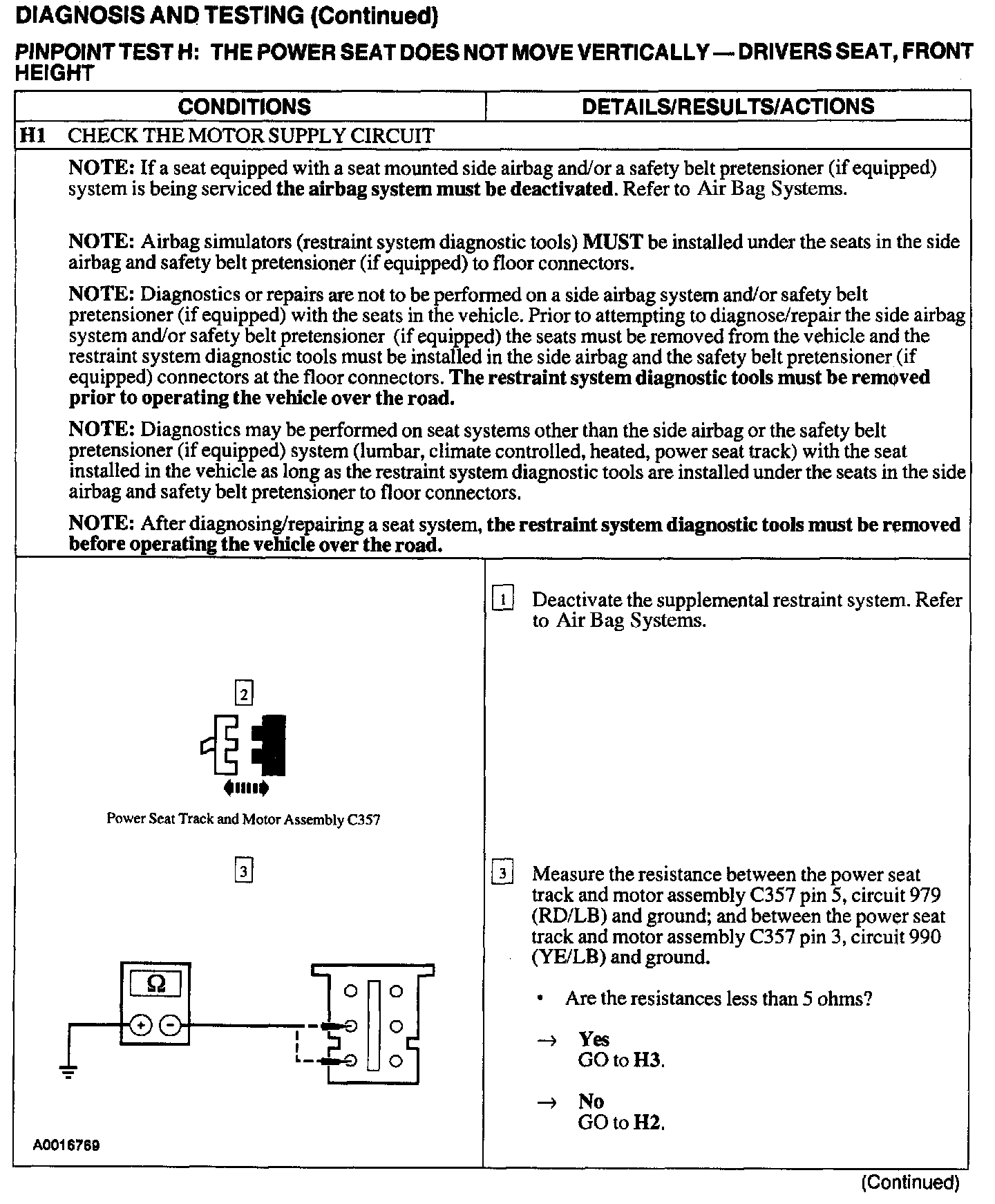

H1:

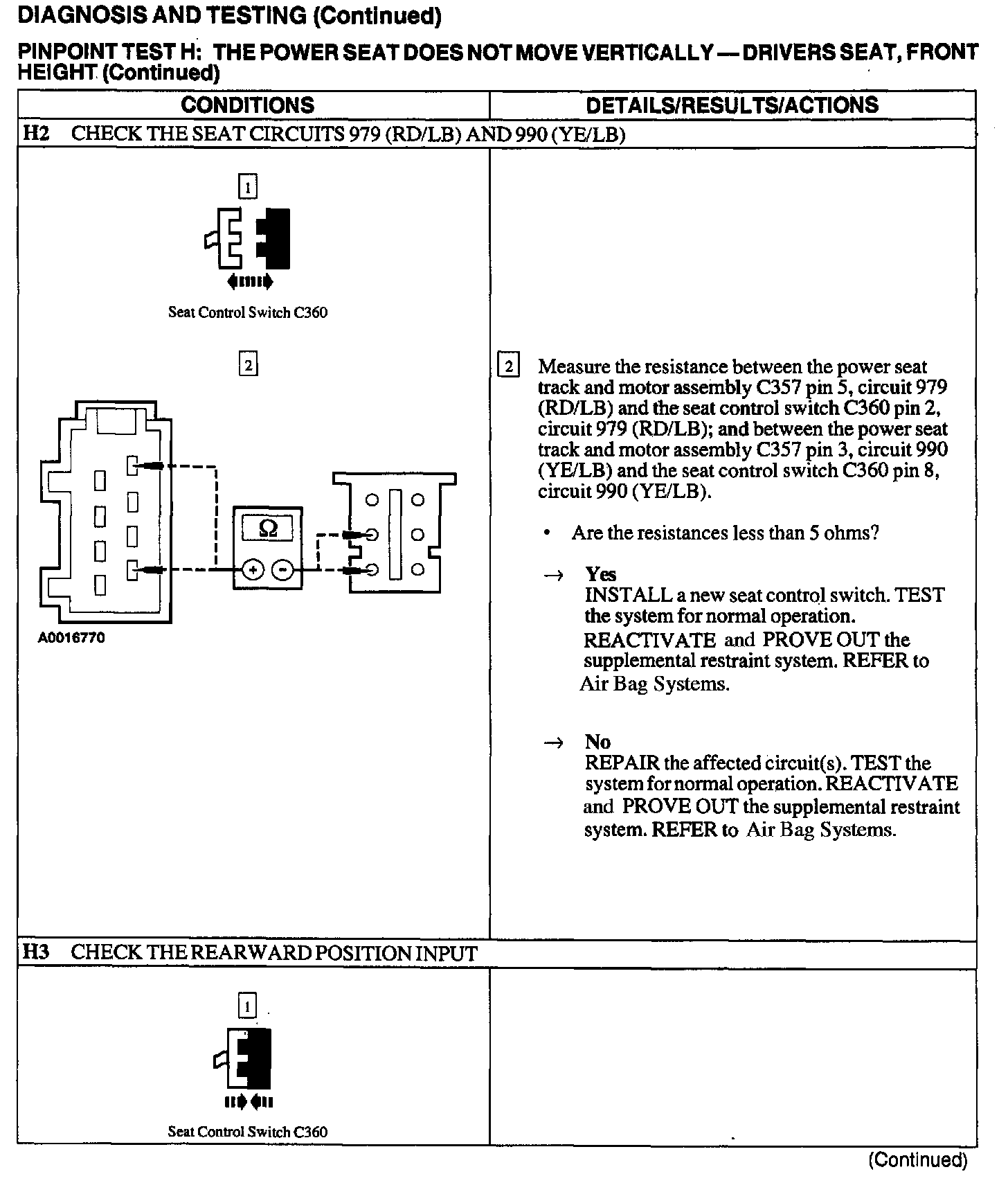

H2 - H3:

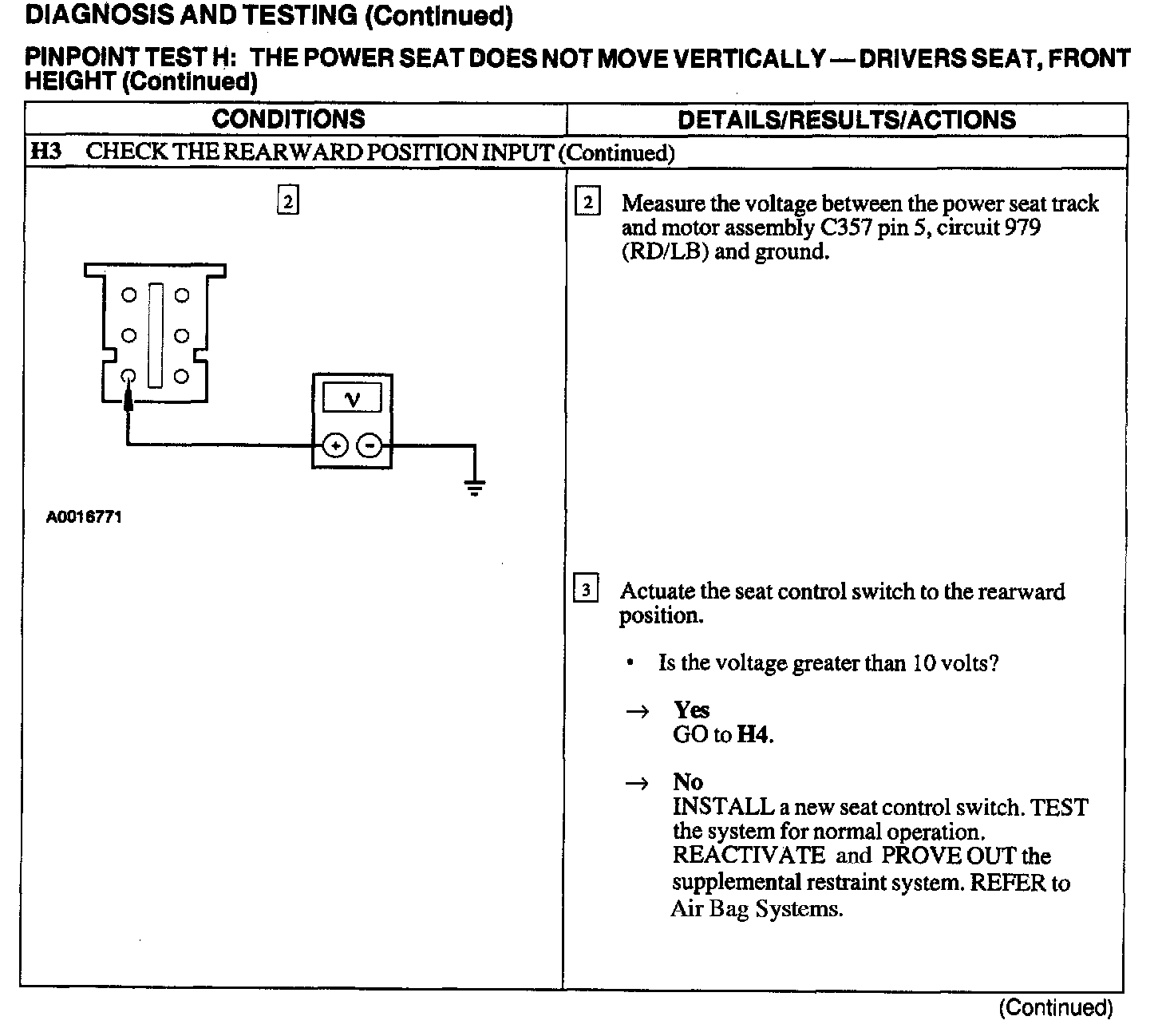

H3:

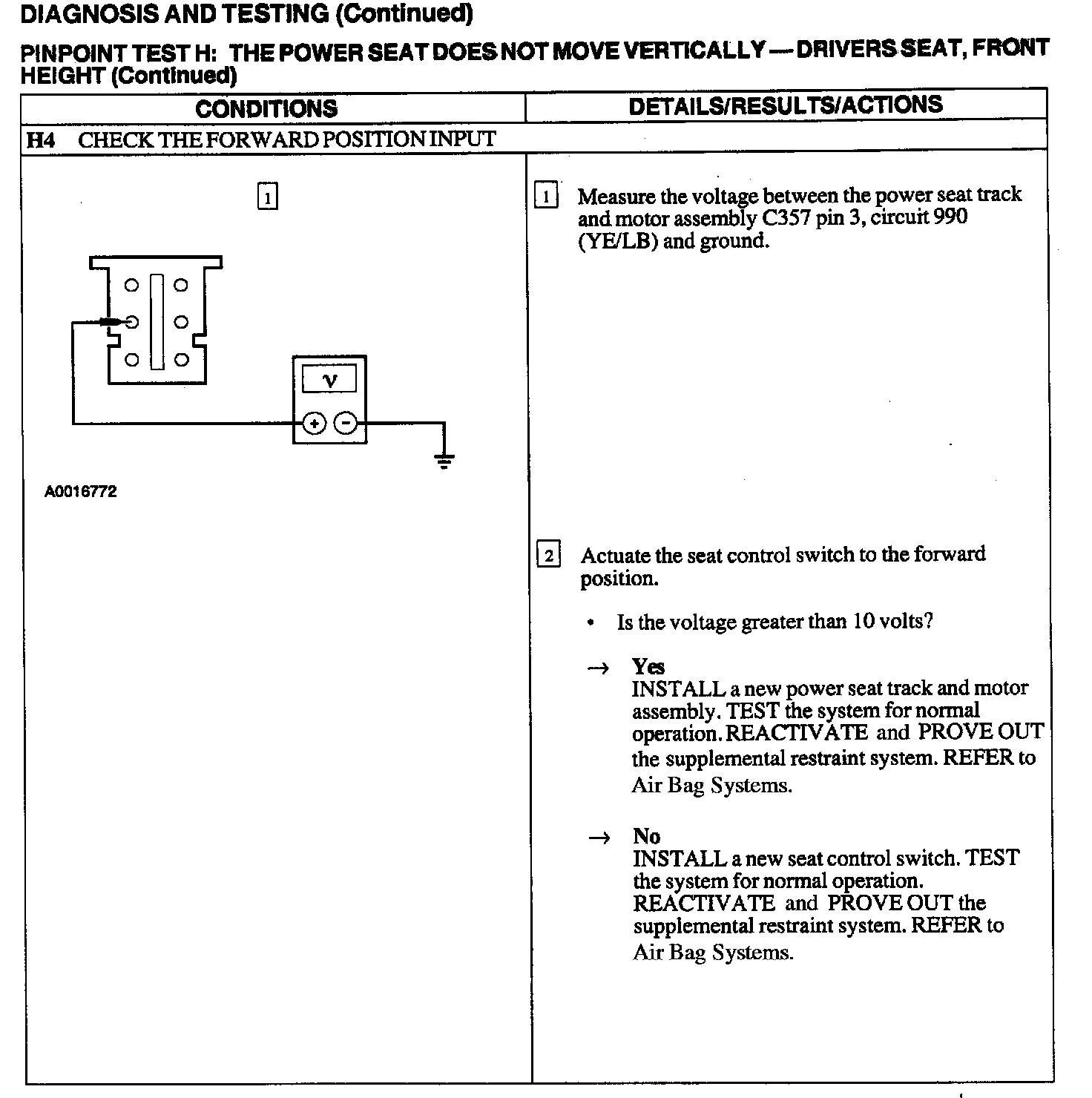

H4:
